LG YMT3130SHB.B1EWPC

Model: YMT3130SHB.B1EWPC

Save Part Not Listed?
product name

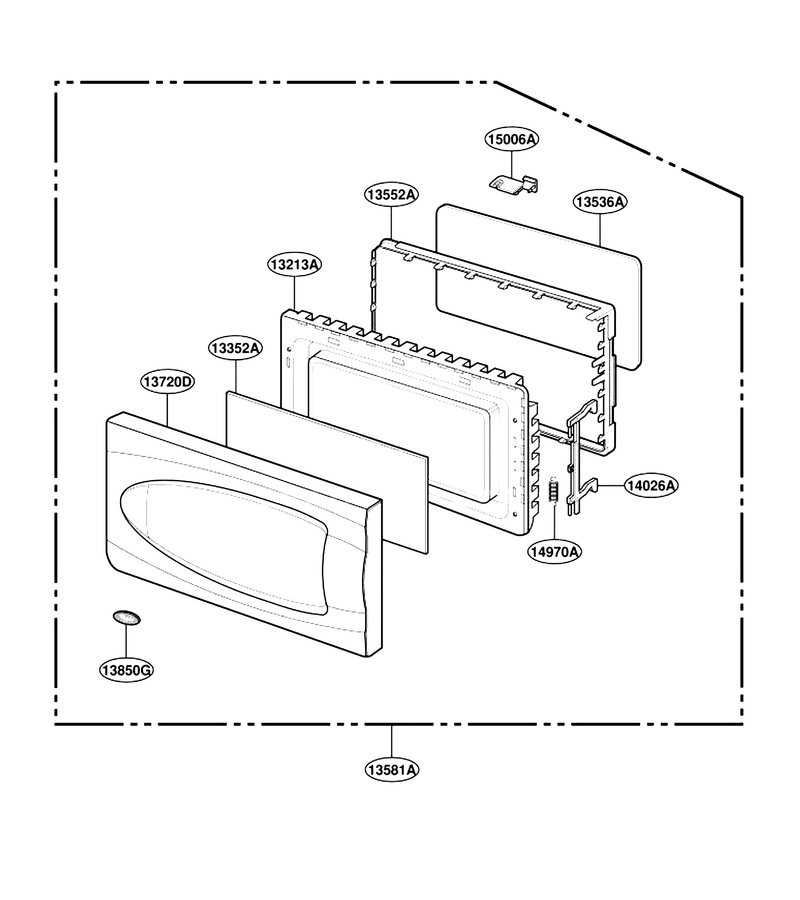

Door Parts

...
...
13213A
Door Frame L-G-3213W1A031B
...
13352A
Screw L-G-3352W2A047A
...
13536A
Seal Tape L-G-3536WRA001M
...
13552A
Cover L-G-3552W1A028A
...
13581A
Door Assy L-G-3581W1A188D
...
13720D
Panel,door L-G-3720W0D124B
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Cap L-G-5006W3A010A

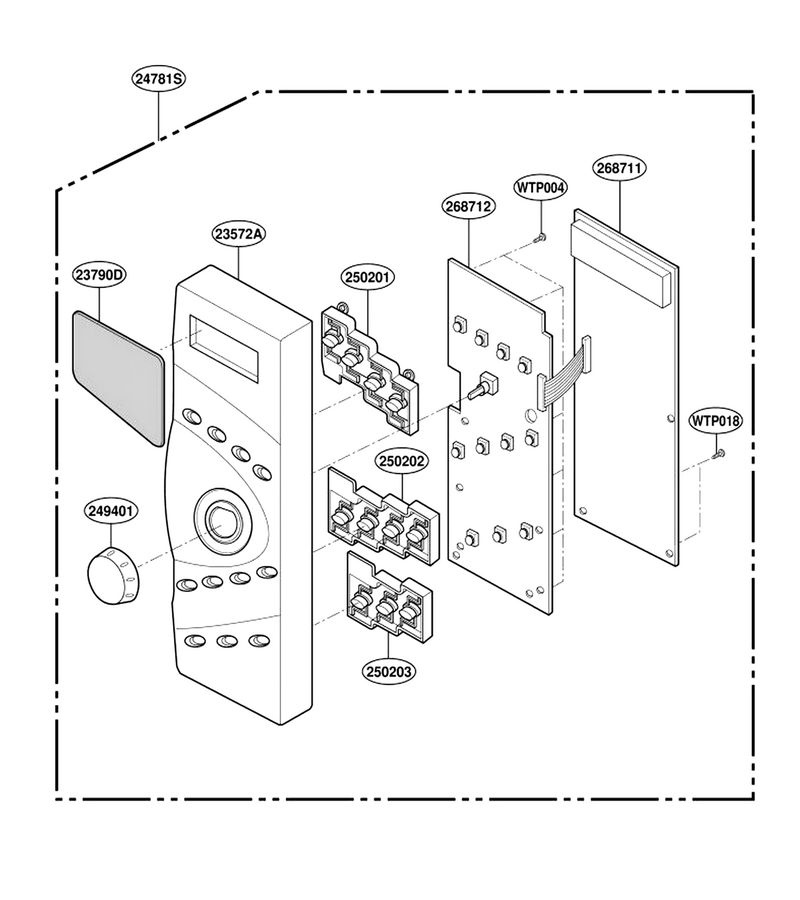

Control Panel Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
WTP018
Screw L-G-1TPL0402818
...
23572A
Control Panel L-G-3572W0A144B
...
23790D
Window,display L-G-3790W2D020A
...
24781S
Controller Assy,[semi Micom] L-G-4781W1S048P
...
249401
Knob L-G-4940W2A004B
...
250201
Button L-G-5020W2A097B
...
250202
Button L-G-5020W2A098B
...
250203
Button L-G-5020W2A099B
...
268711
Pcb Assembly,sub L-G-6871W2S125M
...
268712
Pcb Assembly,sub L-G-6871W2S116B

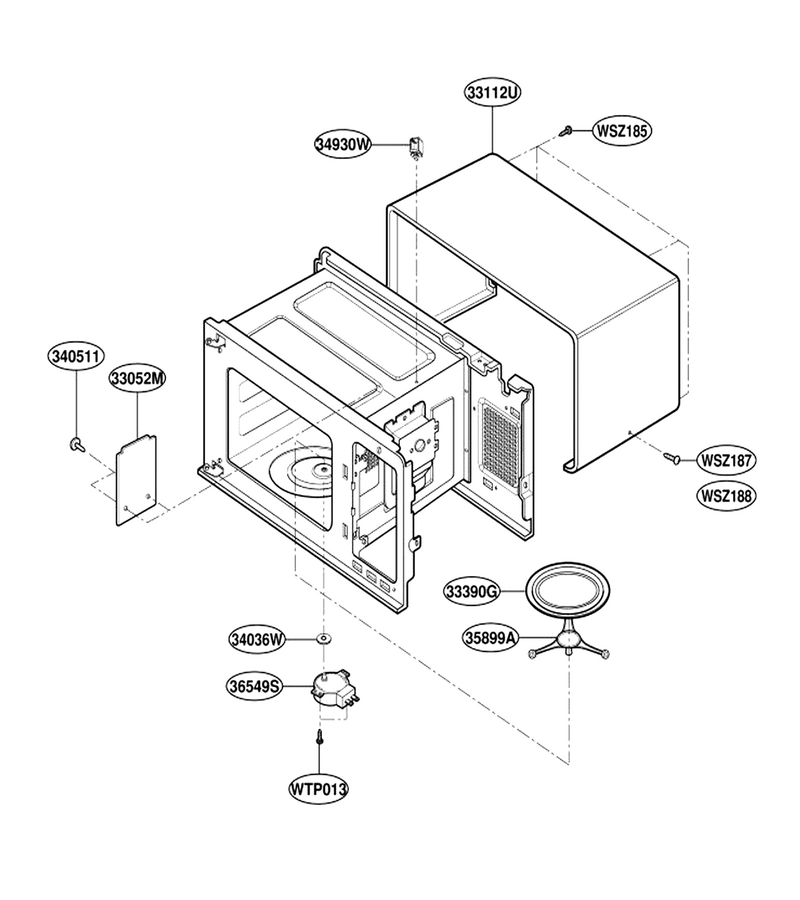

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
33052M
Microwave/hood Cover L-G-3052W3M008B
...
33112U
Case,u Bending L-G-3112W0U006X
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004A
...
34036W
Water Seal L-G-4036W3W001A
...
34930W
Holder L-G-4930W3B029A
...
35899A
Microwave Turntable Tray Support L-G-5889W2A011B
...
36549S
Motor, Ac Synchronous L-G-6549W1S004C
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

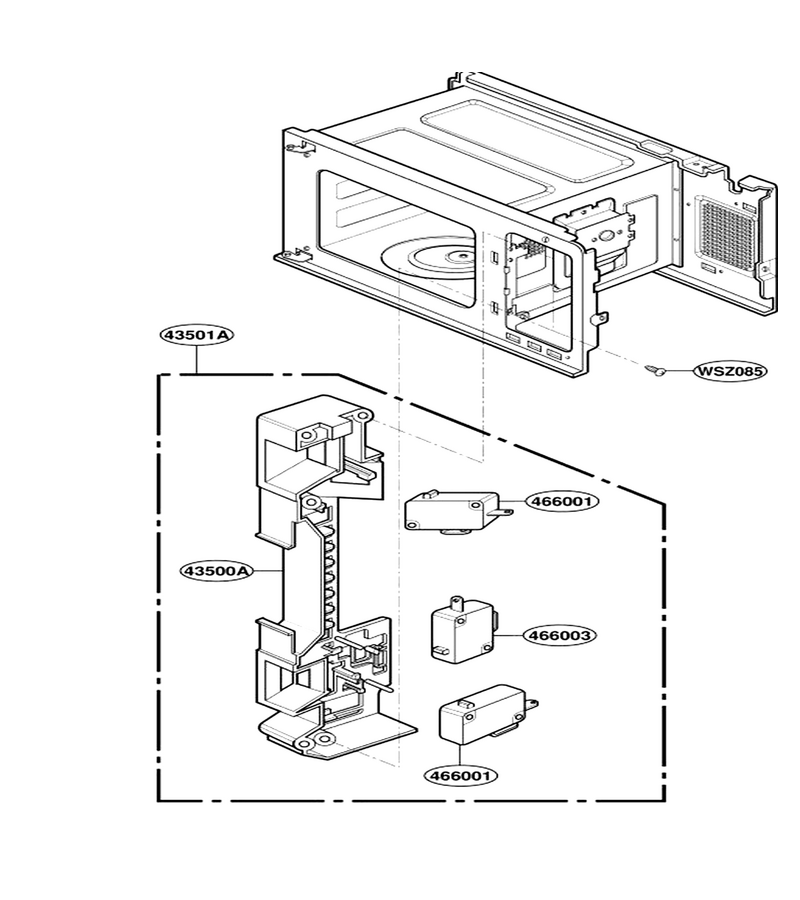

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A005A
...
43501A
Latch Board L-G-3501W1A016F
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

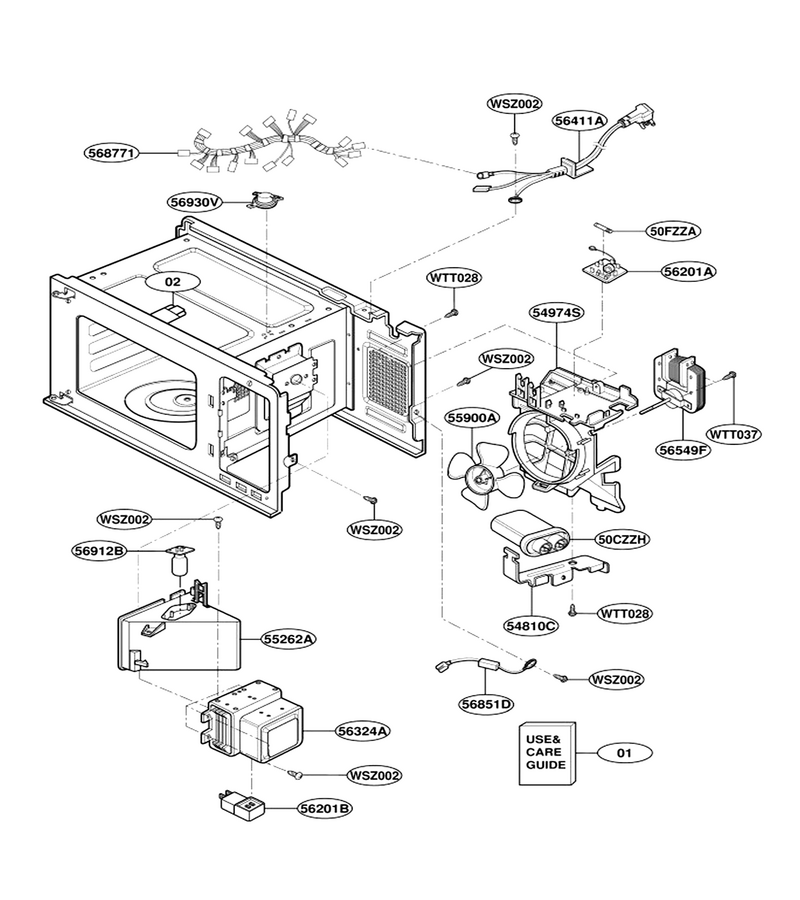

Interior Parts

...
...
*01
Manual,[owners]mwo L-G-3828W5A1148
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H003H
...
50FZZA
Fuse[all] L-G-3B74133K
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55262A
Duct L-G-5262W2A043B
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56201A
Microwave Noise Filter L-G-2B72130F
...
56201B
Choke Filter L-G-6201W2A019A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-6411W2A002B
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
568771
Harness,single L-G-6877W1A186C

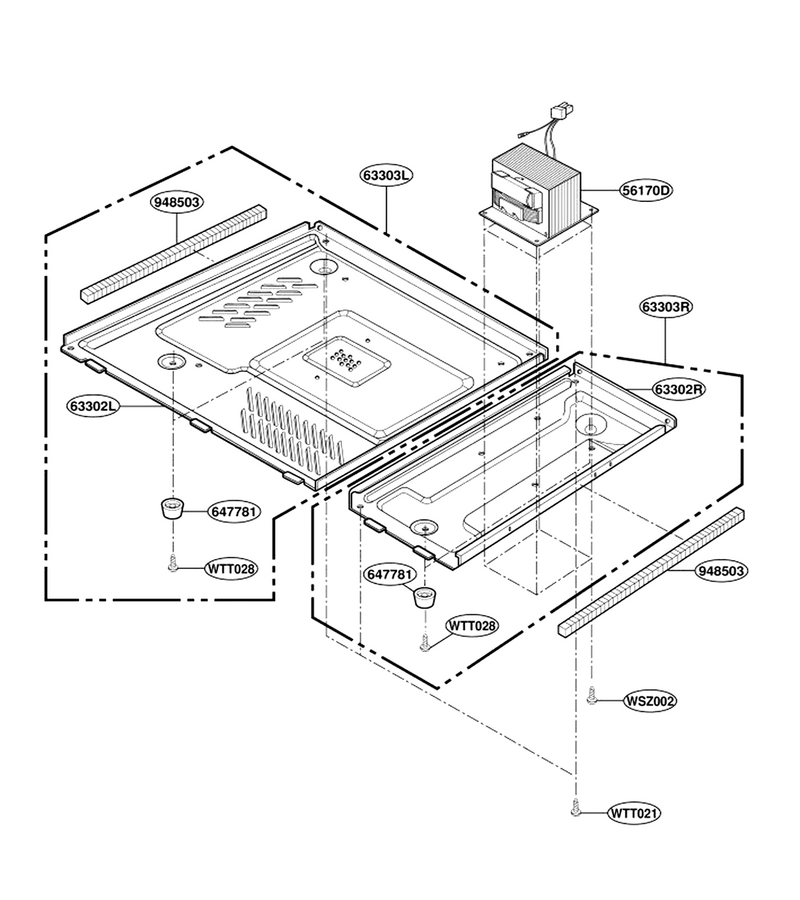

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D012G
...
63302L
Base Plate L-G-3302W1A034A
...
63302R
(63302r) Part L-G-3302W1A033F
...
63303L
Base Plate L-G-3303W1A026A
...
63303R
(63303l) Plate Assembly,base L-G-3303W2A003G
...
647781
Foot L-G-4B73900A
...
948503
Cushion L-G-3B72244G
