product name

LG WT7800CW.ABWEUUS

Model: WT7800CW.ABWEUUS

Save Part Not Listed?

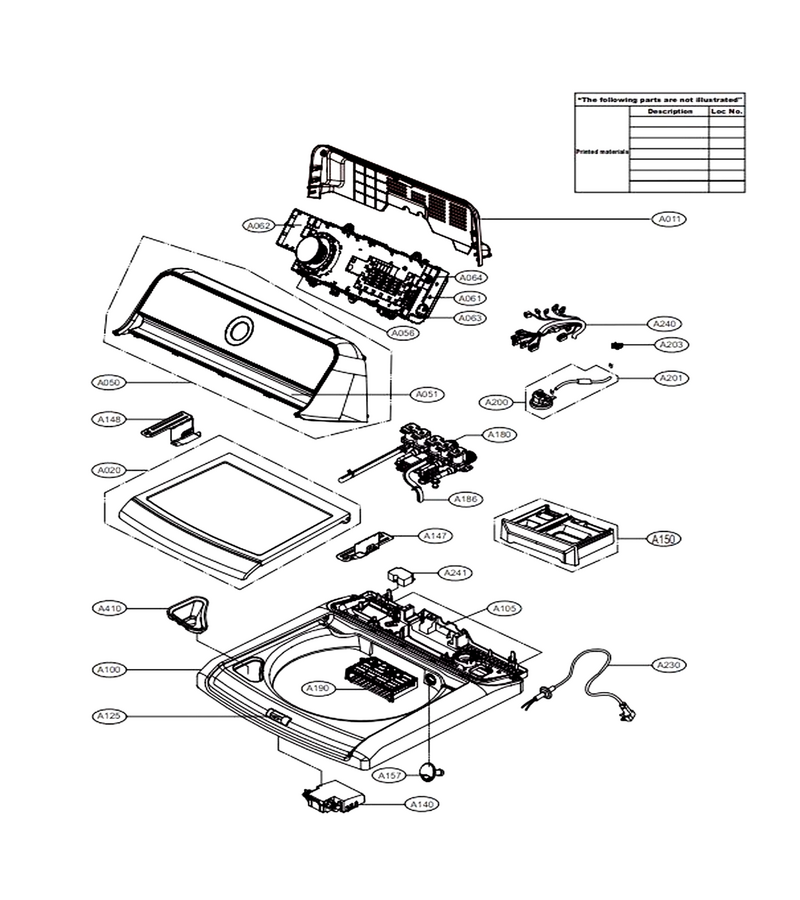

product name

Top Cover Assembly

...
...
A011
Panel,rear L-G-MGC65100303
...
A410
Cap,cover L-G-MBL67700801
...
A241
Filter Assembly L-G-6201EC2002V
...
A240
Harness,multi L-G-EAD60820242
...
A230
Power Cord Assembly L-G-EAD65611406
...
A203
Holder L-G-MEG64119601
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A190
Housing Assembly,detergent L-G-AEN74691601
...
A186
Washer Dispenser Drawer Housing Assembly L-G-5214EA3004B
...
A180
Valve Assembly,inlet L-G-AJU75152602
...
A157
Nozzle Assembly L-G-AGB72932407
...
A150
Box Assembly,detergent L-G-AAZ73855914
...
A148
Washer Top Panel Bracket, Left L-G-ABA73249001
...
A140
Switch Assembly L-G-EBF61674804
...
A020
Lid Assembly L-G-AFG73629706
...
A050
Front Panel Assembly L-G-AGL76194003
...
A051
Decor,panel L-G-MCR67147703
...
A056
Knob Assembly L-G-AEZ73913401
...
A061
Complex Pcb Assembly L-G-EBR86498803
...
A062
Display Pcb Assembly L-G-EBR85755505
...
A063
Cover,protect L-G-MCK70144702
...
A064
Main Pcb Assembly L-G-EBR86692713
...
A100
Cover,top L-G-MCK70055601
...
A105
Case L-G-MBN65224201
...
A125
Guide Cover L-G-MCK62185701
...
A147
Bracket Assembly L-G-ABA72939703

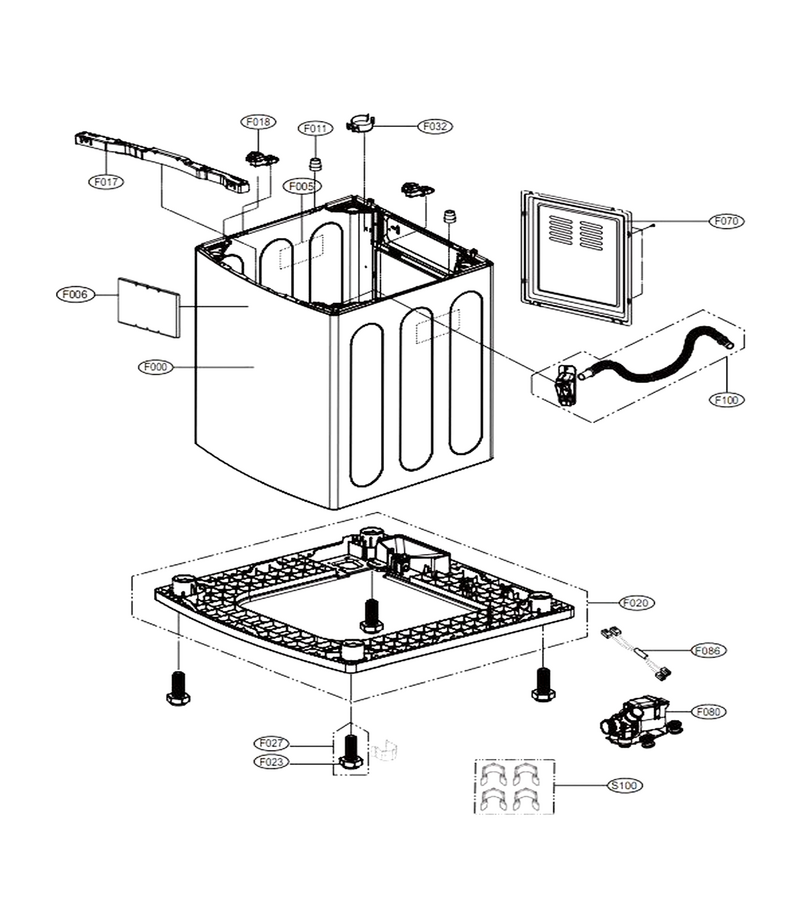

Outer Case Assembly

...
...
S100
Holder Assembly L-G-AEJ76300502
...
F100
Hose Assembly,drain L-G-AEM74073303
...
F086
Harness,single L-G-EAD64545806
...
F080
Pump Assembly,drain L-G-AHA75673404
...
F070
Cover,rear L-G-MCK69953701
...
F017
Bracket,top L-G-MAZ65988601
...
F032
Holder L-G-4930EA3002A
...
F027
Washer Leveling Leg L-G-4263FA3933C
...
F020
Base Assembly,cabinet L-G-AAN76350201
...
F018
Holder Assembly L-G-AEJ73820101
...
F011
Washer Top Panel Screw L-G-AEJ33026401
...
F006
Damper L-G-MCQ67395202
...
F005
Damper L-G-MCQ67395201
...
F000
Cabinet Assembly L-G-ABJ75767801
...
F023
Damper L-G-5040FA4226B

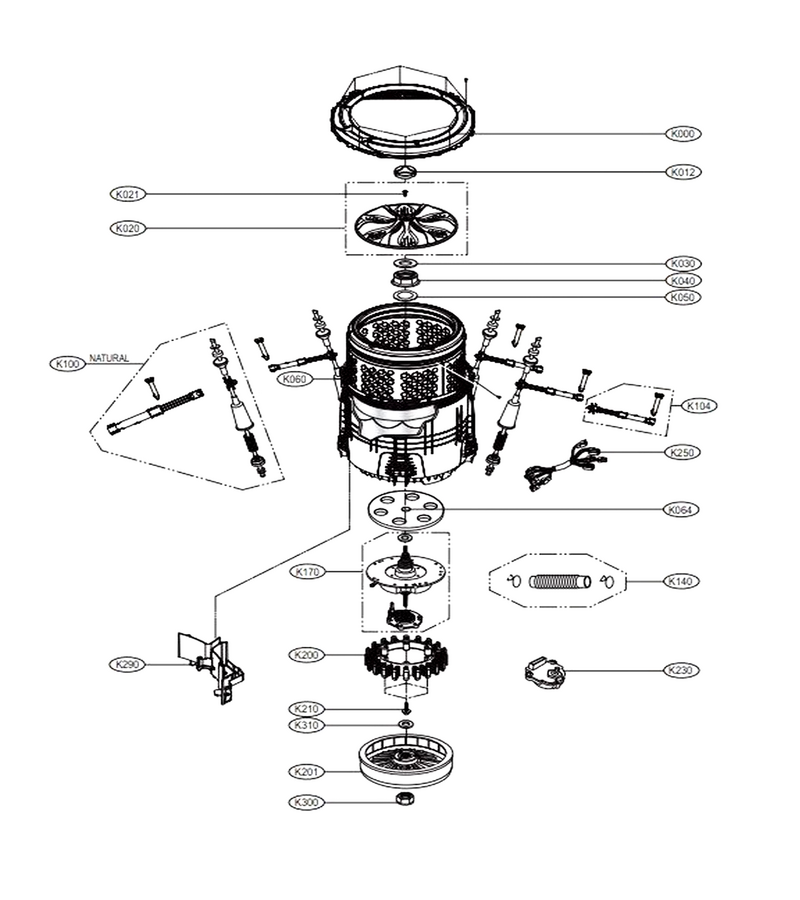

Tub Assembly

...
...
K104
Parts Assembly L-G-AGM74269801
...
K310
Washer,common L-G-1WZZEA4002C
...
K140
Hose Assembly,drain L-G-AEM75152901
...
K170
Housing Assembly,clutch Coupling L-G-AEN74532607
...
K200
Stator Assembly L-G-AJB73816031
...
K201
Rotor Assembly L-G-AHL73894509
...
K210
Washer Bolt L-G-4011FA4353B
...
K230
Motor Assembly,dc,clutch L-G-EAU64283201
...
K250
Harness,multi L-G-EAD62708437
...
K290
Washer Water Hose Guide L-G-4974EA2004A
...
K300
Nut,common L-G-FAD33190601
...
K100
Suspension Assembly L-G-AJK73229710
...
K064
Hub,tub(inner) L-G-MEL62741704
...
K060
Tub Assembly,inner L-G-AJQ74774302
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut Washer L-G-4020FA4208J
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Pulsator Assembly L-G-AGZ72909713
...
K012
Washer Washplate Cap L-G-5006EA3009B
...
K000
Cover Assembly,tub L-G-ACQ88516306
