LG WT7300CV.ASSETUS

Model: WT7300CV.ASSETUS

Save Part Not Listed?

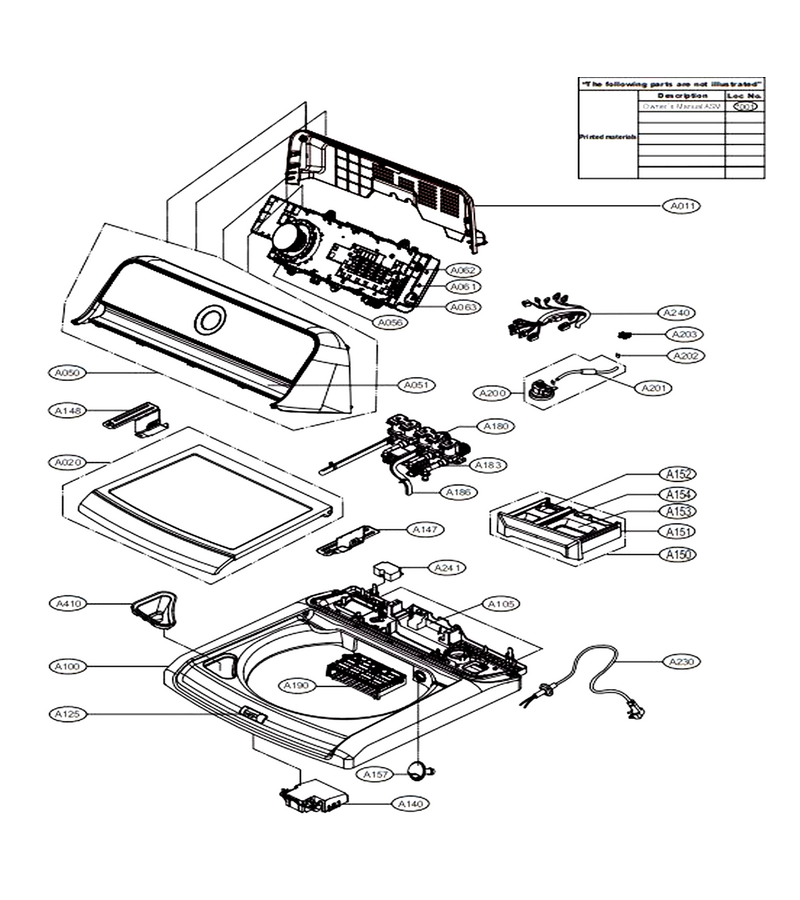

product name

Top Cover Assembly

...
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A152
Softener Cap L-G-MBL65460504
...
A153
Softener Cap L-G-MBL65440004
...
A154
Blc Dispense L-G-MAY65797106
...
A157
Nozzle Assembly L-G-AGB72932401
...
A180
Valve Assembly,inlet L-G-AJU75152602
...
A183
Connector Assembly L-G-ACJ73350404
...
A186
Washer Inlet Hose L-G-MEJ62565301
...
A190
Housing Assembly,detergent L-G-AEN72910503
...
A011
Panel,rear L-G-MGC64379201
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A203
Holder L-G-MEG64119601
...
A230
Power Cord Assembly L-G-EAD60778452
...
A240
Harness,multi L-G-EAD64129511
...
A241
Filter Assembly L-G-6201EC2002Q
...
A410
Cap,cover L-G-MBL66358002
...
A150
Box Assembly,detergent L-G-AAZ73855915
...
A020
Lid Assembly L-G-AFG73629708
...
A050
Panel Assembly,front L-G-AGL76194005
...
A051
Decor,panel L-G-MCR66426601
...
A056
Knob Assembly L-G-AEZ73913406
...
A061
Pcb Assembly,main L-G-EBR86498703
...
A062
Pcb Assembly,display L-G-EBR85755503
...
A063
Cover,protect L-G-MCK66959301
...
A100
Cover,top L-G-MCK62185523
...
A105
Case L-G-MBN61861101
...
A125
Guide Cover L-G-MCK62185702
...
A140
Washer Lid Lock And Switch Assembly L-G-EBF61674802
...
A147
Washer Top Panel Bracket, Right L-G-ABA72939701
...
A148
Washer Top Panel Bracket, Left L-G-ABA73249001
...
A151
Box,detergent L-G-MAY65797211

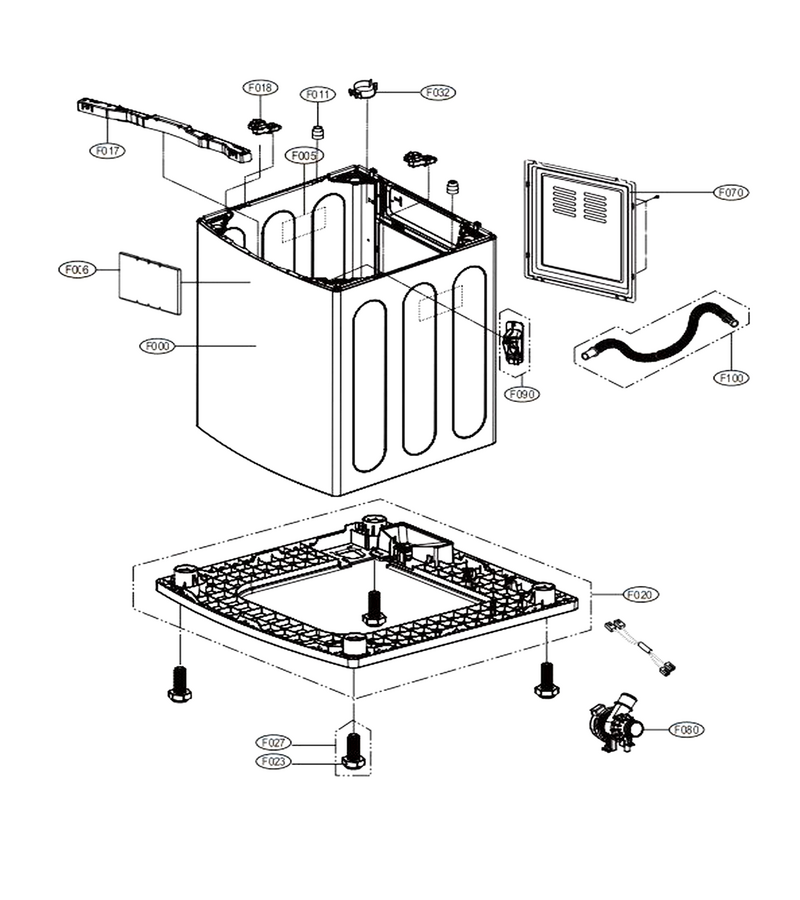

Outer Case Assembly

...
...
F100

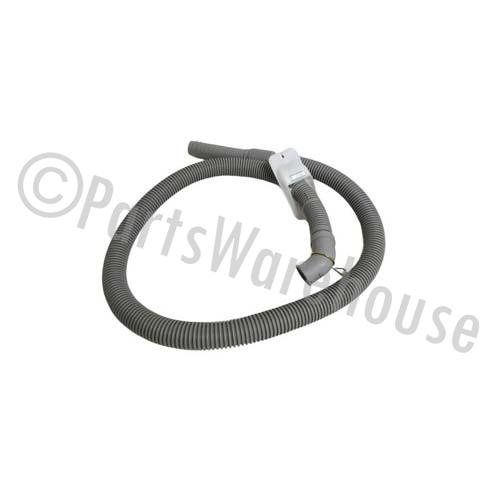

Hose Assembly,drain L-G-AEM74073301
...
F090
Connector,drain Hose L-G-MCD62647002
...
F080
Pump Assembly,drain L-G-AHA75673402
...
F070
Cover,rear L-G-MCK67652502
...
F011
Holder Assembly L-G-AEJ33026605
...
F032
Holder L-G-4930EA3002F
...
F027
Washer Leveling Leg L-G-4263FA3933C
...
F023
Damper L-G-5040FA4226B
...
F018
Holder Assembly L-G-AEJ73820101
...
F017
Top Bracket L-G-MAZ63674302
...
F006
Damper L-G-MCQ67395222
...
F005
Damper L-G-MCQ67395221
...
F000
Cabinet Assembly L-G-ABJ72919655
...
F020
Base Assembly,cabinet L-G-AAN73431018

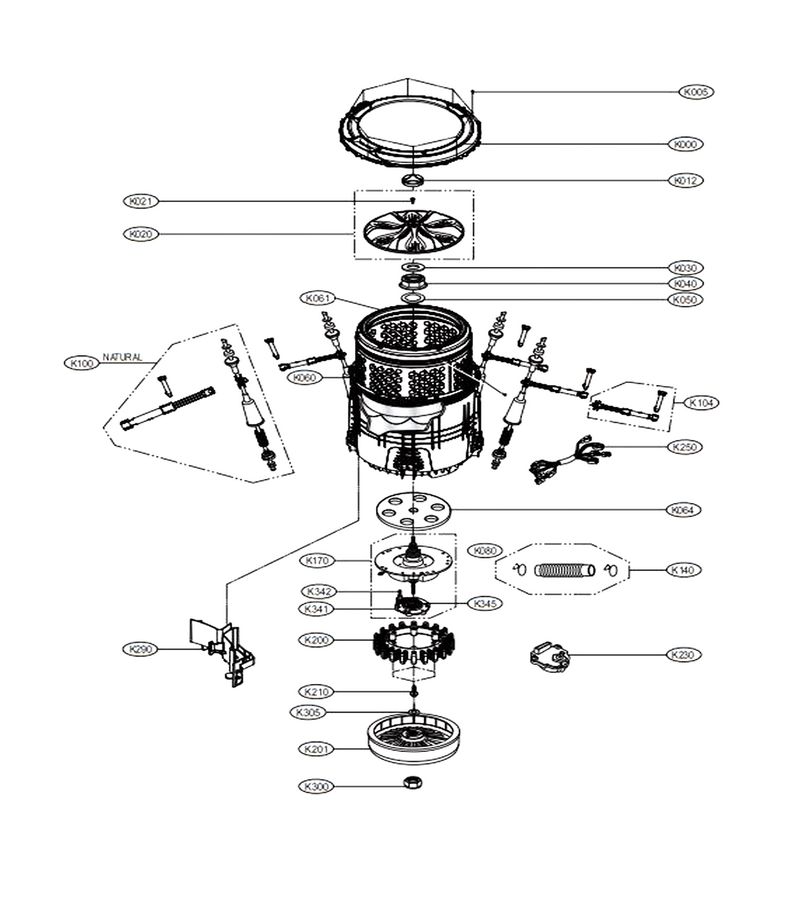

Tub Assembly

...
...
K104
Parts Assembly L-G-AGM74269801
...
K341
Coupling Assembly L-G-ACP73009001
...
K140
Washer Drain Hose L-G-AEM73213001
...
K170
Housing Assembly,clutch Coupling L-G-AEN74532607
...
K200
Stator Assembly,combined L-G-AJB76315015
...
K201
Rotor Assembly,combined L-G-AHL76195103
...
K210
Bolt,common L-G-FAA30850701
...
K230
Motor Assembly,dc,clutch L-G-EAU64283201
...
K250
Harness,multi L-G-EAD64149705
...
K290
Guide,water L-G-4974EA2004C
...
K300
Nut,common L-G-FAD33190601
...
K305
Washer,common L-G-1WZZEA4002C
...
K100
Suspension L-G-4902EA1002P
...
K064
Hub,tub(inner) L-G-MEL62741703
...
K061
Balance Assembly L-G-AAJ73170003
...
K060
Tub Assembly,inner L-G-AJQ73614213
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut,common L-G-4020FA4208N
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Washer Washplate L-G-AGZ72909701
...
K012
Washer Washplate Cap L-G-MBL65219301
...
K005
Screw,tapping L-G-1TTL0403384
...
K000
Cover Assembly,tub L-G-ACQ86382204
