LG WT7005CW.ABWETUS

Model: WT7005CW.ABWETUS

Save Part Not Listed?

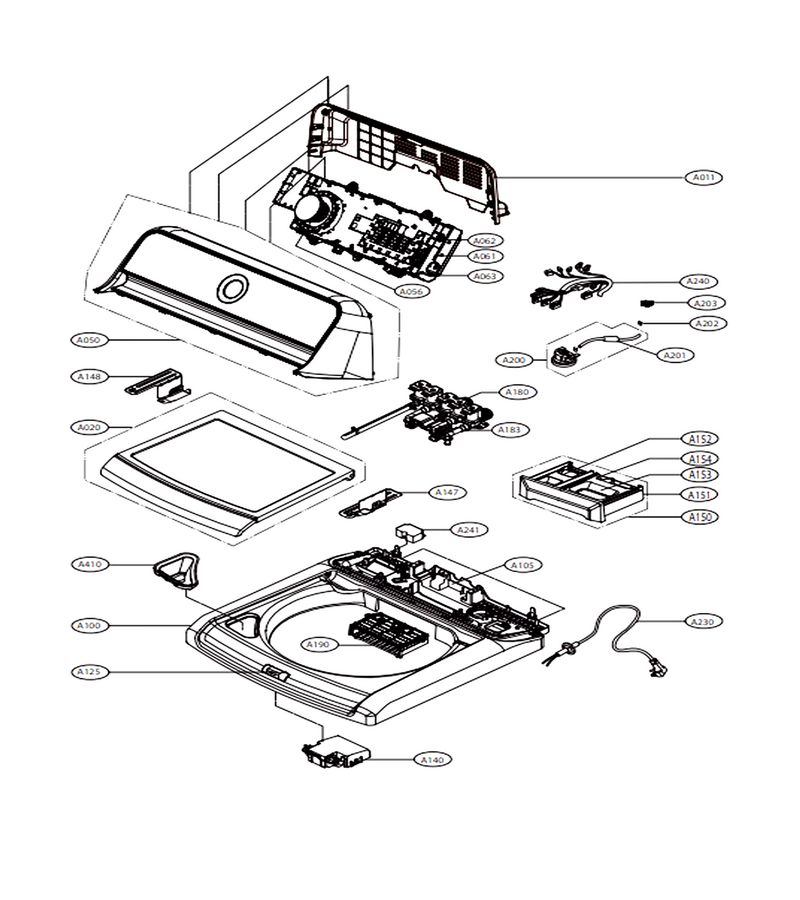

product name

Top Cover Assembly

...
...
A011
Rear Panel L-G-MGC64379202
...
A410
Cap,cover L-G-MBL66358002
...
A241
Filter Assembly L-G-6201EC2002V
...
A240
Multi Harness L-G-EAD60820243
...
A230
Power Cord Assembly L-G-EAD65611415
...
A203
Holder L-G-MEG64119601
...
A202
Clamp L-G-3W40106R
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A190
Housing Assembly,detergent L-G-AEN72910503
...
A183
Connector Assembly L-G-ACJ73350404
...
A180
Inlet Valve Assembly L-G-AJU75152606
...
A154
Blc Dispense L-G-MAY65797106
...
A153
Softener Cap L-G-MBL65440004
...
A152
Softener Cap L-G-MBL65460504
...
A150
Box Assembly,detergent L-G-AAZ73855914
...
A020
Lid Assembly L-G-AFG73629717
...
A050
Front Panel Assembly L-G-AGL76194023
...
A056
Knob Assembly L-G-AEZ73913405
...
A061
Main Pcb Assembly L-G-EBR86692725
...
A062
Display Pcb Assembly L-G-EBR86283106
...
A063
Cover,protect L-G-MCK66959305
...
A100
Top Cover L-G-MCK62185526
...
A105
Case L-G-MBN61861101
...
A125
Guide Cover L-G-MCK62185701
...
A140
Switch Assembly L-G-EBF61674804
...
A147
Bracket Assembly L-G-ABA72939704
...
A148
Bracket Assembly L-G-ABA73249002
...
A151
Box,detergent L-G-MAY65797210

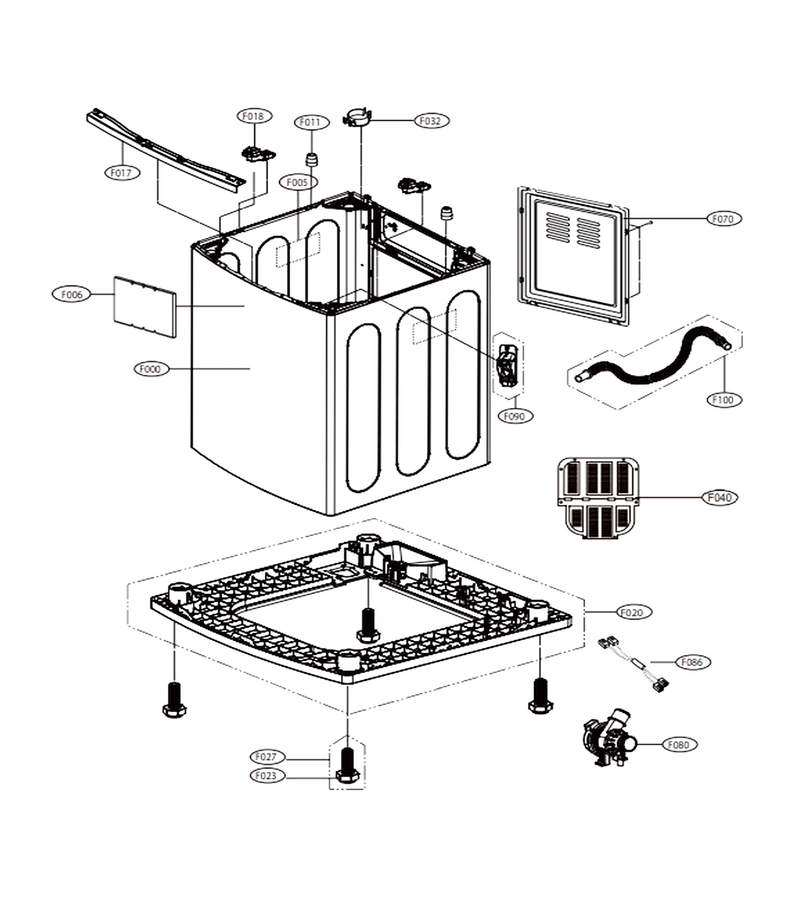

Outer Case Asembly

...
...
F100
Drain Hose Assembly L-G-AEM73732909
...
F090
Connector,drain Hose L-G-MCD62647002
...
F086
Harness,single L-G-EAD64205502
...
F080
Pump Assembly,drain L-G-AHA75673404
...
F011
Washer Top Panel Screw L-G-AEJ33026401
...
F070
Cover,rear L-G-MCK67652502
...
F040
Cover Assembly,base L-G-3551FA1886H
...
F032
Holder L-G-4930EA3002F
...
F027
Leg Assembly L-G-4263FA3933E
...
F020
Cabinet Base Assembly L-G-AAN73431021
...
F018
Holder Assembly L-G-AEJ73820101
...
F017
Top Bracket L-G-MAZ65988602
...
F006
Damper L-G-MCQ67395226
...
F005
Damper L-G-MCQ67395225
...
F000
Cabinet Assembly L-G-ABJ72919675
...
F023
Damper L-G-5040FA4226E

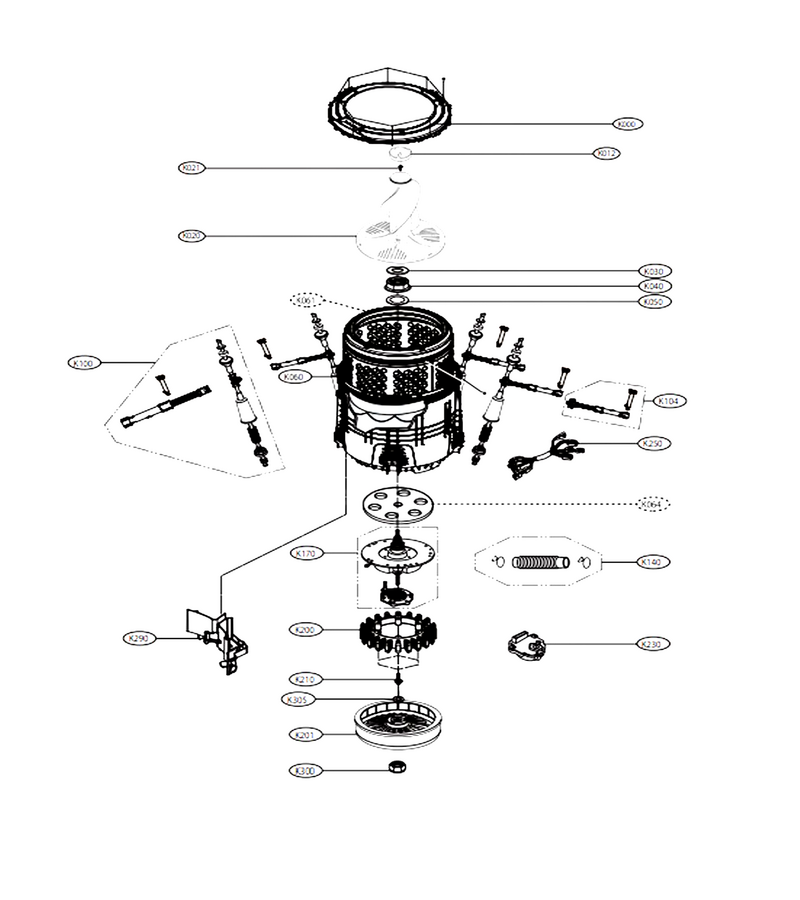

Tub Assembly

...
...
K140
Bellows Assembly L-G-AAS73229402
...
K305
Washer,common L-G-1WZZEA4002C
...
K170
Housing Assembly,clutch Coupling L-G-AEN74532608
...
K200
Stator Assembly,combined L-G-AJB76315015
...
K201
Rotor Assembly,combined L-G-AHL76195103
...
K210
Bolt,common L-G-FAA30850701
...
K230
Motor Assembly,dc,clutch L-G-EAU64283201
...
K250
Harness,multi L-G-EAD64149705
...
K290
Guide,water L-G-4974EA2004B
...
K300
Nut,common L-G-FAD33190601
...
K104
Parts Assembly L-G-AGM74269801
...
K100
Suspension Assembly L-G-AJK73229707
...
K060
Inner Tub Assembly L-G-AJQ75153801
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut Washer L-G-4020FA4208J
...
K030
Washer,common L-G-FAF30369204
...
K021
Washer Screw L-G-FAB30598601
...
K020
Pulsator,washing L-G-MGP62562101
...
K012
Pulsator Cap L-G-MBL68664904
...
K000
Tub Cover L-G-MCK71191001
