LG WT5270CW.ABWEVUS

Model: WT5270CW.ABWEVUS

Save Part Not Listed?

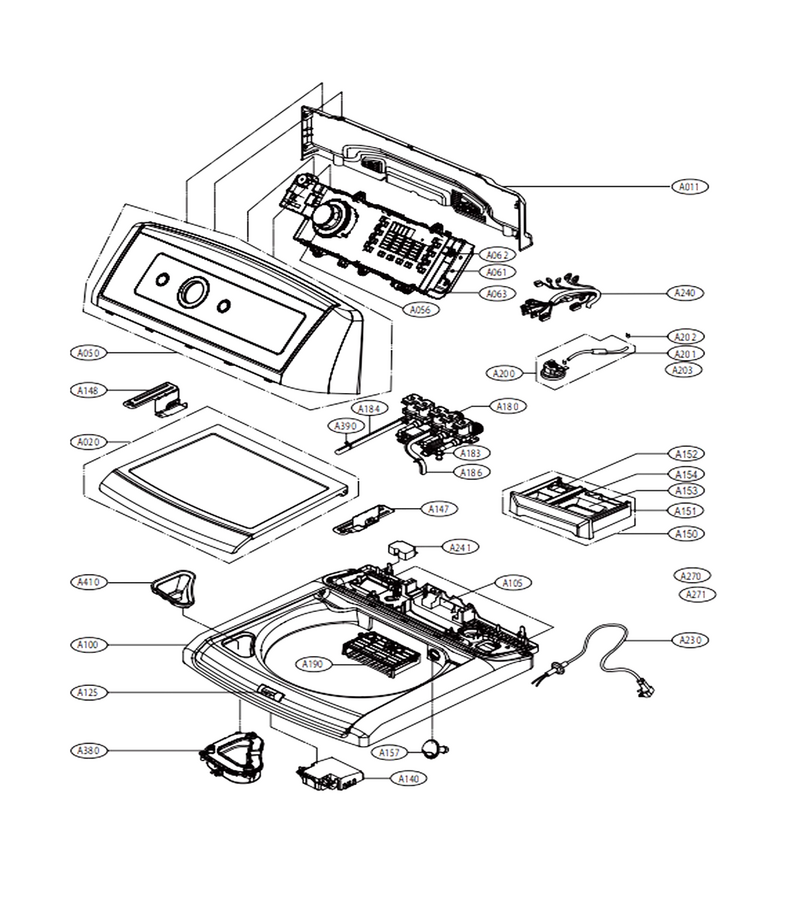

product name

Top Cover Assembly

...
...
A202
Ring,snap L-G-MGZ63107701
...
A154
Blc Dispense L-G-MAY65797106
...
A157
Nozzle Assembly L-G-AGB72932401
...
A180
Washer Water Inlet Valve Assembly L-G-AJU73213301
...
A183
Washer Water Valve Connector Assembly L-G-ACJ73350401
...
A186
Washer Dispenser Hose L-G-MEJ62524903
...
A190
Washer Dispenser Drawer Housing Assembly L-G-AEN72910501
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A011
Panel,rear L-G-MGC63082704
...
A203
Holder L-G-MEG64119601
...
A230
Power Cord Assembly L-G-EAD60845693
...
A240
Harness,multi L-G-EAD62325116
...
A241
Filter Assembly L-G-EAM60930604
...
A380
Dispenser Assembly L-G-ACZ73490702
...
A390
Clamp Assembly L-G-4861EN3003S
...
A410
Cap Cover L-G-MBL65540701
...
A152
Softener Cap L-G-MBL65460504
...
A020
Lid Assembly L-G-AFG73129814
...
A050
Panel Assembly,front L-G-AGL74154310
...
A056
Knob Assembly L-G-AEZ33665708
...
A061
Washer Electronic Control Board L-G-EBR80342102
...
A062
Pcb Assembly L-G-EBR80501001
...
A063
Protector Cover L-G-MCK65833301
...
A100
Cover L-G-MCK67395505
...
A125
Guide Cover L-G-MCK67634001
...
A140
Washer Lid Lock And Switch Assembly L-G-EBF61674802
...
A147
Washer Top Panel Bracket, Left L-G-ABA73249001
...
A148
Washer Top Panel Bracket, Right L-G-ABA72939701
...
A150
Box Assembly,detergent L-G-AAZ73855914
...
A151
Box,detergent L-G-MAY65797210
...
A153
Softener Cap L-G-MBL65440004
...
A105
Case L-G-MBN63002702

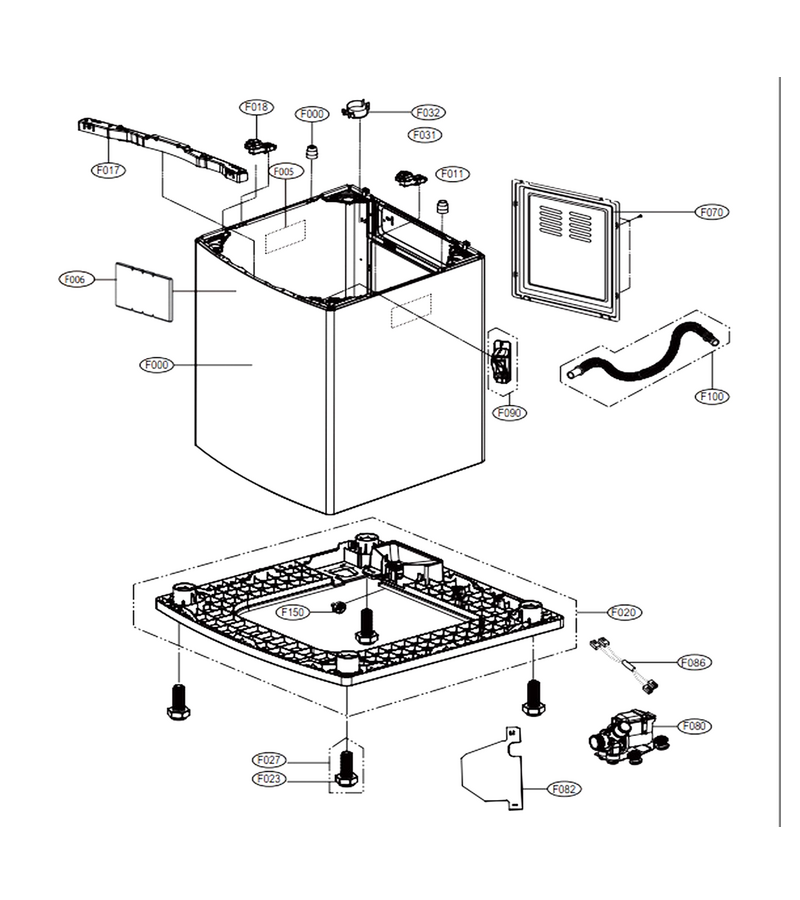

Outer Case Assembly

...
...
F027
Washer Leveling Leg L-G-4263FA3933C
...
F031
Holder L-G-MEG64858801
...
F070
Cover,rear L-G-3808FA1368H
...
F080
Drain Pump Assembly L-G-5859EA1004Q
...
F011
Holder Assembly L-G-AEJ73620102
...
F082
Protector Cover L-G-MCK67262401
...
F086
Single Harness L-G-EAD62285502
...
F090
Connect Hose L-G-MCD62647001
...
F100
Washer Drain Hose L-G-MEJ62685201
...
F020
Base Assembly,cabinet L-G-AAN73431006
...
F018
Holder Assembly L-G-AEJ74739401
...
F017
Bracket Assembly L-G-ABA74451701
...
F006
Damper L-G-MCQ67395226
...
F005
Damper L-G-MCQ67395225
...
F000
Cabinet Assembly L-G-ABJ72919622
...
F023
Damper L-G-5040FA4226B

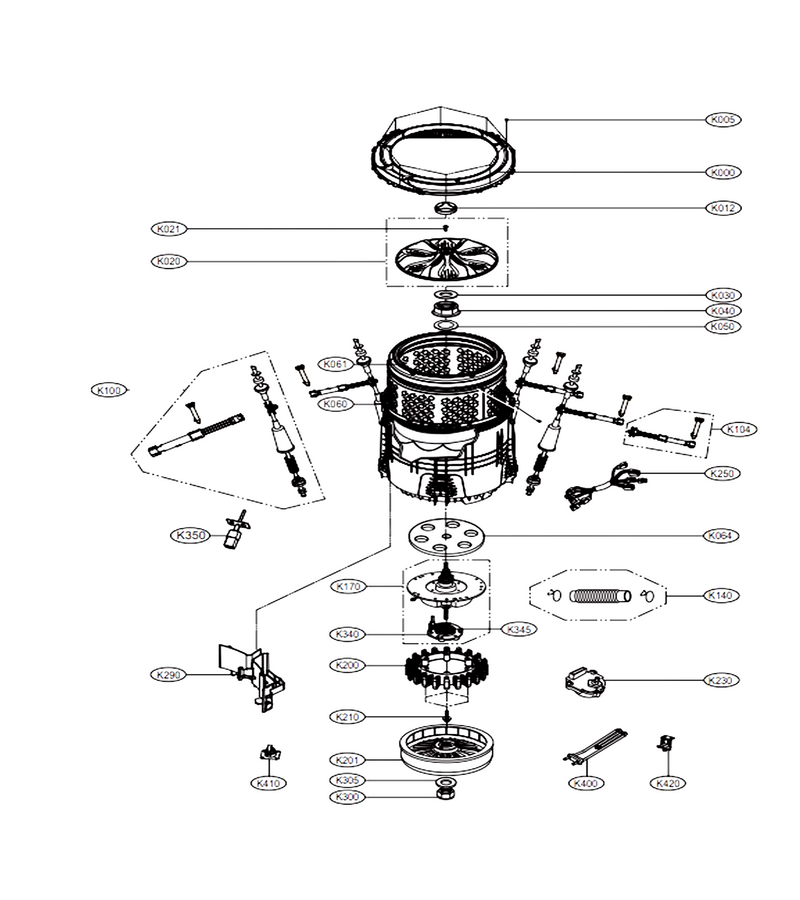

Tub Assembly

...
...
K104
Hinge L-G-MEF62682301
...
K345
Housing,bearing(upper) L-G-MEK61843402
...
K140
Washer Drain Hose L-G-AEM73213001
...
K170
Package Assembly,c/skd L-G-AGF76283892
...
K200
Washer Motor Stator L-G-AJB73816004
...
K201
Washer Rotor Assembly L-G-AHL72914404
...
K210
Washer Bolt L-G-4011FA4353B
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K250
Harness,multi L-G-EAD62285415
...
K290
Washer Water Hose Guide L-G-4974EA2004A
...
K300
Nut Washer L-G-1NZZEA4001A
...
K305
Washing Machine Washer L-G-4W50100D
...
K340
Washer Drive Hub Coupling L-G-ACP72929002
...
K100
Suspension L-G-4902EA1002P
...
K064
Hub,tub(inner) L-G-MEL61841403
...
K061
Washer Basket Balance Ring L-G-AAJ73170001
...
K060
Tub Assembly,inner L-G-AJQ73614204
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut Washer L-G-4020FA4208J
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Pulsator L-G-AGZ72909706
...
K012
Washer Washplate Cap L-G-5006EA3009B
...
K005
Washer Tub Ring Screw L-G-FAB32139901
...
K000
Cover Assembly,tub L-G-ACQ86391001
