LG WT1150CW.ABWEVUS

Model: WT1150CW.ABWEVUS

Save Part Not Listed?

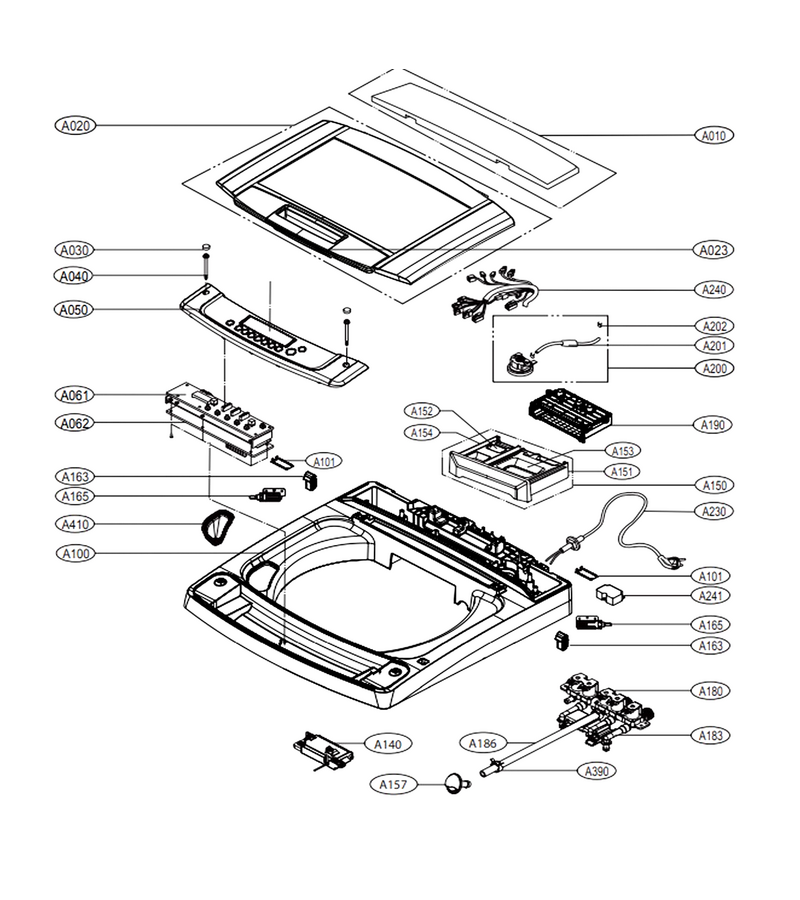

product name

Top Cover Assembly

...
...
A190
Washer Dispenser Drawer Housing Assembly L-G-AEN72910501
...
A240
Package Assembly,c/skd L-G-AGF76283897
...
A230
Power Cord Assembly L-G-EAD60845692
...
A202
Ring,snap L-G-MGZ63107701
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A183
Washer Water Valve Connector Assembly L-G-ACJ73350401
...
A180
Valve Assembly,inlet L-G-5221EA1008S
...
A151
Box,detergent L-G-MAY65797210
...
A100
Cover L-G-MCK67394604
...
A040
Screw,customized L-G-4000FA4196Q
...
A030
Washer Screw L-G-5006FA4348B
...
A023
Handle Decor L-G-MCR49500802
...
A020
Lid Assembly L-G-AFG73109708
...
A010
Panel Assembly,rear L-G-AGL72951532

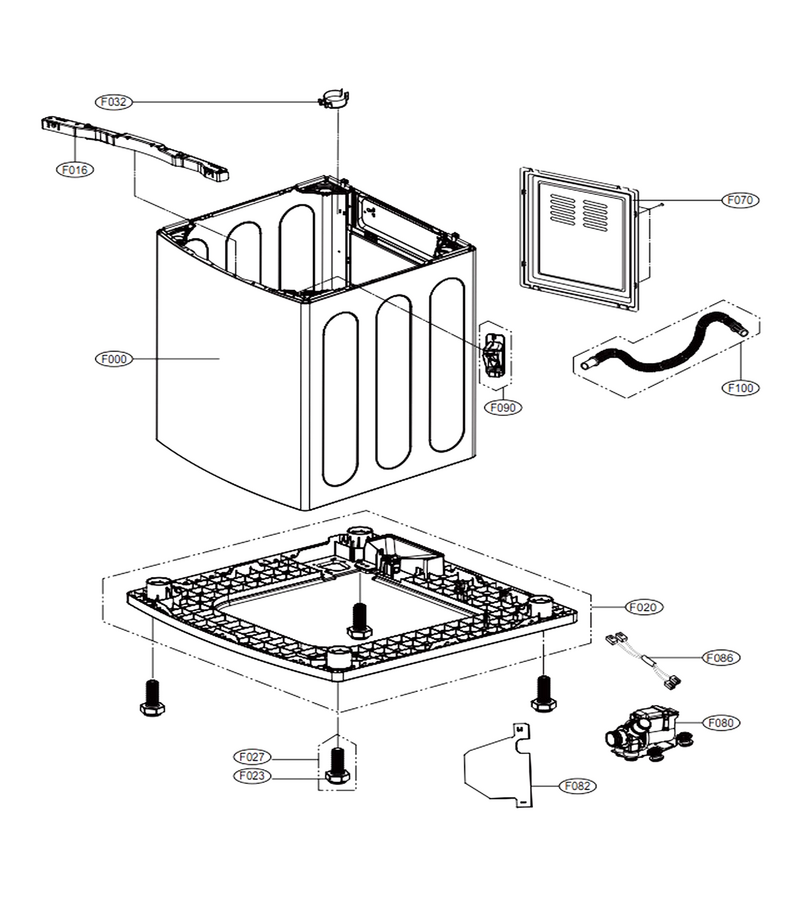

Outer Case Assembly

...
...
F070
Rear Cover L-G-3808FA1368F
...
F100
Drain Hose Assembly L-G-AEM73732903
...
F090
Connect Hose L-G-MCD62647001
...
F082
Protector Cover L-G-MCK67262401
...
F080
Drain Pump Assembly L-G-5859EA1004Q
...
F023
Damper L-G-5040FA4226B
...
F020
Base Assembly,cabinet L-G-AAN73431006
...
F000
Cabinet Assembly L-G-ABJ72919622
...
F027
Washer Leveling Leg L-G-4263FA3933C

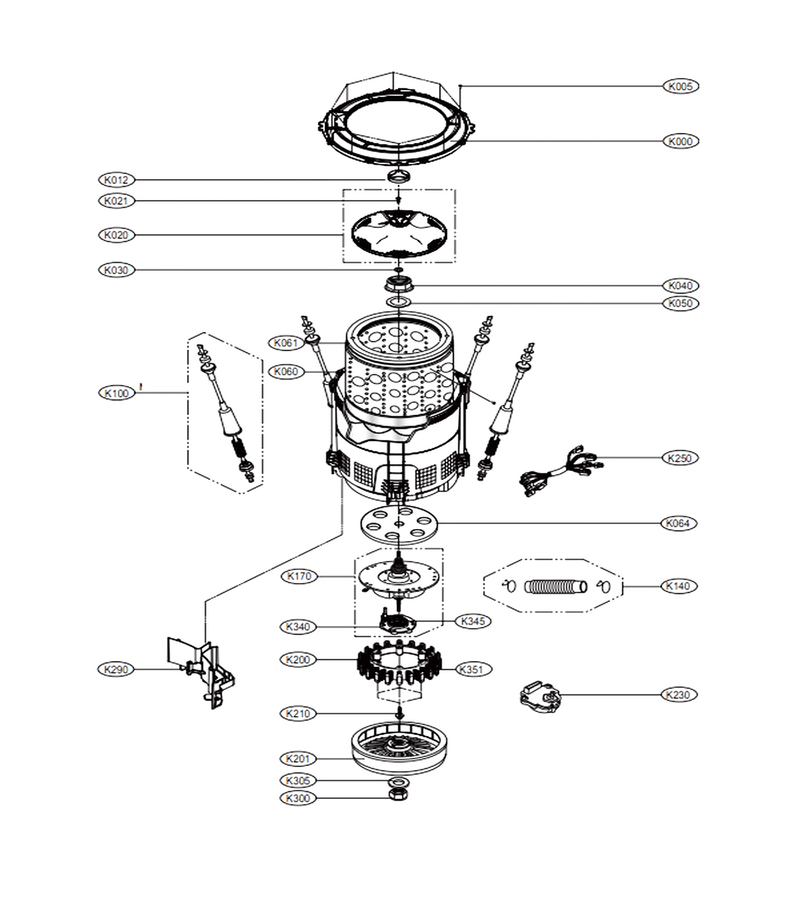

Tub Assembly

...
...
K250
Package Assembly,c/skd L-G-AGF76283905
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K210
Washer Bolt L-G-4011FA4353B
...
K200
Washer Motor Stator L-G-AJB73816004
...
K170
Package Assembly,c/skd L-G-AGF76283892
...
K140
Washer Drain Hose L-G-AEM73213001
...
K064
Hub,tub(inner) L-G-MEL61841403
...
K061
Balance Assembly L-G-AAJ72909602
...
K060
Tub Assembly,inner L-G-AJQ73293804
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut Washer L-G-4020FA4208J
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Pulsator L-G-AGZ72909706
...
K012
Washer Washplate Cap L-G-5006EA3009B
...
K000
Washer Tub Ring L-G-ACQ85605501
