product name

LG WSEX200HNA.ANSEEUS

Model: WSEX200HNA.ANSEEUS

Save Part Not Listed?
product name

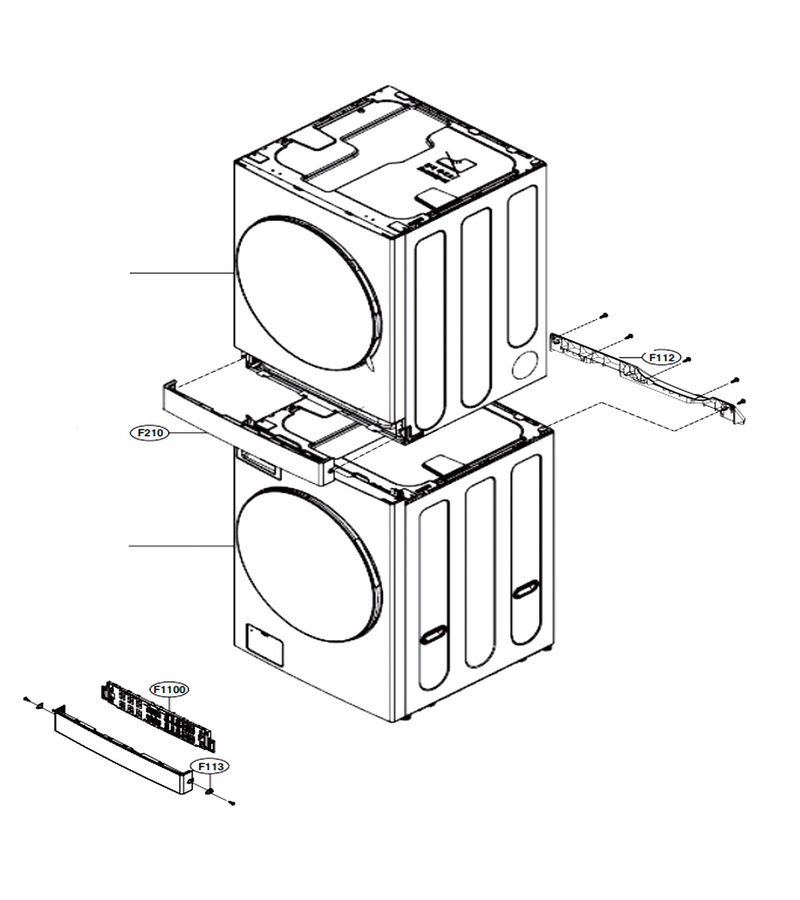

Full Assembly (washer & Dryer)

...
...
F1100
Pcb Assembly,display L-G-EBR30368902
...
F112
Bracket L-G-MAZ67172102
...
F113
Cap,screw L-G-MBL31426505
...
F210
Control Panel Assembly L-G-AGL77376915

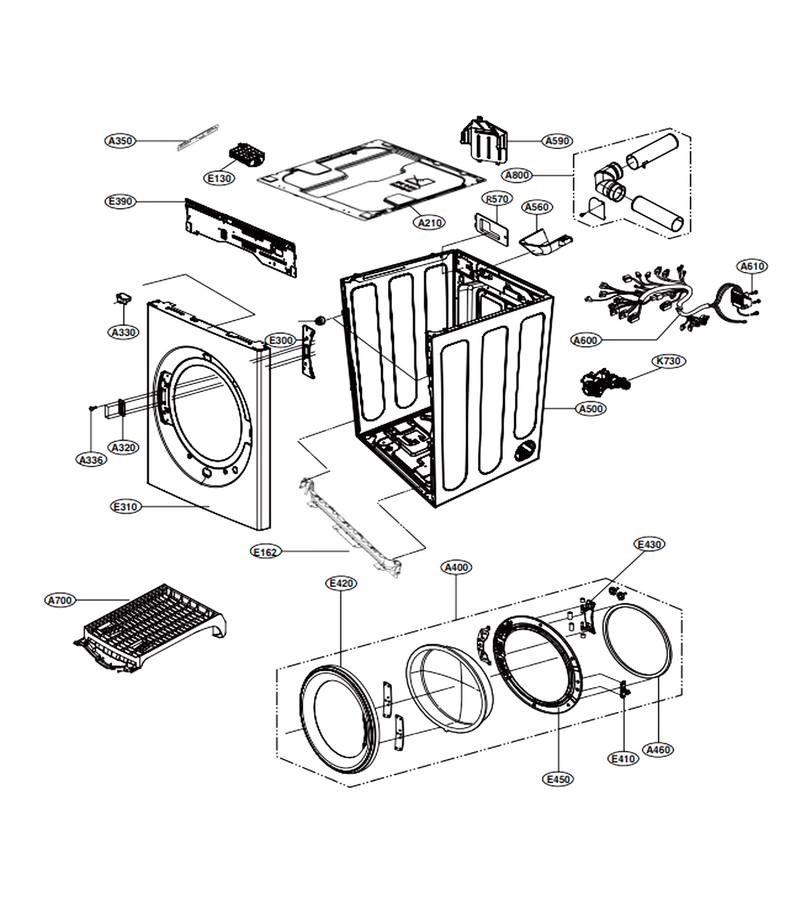

Cabinet And Door Assembly : Electric Type

...
...
A210
Top Plate L-G-MGJ66989107
...
A320
Dryer Door Catch L-G-4027EL1001A
...
A330
Dryer Door Switch L-G-6601EL3001A
...
A336
Dryer Screw L-G-1MTC0402632
...
A350
Top Bracket L-G-MAZ64546401
...
A400
Door Assembly L-G-ADC30003002
...
A460
Dryer Door Seal L-G-383EEL9001W
...
A500
Cabinet Assembly L-G-ABJ34640626
...
A560
Guide Cover L-G-3550EL3007D
...
A590
Safety Cover L-G-MCK62423301
...
A600
Harness,multi L-G-EAD60843557
...
A610
Screws Bolts L-G-383EEL9001H
...
A700
Dryer Drying Rack L-G-3750EL1001A
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B
...
E130
Pcb Assembly,main L-G-EBR31002605
...
E162
Frame,lower L-G-MDQ66500902
...
E300
Bracket,hinge L-G-MAZ67119501
...
E310
Cabinet Cover Assembly L-G-ACQ30025819
...
E390
Frame,panel L-G-MDQ66500801
...
E410
Hook Locker L-G-4026EL3007B
...
E420
Frame,door(outer) L-G-MDQ66500601
...
E430
Hinge L-G-MEF64762202
...
E450
Frame,door(inner) L-G-MDQ66500702
...
K730
Dryer Water Inlet Valve L-G-AJU73432602

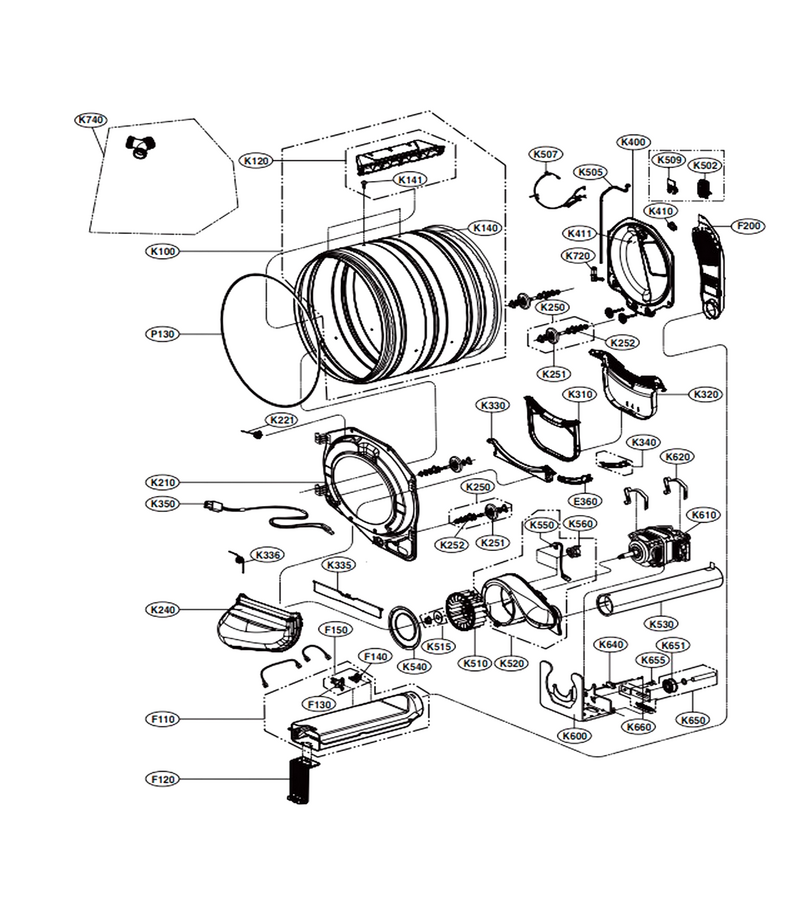

Drum And Motor Assembly : Electric Type

...
...
E360
Dryer Moisture Sensor Guide L-G-4930EL2004D
...
F110
Dryer Heating Element L-G-5301EL1001H
...
F120
Dryer Heater Housing Bracket L-G-4810EL1007A
...
F130
Dryer High-Limit Thermostat L-G-6931EL3003D
...
F140
Dryer High-Limit Thermostat L-G-6931EL3001F
...
F150
Parts Assembly L-G-383EEL9001C
...
F200
Dryer Heat Duct L-G-5209EL1001C
...
K100
Tub Assembly,drum L-G-3045EL1002S
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K140
Dryer Drum Seal, Rear L-G-4036EL3001A
...
K141
Screw,taptite L-G-1FTF0503507
...
K210
Tub Assembly,drum L-G-AJQ73594008
...
K221
Dryer Led Lamp L-G-EAQ61400801
...
K240
Duct Assembly L-G-5209EL1002F
...
K250
Roller Assembly L-G-4581EL2002H
...
K251
Dryer Drum Support Roller Assembly L-G-4581EL3001E
...
K252
Washer,customized L-G-4W50100F
...
K310
Dryer Lint Screen L-G-ADQ56656401
...
K320
Dryer Lint Screen Cover L-G-MCK49049101
...
K330
Dryer Lint Screen Guide L-G-MEA49050001
...
K335
Dryer Lint Screen Cover L-G-MCK66787901
...
K336
Spring L-G-4970EL4002C
...
K340
Dryer Moisture Sensor L-G-6500EL3001A
...
K350
Dryer Moisture Sensor Wire Harness L-G-6631EL3003B
...
K400
Dryer Drum Rear Cover L-G-3044EL0002F
...
K410
Guard Decor L-G-MCR65109903
...
K411
Screw L-G-1SZZEL2001A
...
K502
Generator Assembly L-G-ADZ73410102
...
K505
Inlet Hose L-G-MEJ62404702
...
K507
Multi Harness L-G-EAD39301910
...
K509
Frame Bracket L-G-MAZ64606102
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Bracket,motor L-G-MAZ66065301
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
K720
Connector,nozzle L-G-MCD63206801
...
K740
Accessory Assembly L-G-AAA75232312
...
P130
Dryer Drum Belt L-G-4400EL2001F

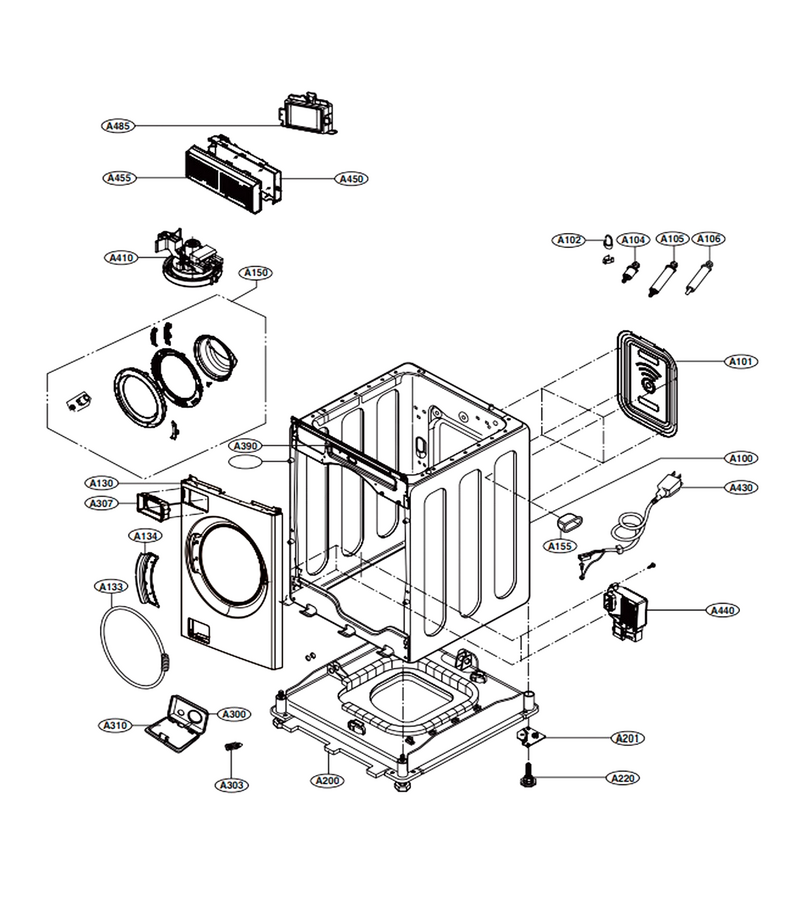

Cabinet And Door Assembly : Washer

...
...
A100
Cabinet Assembly L-G-ABJ76067140
...
A101
Cover Assembly,rear L-G-ACQ30105001
...
A102
Washer Bushing L-G-4830ER3001A
...
A104
Bolt Assembly L-G-FAA31690712
...
A105
Bolt Assembly L-G-FAA31690711
...
A106
Bolt Assembly L-G-FAA31690713
...
A130
Cabinet Cover L-G-MCK71175407
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A134
Bracket,hinge L-G-MAZ67172001
...
A150
Door Assembly L-G-ADC76886103
...
A155
Washer Handle L-G-3650FA3489A
...
A200
Base Assembly,cabinet L-G-AAN74112008
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A300
Case L-G-MBN66267301
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A307
Case L-G-MBN66267402
...
A310
Cover Cap L-G-5006ER2012P
...
A390
Frame Assembly L-G-ADV77726102
...
A410
Switch Assembly,pressure L-G-EBF63534901
...
A430
Washer Power Cord L-G-EAD40521449
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Pcb Assembly,main L-G-EBR31483301
...
A455
Cover,protect L-G-MCK69784904
...
A485
Filter Assembly L-G-EAM63891317

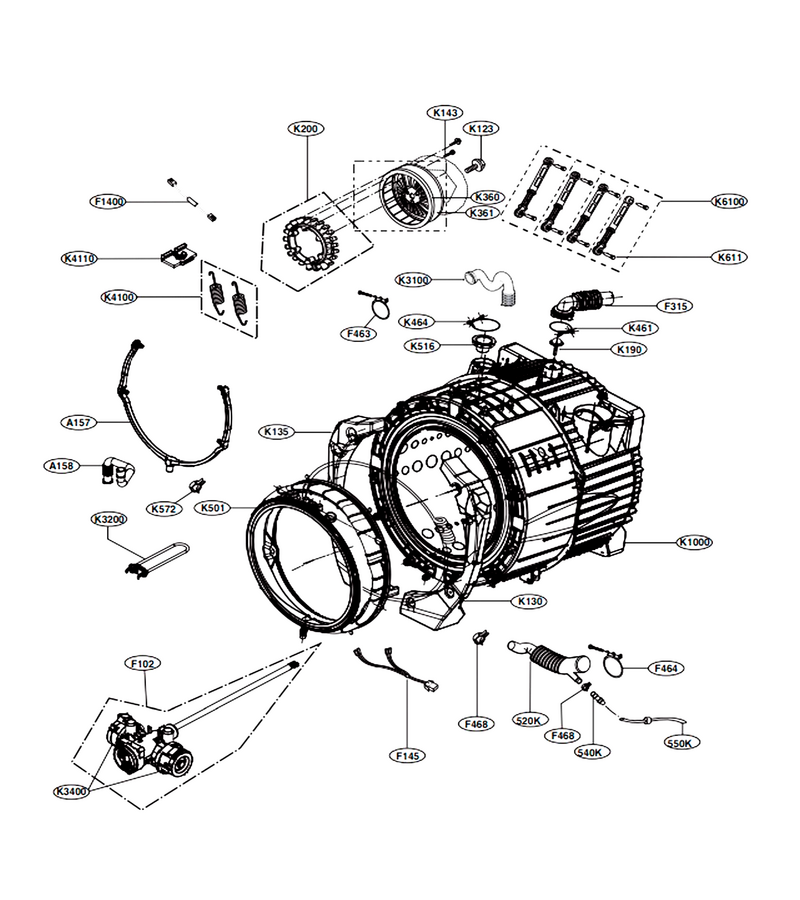

Drum And Motor Assembly : Washer

...
...
A157
Connector,nozzle L-G-MCD64327001
...
A158
Hose,inlet L-G-MEJ64124901
...
F102
Pump Assembly,drain L-G-AHA75853803
...
F1400
Harness,multi L-G-6877ER1016X
...
F145
Harness,single L-G-EAD64545811
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Washer Hose Clamp L-G-4860FR3092C
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K1000
Tub Assembly,drum L-G-AJQ74873903
...
K123
Washer Bolt L-G-4040FR4051C
...
K130
Balance Weight L-G-MAG63602902
...
K135
Balance Weight L-G-MAG63602802
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Float Assembly L-G-4769ER4001B
...
K200
Stator Assembly L-G-AJB73816028
...
K3100
Washer Dispenser Hose L-G-4738ER1004B
...
K3200
Washer Heating Element L-G-AEG33121501
...
K3400
Motor Assembly,dc,pump L-G-EAU64082901
...
K360
Rotor Assembly L-G-AHL72914410
...
K361
Bush,rotor L-G-MBF62845201
...
K4100
Spring,hinge L-G-MHY65223701
...
K4110
Holder L-G-MEG64919202
...
K461
Washer Hose Clamp L-G-4860FR3092D
...
K464
Washer Hose Clamp L-G-4860FR3092C
...
K501
Gasket L-G-MDS66290810
...
K516
Water Guide L-G-4974ER3008A
...
K572
Clamp L-G-4861FR3068C
...
K6100
Washer Shock Absorber L-G-ACV72909503
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B
...
520K
Bellows L-G-MAR62521901
...
540K
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
550K
Hose,inlet L-G-MEJ62305110

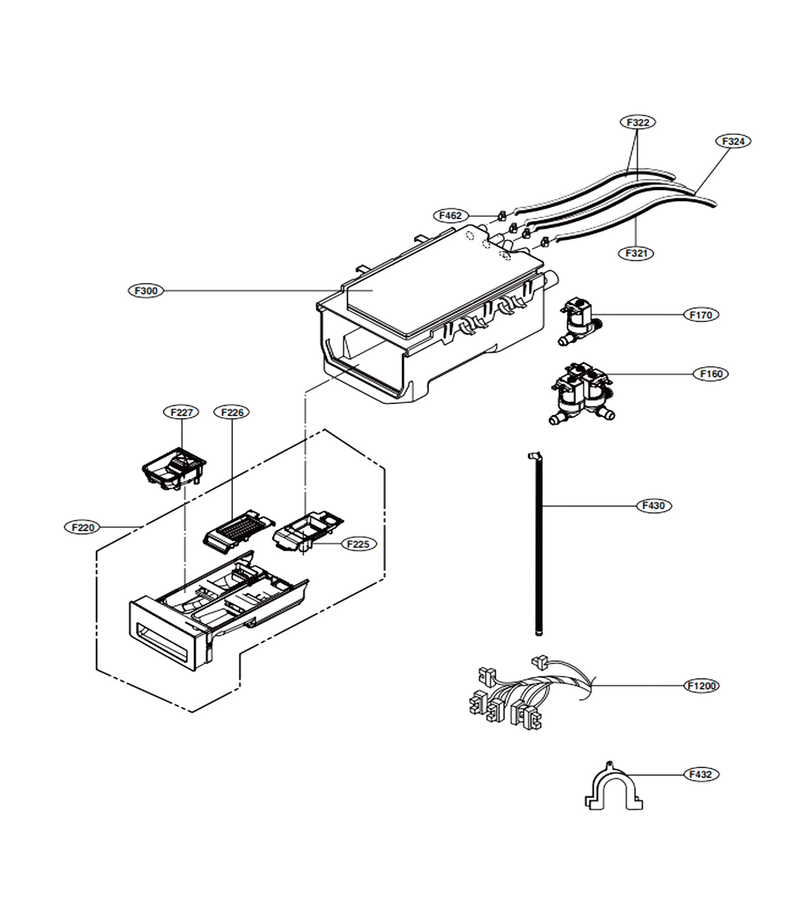

Dispenser / Control Panel Assembly

...
...
F1200
Harness,multi L-G-EAD64545337
...
F160
Valve Assembly,inlet L-G-5221ER1003S
...
F170
Valve Assembly,inlet L-G-5220FR2006Z
...
F220
Drawer Panel Assembly L-G-AGL77376809
...
F225
Cap,softener L-G-MBL67499001
...
F226
Cap,siphone L-G-MBL67700001
...
F227
Box Assembly,detergent L-G-AAZ75735901
...
F300
Dispenser Assembly L-G-ACZ74070506
...
F321
Washer Dispenser Inlet Hose L-G-5214ER4001A
...
F322
Washer Dispenser Hose L-G-MEJ61841803
...
F324
Inlet Hose L-G-5214ER4001H
...
F430
Hose Assembly,drain L-G-AEM74772904
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F462
Washer Hose Clamp L-G-4861FR3068A
