LG WM8900HBA.ABLEEUS

Model: WM8900HBA.ABLEEUS

Save Part Not Listed?

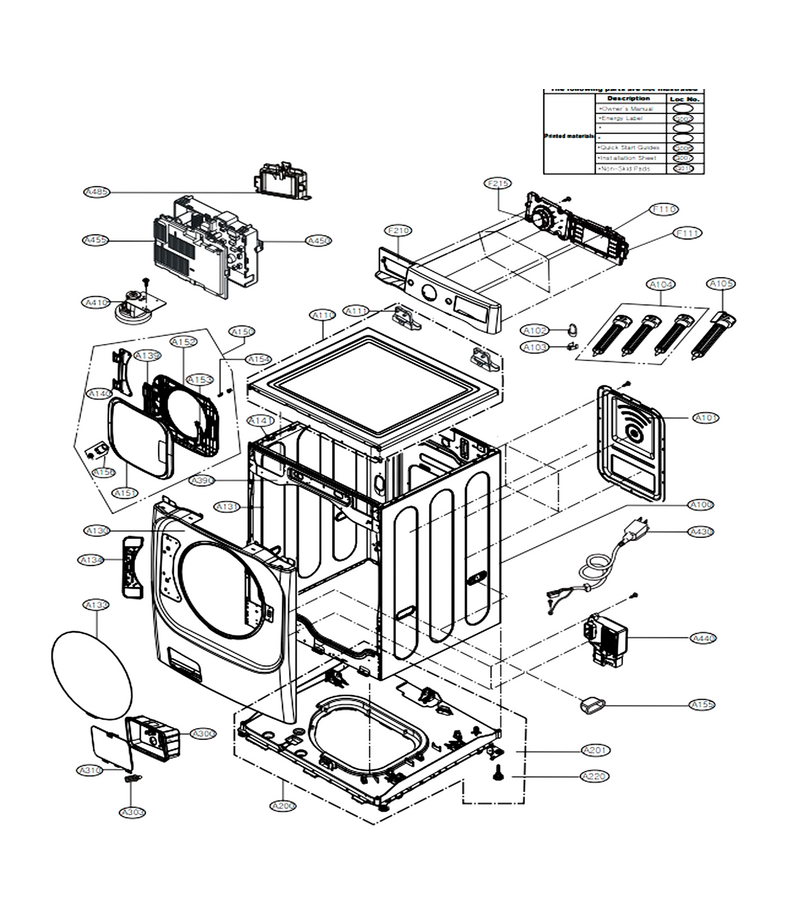

product name

Cabinet And Control Panel Asembly

...
...
A100
Cabinet Assembly L-G-ABJ73607416
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Washer Retainer Clip L-G-4930ER3014A
...
A104
Washer Shipping Bolt L-G-FAA31690703
...
A105
Washer Shipping Bolt L-G-FAA31690705
...
A110
Top Plate Assembly L-G-AGU73748210
...
A111
Bracket L-G-4810ER3021C
...
A130
Cabinet Cover L-G-MCK66703704
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A134
Washer Door Hinge Support Bracket L-G-MAZ63253201
...
A139
Washer Door Hinge Support Bracket L-G-MAZ63244701
...
A140
Hinge L-G-MEF62362102
...
A141
Washer Top Panel Screw L-G-AEJ33026401
...
A150
Door Assembly L-G-ADC73685904
...
A151
Washer Door Outer Frame L-G-MDQ62976701
...
A152
Door (inner) Frame L-G-MDQ62976803
...
A153
Handle L-G-MEB62455301
...
A154
Hook Locker L-G-MFG62579002
...
A155
Washer Handle L-G-3650FA3489A
...
A156
Washer Magnetic Door Plunger L-G-AGM73610701
...
A200
Cabinet Base Assembly L-G-AAN73931907
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A300
Case L-G-MBN62563202
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A310
Cover Cap L-G-MBL65018806
...
A390
Frame Assembly L-G-ADV74166908
...
A410
Switch Assembly,pressure L-G-EBF63534901
...
A430
Power Cord Assembly L-G-EAD63567510
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Main Pcb Assembly L-G-EBR86771831
...
A455
Cover,protect L-G-MCK69784901
...
A485
Filter Assembly L-G-EAM63891317
...
F110
Display Pcb Assembly L-G-EBR35887001
...
F111
Pcb Assembly,module L-G-EBR85871801
...
F210
Control Panel Assembly L-G-AGL73954434
...
F215
Knob Assembly L-G-AEZ75996001
...
G006
Card,user Guide L-G-MBM66296501
...
G007
Instruction Sheet L-G-3828FA3749Y
...
G010
Washer Non-Skid Pad L-G-AGM73171801

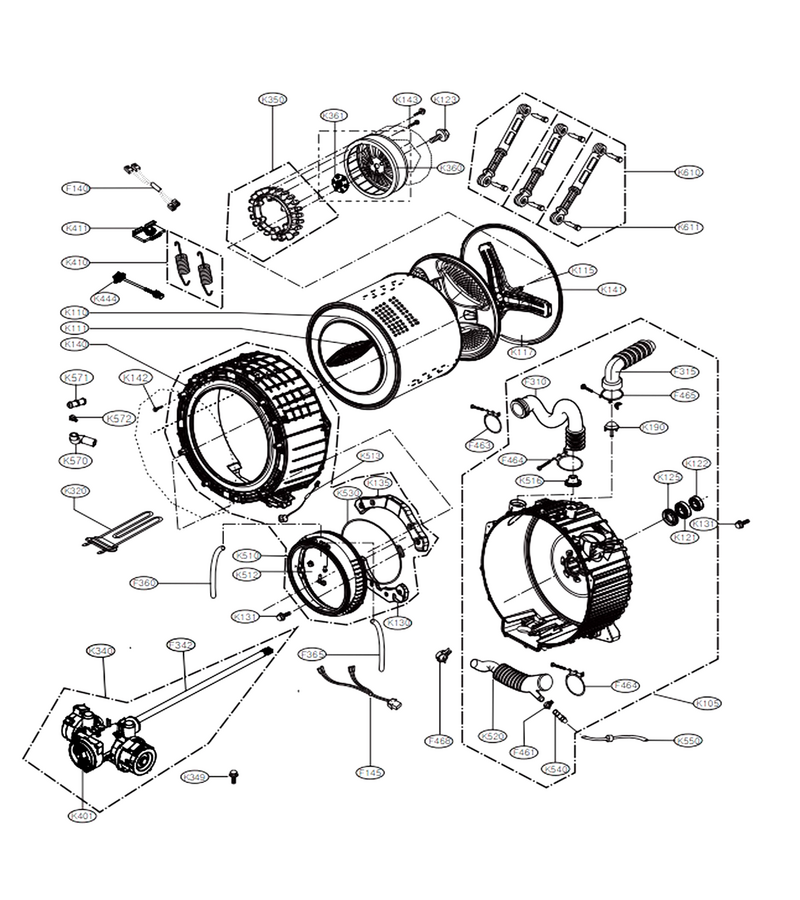

Drum And Tub Assembly

...
...
F140
Harness,multi L-G-6877ER1016Y
...
F145
Single Harness L-G-EAD64545808
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006G
...
F360
Connect Hose L-G-MEJ62484603
...
F365
Connect Hose L-G-MEJ62484604
...
F461
Washer Hose Clamp L-G-4861FR3068E
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Clamp L-G-4860FR3092K
...
F465
Washer Hose Clamp L-G-4860FR3092D
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K105
Washer Outer Tub L-G-AJQ73314202
...
K110
Washer Spin Basket L-G-AJQ73314402
...
K111
Lifter L-G-MFE61881101
...
K115
Washer Spinner Support L-G-MHW61901302
...
K117
Washer Screw L-G-4000FR4031C
...
K121
Washer Tub Bearing, Rear L-G-4280FR4048N
...
K122
Washer Tub Bearing L-G-4280FR4048Z
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-MDS62058301
...
K130
Balance Weight L-G-MAG62142901
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Balance Weight L-G-MAG62142801
...
K140
Tub Cover L-G-MCK66703601
...
K141
Washer Outer Tub Gasket L-G-4036ER4001E
...
K142
Washer Screw L-G-383EER3001W
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Float Assembly L-G-4769ER4001B
...
K320
Heater Assembly L-G-AEG33121528
...
K340
Pump Assembly,drain L-G-AHA75693409
...
K349
Screw,customized L-G-4W50404B
...
K350
Stator Assembly L-G-AJB73816005
...
K360
Washer Drive Motor L-G-AHL72914402
...
K361
Bushing Rotor L-G-MBF62845101
...
K401
Washer Drain Pump Filter L-G-383EER2001A
...
K410
Hinge Spring L-G-MHY62805901
...
K411
Holder L-G-MEG64919202
...
K444
Sensor Assembly L-G-EBD48922806
...
K510
Gasket L-G-MDS47123631
...
K512
Connector,nozzle L-G-MCD62387102
...
K513
Washer Led Lamp L-G-EAQ61400802
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Washer Inlet Hose L-G-MEJ62305103
...
K570
Washer Tub-To-Pump Hose L-G-5214FR4058Y
...
K571
Washer Drain Pump Hose Connector L-G-4932ER4007B
...
K572
Washer Hose Clamp L-G-4861FR3068A
...
K610
Washer Shock Absorber L-G-383EER3001V
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B

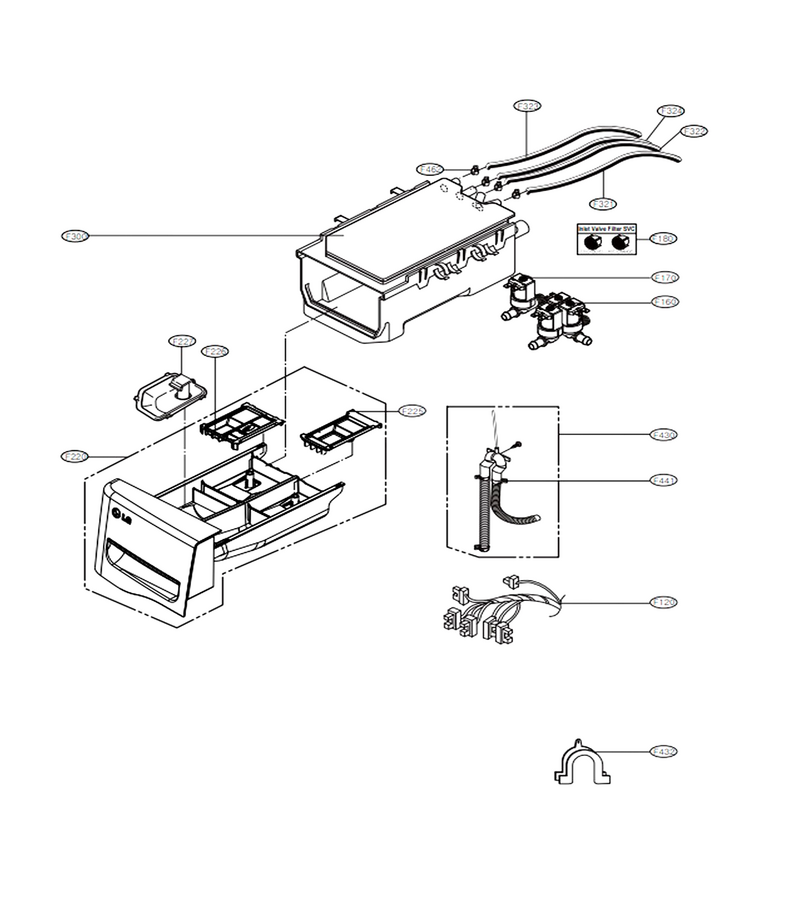

Dispenser Assembly

...
...
F120
Multi Harness L-G-EAD61951344
...
F160
Valve Assembly,inlet L-G-5221ER1003M
...
F170
Valve Assembly,inlet L-G-5220FR2006W
...
F180
Washer Water Inlet Valve Screen L-G-AGM73269501
...
F220
Drawer Panel Assembly L-G-AGL73712617
...
F225
Softener Cap L-G-MBL67499007
...
F226
Siphone Cap L-G-MBL67700008
...
F227
Box Assembly,detergent L-G-AAZ75735901
...
F300
Dispenser Assembly L-G-ACZ74070506
...
F321
Washer Dispenser Inlet Hose L-G-5214ER4001B
...
F322
Connector Hose L-G-MEJ61841806
...
F323
Washer Inlet Hose L-G-5214ER4001X
...
F324
Inlet Hose L-G-5214ER4001H
...
F430
Hose Assembly,drain L-G-AEM74772901
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F441
Clamp L-G-4861FR3068C
...
F462
Washer Hose Clamp L-G-4861FR3068A
