LG WM4370HKA.ABSETUS

Model: WM4370HKA.ABSETUS

Save Part Not Listed?
product name

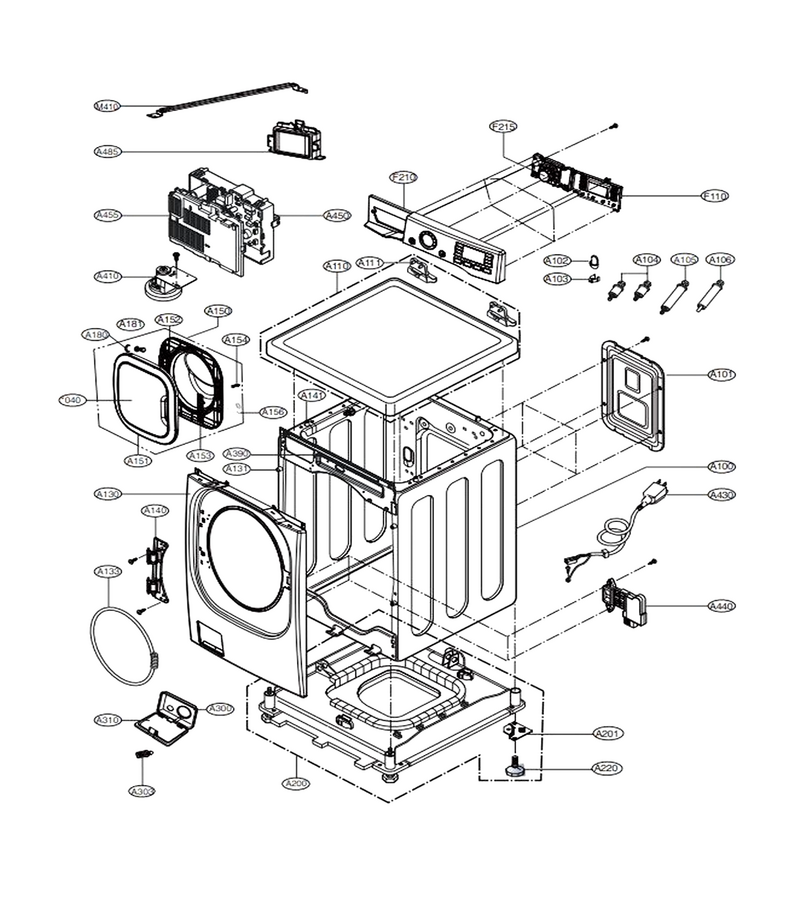

Cabinet & Control Panel Assembly

...
...
*040
Cover L-G-MCK66984301
...
A100
Cabinet Assembly L-G-ABJ73607409
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Holder L-G-4930FR3151A
...
A104
Washer Shipping Bolt L-G-FAA31690703
...
A105
Washer Shipping Bolt L-G-FAA31690705
...
A106
Washer Shipping Bolt L-G-FAA31690705
...
A110
Plate Assembly,top L-G-AGU73748204
...
A111
Bracket L-G-4810ER3021C
...
A130
Cover,cabinet L-G-MCK67688002
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Hinge Assembly L-G-AEH71610404
...
A141
Washer Top Panel Screw L-G-AEJ33026401
...
A150
Door Assembly L-G-ADC71605805
...
A151
Washer Door Outer Frame L-G-MDQ58112601
...
A152
Frame L-G-MDQ58114101
...
A153
Handle L-G-MEB58113701
...
A154
Washer Door Lock Strike L-G-MFG62579001
...
A156
Parts Assembly L-G-AGM73610703
...
A180
Bush L-G-MBF57160201
...
A181
Damper L-G-MCQ57675201
...
A200
Cabinet Base Assembly L-G-AAN73931904
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A300
Case L-G-MBN64623001
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A310
Cover Cap L-G-5006ER2012E
...
A390
Frame Assembly L-G-ADV74166902
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A430
Washer Power Cord L-G-6411ER1006V
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Main Pcb Assembly L-G-EBR86778403
...
A455
Washer Electronic Control Board Cover L-G-3550ER1032A
...
A485
Filter Assembly L-G-EAM60991314
...
F110
Display Pcb Assembly L-G-EBR83442831
...
F210
Control Panel Assembly L-G-AGL74078532
...
F215
Dryer Control Knob L-G-4941ER3005D
...
M410
Body Frame L-G-MDQ63560503

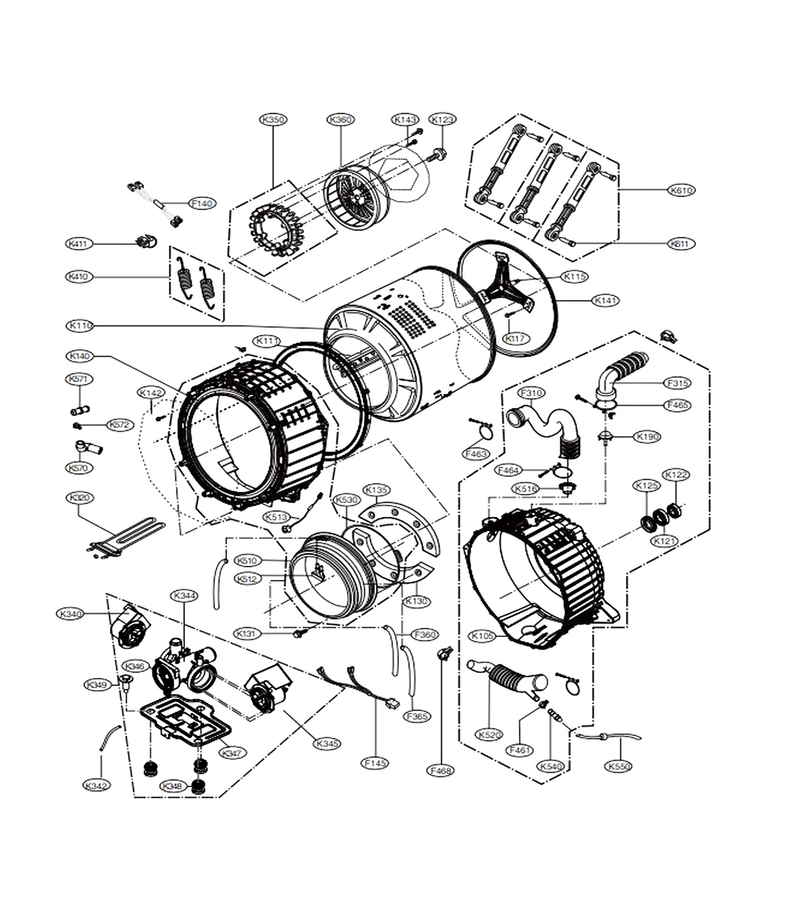

Drum & Tub Assembly

...
...
F140
Harness,multi L-G-6877ER1016Y
...
F145
Single Harness L-G-EAD64545808
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F360
Connect Hose L-G-MEJ62484603
...
F365
Connect Hose L-G-MEJ62484604
...
F461
Washer Hose Clamp L-G-4861FR3068E
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Washer Hose Clamp L-G-4860FR3092C
...
F465
Washer Hose Clamp L-G-4860FR3092D
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K105
Outer Tub Assembly L-G-AJQ73314209
...
K110
Washer Spin Basket L-G-AJQ73314402
...
K111
Lifter L-G-MFE61881101
...
K115
Washer Spinner Support L-G-MHW61901302
...
K117
Washer Screw L-G-4000FR4031C
...
K121
Washer Tub Bearing, Rear L-G-4280FR4048N
...
K122
Washer Tub Bearing L-G-4280FR4048Z
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-MDS62058301
...
K130
Balance Weight L-G-MAG62142901
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Balance Weight L-G-MAG62142801
...
K140
Tub Cover L-G-MCK66703601
...
K141
Washer Outer Tub Gasket L-G-4036ER4001E
...
K142
Washer Screw L-G-383EER3001W
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Float Assembly L-G-4769ER4001B
...
K320
Washer Heating Element L-G-AEG33121501
...
K340
Pump Assembly,drain L-G-AHA75693409
...
K342
Package Assembly,c/skd L-G-AGF78240572
...
K344
Washer Pump L-G-3108ER1001E
...
K345
Washer Wash Pump Motor L-G-EAU61383503
...
K346
Hole Cap L-G-5006ER3001B
...
K347
Pump Bracket L-G-MAZ41498201
...
K348
Washer Pump Bracket Damper L-G-MCQ41502701
...
K349
Common Bolt L-G-FAA30153701
...
K350
Stator Assembly L-G-AJB73816005
...
K360
Washer Drive Motor L-G-AHL72914402
...
K410
Hinge Spring L-G-MHY62805901
...
K411
Holder L-G-4930FR3040A
...
K510
Gasket L-G-MDS65736914
...
K512
Connector,nozzle L-G-MCD62387102
...
K513
Washer Led Lamp L-G-EAQ61400802
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Washer Inlet Hose L-G-MEJ62305103
...
K570
Washer Tub-To-Pump Hose L-G-5214FR4058Y
...
K571
Washer Drain Pump Hose Connector L-G-4932ER4007B
...
K572
Washer Hose Clamp L-G-4861FR3068A
...
K610
Washer Shock Absorber L-G-383EER3001J
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B

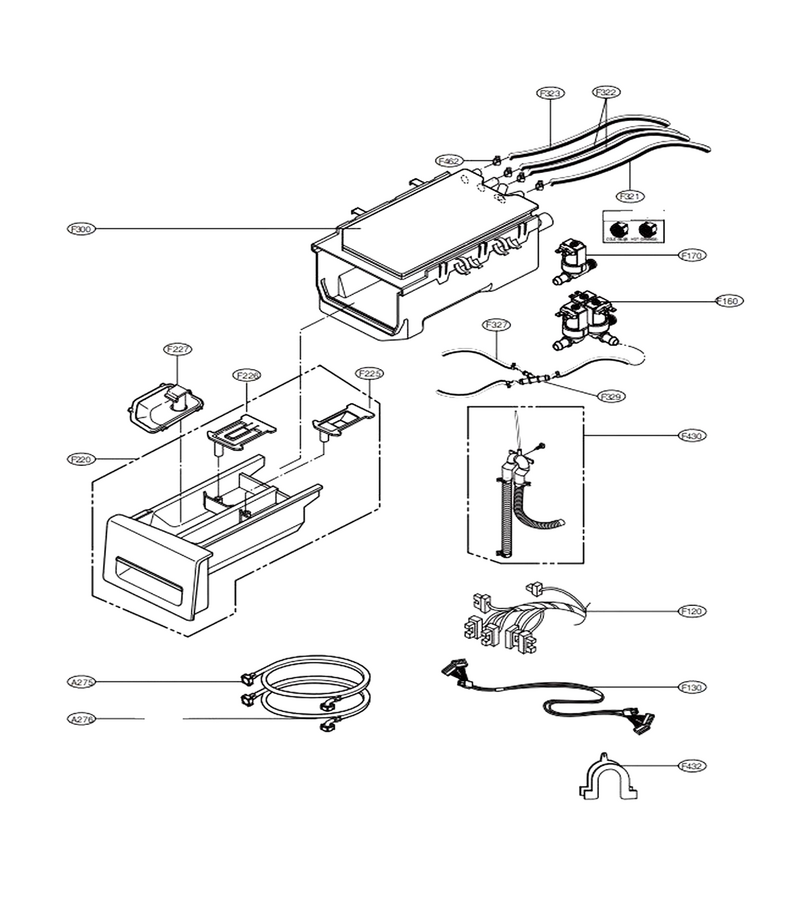

Dispenser Assembly

...
...
A275
Accessory Assembly L-G-AAA76517702
...
A276
Washer Fill Hose L-G-5215FD3715V
...
F120
Multi Harness L-G-EAD64005809
...
F130
Multi Harness L-G-6850EC2007M
...
F160
Valve Assembly,inlet L-G-5221ER1003M
...
F170
Valve Assembly,inlet L-G-5220FR2006W
...
F220
Drawer Panel Assembly L-G-AGL74074351
...
F225
Washer Dispenser Drawer Insert L-G-5006ER3021A
...
F226
Washer Bleach Dispenser L-G-5006ER3022A
...
F227
Box Assembly,detergent L-G-AAZ73736101
...
F300
Dispenser Assembly L-G-ACZ55907503
...
F321
Washer Dispenser Inlet Hose L-G-MEJ62524901
...
F322
Washer Inlet Hose L-G-MEJ62524902
...
F323
Inlet Hose L-G-5214ER4003Z
...
F327
Washer Inlet Hose L-G-5214ER4001R
...
F329
Inlet Hose L-G-5214ER4003F
...
F430
Washer Drain Hose L-G-5215ER2002W
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F462
Washer Hose Clamp L-G-4861FR3068A
