LG WM4000HBA.ABLEUUS

Model: WM4000HBA.ABLEUUS

Save Part Not Listed?
product name

Cabinet & Control Panel Assembly

...
...
A100
Cabinet Assembly L-G-ABJ30921795
...
F215
Knob Assembly L-G-AEZ73913406
...
F210
Panel Assembly,control L-G-AGL30019513
...
F110
Pcb Assembly,display L-G-EBR89076004
...
A485
Filter Assembly L-G-EAM63891317
...
A450
Pcb Assembly,complex L-G-EBR89581111
...
A440
Switch Assembly,locker L-G-EBF62534401
...
A430
Power Cord Assembly L-G-EAD65212501
...
A410
Switch Assembly,pressure L-G-EBF63534901
...
A390
Frame,panel L-G-MDQ65478101
...
A310
Cap,cover L-G-MBL62818303
...
A300
Case L-G-MBN47927902
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A200
Base Assembly,cabinet L-G-AAN74112007
...
A150
Door Assembly L-G-ADC76886105
...
A155
Washer Handle L-G-3650FA3489A
...
A101
Cover,rear L-G-MCK69952901
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Holder L-G-4930FR3151A
...
A104
Washer Shipping Bolt L-G-FAA31690704
...
A105
Washer Shipping Bolt L-G-FAA31690703
...
A106
Washer Shipping Bolt L-G-FAA31690705
...
A108
Vent L-G-MJZ62021601
...
A110
Plate,top L-G-MGJ65884801
...
A130
Cover,cabinet L-G-MCK58110509
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Bracket,hinge L-G-MAZ67172001

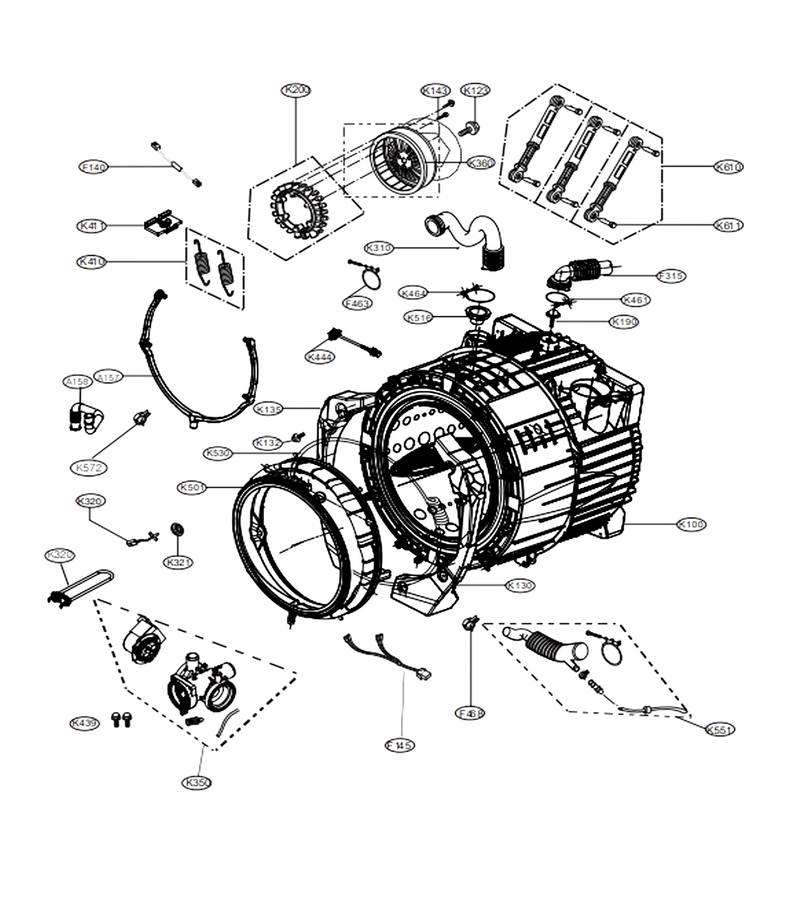

Drum & Tub Assembly

...
...
K320
Heater Assembly L-G-AEG73309907
...
K350
Pump Assembly,drain L-G-AHA75853804
...
K360
Rotor Assembly L-G-AHL72914413
...
K410
Washer Suspension Spring L-G-MHY62964802
...
K411
Holder L-G-MEG64919202
...
K439
Screw,customized L-G-4W50404B
...
K444
Sensor Assembly L-G-EBD48922806
...
K100
Tub Assembly,drum L-G-AJQ74873908
...
K461
Washer Hose Clamp L-G-4860FR3092D
...
K464
Washer Hose Clamp L-G-4860FR3092C
...
K501
Gasket L-G-MDS66290807
...
K516
Water Guide L-G-4974ER3008A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K551
Bellows Assembly L-G-AAS73169401
...
K572
Clamp L-G-4861FR3068C
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K200
Stator Assembly L-G-AJB73816029
...
A157
Connector,nozzle L-G-MCD64327001
...
A158
Hose,inlet L-G-MEJ64124901
...
F140
Harness,multi L-G-6877ER1016S
...
F145
Harness,single L-G-EAD64545802
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
K123
Washer Bolt L-G-4040FR4051C
...
K130
Balance Weight L-G-MAG63602803
...
K132
Bolt Assembly L-G-4011FR3173H
...
K135
Balance Weight L-G-MAG63602903
...
K143
Common Bolt L-G-FAA30970801
...
K190
Float Assembly L-G-ADS73009001
...
K310
Washer Dispenser Hose L-G-4738ER1004B
...
F468
Washer Hose Clamp L-G-4861FR3068E

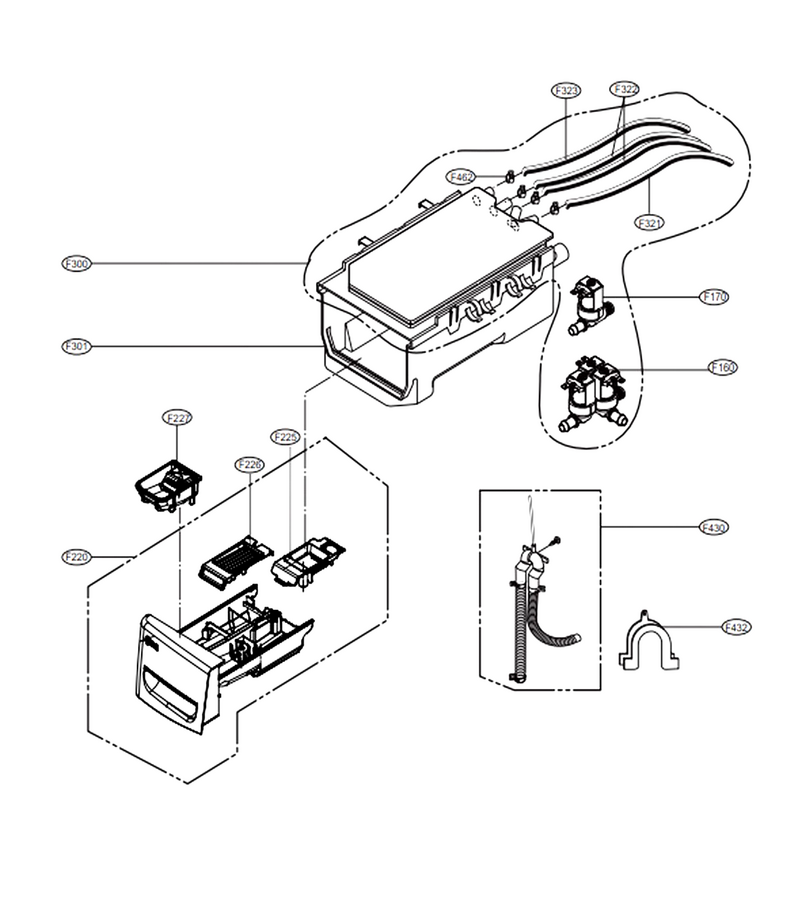

Dispenser Assembly

...
...
F462
Washer Hose Clamp L-G-4861FR3068A
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F430
Hose Assembly,drain L-G-AEM74772903
...
F323
Washer Dispenser Hose L-G-MEJ61841803
...
F322
Washer Dispenser Inlet Hose L-G-5214ER4001A
...
F321
Inlet Hose L-G-5214ER4001H
...
F301
Dispenser L-G-MCU62441102
...
F300
Dispenser Assembly L-G-ACZ74070501
...
F227
Box Assembly,detergent L-G-AAZ75735901
...
F226
Cap,siphone L-G-MBL67700004
...
F225
Cap,softener L-G-MBL67499003
...
F220
Panel Assembly,drawer L-G-AGL30019114
...
F170
Valve Assembly,inlet L-G-5221ER1003S
...
F160
Valve Assembly,inlet L-G-5220FR2006Z
