LG WM4000HBA.ABLEEUS

Model: WM4000HBA.ABLEEUS

Save Part Not Listed?
product name

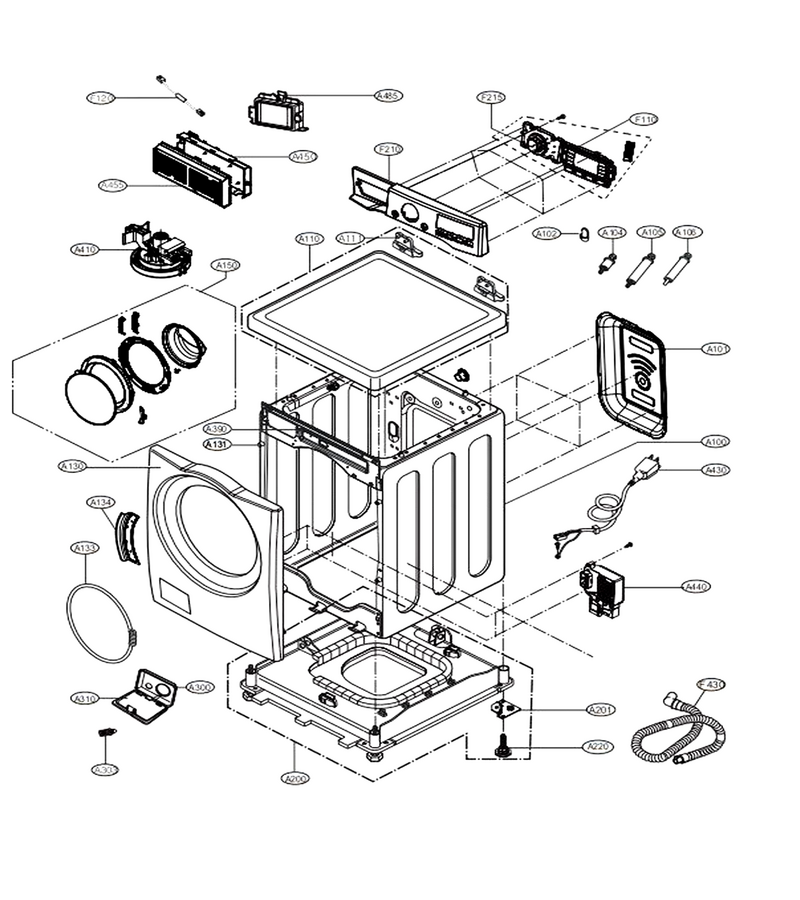

Cabinet & Control Panel Assembly

...
...
A455
Cover,protect L-G-MCK69784901
...
A300
Case L-G-MBN47927902
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A310
Cap,cover L-G-MBL62818315
...
A390
Frame Assembly L-G-ADV77726103
...
A410
Switch Assembly,pressure L-G-EBF63534901
...
A430
Washer Power Cord L-G-EAD40521449
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Main Pcb Assembly L-G-EBR86771821
...
A100
Cabinet Assembly L-G-ABJ76067107
...
A485
Filter Assembly L-G-EAM63891317
...
F110
Display Pcb Assembly L-G-EBR85194760
...
F120
Multi Harness L-G-EAD64545348
...
F210
Control Panel Assembly L-G-AGL30019517
...
F215
Knob Assembly L-G-AEZ73913418
...
F430
Hose Assembly,drain L-G-AEM74772904
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A101
Cover,rear L-G-MCK69952903
...
A102
Washer Bushing L-G-4830ER3001A
...
A104
Washer Shipping Bolt L-G-FAA31690704
...
A105
Washer Shipping Bolt L-G-FAA31690703
...
A106
Washer Shipping Bolt L-G-FAA31690705
...
A110
Plate Assembly,top L-G-AGU30071295
...
A111
Bracket L-G-4810ER3021C
...
A130
Cover,cabinet L-G-MCK58110518
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A134
Bracket,hinge L-G-MAZ67172001
...
A150
Door Assembly L-G-ADC76886110
...
A200
Base Assembly,cabinet L-G-AAN74112015

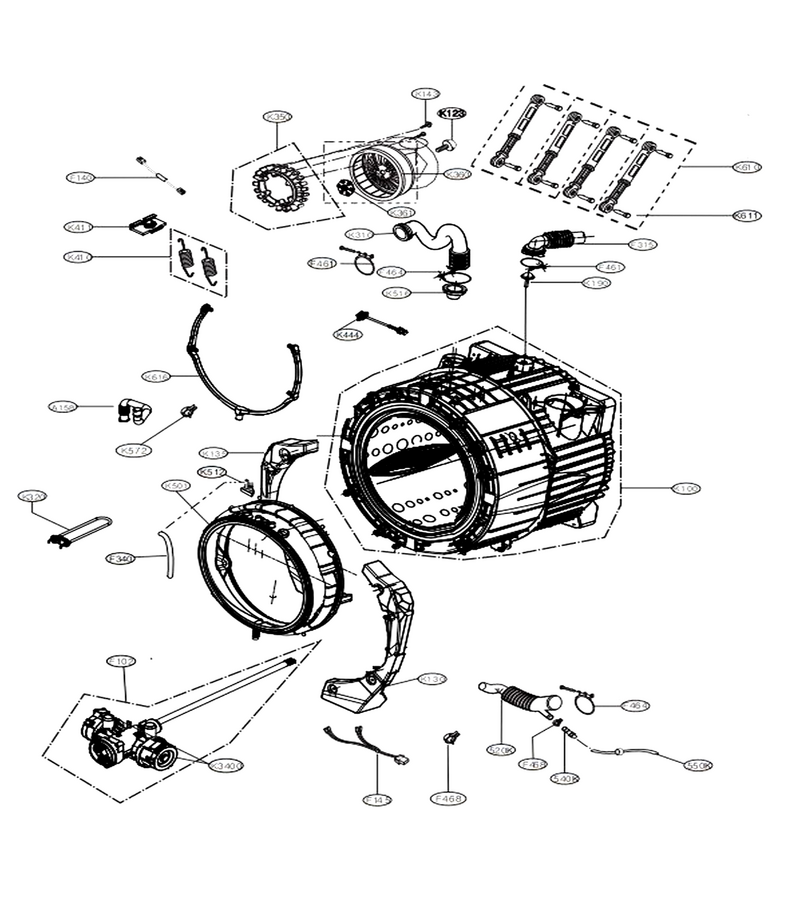

Drum & Tub Assembly

...
...
K320
Washer Heating Element L-G-AEG33121501
...
K3400
Motor Assembly,dc,pump L-G-EAU64082901
...
K350
Stator Assembly L-G-AJB73816028
...
K360
Rotor Assembly L-G-AHL72914410
...
K361
Bush,rotor L-G-MBF62845201
...
K410
Washer Suspension Spring L-G-4970FR2084Z
...
K411
Holder L-G-MEG64919202
...
F464
Washer Hose Clamp L-G-4860FR3092C
...
K444
Sensor Assembly L-G-EBD48922806
...
K501
Gasket L-G-MDS66290805
...
K512
Connector,nozzle L-G-MCD62387102
...
K516
Water Guide L-G-4974ER3008A
...
K572
Clamp L-G-4861FR3068C
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B
...
K616
Connector,nozzle L-G-MCD64327001
...
F461
Washer Hose Clamp L-G-4860FR3092D
...
K310
Washer Dispenser Hose L-G-4738ER1004B
...
A158
Hose,inlet L-G-MEJ64124901
...
F102
Pump Assembly,drain L-G-AHA75693423
...
F140
Harness,multi L-G-6877ER1016S
...
F145
Harness,single L-G-EAD64545811
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F340
Hose,inlet L-G-5214ER4001Z
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K100
Drum Tub Assembly L-G-AJQ74873906
...
K123
Washer Bolt L-G-4040FR4051C
...
K130
Balance Weight L-G-MAG63602902
...
K135
Balance Weight L-G-MAG63602802
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Float Assembly L-G-4769ER4001B
...
520K
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
540K
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
550K
Inlet Hose L-G-MEJ62305104

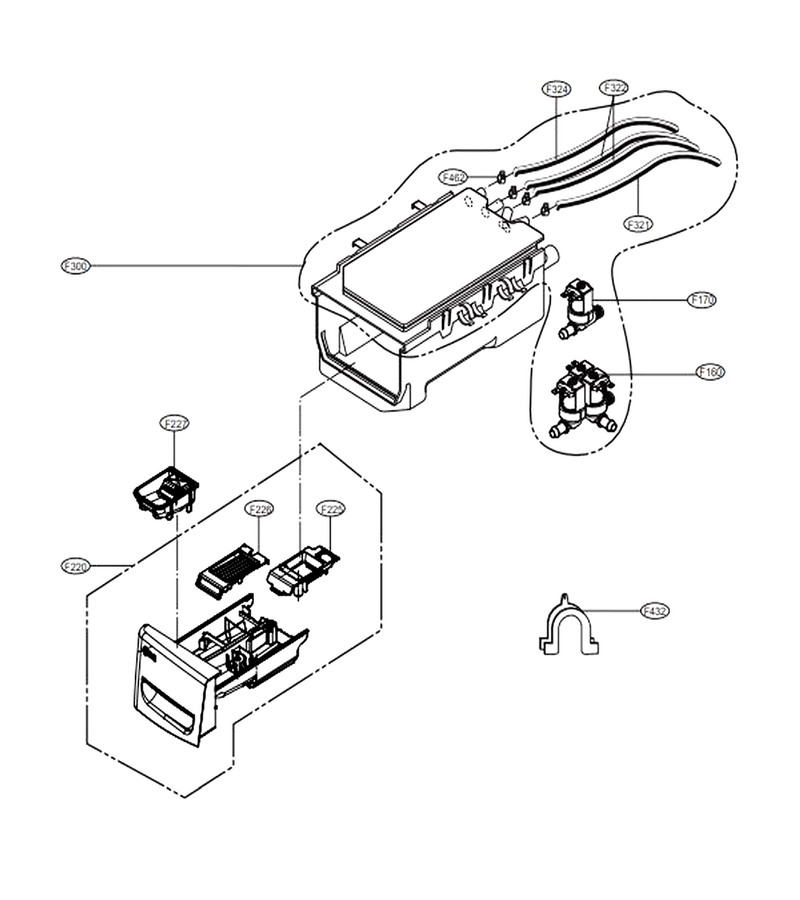

Dispenser Assembly

...
...
F160
Valve Assembly,inlet L-G-5221ER1003S
...
F170
Valve Assembly,inlet L-G-5220FR2006Z
...
F220
Panel Assembly,drawer L-G-AGL30019117
...
F225
Cap,softener L-G-MBL67499001
...
F226
Cap,siphone L-G-MBL67700001
...
F227
Box Assembly,detergent L-G-AAZ75735901
...
F300
Dispenser Assembly L-G-ACZ74070506
...
F321
Washer Dispenser Inlet Hose L-G-5214ER4001A
...
F322
Washer Dispenser Hose L-G-MEJ61841803
...
F324
Inlet Hose L-G-5214ER4001H
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F462
Washer Hose Clamp L-G-4861FR3068A
