LG WM3998HBA.ABLEVUS

Model: WM3998HBA.ABLEVUS

Save Part Not Listed?

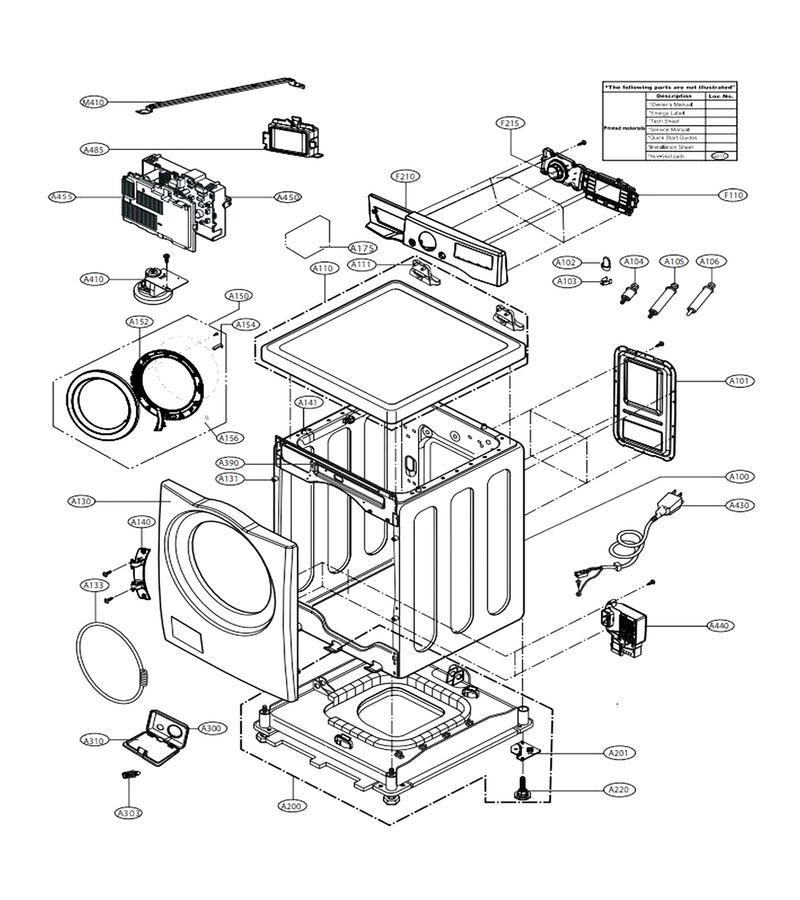

product name

Cabinet & Control Panel Assembly

...
...
A100
Cabinet Assembly L-G-ABJ30921761
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Holder L-G-4930FR3151A
...
A104
Washer Shipping Bolt L-G-FAA31690704
...
A105
Washer Shipping Bolt L-G-FAA31690703
...
A106
Washer Shipping Bolt L-G-FAA31690705
...
A110
Plate L-G-3457ER1006G
...
A111
Washer Top Panel Bracket L-G-4810ER3021A
...
A130
Washer Front Panel L-G-MCK47135501
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Hinge Washer L-G-AEH52645601
...
A141
Washer Top Panel Screw L-G-AEJ33026401
...
A150
Washer Door Assembly L-G-ADC73906101
...
A152
Frame L-G-MDQ47137903
...
A154
Washer Door Lock Strike L-G-MFG62579001
...
A156
Washer Magnetic Door Plunger L-G-AGM73610701
...
A175
Washer Door Hinge L-G-AGM73409001
...
A200
Base Assembly L-G-3041ER0001U
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A300
Case L-G-MBN47927902
...
A303
Washer Drain Pump Filter Drain Hose Plug L-G-5006ER3009A
...
A310
Cap Cover L-G-5006ER2006M
...
A390
Frame Assembly L-G-3211ER1001F
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A430
Power Cord Assembly L-G-EAD63567510
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Washer/dryer Combo Electronic Control Board L-G-EBR79950213
...
A455
Washer Electronic Control Board Cover L-G-3550ER1032A
...
A485
Filter Assembly L-G-EAM62492306
...
F110
Display Pcb Assembly L-G-EBR78923311
...
F210
Control Panel Assembly L-G-AGL55862044
...
F215
Dryer Control Knob L-G-4941ER3005A
...
M410
Frame Body L-G-3210ER1318A

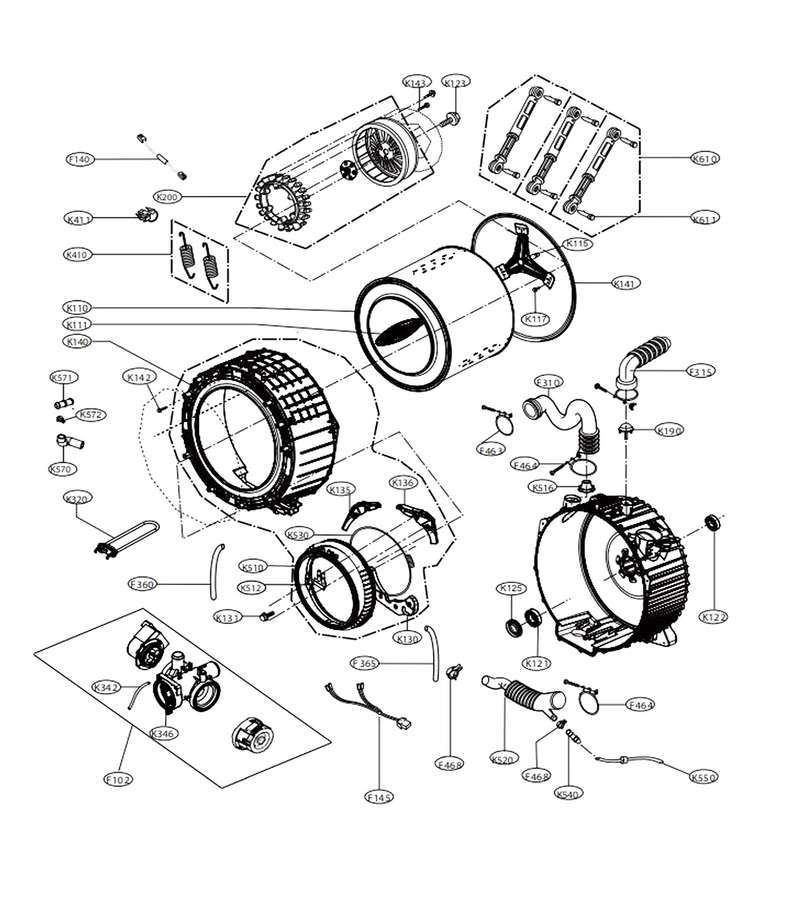

Drum & Tub Assembly

...
...
F102
Pump Assembly,drain L-G-AHA75693429
...
F140
Harness,multi L-G-6877ER1016U
...
F145
Washer Wire Harness L-G-6877ER3003B
...
F310
Washer Dispenser Hose L-G-4738ER1004A
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F360
Connect Hose L-G-MEJ62484601
...
F365
Connect Hose L-G-MEJ62484602
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Clamp L-G-4860FR3092K
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K110
Drum Tub Assembly, Inner L-G-AJQ54138214
...
K111
Washer Baffle L-G-AFH72909001
...
K115
Spider L-G-MHW61841105
...
K117
Washer Bolt L-G-4011FA4353E
...
K121
Washer Tub Bearing, Rear L-G-4280FR4048N
...
K122
Washer Tub Bearing L-G-4280FR4048Z
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-MDS62058301
...
K130
Weight L-G-4866ER1013A
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Balance Weight L-G-MAG47123701
...
K136
Balance Weight L-G-MAG62563401
...
K140
Washer Tub Ring L-G-MCK47123502
...
K141
Washer Outer Tub Gasket L-G-4036ER4001B
...
K142
Washer Screw L-G-383EER3001W
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Float Assembly L-G-4769ER4001B
...
K200
Stator Assembly,combined L-G-AJB76315004
...
K320
Heater Assembly L-G-AEG33121528
...
K342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006G
...
K346
Washer Drain Pump Filter L-G-383EER2001F
...
K410
Washer Suspension Spring L-G-MHY62964802
...
K411
Holder L-G-4930FR3040A
...
K510
Gasket L-G-MDS63711203
...
K512
Nozzle L-G-MCD62387101
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Washer Water-Level Pressure Switch Hose L-G-5214FR4125N
...
K570
Washer Tub-To-Pump Hose L-G-5214FR4058Y
...
K571
Washer Drain Pump Hose Connector L-G-4932ER4007B
...
K572
Washer Hose Clamp L-G-4861FR3068A
...
K610
Washer Shock Absorber L-G-383EER3001V
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B

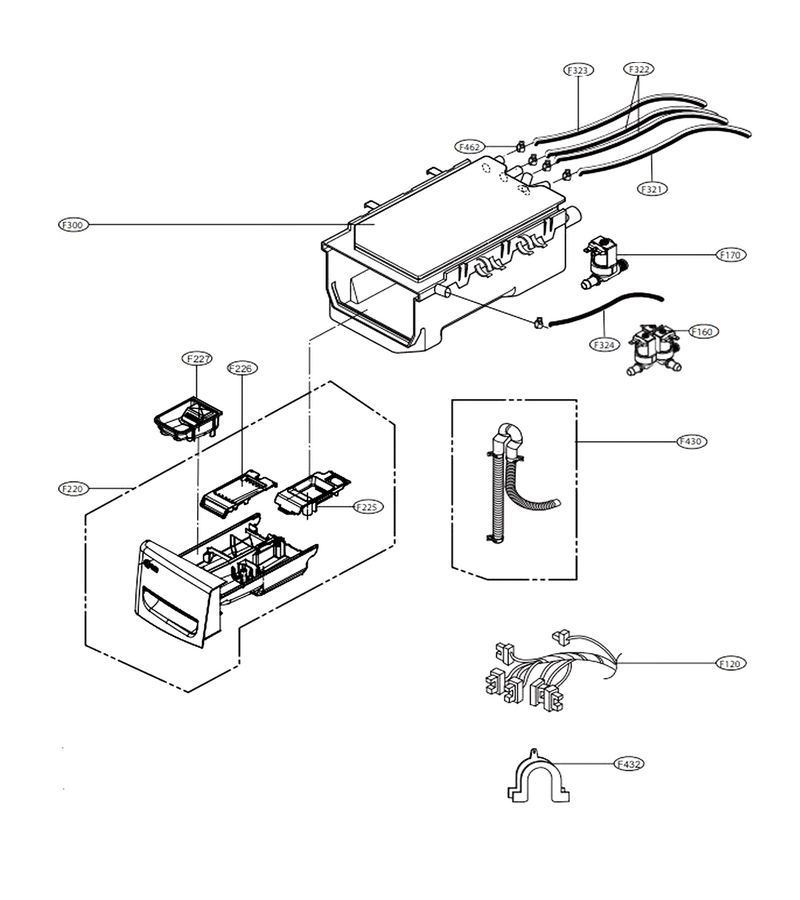

Dispenser Assembly

...
...
F120
Multi Harness L-G-EAD63866405
...
F160
Washer Water Inlet Valve L-G-5220FR2008E
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F220
Drawer Panel Assembly L-G-AGL55862150
...
F225
Washer Dispenser Drawer Insert L-G-5006ER3021A
...
F226
Washer Bleach Dispenser L-G-5006ER3022A
...
F227
Washer Detergent Dispenser L-G-3891ER2003A
...
F300
Dispenser L-G-4925ER1015F
...
F321
Washer Dispenser Inlet Hose L-G-5214ER4001A
...
F322
Washer Dispenser Inlet Hose L-G-5214ER4001B
...
F323
Inlet Hose L-G-5214ER4003Z
...
F324
Hose,inlet L-G-5214ER4001V
...
F430
Washer Drain Hose L-G-5215ER2002G
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F462
Washer Hose Clamp L-G-4861FR3068A

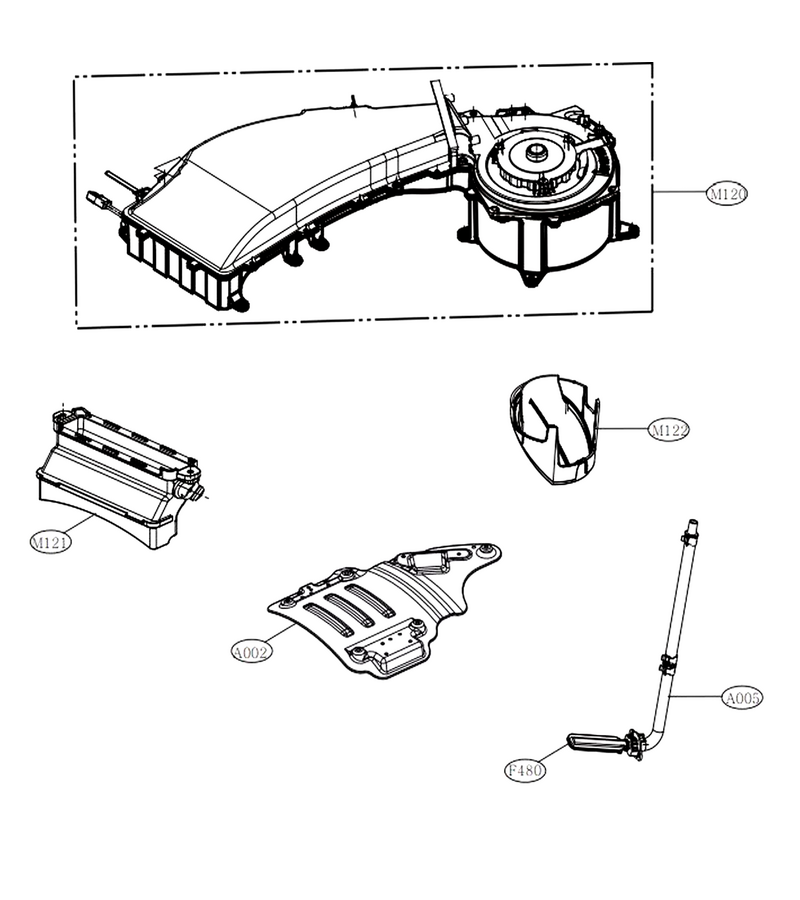

Dryer Duct Assembly

...
...
A002
Cover,protect L-G-MCK66977001
...
A005
Hose Assembly,connector L-G-AEM73693003
...
F480
Nozzle Assembly L-G-AGB73212401
...
M120
Outlet Duct L-G-MCZ62611701
...
M121
Pipe L-G-5200ER3001A
...
M122
Filter Assembly,mesh L-G-ADQ73353401
