LG WM3997HVA.ASSEEUS

Model: WM3997HVA.ASSEEUS

Save Part Not Listed?
product name

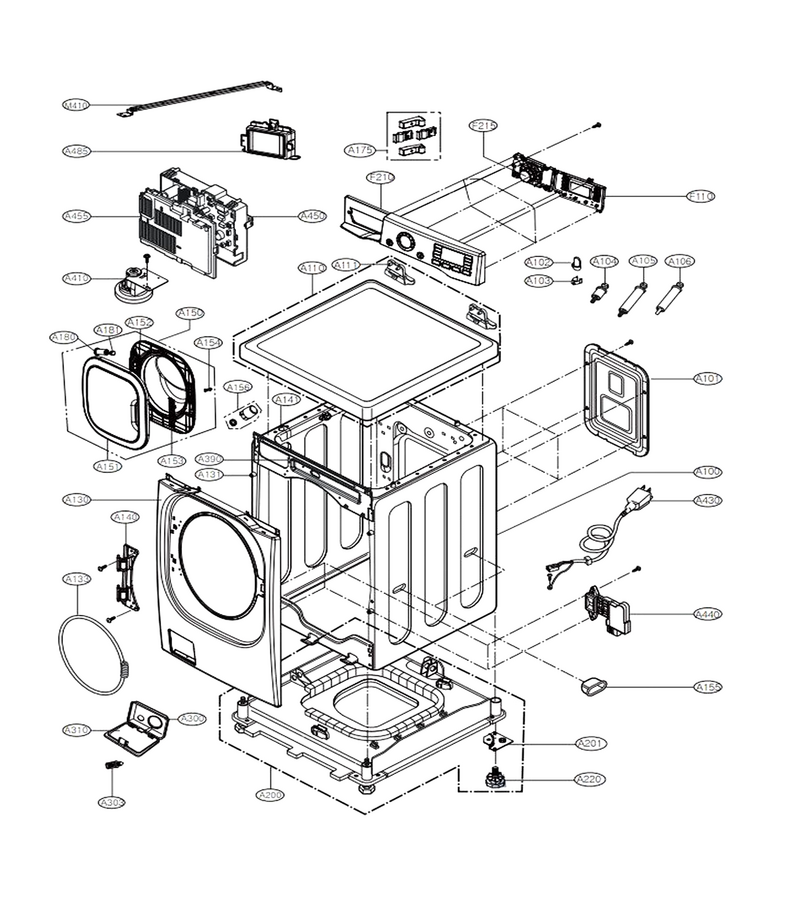

Cabinet & Control Panel Assembly

...
...
A100
Washer Cabinet Assembly L-G-ABJ30921722
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Holder L-G-4930FR3151A
...
A104
Washer Shipping Bolt L-G-4011FR3159E
...
A105
Washer Shipping Bolt L-G-4011FR3159D
...
A106
Washer Shipping Bolt L-G-4011FR3159J
...
A110
Plate Assembly,top L-G-AGU30071251
...
A111
Bracket L-G-4810ER3021C
...
A130
Washer Front Panel L-G-MCK47135505
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Hinge Washer L-G-AEH52645601
...
A141
Washer Top Panel Screw L-G-AEJ33026401
...
A150
Washer Door Assembly L-G-ADC73906101
...
A151
Door Outer Frame L-G-MDQ63136301
...
A152
Frame L-G-MDQ47137903
...
A153
Washer Handle L-G-MEB61914201
...
A154
Washer Door Lock Strike L-G-MFG62579001
...
A155
Washer Handle L-G-3650FA3489A
...
A156
Washer Magnetic Door Plunger L-G-AGM73610701
...
A175
Washer Door Hinge L-G-AGM73409001
...
A180
Bush L-G-MBF57160201
...
A181
Damper L-G-MCQ57675201
...
A200
Washer Cabinet Base L-G-3041ER0001J
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A300
Case L-G-MBN47927901
...
A303
Washer Drain Pump Filter Drain Hose Plug L-G-5006ER3009A
...
A310
Cap Cover L-G-5006ER2006Z
...
A390
Frame Assembly L-G-3211ER1001F
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A430
Washer Power Cord L-G-6411ER1005K
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Pcb Assembly,main L-G-EBR75640321
...
A455
Washer Electronic Control Board Cover L-G-3550ER1032A
...
A485
Dishwasher Noise Filter L-G-6201EC1006T
...
F110
Pcb Assembly,display L-G-EBR74752233
...
F210
Panel Assembly,control L-G-AGL55862043
...
F215
Dryer Control Knob L-G-4941ER3005A

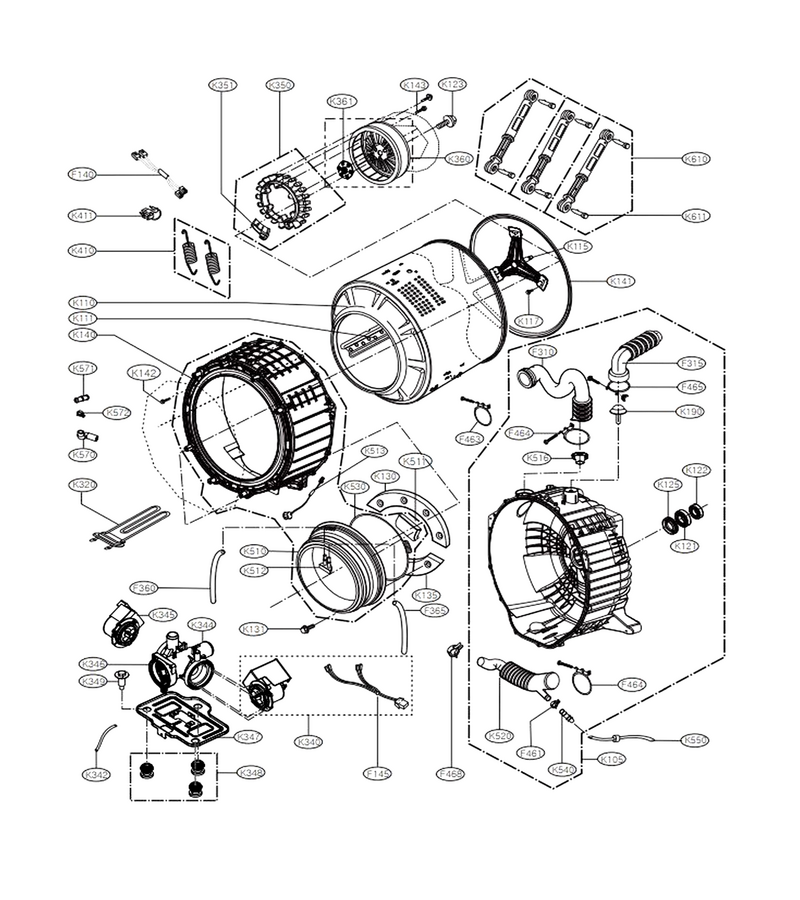

Drum & Tub Assembly

...
...
F140
Washer Wire Harness L-G-6877ER1016F
...
F145
Harness,single L-G-6877ER3003P
...
F310
Washer Dispenser Hose L-G-4738ER1004A
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F360
Connect Hose L-G-MEJ62484601
...
F365
Connect Hose L-G-MEJ62484602
...
F461
Washer Hose Clamp L-G-4861FR3068E
...
F463
Clamp L-G-4860FR3092H
...
F464
Washer Hose Clamp L-G-4860FR3092C
...
F465
Clamp L-G-4860FR3092H
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K105
Tub Assy,out L-G-AJQ73413804
...
K110
Washer Spin Basket L-G-AJQ54138205
...
K111
Washer Baffle L-G-AFH72909001
...
K115
Washer Spinner Support L-G-MHW61841103
...
K117
Washer Bolt L-G-4011FA4353E
...
K121
Washer Tub Bearing L-G-4280FR4048L
...
K122
Washer Tub Bearing, Rear L-G-4280FR4048Y
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-MDS62058301
...
K130
Weight L-G-4866ER1013A
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Balance Weight L-G-MAG47123701
...
K140
Washer Tub Ring L-G-MCK47123502
...
K141
Washer Outer Tub Gasket L-G-4036ER4001B
...
K142
Washer Screw L-G-383EER3001W
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Float Assembly L-G-4769ER4001B
...
K320
Heater Assembly L-G-AEG33121528
...
K340
Parts Assembly L-G-AGM74189101
...
K342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006G
...
K344
Washer Pump L-G-3108ER1001E
...
K345
Washer Wash Pump Motor L-G-EAU61383503
...
K346
Washer Drain Pump Filter L-G-383EER2001F
...
K347
Pump Bracket L-G-MAZ41498201
...
K348
Washer Pump Bracket Damper L-G-MCQ41502701
...
K349
Common Bolt L-G-FAA30153701
...
K350
Washer Drive Motor L-G-4417EA1002Y
...
K351
Washer Motor Rotor Position Sensor L-G-6501KW2002A
...
K360
Washer Drive Motor L-G-AHL72914401
...
K361
Bush,rotor L-G-MBF62845201
...
K410
Washer Suspension Spring L-G-4970FR2084Z
...
K411
Holder L-G-4930FR3040A
...
K510
Gasket L-G-MDS63711203
...
K511
Water Guide L-G-4974ER2003A
...
K512
Nozzle L-G-MCD62387101
...
K513
Washer Led Lamp L-G-EAQ61400802
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Washer Water-Level Pressure Switch Hose L-G-5214FR4125N
...
K570
Washer Tub-To-Pump Hose L-G-5214FR4058Y
...
K571
Washer Drain Pump Hose Connector L-G-4932ER4007B
...
K572
Washer Hose Clamp L-G-4861FR3068A
...
K610
Washer Shock Absorber L-G-383EER3001V
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B

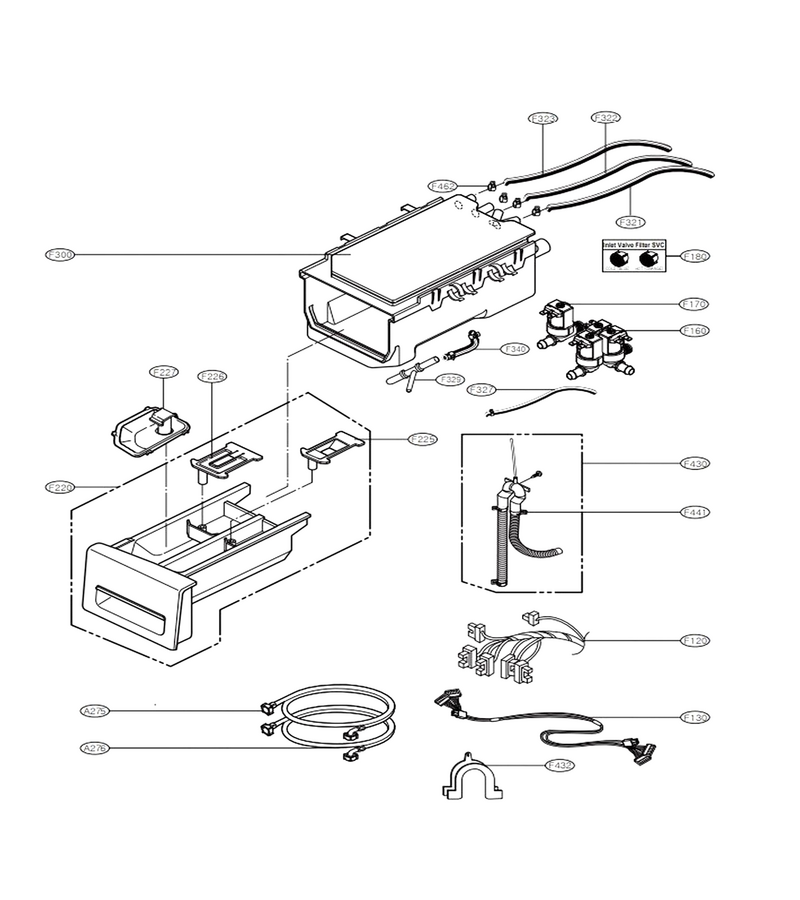

Dispenser Assembly

...
...
A275
Washer Fill Hose L-G-5215FD3715U
...
A276
Washer Fill Hose L-G-5215FD3715V
...
F120
Harness,multi L-G-EAD39334763
...
F130
Multi Harness L-G-EAD61212320
...
F160
Washer Water Inlet Valve L-G-5220FR2008E
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F180
Washer Water Inlet Valve Screen L-G-AGM73269501
...
F220
Panel Assembly,drawer L-G-AGL55862149
...
F225
Washer Dispenser Drawer Insert L-G-5006ER3021A
...
F226
Washer Bleach Dispenser L-G-5006ER3022A
...
F227
Washer Detergent Dispenser L-G-3891ER2003A
...
F300
Dispenser L-G-4925ER1015F
...
F321
Washer Dispenser Inlet Hose L-G-5214ER4001A
...
F322
Washer Dispenser Inlet Hose L-G-5214ER4001B
...
F323
Inlet Hose L-G-5214ER4003Z
...
F327
Connector L-G-4932ER4008A
...
F329
Connector Hood L-G-4932ER4008B
...
F340
Inlet Hose L-G-5214ER4003F
...
F430
Washer Drain Hose L-G-5215ER2002G
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F441
Clamp L-G-4861FR3068C
...
F462
Washer Hose Clamp L-G-4861FR3068A

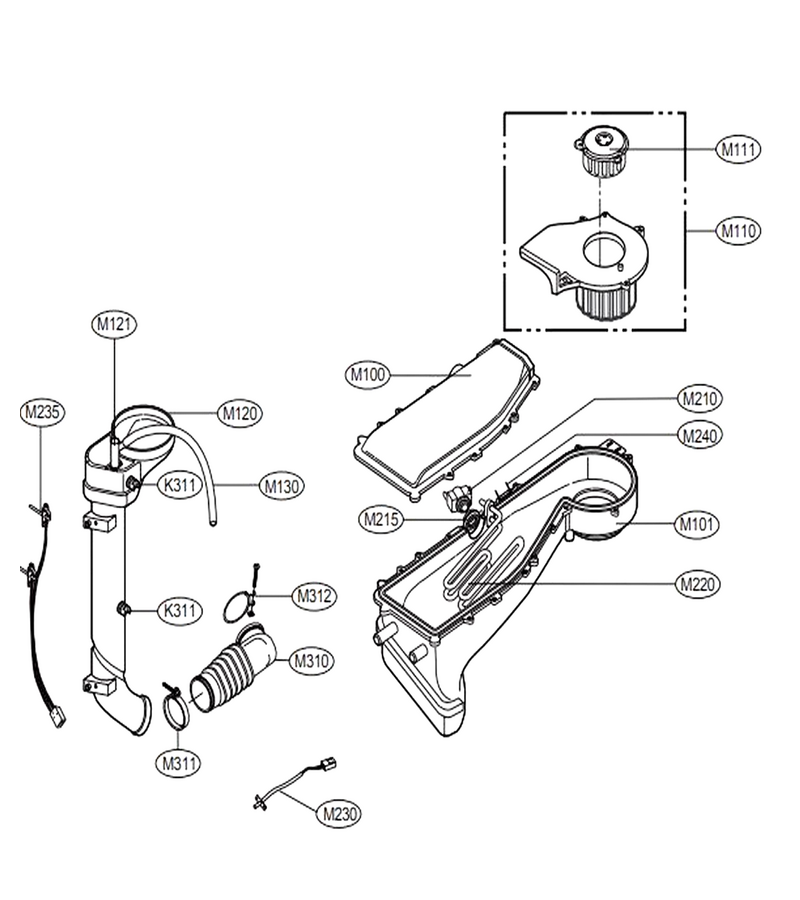

Main

...
...
K311
Washer Thermistor Gasket L-G-4036FR4050A
...
M100
Outlet Duct L-G-5208ER1007A
...
M101
Duct,outlet L-G-MCZ62471701
...
M110
Washer Blower Motor Assembly L-G-4681ER1004H
...
M111
Dryer Blower Motor L-G-4681ER1007A
...
M120
Outlet Duct L-G-MCZ62611701
...
M121
Pipe L-G-5200ER3001A
...
M130
Hose L-G-5214ER4001C
...
M210
Washer/dryer Combo Heater Safety Thermostat L-G-6931FR3108A
...
M215
Seal L-G-4036FR4045A
...
M220
Washer Dryer Heating Element L-G-5301FR2076G
...
M230
Dryer Thermistor L-G-6322FR2046C
...
M235
Dryer Thermistor L-G-6322FR2046H
...
M240
Washer Thermal Fuse L-G-6901ER4001A
...
M310
Washer/dryer Combo Dryer Vent Bellows L-G-4738ER2005A
...
M311
Clamp L-G-4860FR3092A
...
M312
Clamp L-G-4860FR3092A
