LG WM3770HVA.ASSEVUS

Model: WM3770HVA.ASSEVUS

Save Part Not Listed?
product name

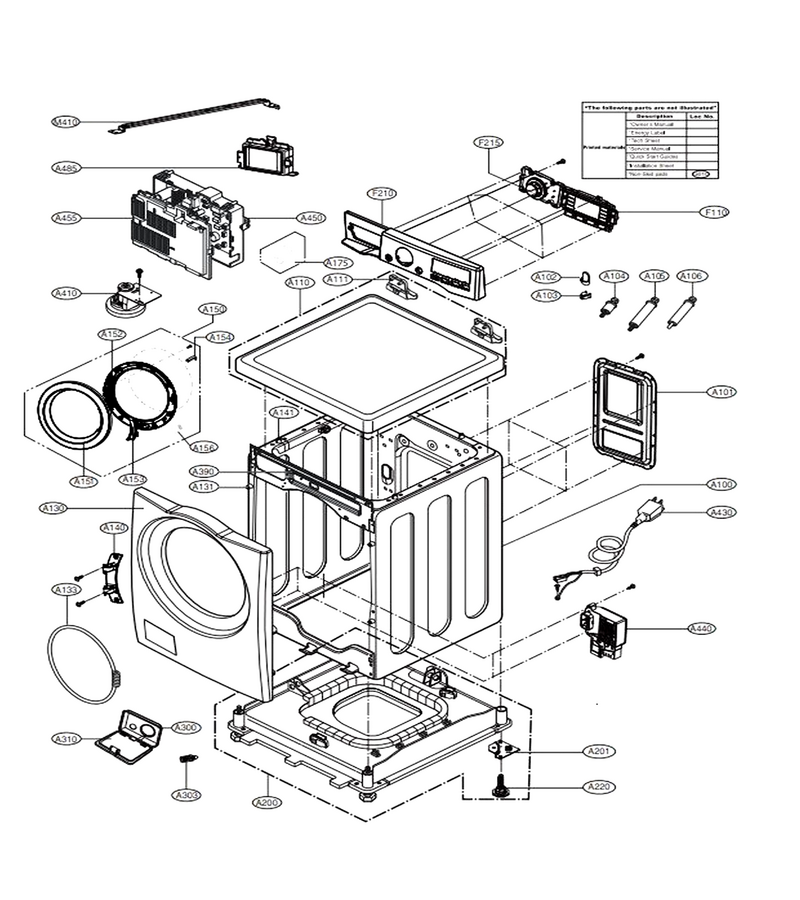

Cabinet & Control Panel Assembly

...
...
A100
Cabinet Assembly L-G-ABJ30921785
...
A101
Cover,rear L-G-3550ER1028M
...
A102
Bush L-G-MBF62784301
...
A103
Holder L-G-4930EN3005K
...
A104
Washer Shipping Bolt L-G-FAA31690704
...
A105
Washer Shipping Bolt L-G-FAA31690703
...
A106
Washer Shipping Bolt L-G-FAA31690705
...
A110
Plate Assembly,top L-G-AGU73909710
...
A111
Bracket L-G-4810ER3021C
...
A130
Cover,cabinet L-G-MCK67662703
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Hinge Assembly L-G-AEH71610406
...
A141
Washer Top Panel Screw L-G-AEJ33026401
...
A150
Door Assembly L-G-ADC74154907
...
A151
Frame,door(outer) L-G-MDQ65176901
...
A152
Frame,door(inner) L-G-MDQ63836801
...
A153
Washer Door Handle L-G-MEB61914501
...
A154
Hook Locker L-G-MFG63099101
...
A156
Holder Assembly L-G-AEJ74840003
...
A175
Washer Door Hinge L-G-AGM73409001
...
A200
Base Assembly,cabinet L-G-AAN74468825
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Package Assembly,c/skd L-G-AGF76283801
...
A300
Case L-G-MBN63106101
...
A303
Washer Drain Pump Filter Drain Hose Plug L-G-5006ER3009A
...
A310
Cap,cover L-G-MBL62818303
...
A390
Frame Assembly L-G-ADV76031501
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A430
Parts Assembly L-G-AGM34418431
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Main Pcb L-G-EBR79950226
...
A455
Washer Electronic Control Board Cover L-G-3550ER1032A
...
A485
Filter Assembly L-G-EAM60991315
...
F110
Pcb Assembly,display L-G-EBR78898205
...
F210
Package Assembly,c/skd L-G-AGF78449807
...
F215
Dryer Control Knob L-G-4941ER3005D
...
G010
Washer Non-Skid Pad L-G-AGM73171801
...
M410
Frame,body L-G-MDQ63616301

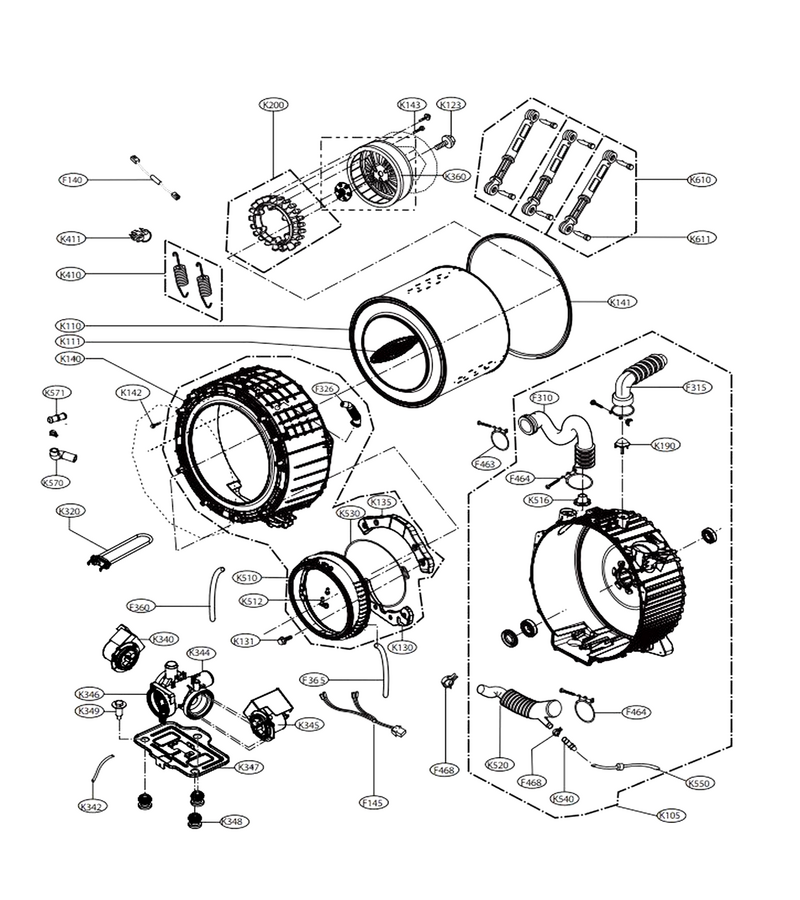

Drum & Tub Assembly

...
...
F140
Multi Harness L-G-EAD62061008
...
F145
Package Assembly,c/skd L-G-AGF78240570
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F360
Connect Hose L-G-MEJ62484601
...
F365
Connect Hose L-G-MEJ62484602
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Washer Hose Clamp L-G-4860FR3092C
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K105
Parts Assembly L-G-AGM75510707
...
K110
Tub Assembly,drum(inner) L-G-AJQ73674411
...
K111
Lifter L-G-MFE62081001
...
K123
Washer Bolt L-G-4040FR4051C
...
K130
Washer Counterweight L-G-MAG62583001
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Balance Weight L-G-MAG63143001
...
K140
Cover,tub L-G-MCK67635904
...
K141
Washer Outer Tub Gasket L-G-4036ER4001F
...
K142
Washer Seal L-G-1SZZFA4362C
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Float Assembly L-G-4769ER4001B
...
K200
Washer Heating Element L-G-AEG33121501
...
K320
Washer Heating Element L-G-AEG33121501
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K342
Package Assembly,c/skd L-G-AGF78240572
...
K344
Washer Pump L-G-3108ER1001E
...
K345
Washer Wash Pump Motor L-G-EAU61383503
...
K346
Washer Drain Pump Filter L-G-383EER2001F
...
K347
Package Assembly,c/skd L-G-AGF75223047
...
K348
Washer Pump Bracket Damper L-G-MCQ41502701
...
K349
Common Bolt L-G-FAA30153701
...
K411
Holder L-G-MEG64919202
...
K510
Gasket L-G-MDS47123618
...
K512
Nozzle L-G-MCD62387101
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Inlet Hose L-G-MEJ62305104
...
K570
Hose,connector L-G-MEJ62504901
...
K571
Connector,hose L-G-MCD54512103
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B

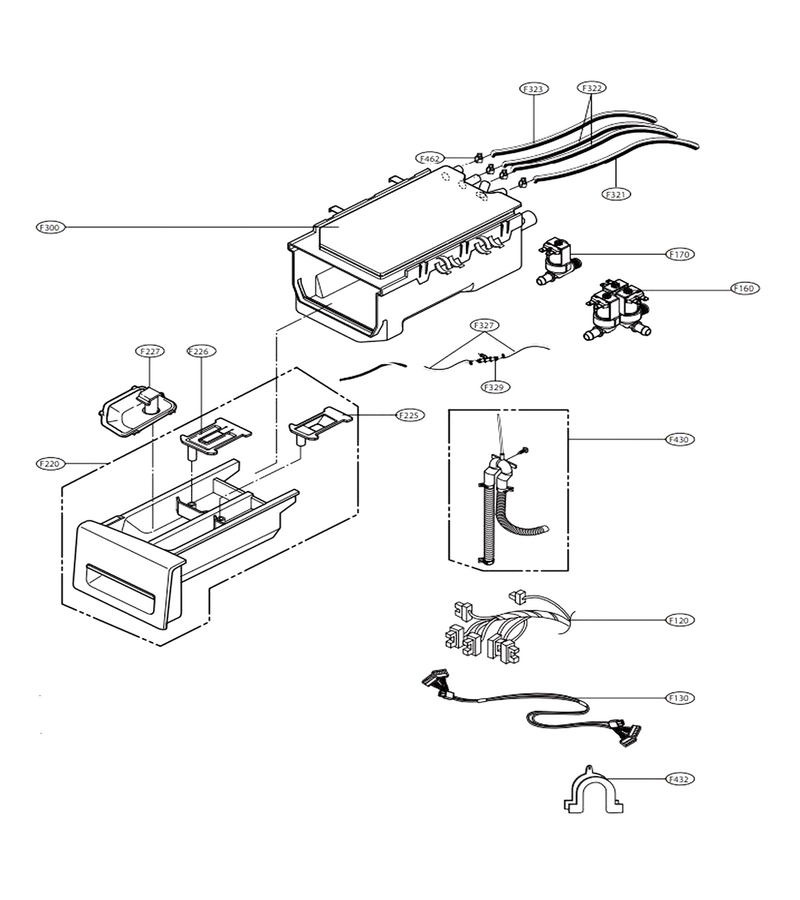

Dispenser Assembly

...
...
F120
Package Assembly,c/skd L-G-AGF78449807
...
F130
Package Assembly,c/skd L-G-AGF75223090
...
F160
Harness L-G-EAD62037107
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F220
Panel L-G-AGL74074330
...
F225
Washer Dispenser Drawer Insert L-G-5006ER3021A
...
F226
Washer Bleach Dispenser L-G-5006ER3022A
...
F227
Box Assembly,detergent L-G-3891ER2003E
...
F300
Dispenser Assembly L-G-4925ER1015K
...
F321
Washer Dispenser Inlet Hose L-G-MEJ62524901
...
F322
Washer Inlet Hose L-G-MEJ62524902
...
F323
Washer Inlet Hose L-G-MEJ62505602
...
F327
Hose,inlet L-G-MEJ62505603
...
F329
Connector,hose L-G-MCD63266901
...
F430
Hose Assembly,drain L-G-AEM74772902
...
F432
Hanger Assembly L-G-4991EN3002A
...
F462
Washer Hose Clamp L-G-4861FR3068A
