LG WM3700HWA.ABWEVUS

Model: WM3700HWA.ABWEVUS

Save Part Not Listed?
product name

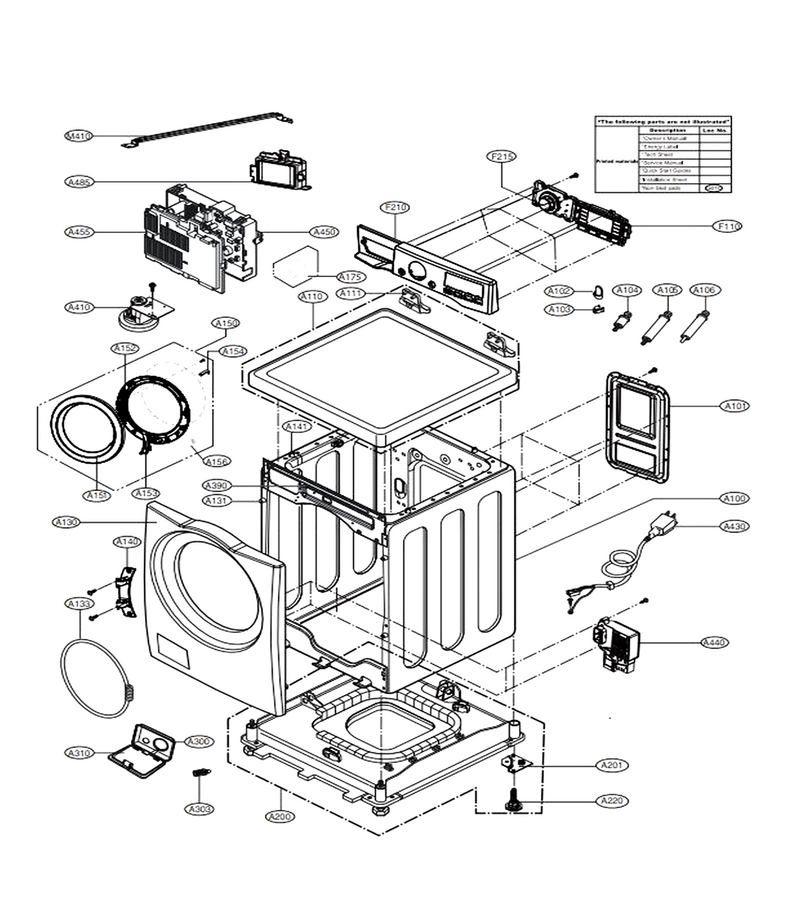

Cabinet & Control Panel Assemlby

...
...
A430
Power Cord Assembly L-G-EAD61246431
...
A156
Holder Assembly L-G-AEJ74840003
...
A175
Washer Door Hinge L-G-AGM73409001
...
A200
Base Assembly,cabinet L-G-AAN74468815
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72909305
...
A300
Case L-G-MBN63106101
...
A310
Cap Cover L-G-MBL62818307
...
A390
Frame Assembly L-G-ADV76031505
...
A410
Switch Assembly,pressure L-G-EBF63534901
...
A100
Washer Cabinet Assembly L-G-ABJ73888504
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Pcb Assembly,main L-G-EBR85018202
...
A455
Cover,protect L-G-MCK69784901
...
A485
Filter Assembly L-G-EAM60991315
...
F110
Pcb Assembly,display L-G-EBR85194702
...
F210
Panel Assembly,control L-G-AGL74115150
...
F215
Knob Assembly L-G-AEZ73913401
...
M410
Frame,body L-G-MDQ63616301
...
A153
Handle L-G-MEB64314001
...
A154
Hook Locker L-G-MFG63099101
...
A101
Cover,rear L-G-3550ER1028M
...
A102
Bush L-G-MBF62784301
...
A103
Holder L-G-4930EN3005K
...
A104
Washer Shipping Bolt L-G-FAA31690704
...
A105
Washer Shipping Bolt L-G-FAA31690703
...
A106
Washer Shipping Bolt L-G-FAA31690705
...
A110
Plate Assembly,top L-G-AGU73909711
...
A111
Washer Top Panel Bracket L-G-4810ER3021A
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Bracket,hinge L-G-MAZ65884101
...
A141
Washer Top Panel Screw L-G-AEJ33026401
...
A150
Door Assembly L-G-ADC74154923
...
A151
Frame,door(outer) L-G-MDQ65577801
...
A152
Frame,door(inner) L-G-MDQ65336603
...
A130
Cover,cabinet L-G-MCK58110512

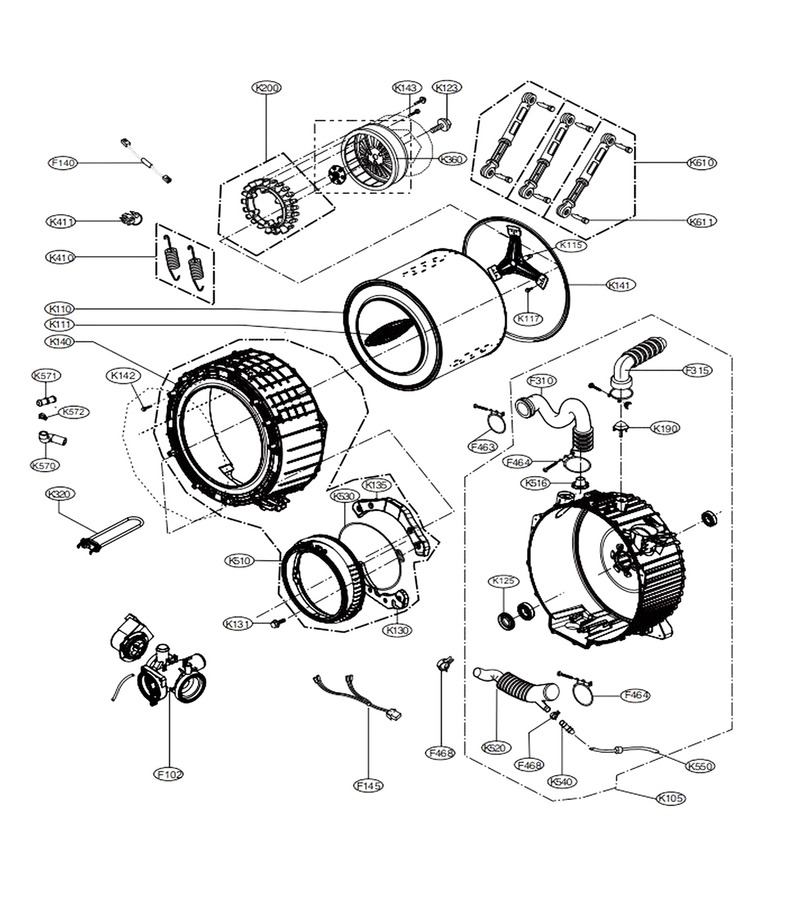

Drum & Tub Assembly

...
...
K516
Water Guide L-G-4974ER3008A
...
K510
Gasket L-G-MDS47123619
...
K411
Holder L-G-MEG64919201
...
K410
Washer Suspension Spring L-G-MHY62964802
...
K360
Washer Drive Motor L-G-AHL72914401
...
K320
Washer Heating Element L-G-AEG33121501
...
K200
Washer Motor Stator L-G-AJB73816004
...
K190
Float Assembly L-G-4769ER4001B
...
K143
Washer Bolt L-G-4011FA4353B
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Clamp Assembly L-G-4861ER2001P
...
K540
Chamber,air L-G-3504ER3002B
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K550
Inlet Hose L-G-MEJ62305104
...
K570
Hose,connector L-G-MEJ62504901
...
K571
Connector Hood L-G-MCD54512102
...
K572
Washer Hose Clamp L-G-4861FR3068A
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K611
Hinge L-G-4774FR3118E
...
K141
Washer Outer Tub Gasket L-G-4036ER4001F
...
F140
Multi Harness L-G-EAD62061008
...
F145
Harness,single L-G-EAD64545802
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Washer Hose Clamp L-G-4860FR3092C
...
K105
Parts Assembly L-G-AGM75510706
...
K110
Tub Assembly,drum(inner) L-G-AJQ73674418
...
K111
Lifter L-G-MFE62081001
...
K117
Washer Screw L-G-4000FR4031C
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-MDS62058301
...
K130
Balance Weight L-G-MAG62583007
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Balance Weight L-G-MAG63143004
...
K140
Cover,tub L-G-MCK67635904
...
K142
Washer Seal L-G-1SZZFA4362C
...
K115
Spider L-G-MHW62361301

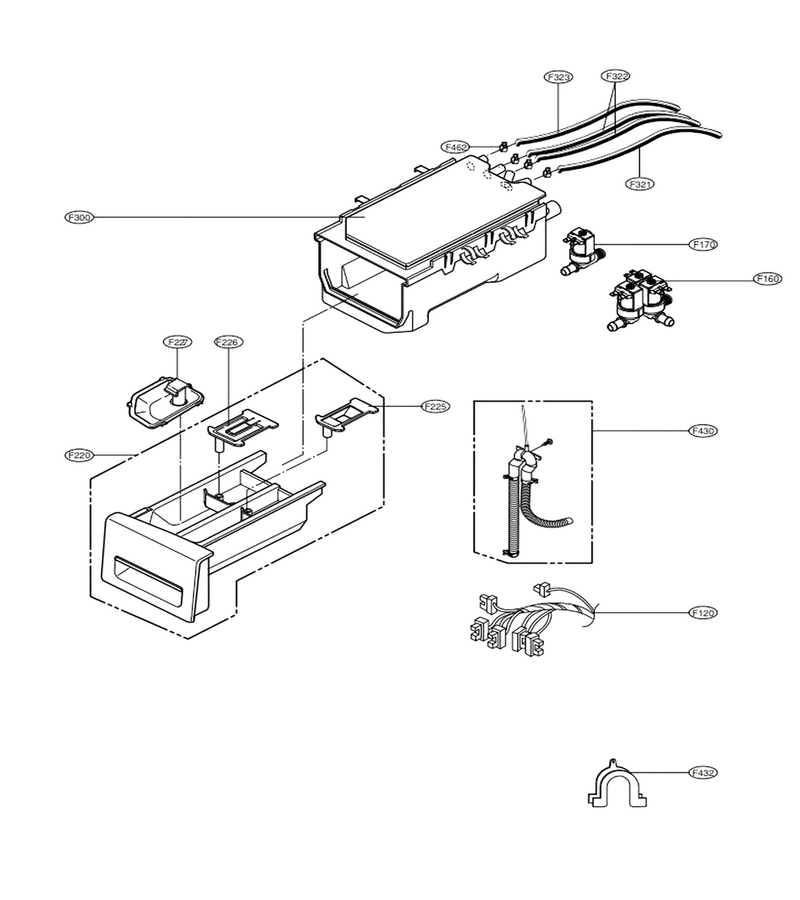

Dispenser Assembly

...
...
F462
Washer Hose Clamp L-G-4861FR3068A
...
F432
Hanger Assembly,pivot L-G-4991EN3002J
...
F430
Washer Drain Hose L-G-5214FR3188G
...
F323
Washer Dispenser Hose L-G-MEJ62524903
...
F322
Washer Inlet Hose L-G-MEJ62524902
...
F321
Washer Dispenser Inlet Hose L-G-MEJ62524901
...
F300
Dispenser Assembly L-G-ACZ74070504
...
F227
Box Assembly,detergent L-G-AAZ75735901
...
F220
Panel Assembly,drawer L-G-AGL74074374
...
F170
Valve Assembly,inlet L-G-5220FR2006W
...
F160
Valve Assembly,inlet L-G-5221ER1003M
...
F120
Harness,multi L-G-EAD64545301
