product name

LG WM3555HWA.ABWEPUS

Model: WM3555HWA.ABWEPUS

Save Part Not Listed?
product name

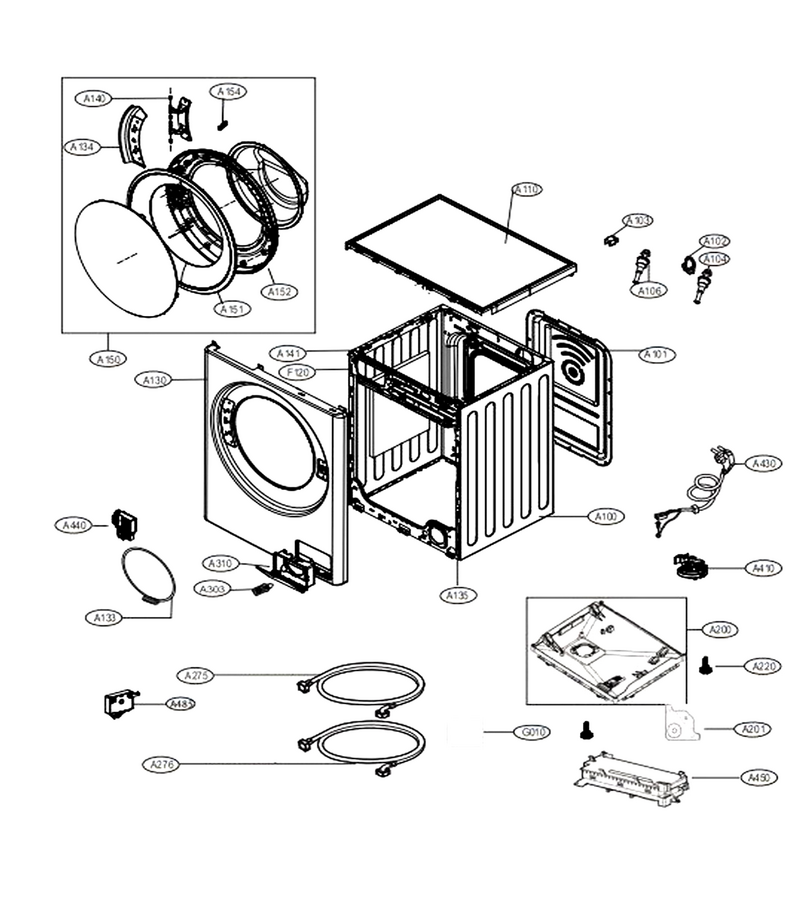

Cabinet Assembly

...
...
A100
Cabinet Assembly L-G-ABJ76107423
...
A101
Accessory Assembly L-G-AAA78322218
...
A102
Bush L-G-4830EN3001A
...
A103
Holder L-G-4930EN3005A
...
A104
Bolt Assembly L-G-4011EN3006G
...
A106
Bolt Assembly L-G-4011EN3006B
...
A110
Top Plate Assembly L-G-AGU33163375
...
A130
Cabinet Cover L-G-MCK67732665
...
A133
Clamp Assembly L-G-4861EN3004B
...
A134
Hinge Bracket L-G-MAZ67085602
...
A135
Holder Assembly L-G-AEJ55953701
...
A140
Hinge L-G-MEF62821910
...
A141
Holder Assembly L-G-AEJ33800802
...
A150
Door Assembly L-G-ADC76406401
...
A151
Door (outer) Frame L-G-MDQ65877002
...
A152
Door (inner) Frame L-G-MDQ65877101
...
A154
Hook Locker L-G-MFG63099101
...
A200
Cabinet Base Assembly L-G-AAN76769501
...
A201
Base Bracket L-G-4810ER3006E
...
A220
Leg Assembly L-G-AFC72909321
...
A275
Washer Fill Hose L-G-5215FD3715U
...
A276
Washer Fill Hose L-G-5215FD3715V
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A310
Cover Cap L-G-MBL65547907
...
A410
Switch Assembly,pressure L-G-EBF63534901
...
A430
Power Cord Assembly L-G-EAD65286219
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Main Pcb Assembly L-G-EBR88910707
...
A485
Filter Assembly L-G-EAM63891321
...
F120
Panel Frame L-G-MDQ41244605
...
G010
Sheet,installation L-G-MHK61866301

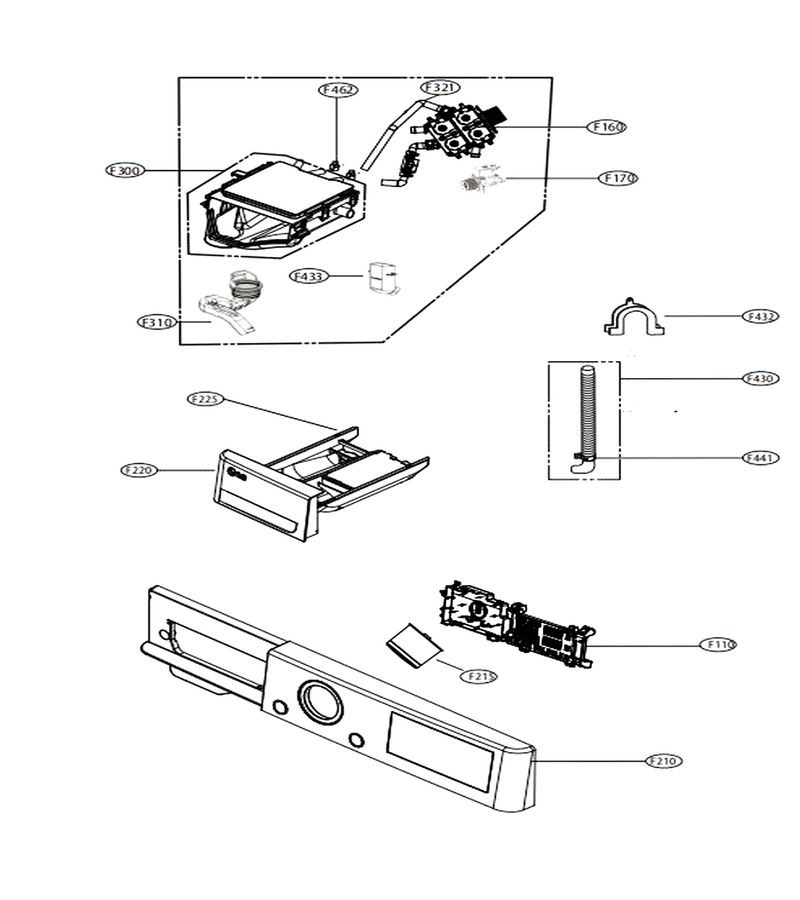

Control Panel & Dispenser Assembly

...
...
F110
Display Pcb Assembly L-G-EBR87419882
...
F160
Inlet Valve Assembly L-G-AJU75412409
...
F170
Valve Assembly,inlet L-G-5220FR2006Z
...
F210
Control Panel Assembly L-G-AGL30002412
...
F215
Knob Assembly L-G-AEZ75473501
...
F220
Drawer Panel Assembly L-G-AGL76733381
...
F225
Cap,softener L-G-MBL57765301
...
F300
Dispenser Assembly L-G-ACZ74230514
...
F310
Bellows L-G-MAR62542002
...
F321
Connector Hose Assembly L-G-AEM74032907
...
F430
Hose,pump L-G-5214EN3042C
...
F432
Hanger Assembly,pivot L-G-4991EN3002J
...
F433
Connector Hose L-G-MEJ64284801
...
F441
Clamp Assembly L-G-4861EN3003C
...
F462
Clamp Assembly L-G-4861EN3003X

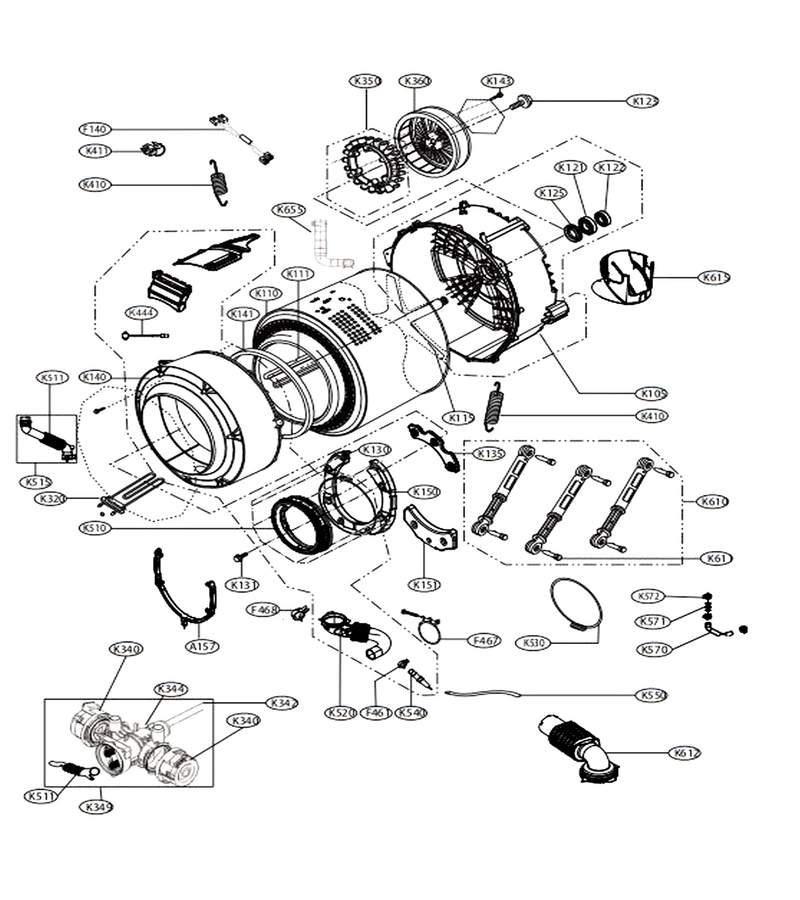

Drum & Tub Assembly

...
...
A157
Nozzle Connector L-G-MCD64406801
...
F140
Multi Harness L-G-EAD63406444
...
F461
Clamp Assembly L-G-4861EN3003C
...
F467
Tub Clamp L-G-4860EN3001E
...
F468
Clamp Assembly L-G-4861EN3003D
...
K105
Parts Assembly L-G-AGM75471406
...
K110
Drum (inner) Tub Assembly L-G-AJQ74954111
...
K111
Lifter Assembly L-G-AFH73149004
...
K115
Spider L-G-MHW62541302
...
K121
Ball Bearing L-G-4280EN4001M
...
K122
Ball Bearing L-G-4280EN4001N
...
K123
Washer Bolt L-G-FAA30970901
...
K125
Washer Rear Tub Gasket L-G-4036ER2004A
...
K130
Balance Weight L-G-MAG63763001
...
K131
Bolt Assembly L-G-FAA30831001
...
K135
Balance Weight L-G-MAG63763201
...
K140
Tub Cover Assembly L-G-ACQ90597903
...
K141
Gasket L-G-4036EN4002J
...
K143
Bolt Assembly L-G-4011EN4013A
...
K150
Balance Weight L-G-MAG63763102
...
K151
Balance Weight L-G-MAG63763301
...
K320
Heater Assembly L-G-AEG73309907
...
K340
Motor Assembly,dc,pump L-G-EAU64082901
...
K342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006G
...
K344
Casing,pump L-G-MBP62261105
...
K349
Pump Assembly,drain L-G-AHA75693423
...
K350
Stator Assembly L-G-AJB73816024
...
K360
Rotor Assembly L-G-AHL73855301
...
K410
Hinge Spring L-G-MHY62644802
...
K411
Holder L-G-MEG64919202
...
K444
Sensor Assembly L-G-EBD48922810
...
K510
Gasket L-G-MDS66651603
...
K511
Inlet Hose L-G-MEJ64244601
...
K515
Connector Hose Assembly L-G-AEM33624204
...
K520
Bellows L-G-MAR62541901
...
K530
Clamp Assembly L-G-4861EN3002A
...
K540
Chamber,air L-G-3504EN3001A
...
K550
Inlet Hose L-G-5214EN4001P
...
K570
Drain Hose Assembly L-G-5215EA4001K
...
K571
Connector L-G-4932ER4007C
...
K572
Clamp L-G-4861FR3068R
...
K610
Damper Assembly,friction L-G-4901ER2003K
...
K611
Washer Shock Absorber Mounting Pin L-G-4774EN3002A
...
K612
Washer Vent Bellows L-G-4738ER2002A
...
K615
Mesh Filter Assembly L-G-ADQ73353404
...
K655
Connector Hose Assembly L-G-AEM74032913

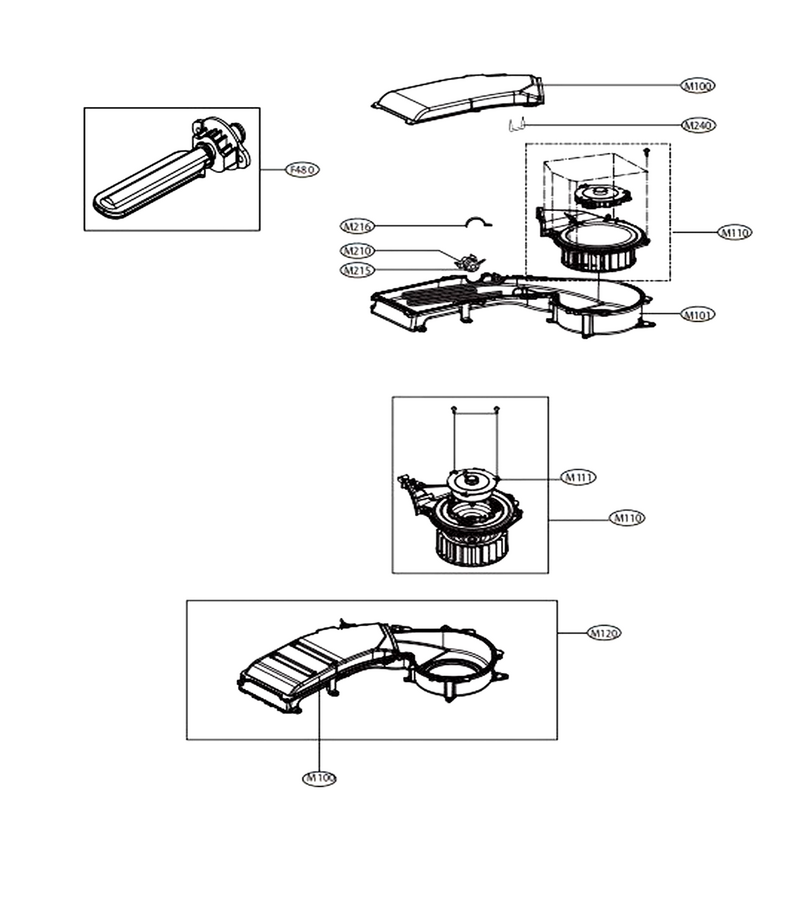

Dryer

...
...
F480
Nozzle Assembly L-G-AGB73212401
...
M100
Duct L-G-5208EN1003A
...
M101
Duct L-G-MCZ62653501
...
M110
Fan Dc Motor Assembly L-G-EAU37932714
...
M111
Fan Dc Motor Assembly L-G-4681ER1007E
...
M120
Duct Assembly L-G-5209EN1002K
...
M210
Washer/dryer Combo Heater Safety Thermostat L-G-6931FR3108A
...
M215
Seal L-G-4036FR4045A
...
M216
Hose Clamp L-G-4860EN3002A
...
M240
Multi Harness L-G-EAD37029206
