product name

LG WM3499HVA.ASSEPUS

Model: WM3499HVA.ASSEPUS

Save Part Not Listed?
product name

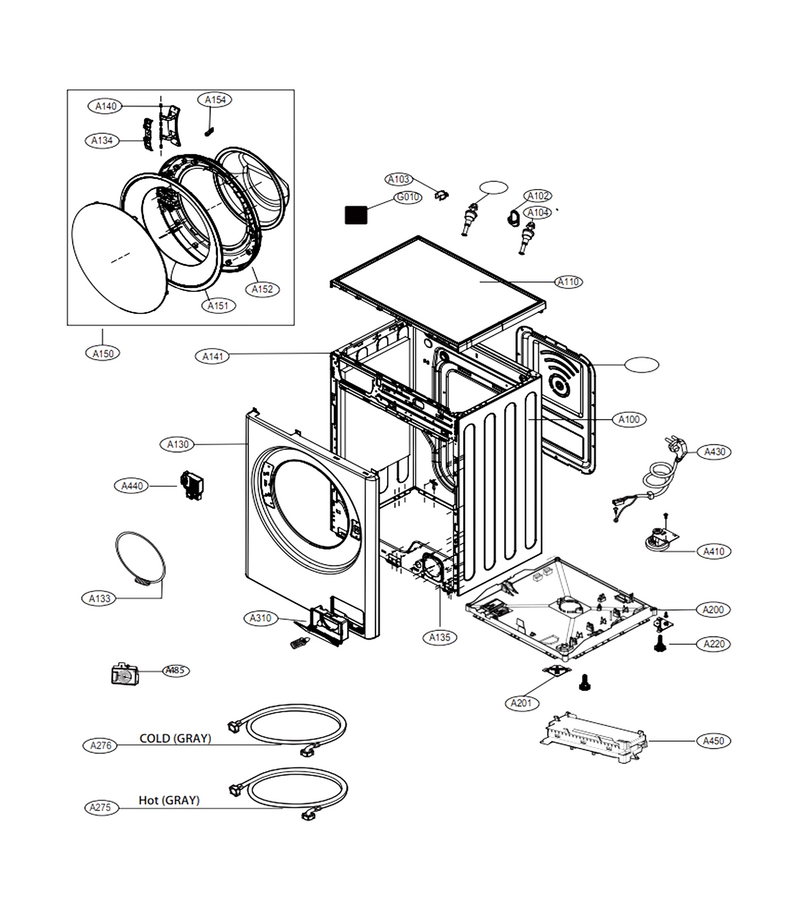

Cabinet Assemlby

...
...
A100
Cabinet Assembly L-G-ABJ73589147
...
G010
Sheet,installation L-G-MHK61866301
...
A485
Filter Assembly L-G-EAM62492313
...
A450
Pcb Assembly,main L-G-EBR84548813
...
A440
Washer Door Lock L-G-EBF61315802
...
A430
Power Cord Assembly L-G-EAD61246487
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006F
...
A310
Cap,cover L-G-MBL65547908
...
A276
Washer Fill Hose L-G-5215FD3715V
...
A275
Washer Fill Hose L-G-5215FD3715U
...
A220
Washer Leveling Leg L-G-AFC72909305
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A200
Base Assembly,cabinet L-G-AAN54034210
...
A154
Hook Locker L-G-MFG63099101
...
A151
Frame,door(outer) L-G-MDQ63618109
...
A102
Bush L-G-4830EN3001A
...
A103
Holder L-G-4930EN3005A
...
A104
Bolt Assembly L-G-4011EN3006B
...
A110
Plate Assembly,top L-G-AGU33163349
...
A130
Cover,cabinet L-G-MCK67732602
...
A133
Clamp Assembly L-G-4861EN3004B
...
A134
Bracket,tub L-G-MAZ55244901
...
A135
Holder Assembly L-G-AEJ55953701
...
A140
Hinge L-G-MEF62821905
...
A141
Holder Assembly L-G-AEJ33800801
...
A150
Door Assembly L-G-ADC74625730
...
A152
Frame,door(inner) L-G-MDQ63656404

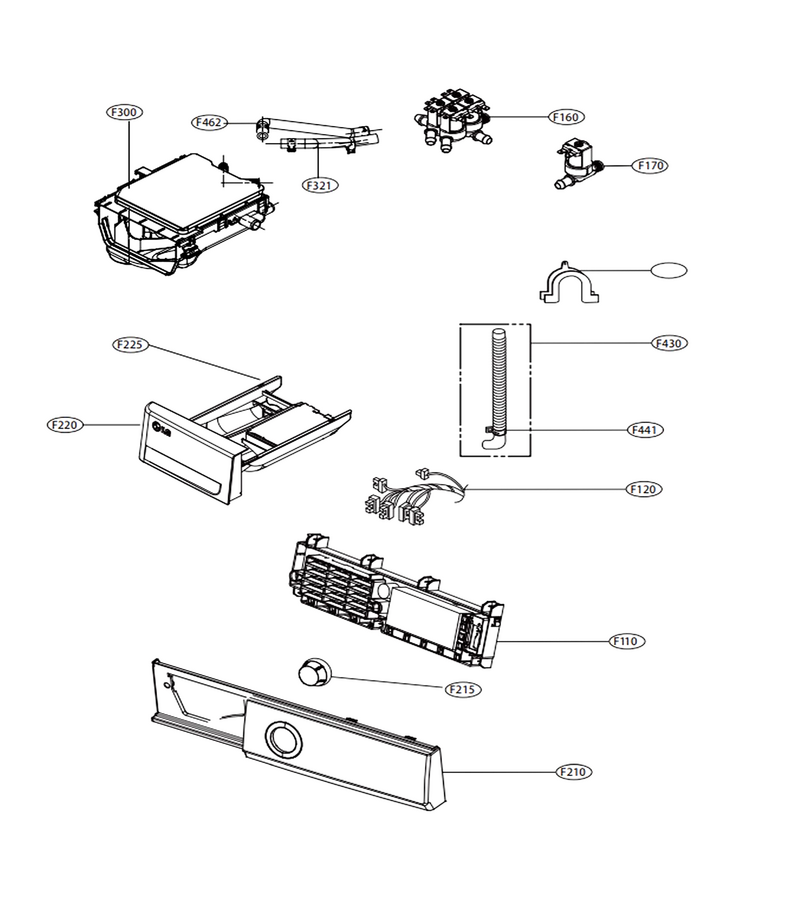

Control Panel & Dispenser Assembly

...
...
F462
Clamp Assembly L-G-4861EN3003A
...
F441
Clamp Assembly L-G-4861EN3003C
...
F430
Hose,pump L-G-5214EN3042C
...
F321
Hose,inlet L-G-MEJ62505617
...
F300
Dispenser Assembly L-G-ACZ70035075
...
F225
Cap,softener L-G-MBL57765301
...
F220
Panel Assembly,drawer L-G-AGL76252569
...
F210
Panel Assembly,control L-G-AGL76252641
...
F170
Valve Assembly,inlet L-G-5221EA1009V
...
F160
Washer Water Inlet Valve L-G-5220FR2006H
...
F120
Harness,multi L-G-EAD63429277
...
F110
Pcb Assembly,display L-G-EBR85111468
...
F215
Knob Assembly L-G-AEZ36783401

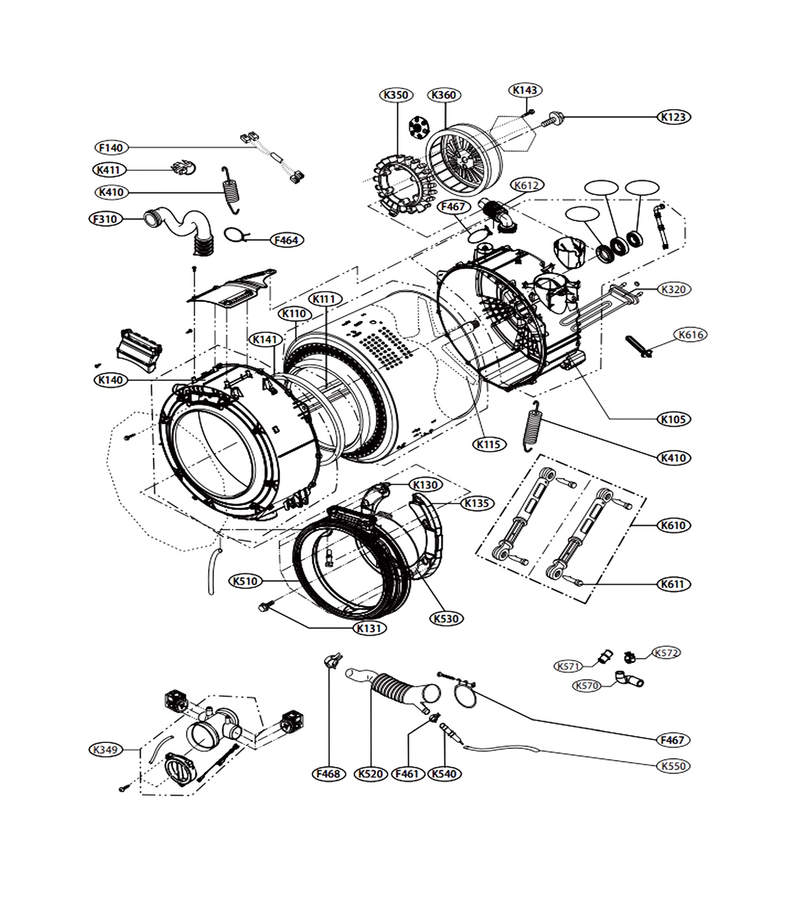

Drum & Tub Assembly

...
...
K349
Pump Assembly,drain L-G-5859ER1002Y
...
K141
Gasket L-G-4036EN4002F
...
K350
Stator Assembly L-G-AJB73816001
...
K360
Rotor Assembly L-G-AHL73855301
...
K410
Spring,hinge L-G-MHY62644801
...
K411
Holder L-G-4930EN3004A
...
K510
Gasket L-G-MDS65696501
...
K520
Bellows L-G-MAR61882201
...
K530
Clamp Assembly L-G-4861EN3002A
...
K540
Chamber,air L-G-3504EN3001A
...
K550
Hose,inlet L-G-5214EN4001N
...
K570
Hose,connec L-G-5214FR4058V
...
K571
Connector L-G-4932ER4007C
...
K572
Clamp L-G-4861FR3068R
...
K610
Damper Assembly,friction L-G-4901ER2003K
...
K611
Washer Shock Absorber Mounting Pin L-G-4774EN3002A
...
K612
Washer Vent Bellows L-G-4738ER2002A
...
K616
Nozzle Assembly L-G-AGB73212401
...
K143
Bolt Assembly L-G-4011EN4013A
...
F140
Harness,multi L-G-EAD63406430
...
F310
Bellows L-G-4738EN2002A
...
F461
Clamp Assembly L-G-4861EN3003C
...
F464
Ring,snap L-G-4350EN3002A
...
F467
Tub Clamp L-G-4860EN3001E
...
F468
Clamp Assembly L-G-4861EN3003D
...
K105
Tub Assembly,outer L-G-AJQ74554903
...
K110
Tub Assembly,drum(inner) L-G-AJQ73473809
...
K111
Lifter L-G-MFE57764501
...
K115
Spider L-G-MHW62021605
...
K123
Washer Bolt L-G-FAA30970901
...
K130
Balance Weight L-G-MAG62382901
...
K131
Bolt Assembly L-G-FAA30831001
...
K135
Balance Weight L-G-MAG62383001
...
K140
Cover Assembly,tub L-G-ACQ89039604
...
K320
Dryer Heater L-G-AEG33121504

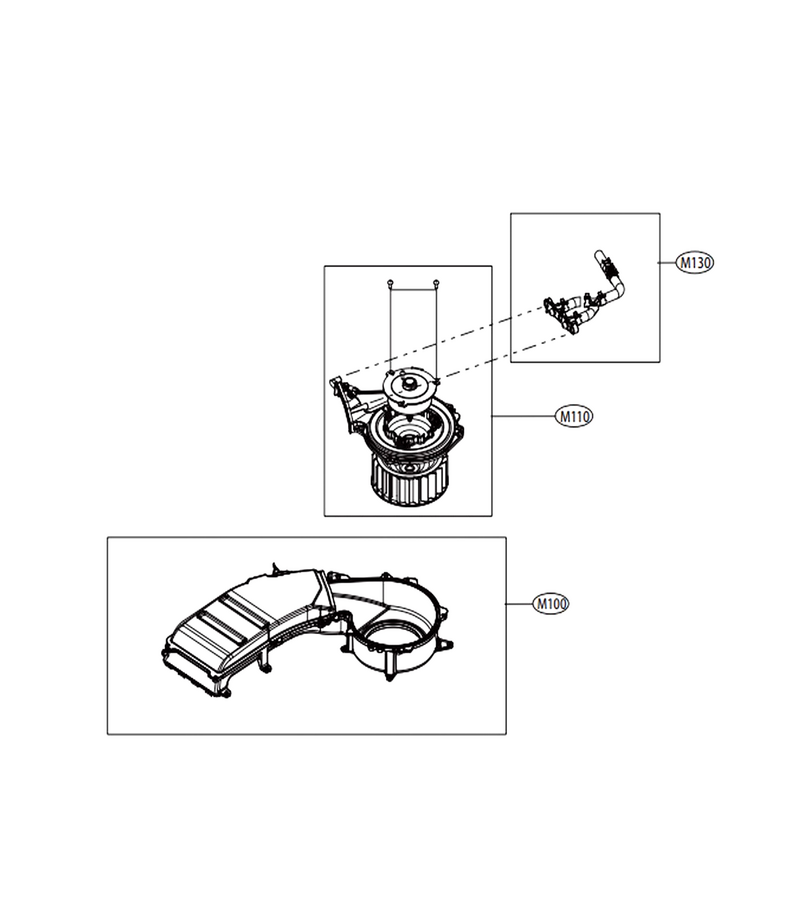

Dryer

...
...
M100
Duct L-G-MCZ64254801
...
M110
Motor Assembly,dc,fan L-G-EAU37932709
