LG WM3250HVA.ASSEPUS

Model: WM3250HVA.ASSEPUS

Save Part Not Listed?
product name

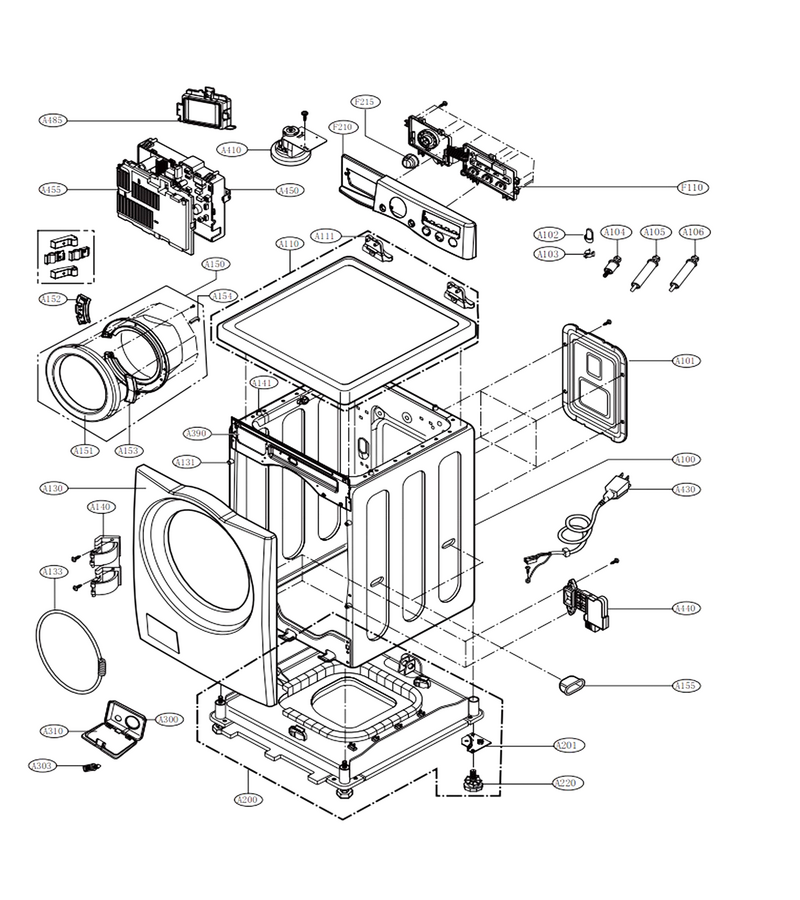

Cabinet & Control Panel Assembly

...
...
A430
Washer Power Cord L-G-EAD61246421
...
A200
Base Assembly,cabinet L-G-AAN74468801
...
A201
Base Bracket L-G-MAZ42383401
...
A220
Washer Leveling Leg L-G-AFC72909305
...
A300
Case L-G-MBN63106101
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A310
Cap Cover L-G-MBL65562703
...
A390
Frame Assembly L-G-ADV74430501
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A100
Cabinet Assembly L-G-ABJ73888505
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Pcb Assembly,main L-G-EBR78534101
...
A455
Cover,protect L-G-MCK68351101
...
F110
Pcb Assembly,display L-G-EBR36870742
...
F210
Panel Assembly,control L-G-AGL73856411
...
F215
Dryer Control Knob L-G-4941ER3005A
...
A152
Frame,door(inner) L-G-MDQ63518501
...
A155
Handle L-G-3650EN3300N
...
A101
Rear Cover L-G-3550EN1023K
...
A102
Bush L-G-MBF62784301
...
A103
Holder L-G-4930EN3007A
...
A104
Washer Shipping Bolt L-G-FAA30992201
...
A105
Washer Shipping Bolt L-G-FAA30992202
...
A106
Washer Shipping Bolt L-G-FAA30992203
...
A110
Plate Assembly,top L-G-AGU73909703
...
A130
Cover,cabinet L-G-MCK67662703
...
A133
Washer Door Boot Spring Clamp L-G-4861EN3004L
...
A140
Washer Door Hinge L-G-AEH71610401
...
A141
Holder Assembly L-G-AEJ73620001
...
A150
Door Assembly L-G-ADC74154902
...
A151
Frame,door(outer) L-G-MDQ63519001
...
A111
Hinge Bracket L-G-MAZ63472802

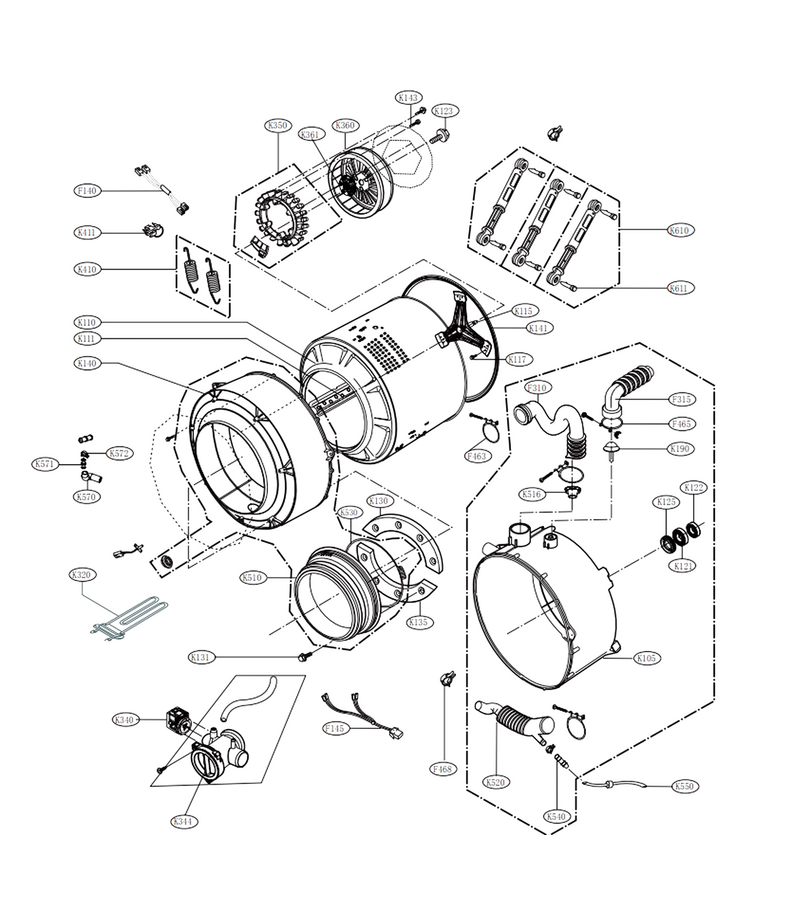

Drum & Tub Assembly

...
...
K410
Washer Suspension Spring L-G-MHY62964802
...
K360
Washer Drive Motor L-G-AHL72914402
...
K121
Bearing,ball L-G-4280EN4001C
...
K350
Washer Drive Motor L-G-4417EA1002Y
...
K344
Casing,pump L-G-MBP61981101
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K320
Washer Heater Assembly L-G-AEG33121526
...
K190
Float Assembly L-G-ADS73029001
...
K143
Common Bolt L-G-FAA30970801
...
K141
Gasket L-G-MDS63974501
...
K411
Holder L-G-4930EN3004A
...
K510
Washer Door Boot L-G-MDS64237202
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Washer Pressure Switch Air Chamber L-G-MBR62061501
...
K550
Hose,inlet L-G-MEJ62524801
...
K570
Hose,connector L-G-MEJ62504901
...
K571
Connector Hood L-G-MCD54512102
...
K572
Clamp Assembly L-G-4861EN3003A
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K135
Balance Weight L-G-MAG62583201
...
F140
Harness,multi L-G-EAD62061002
...
F145
Harness,single L-G-EAD62116002
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F463
Washer Hose Clamp L-G-4860EN3001D
...
F465
Tub Clamp L-G-4860EN3001E
...
F468
Clamp Assembly L-G-4861EN3003P
...
K105
Tub Assembly,outer L-G-AJQ73993809
...
K111
Lifter Assembly L-G-AFH73009001
...
K110
Tub Assembly,drum(inner) L-G-AJQ73474106
...
K140
Cover Assembly,tub L-G-ACQ85996106
...
K131
Screw,customized L-G-FAB31641401
...
K130
Balance Weight L-G-MAG62583301
...
K125
Washer Rear Tub Gasket L-G-4036ER2004A
...
K123
Washer Bolt L-G-FAA30970901
...
K122
Bearing,ball L-G-4280EN4001D
...
K117
Bolt,common L-G-FAA30971001
...
K115
Spider L-G-MHW62021902

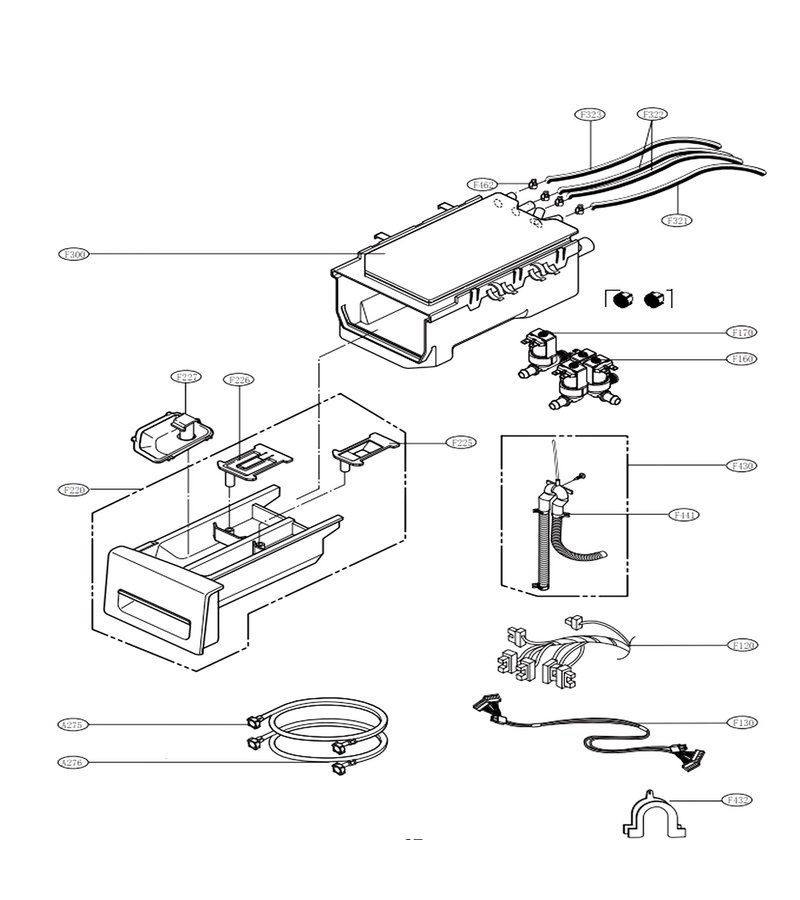

Dispenser Assembly

...
...
F462
Clamp Assembly L-G-4861EN3003A
...
F441
Clamp L-G-4861FR3068M
...
F430
Washer Drain Hose L-G-5215ER2002G
...
F323
Washer Dispenser Hose L-G-MEJ62524903
...
F322
Washer Inlet Hose L-G-MEJ62524902
...
F321
Washer Dispenser Inlet Hose L-G-MEJ62524901
...
F300
Washer Dispenser Drawer Housing L-G-ACZ73370501
...
F227
Box Assembly,detergent L-G-AAZ73736101
...
F226
Washer Bleach Dispenser L-G-MBL65261901
...
F225
Softener Capt L-G-MBL65261801
...
F220
Panel Assembly,drawer L-G-AGL73856511
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F160
Washer Water Inlet Valve L-G-5221ER1003A
...
F130
Harness,multi L-G-EAD62037103
...
F120
Harness,multi L-G-EAD62037002
...
A276
Washer Fill Hose L-G-5215FD3715V
...
A275
Washer Fill Hose L-G-5215FD3715U
