LG WM3180CW.ABWETUS

Model: WM3180CW.ABWETUS

Save Part Not Listed?
product name

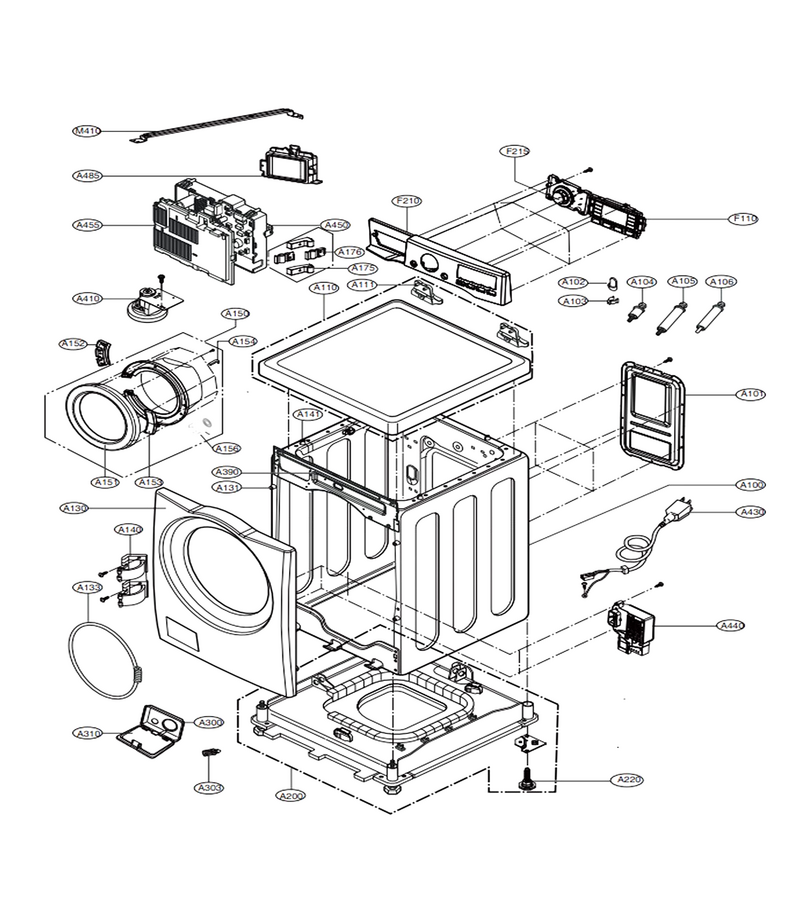

Cabinet & Control Panel Assembly

...
...
A430
Parts Assembly L-G-AGM34418431
...
A175
Bush L-G-4830ER4006A
...
A200
Base Assembly,cabinet L-G-AAN74468813
...
A220
Package Assembly,c/skd L-G-AGF76283801
...
A300
Case L-G-MBN63106102
...
A303
Package Assembly,c/skd L-G-AGF76163711
...
A310
Cap Cover L-G-MBL62818307
...
A390
Frame Assembly L-G-ADV76031504
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A100
Cabinet Assembly L-G-ABJ30921793
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Pcb Assembly,main L-G-EBR79950228
...
A455
Cover,protect L-G-MCK68351101
...
F110
Pcb Assembly,display L-G-EBR78898208
...
F210
Panel Assembly,control L-G-AGL74115149
...
F215
Rotary Knob L-G-3806ER3008B
...
M410
Frame Body L-G-3210ER1318A
...
A152
Frame,door(inner) L-G-MDQ63518501
...
A156
Holder Assembly L-G-AEJ74840003
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Bush L-G-MBF62784301
...
A103
Holder L-G-MEG64800901
...
A104
Washer Shipping Bolt L-G-FAA31690704
...
A105
Washer Shipping Bolt L-G-FAA31690703
...
A106
Washer Shipping Bolt L-G-FAA31690705
...
A110
Plate Assembly,top L-G-AGU73909716
...
A111
Washer Top Panel Bracket L-G-4810ER3021A
...
A130
Cabinet Cover L-G-MCK67662701
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Hinge Assembly L-G-AEH71610406
...
A141
Holder Assembly L-G-AEJ33026406
...
A150
Door Assembly L-G-ADC74154910
...
A151
Frame,door(outer) L-G-MDQ63519006

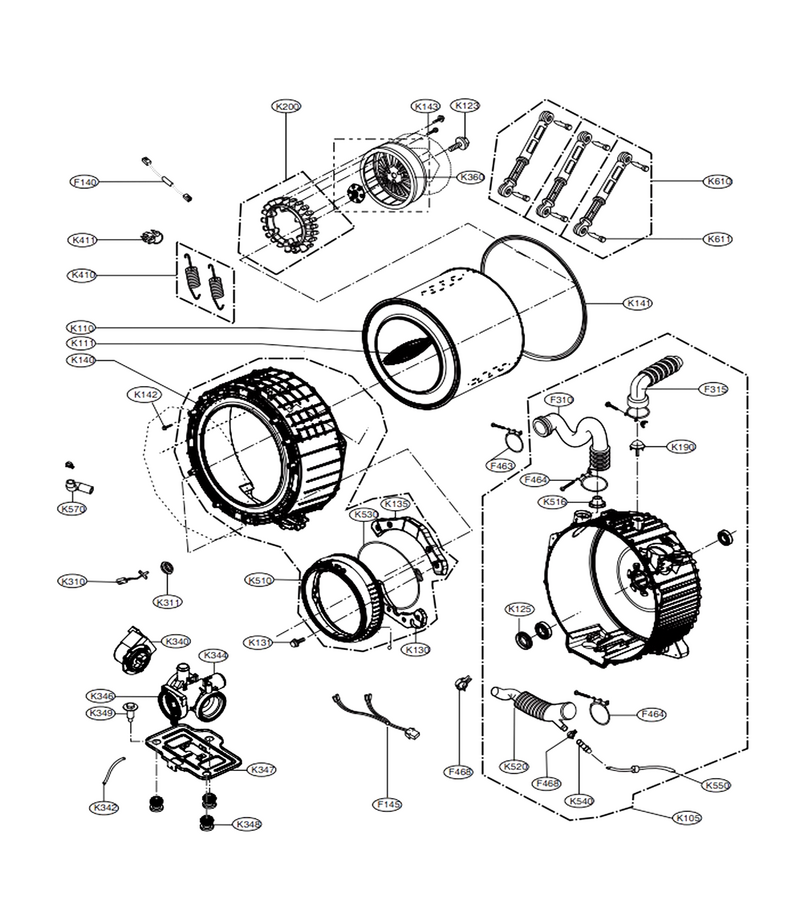

Drum & Tub Assembly

...
...
K190
Float Assembly L-G-4769ER4001B
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K342
Hose,connector L-G-5214EN4002B
...
K344
Washer Pump L-G-3108ER1001B
...
K346
Hole Cap L-G-5006ER3001B
...
K360
Washer Drive Motor L-G-AHL72914401
...
K410
Washer Suspension Spring L-G-MHY62964802
...
K411
Holder L-G-4930FR3040A
...
K510
Gasket L-G-MDS47123619
...
K105
Tub Assembly,outer L-G-AJQ74053919
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Chamber,air L-G-3504ER3002B
...
K550
Inlet Hose L-G-MEJ62305104
...
K570
Hose,connector L-G-MEJ62504901
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B
...
K142
Screw,customized L-G-FAB31120501
...
F140
Harness,multi L-G-EAD64205902
...
F145
Harness,single L-G-EAD62116002
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Washer Hose Clamp L-G-4860FR3092C
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K111
Lifter L-G-MFE62081003
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-MDS62058301
...
K130
Washer Counterweight L-G-MAG62583001
...
K131
Washer Screw L-G-1SZZER4002A
...
K140
Cover,tub L-G-MCK67635902
...
K141
Washer Outer Tub Gasket L-G-4036ER4001F
...
K143
Washer Bolt L-G-4011FA4353B
...
K110
Tub Assembly,drum(inner) L-G-AJQ73674421

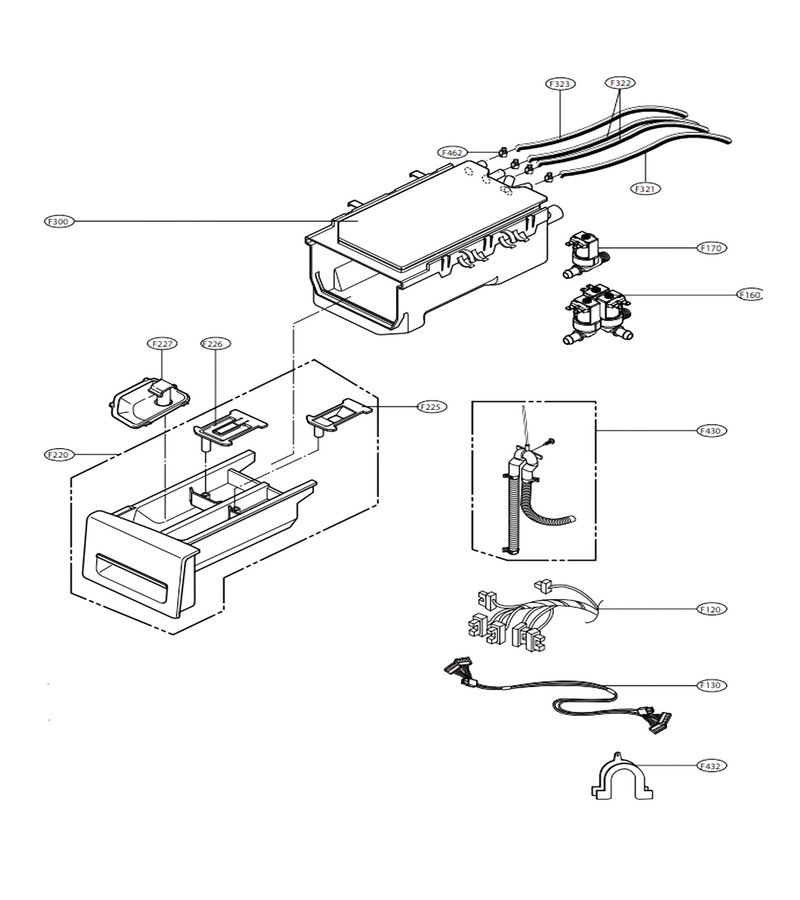

Dispenser Assembly

...
...
F462
Washer Hose Clamp L-G-4861FR3068A
...
F430
Hose Assembly,drain L-G-AEM75033801
...
F323
Washer Dispenser Hose L-G-MEJ62524903
...
F322
Washer Inlet Hose L-G-MEJ62524902
...
F321
Washer Dispenser Inlet Hose L-G-MEJ62524901
...
F300
Dispenser Assembly L-G-4925ER1015K
...
F227
Box Assembly,detergent L-G-AAZ73736101
...
F226
Washer Bleach Dispenser L-G-5006ER3022A
...
F225
Washer Dispenser Drawer Insert L-G-5006ER3021A
...
F220
Panel Assembly,drawer L-G-AGL74074354
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F160
Washer Water Inlet Valve L-G-5220FR2075L
...
F130
Harness,multi L-G-EAD64205801
...
F120
Harness,multi L-G-EAD64205603
