LG WM3170CW.ABWEPUS

Model: WM3170CW.ABWEPUS

Save Part Not Listed?
product name

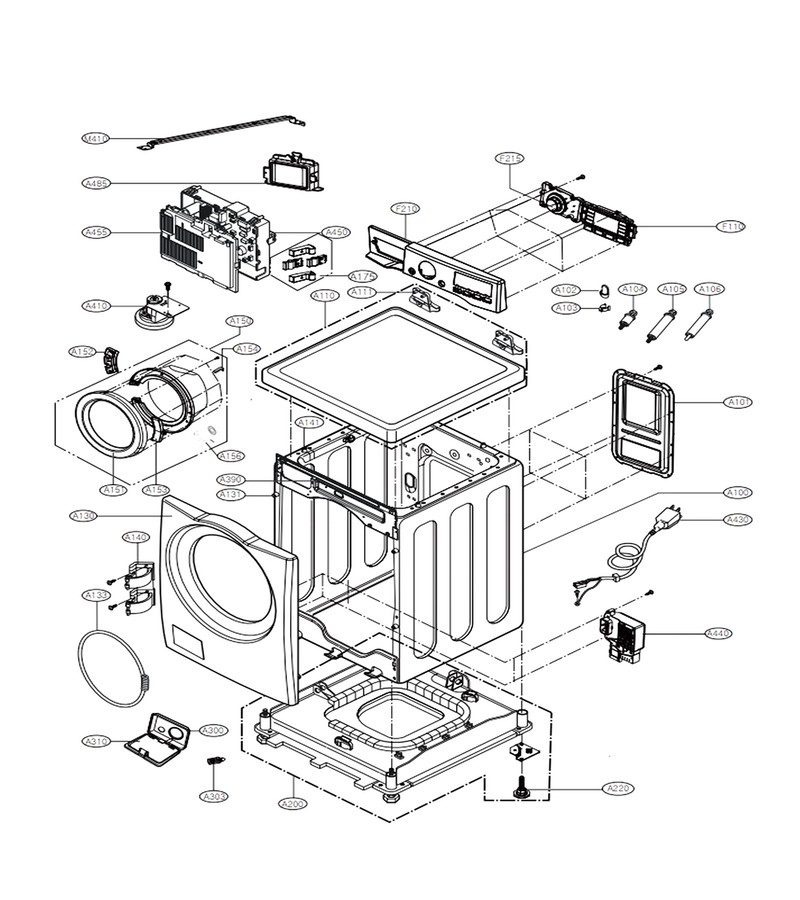

Cabinet & Control Panel Assembly

...
...
A430
Washer Power Cord L-G-EAD61246421
...
A175
Parts Assembly L-G-AGM75390001
...
A200
Base Assembly,cabinet L-G-AAN74468801
...
A220
Washer Leveling Leg L-G-AFC72909305
...
A300
Case L-G-MBN63106102
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A310
Cap Cover L-G-MBL65562701
...
A390
Frame Assembly L-G-ADV74430501
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A100
Washer Cabinet Assembly L-G-ABJ73888504
...
A440
Washer Door Lock L-G-EBF61315802
...
A450
Pcb Assembly,main L-G-EBR80360704
...
A455
Cover,protect L-G-MCK68351101
...
F110
Pcb Assembly,display L-G-EBR78534411
...
F210
Panel Assembly,control L-G-AGL74115107
...
F215
Knob,rotary L-G-MEY62674401
...
A152
Frame,door(inner) L-G-MDQ63518001
...
A156
Washer Door Lock Spring Holder L-G-MEG61961401
...
A101
Rear Cover L-G-3550EN1023K
...
A102
Bush L-G-MBF62784301
...
A103
Holder L-G-4930EN3007A
...
A104
Washer Shipping Bolt L-G-FAA30992201
...
A105
Washer Shipping Bolt L-G-FAA30992202
...
A106
Washer Shipping Bolt L-G-FAA30992203
...
A110
Plate Assembly L-G-AGU73909705
...
A130
Cabinet Cover L-G-MCK67662701
...
A133
Washer Door Boot Spring Clamp L-G-4861EN3004L
...
A140
Hinge Assembly L-G-AEH75016201
...
A141
Holder Assembly L-G-AEJ73620001
...
A150
Door Assembly L-G-ADC74154901
...
A151
Frame,door(outer) L-G-MDQ63519003
...
A111
Washer Top Panel Bracket L-G-4810ER3021A

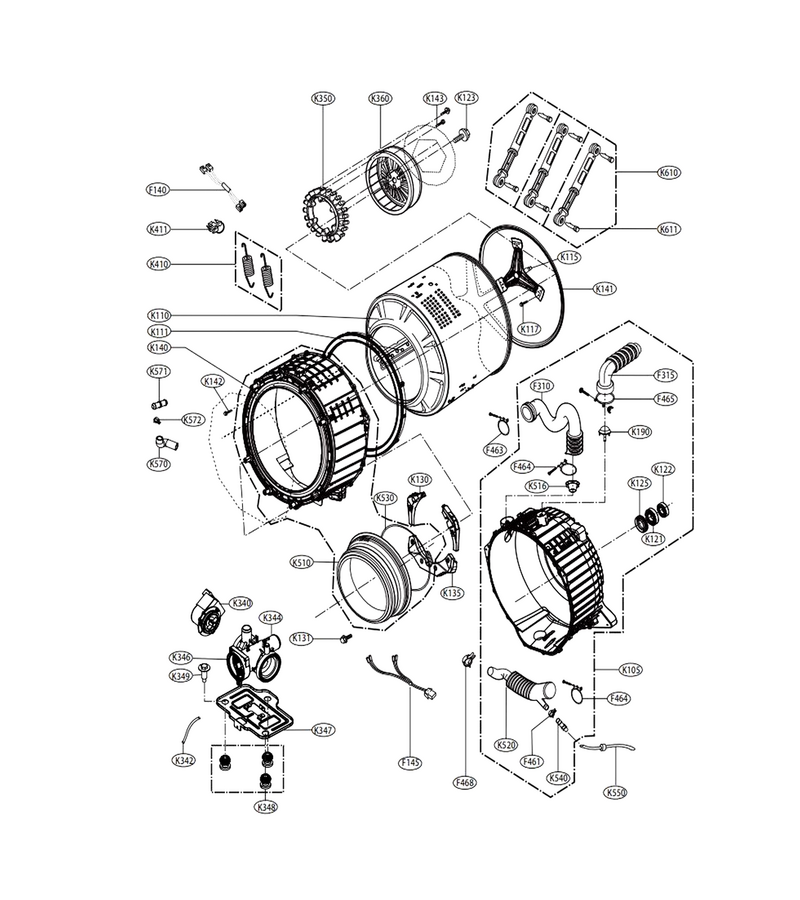

Drum & Tub Assembly

...
...
K410
Washer Suspension Spring L-G-MHY62964802
...
K360
Washer Drive Motor L-G-AHL72914401
...
K117
Washer Bolt L-G-4011EN4002C
...
K350
Washer Motor Stator L-G-AJB73816004
...
K346
Parts Assembly L-G-AGM75510601
...
K344
Casing,pump L-G-MBP61981101
...
K342
Hose,connector L-G-5214EN4002B
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K190
Float Assembly L-G-ADS73029001
...
K143
Common Bolt L-G-FAA30970801
...
K142
Washer Screw L-G-4011EN4003A
...
K411
Holder L-G-4930EN3004A
...
K510
Washer Door Boot L-G-MDS47123602
...
K516
Water Guide L-G-MEA63450901
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001J
...
K540
Washer Pressure Switch Air Chamber L-G-MBR62061501
...
K550
Inlet Hose L-G-MEJ62524802
...
K570
Hose,connector L-G-MEJ62504901
...
K571
Connector Hood L-G-MCD54512102
...
K572
Clamp Assembly L-G-4861EN3003A
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K611
Washer Shock Absorber Mounting Pin L-G-4774EN3002A
...
K140
Cover,tub L-G-MCK67635902
...
F140
Multi Harness L-G-EAD62061008
...
F145
Harness,single L-G-EAD62116002
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F461
Clamp Assembly L-G-4861EN3003D
...
F463
Washer Hose Clamp L-G-4860EN3001D
...
F464
Tub Clamp L-G-4860EN3001E
...
F465
Washer Hose Clamp L-G-4860EN3001D
...
F468
Clamp Assembly L-G-4861EN3003P
...
K105
Parts Assembly L-G-AGM75510703
...
K111
Lifter L-G-MFE62081001
...
K110
Tub Assembly,drum(inner) L-G-AJQ73674408
...
K141
Washer Outer Tub Gasket L-G-MDS63974502
...
K135
Washer Counterweight L-G-MAG62583001
...
K131
Screw,customized L-G-FAB31641401
...
K130
Balance Weight L-G-MAG63143001
...
K125
Washer Rear Tub Gasket L-G-MDS62058301
...
K123
Washer Bolt L-G-FAA30970901
...
K122
Washer Tub Bearing, Rear L-G-4280EN4001F
...
K121
Washer Tub Bearing, Rear L-G-4280EN4001G
...
K115
Washer Spin Basket Shaft L-G-MHW62141203

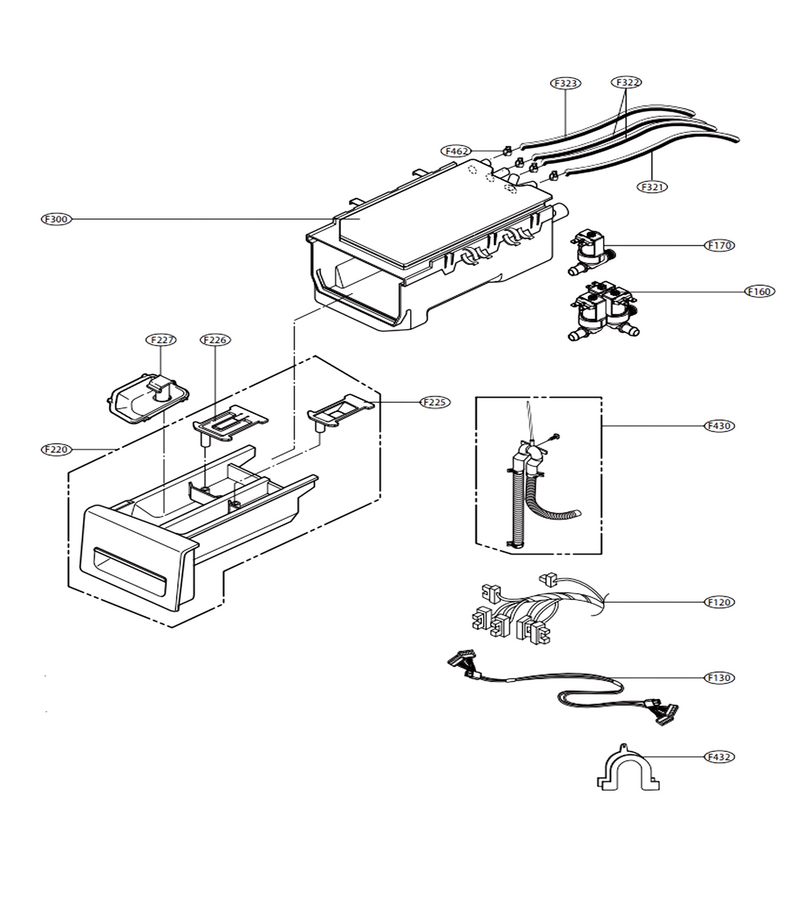

Dispenser Assembly

...
...
F462
Clamp Assembly L-G-4861EN3003A
...
F430
Hose,pump L-G-5214EN3042Z
...
F323
Washer Dispenser Hose L-G-MEJ62524903
...
F322
Washer Inlet Hose L-G-MEJ62524902
...
F321
Washer Dispenser Inlet Hose L-G-MEJ62524901
...
F300
Washer Dispenser Drawer Housing L-G-ACZ73370501
...
F227
Box Assembly,detergent L-G-AAZ73736101
...
F226
Washer Bleach Dispenser L-G-MBL65261901
...
F225
Softener Capt L-G-MBL65261801
...
F220
Panel Assembly,drawer L-G-AGL74074310
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F160
Washer Water Inlet Valve L-G-5220FR2075L
...
F130
Harness L-G-EAD62037107
...
F120
Harness,multi L-G-EAD62037014
