LG WM3070HRA.ACREEUS

Model: WM3070HRA.ACREEUS

Save Part Not Listed?
product name

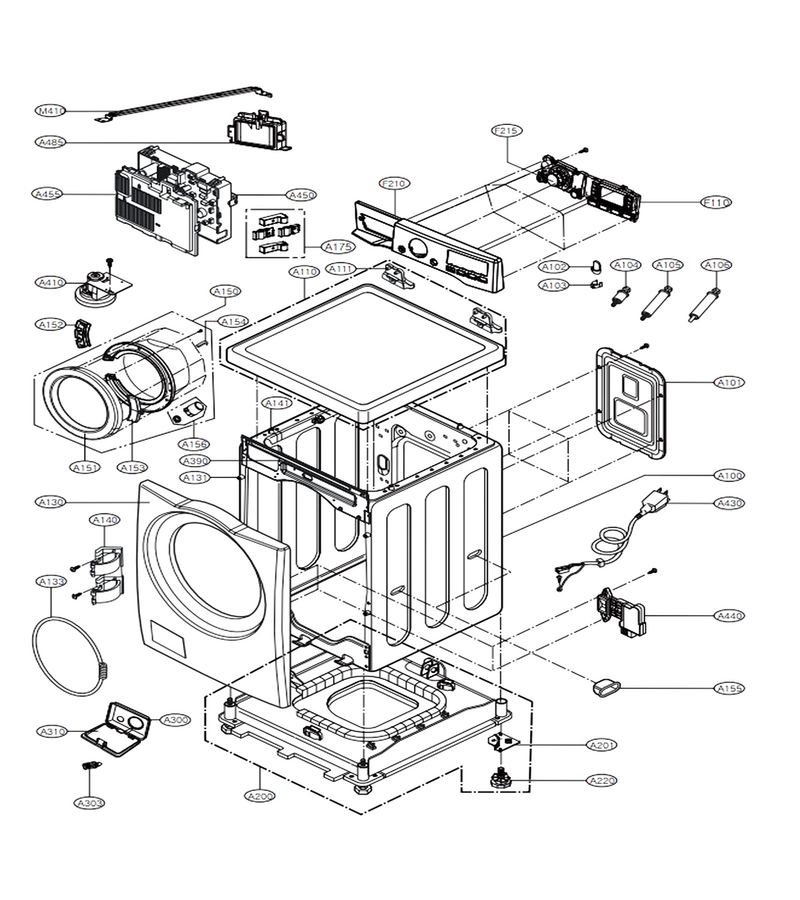

Cabinet & Control Panel Assembly

...
...
A100
Cabinet Assembly L-G-ABJ30921750
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Holder L-G-4930FR3151A
...
A104
Washer Shipping Bolt L-G-4011FR3159E
...
A105
Washer Shipping Bolt L-G-4011FR3159D
...
A106
Washer Shipping Bolt L-G-4011FR3159J
...
A110
Washer Top Panel L-G-AGU30781501
...
A111
Hinge Bracket L-G-4810ER3021F
...
A130
Washer Front Panel L-G-3550ER0039E
...
A133
Washer Door Boot Spring Clamp L-G-ACA56078801
...
A140
Washer Door Hinge L-G-4775ER2002A
...
A141
Washer Top Panel Screw L-G-AEJ33026401
...
A150
Door Assembly L-G-ADC73648407
...
A151
Washer Door Frame L-G-3212ER0005E
...
A152
Washer Door Inner Frame L-G-3212ER1016A
...
A155
Washer Handle L-G-3650FA3489A
...
A156
Washer Magnetic Door Plunger L-G-AGM73610701
...
A175
Washer Door Hinge L-G-AGM73409001
...
A200
Washer Base L-G-3041ER0001C
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A300
Case L-G-3110ER2013B
...
A303
Washer Drain Pump Filter Drain Hose Plug L-G-5006ER3009A
...
A310
Cap Cover L-G-5006ER2008H
...
A390
Frame Assembly L-G-3211ER1001Z
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A430
Washer Power Cord L-G-EAD40521449
...
A440
Washer Door Lock Switch L-G-6601ER1004C
...
A450
Pcb Assembly L-G-EBR78263909
...
A455
Washer Electronic Control Board Cover L-G-3550ER1032A
...
F110
Pcb Assembly,display L-G-EBR74752203
...
F210
Panel Assembly,control L-G-AGL73754005
...
F215
Dryer Control Knob L-G-4941ER3005D

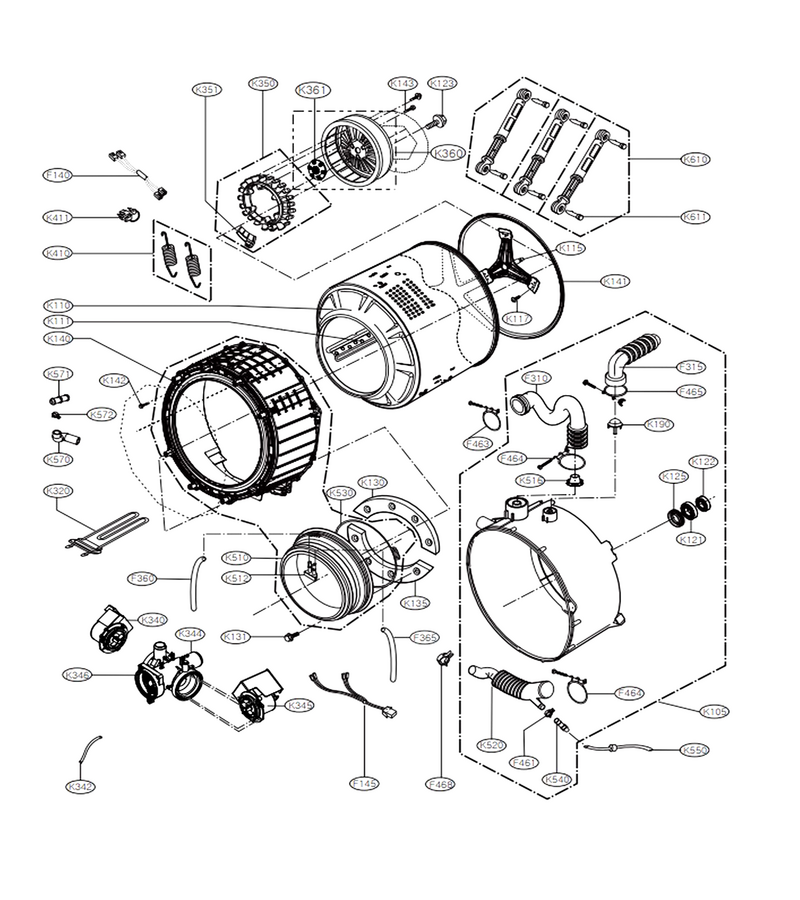

Drum & Tub Assembly

...
...
F140
Washer Wire Harness L-G-6877ER1016F
...
F145
Washer Wire Harness L-G-6877ER3003B
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F461
Washer Hose Clamp L-G-4861FR3068E
...
F463
Clamp L-G-4860FR3092H
...
F464
Clamp L-G-4860FR3092K
...
F465
Clamp L-G-4860FR3092H
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K105
Washer Outer Front Tub L-G-3045ER0048T
...
K110
Washer Spin Basket L-G-3045ER1017G
...
K111
Washer Baffle L-G-AFH72909001
...
K115
Washer Spinner Support L-G-4434ER0002A
...
K117
Washer Bolt L-G-4011FA4353E
...
K121
Washer Tub Bearing, Rear L-G-4280FR4048N
...
K122
Washer Tub Bearing, Rear L-G-4280FR4048J
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-4036ER2004A
...
K130
Washer Counterweight L-G-4866ER0007A
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Washer Counterweight L-G-4866ER0004A
...
K140
Cover,tub L-G-3550ER0004H
...
K141
Washer Outer Tub Gasket L-G-4036ER4001B
...
K142
Washer Screw L-G-383EER3001W
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Washer Water Inlet Valve L-G-4769ER4001A
...
K320
Heater Assembly L-G-AEG33121528
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006G
...
K344
Washer Pump L-G-3108ER1001E
...
K345
Washer Wash Pump Motor L-G-EAU61383503
...
K346
Washer Drain Pump Filter L-G-383EER2001A
...
K350
Washer Drive Motor L-G-4417EA1002Y
...
K351
Washer Motor Rotor Position Sensor L-G-6501KW2002A
...
K360
Washer Drive Motor L-G-AHL72914402
...
K410
Washer Suspension Spring L-G-4970FR2084Z
...
K411
Holder L-G-4930FR3040A
...
K510
Washer Door Boot L-G-4986ER0004L
...
K512
Nozzle L-G-MCD62387101
...
K516
Water Guide L-G-4974ER3008A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001D
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Washer Water-Level Pressure Switch Hose L-G-5214FR4125N
...
K570
Washer Tub-To-Pump Hose L-G-5214FR4058Y
...
K571
Washer Drain Pump Hose Connector L-G-4932ER4007B
...
K572
Washer Hose Clamp L-G-4861FR3068A
...
K610
Washer Shock Absorber L-G-383EER3001V
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B

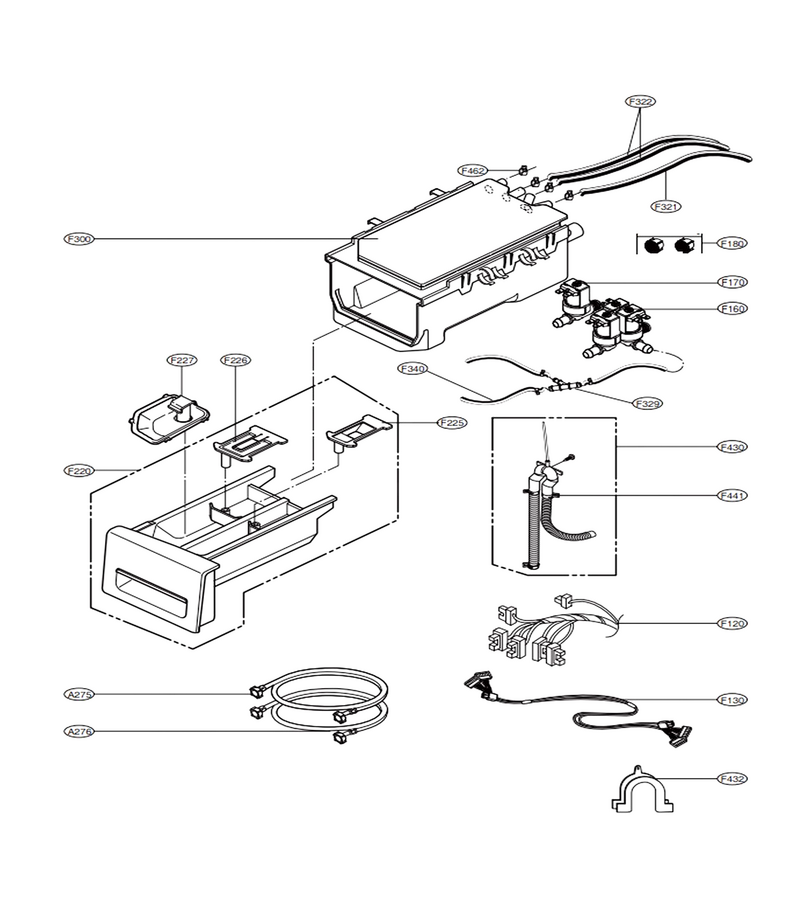

Dispenser Assembly

...
...
A275
Washer Fill Hose L-G-5215FD3715U
...
A276
Washer Fill Hose L-G-5215FD3715V
...
F120
Washer Wire Harness L-G-EAD39334749
...
F130
Multi Harness L-G-EAD61212306
...
F160
Washer Water Inlet Valve L-G-5221ER1003A
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F180
Washer Water Inlet Valve Screen L-G-AGM73269501
...
F220
Panel Assembly,drawer L-G-AGL73754103
...
F225
Washer Dispenser Drawer Insert L-G-5006ER3021A
...
F226
Washer Bleach Dispenser L-G-5006ER3022A
...
F227
Washer Detergent Dispenser L-G-3891ER2003A
...
F300
Washer Dispenser Drawer Housing L-G-4925ER1015B
...
F321
Washer Dispenser Inlet Hose L-G-5214ER4001A
...
F322
Washer Dispenser Inlet Hose L-G-5214ER4001B
...
F430
Washer Drain Hose L-G-5215ER2002G
...
F441
Clamp L-G-4861FR3068C
...
F462
Washer Hose Clamp L-G-4861FR3068A
