LG WM2677HBM.ABPEEUS

Model: WM2677HBM.ABPEEUS

Save Part Not Listed?

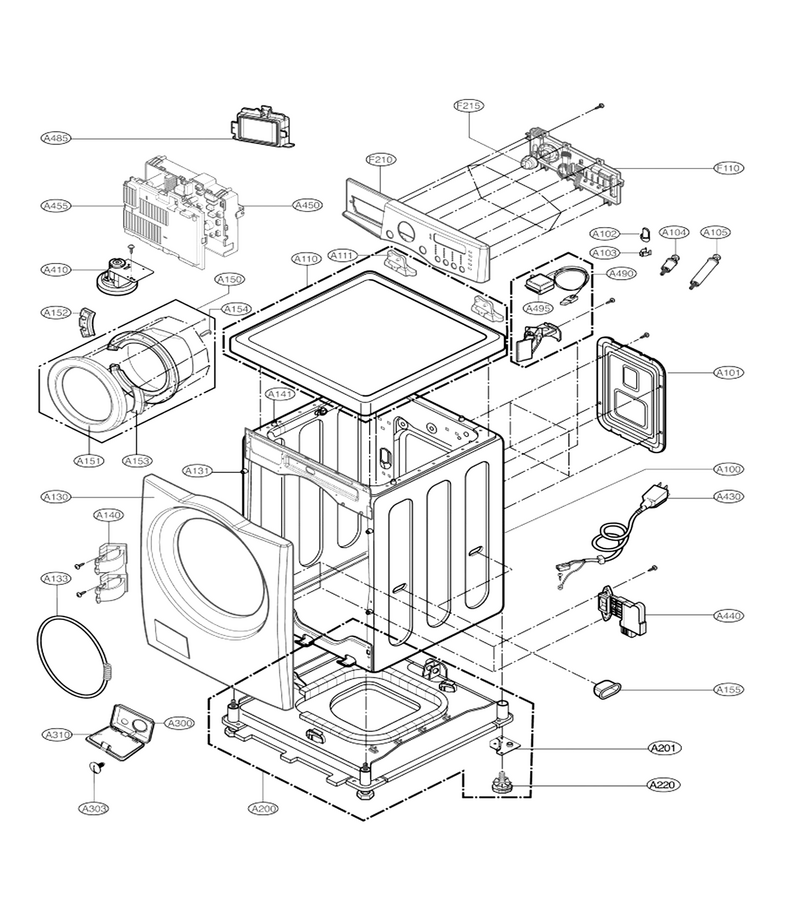

product name

Cabinet & Control Panel Assembly

...
...
A100
Cabinet Assembly L-G-3091ER0004H
...
F215
Dryer Control Knob L-G-4941ER3002A
...
F210
Panel Assembly,control L-G-3721ER1126L
...
F110
Power Board Dispenser L-G-6871EC1116F
...
A455
Cover L-G-3550ER1020A
...
A450
Main Power Board L-G-6871ER1003M
...
A440
Washer Door Lock Switch L-G-6601ER1004C
...
A430
Washer Power Cord L-G-6411ER1005K
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006E
...
A310
Cap Cover L-G-5006ER2003C
...
A303
Washer Drain Pump Filter Drain Hose Plug L-G-5006ER3009A
...
A300
Case L-G-3110ER2003B
...
A220
Washer Leveling Leg L-G-4779ER3002A
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A200
Washer Base L-G-3041ER0001C
...
A152
Washer Door Inner Frame L-G-3212ER1016A
...
A155
Washer Handle L-G-3650FA3489A
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Washer Retainer Clip L-G-4930ER3014A
...
A104
Washer Shipping Bolt L-G-4011FR3159E
...
A105
Washer Shipping Bolt L-G-4011FR3159D
...
A110
Plate L-G-3457ER1006H
...
A130
Front Cover L-G-3551ER0023B
...
A140
Washer Door Hinge L-G-4775ER2002A
...
A141
Holder L-G-4930ER4018A
...
A150
Washer Door Assembly L-G-3581ER1008J
...
A151
Washer Door Outer Frame L-G-3212ER1023A
...
A111
Washer Top Panel Bracket L-G-4810ER3021B

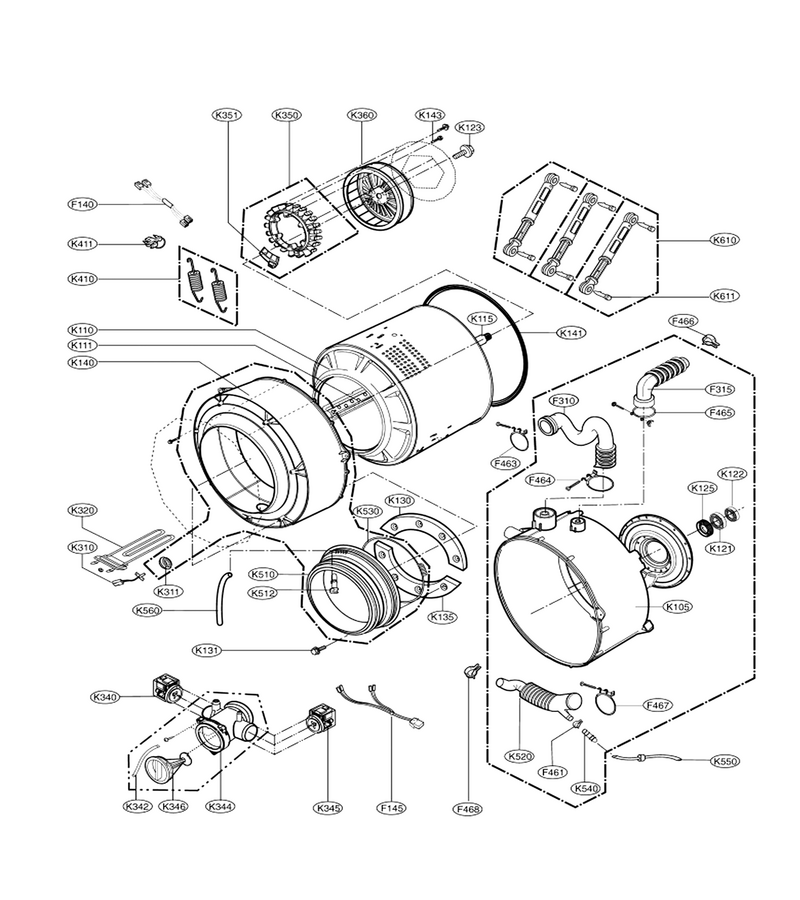

Drum & Tub Assembly

...
...
K350
Washer Drive Motor L-G-4417FA1994G
...
K346
Washer Drain Pump Filter L-G-383EER2001A
...
K345
Washer Wash Pump Motor L-G-4681EA2002D
...
K344
Washer Pump L-G-3108ER1001A
...
K342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006L
...
K121
Washer Tub Bearing L-G-4280FR4048L
...
K340
Washer Drain Pump L-G-4681EA2001D
...
K320
Washer Heating Element L-G-5301FR1158J
...
K143
Washer Bolt L-G-4011FA4353B
...
K141
Washer Outer Tub Gasket L-G-4036ER4001B
...
K140
Washer Outer Front Tub L-G-3551ER0003G
...
K351
Washer Motor Rotor Position Sensor L-G-6501KW2002A
...
K360
Washer Motor Rotor L-G-4413EA1002B
...
K411
Holder L-G-4930FR3040A
...
K510
Washer Door Boot L-G-4986ER0004E
...
K512
Connect Hose L-G-4932ER4002A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Clamp Assembly L-G-4861ER2001F
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Washer Water-Level Pressure Switch Hose L-G-5214FR4125N
...
K560
Hose L-G-5214FR4006P
...
K610
Washer Damper L-G-383EER3001E
...
K131
Washer Screw L-G-1SZZER4002A
...
F140
Washer Wire Harness L-G-6877ER1016B
...
F145
Washer Wire Harness L-G-6877ER3003B
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F461
Washer Hose Clamp L-G-4861FR3068E
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Clamp L-G-4860FR3092K
...
F465
Clamp L-G-4860FR3092H
...
F466
Clamp L-G-4861FR3068M
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
F467
Clamp L-G-4860FR3092K
...
K135
Washer Counterweight L-G-4866ER0004A
...
K130
Washer Counterweight L-G-4866ER0007A
...
K125
Washer Rear Tub Gasket L-G-4036ER2004A
...
K123
Washer Bolt L-G-4040FR4051C
...
K122
Washer Tub Bearing L-G-4280FR4048E
...
K115
Washer Spinner Support L-G-4434ER0002A
...
K111
Washer Baffle L-G-4433ER1003A
...
K110
Washer Spin Basket L-G-3045ER1006E
...
K105
Washer Outer Rear Tub Assembly L-G-3045ER0008F

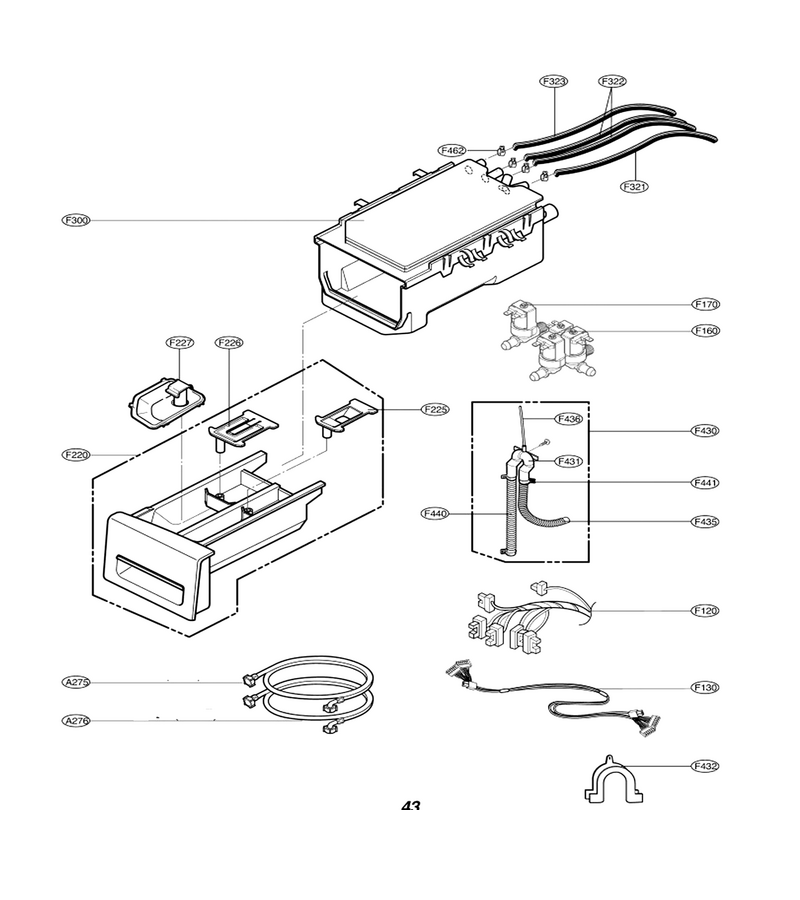

Dispenser Assembly

...
...
F462
Washer Hose Clamp L-G-4861FR3068A
...
F441
Clamp L-G-4861FR3068C
...
F430
Washer Drain Hose L-G-5215ER2002G
...
F323
Washer Dispenser Inlet Hose L-G-5214ER4001J
...
F322
Washer Dispenser Inlet Hose L-G-5214ER4001B
...
F321
Washer Dispenser Inlet Hose L-G-5214ER4001A
...
F300
Washer Dispenser Drawer Housing L-G-4925ER1015B
...
F227
Washer Detergent Dispenser L-G-3891ER2003A
...
F226
Cap L-G-5006ER3018A
...
F225
Washer Fabric Softener Dispenser Cap L-G-5006ER3014B
...
F220
Panel Assembly,drawer L-G-3721ER1249N
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F160
Washer Water Inlet Valve L-G-5221ER1003A
...
F130
Cable L-G-6850EC2001D
...
F120
Power Board Harness L-G-6877ER1023L
...
A276
Washer Fill Hose L-G-5215FD3715K
...
A275
Washer Fill Hose L-G-5215FD3715J
