product name

LG WM2650HRA.ACREPUS

Model: WM2650HRA.ACREPUS

Save Part Not Listed?
product name

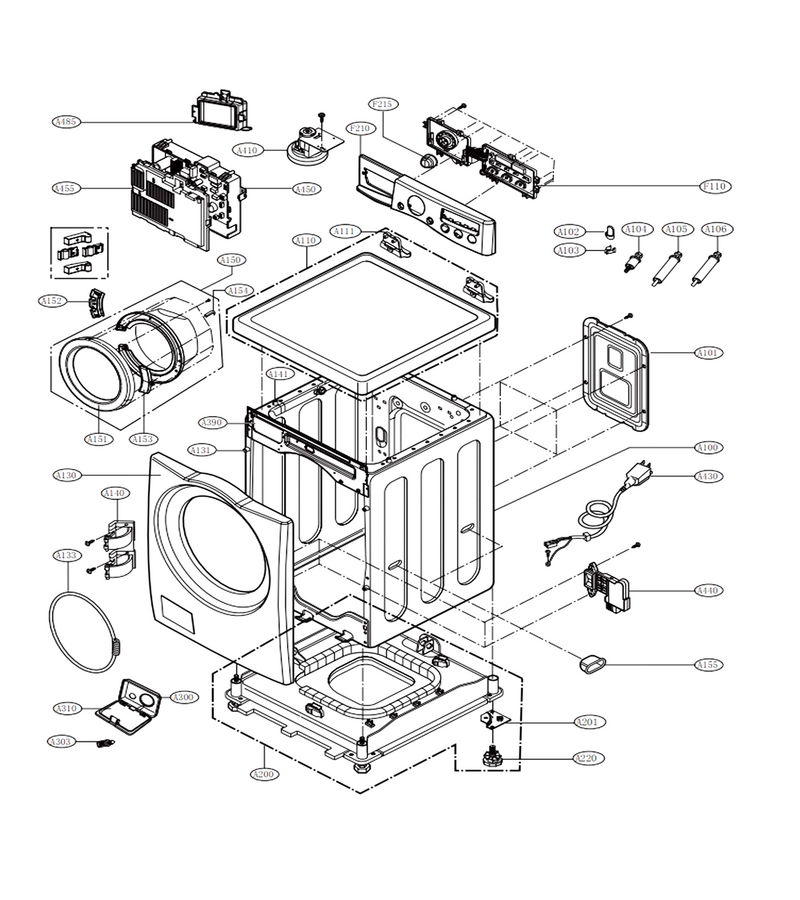

Cabinet & Control Panel Assembly

...
...
A430
Washer Power Cord L-G-EAD61246421
...
A155
Handle L-G-3650EN3300N
...
A200
Base Assembly,cabinet L-G-AAN74112001
...
A201
Bracket,base L-G-MAZ42383403
...
A220
Leg Assembly L-G-AFC72909308
...
A300
Case L-G-MBN62787601
...
A303
Cap,drain Hose L-G-5006EN3015A
...
A310
Cap,cover L-G-MBL65222603
...
A390
Frame Assembly L-G-ADV74430501
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006G
...
A100
Cabinet Assembly L-G-ABJ73888502
...
A440
Washer Door Lock Assembly L-G-EBF49827801
...
A450
Pcb Assembly,main L-G-EBR74798620
...
A455
Cover,protect L-G-MCK68351101
...
A485
Filter Assembly L-G-EAM60991302
...
F110
Pcb Assembly,display L-G-EBR36870735
...
F210
Panel Assembly,control L-G-AGL73856406
...
F215
Dryer Control Knob L-G-4941ER3005A
...
A153
Handle L-G-MEB62735501
...
A154
Locker,hook L-G-MFG62439301
...
A101
Rear Cover L-G-3550EN1023K
...
A102
Bush L-G-MBF62784301
...
A103
Holder L-G-4930EN3007A
...
A104
Washer Shipping Bolt L-G-FAA30992201
...
A105
Washer Shipping Bolt L-G-FAA30992202
...
A106
Washer Shipping Bolt L-G-FAA30992203
...
A110
Plate Assembly,top L-G-AGU73909702
...
A111
Bracket,hinge L-G-MAZ63472803
...
A131
Holder Assembly L-G-AEJ73620101
...
A133
Clamp Assembly L-G-4861EN3004J
...
A140
Hinge Assembly L-G-AEH73976801
...
A141
Holder Assembly L-G-AEJ73620001
...
A150
Door Assembly L-G-ADC73907402
...
A151
Frame,door(outer) L-G-MDQ63357101
...
A152
Frame,door(inner) L-G-MDQ63378001
...
A130
Cover,cabinet L-G-MCK67291603

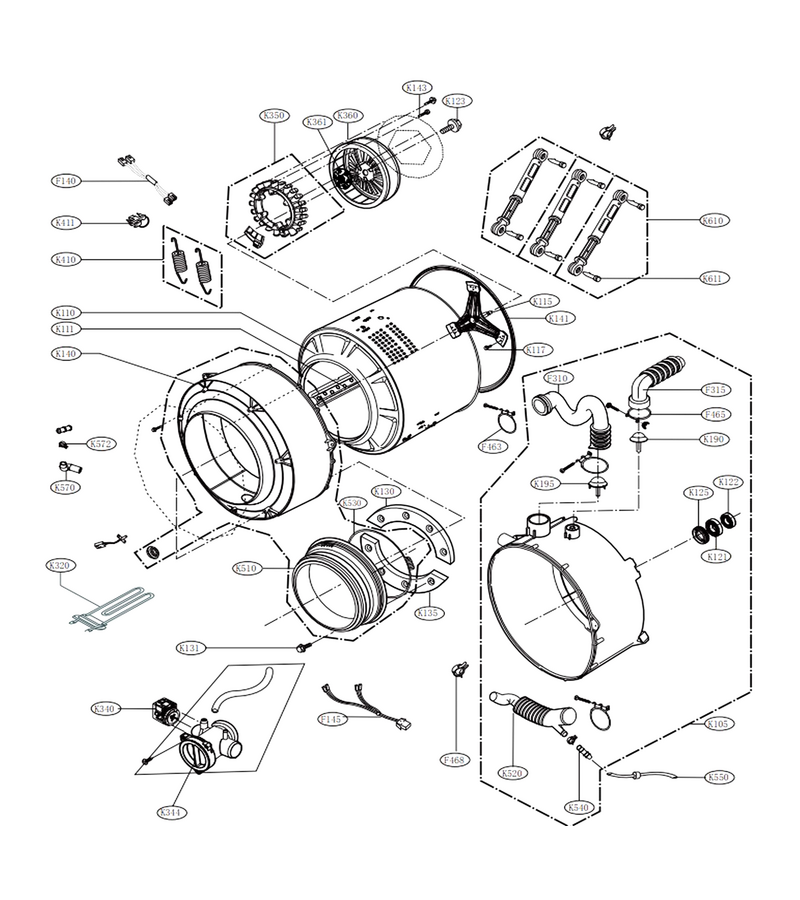

Drum & Tub Assembly

...
...
K115
Spider L-G-MHW62021901
...
K360
Washer Drive Motor L-G-AHL72914402
...
K350
Washer Drive Motor L-G-4417EA1002Y
...
K344
Casing,pump L-G-MBP61981101
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K320
Washer Heater Assembly L-G-AEG33121526
...
K195
Washer Vent Bellows Float L-G-4769ER4002A
...
K190
Float Assembly L-G-ADS73029001
...
K143
Common Bolt L-G-FAA30970801
...
K141
Gasket L-G-MDS63974501
...
K361
Bushing Rotor L-G-MBF62845101
...
K410
Spring,hinge L-G-MHY62964801
...
K411
Holder L-G-4930EN3004A
...
K510
Washer Door Boot L-G-4986ER0004F
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001D
...
K540
Washer Pressure Switch Air Chamber L-G-MBR62061501
...
K550
Hose,inlet L-G-MEJ62524801
...
K570
Hose,connector L-G-MEJ62504901
...
K572
Clamp Assembly L-G-4861EN3003A
...
K610
Washer Shock Absorber L-G-ACV72909503
...
K135
Balance Weight L-G-MAG62303301
...
F140
Harness,multi L-G-EAD62061003
...
F145
Harness,single L-G-EAD62116002
...
F310
Washer Dispenser Hose L-G-4738ER1004B
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F463
Washer Hose Clamp L-G-4860EN3001D
...
F465
Tub Clamp L-G-4860EN3001E
...
F468
Clamp Assembly L-G-4861EN3003P
...
K105
Tub Assembly,outer L-G-AJQ73993807
...
K111
Lifter Assembly L-G-AFH73009001
...
K110
Tub Assembly,drum(inner) L-G-AJQ73474102
...
K140
Cover Assembly,tub L-G-ACQ85996102
...
K131
Screw,customized L-G-FAB31641401
...
K130
Balance Weight L-G-MAG62303401
...
K125
Washer Rear Tub Gasket L-G-4036ER2004A
...
K123
Washer Bolt L-G-FAA30970901
...
K122
Bearing,ball L-G-4280EN4001T
...
K121
Bearing,ball L-G-4280EN4001S
...
K117
Bolt,common L-G-FAA30971001

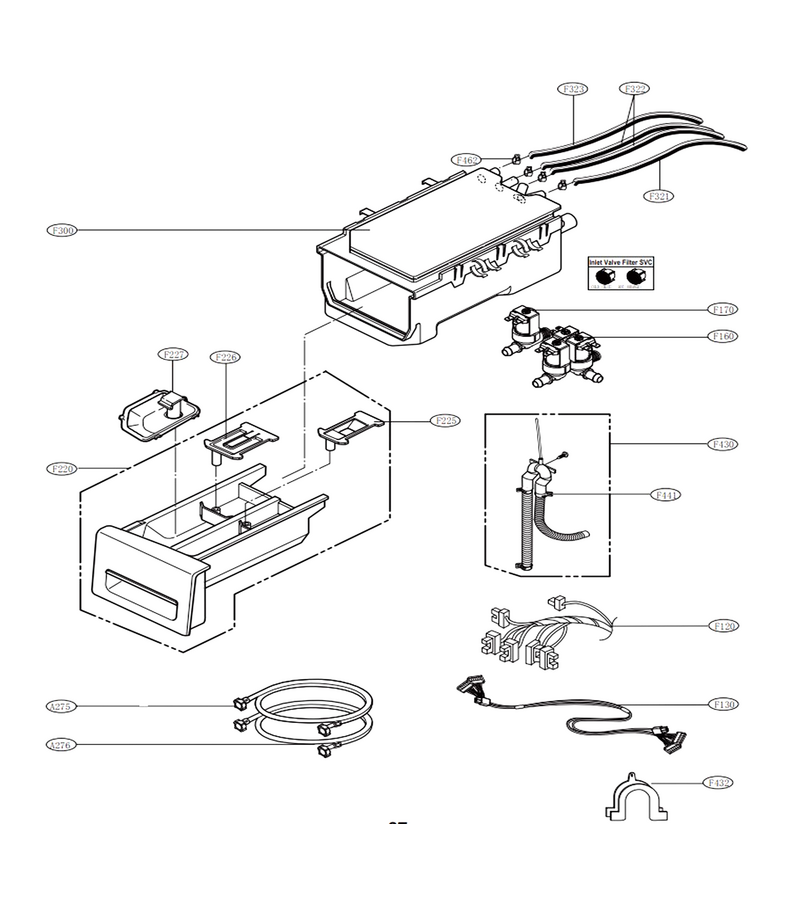

Dispenser Assembly

...
...
F462
Clamp Assembly L-G-4861EN3003A
...
F441
Clamp L-G-4861FR3068M
...
F432
Hanger Assembly L-G-4991EN3002A
...
F430
Washer Drain Hose L-G-5215ER2002G
...
F323
Washer Dispenser Hose L-G-MEJ62524903
...
F322
Washer Inlet Hose L-G-MEJ62524902
...
F321
Washer Dispenser Inlet Hose L-G-MEJ62524901
...
F300
Washer Dispenser Drawer Housing L-G-ACZ73370501
...
F227
Box Assembly,detergent L-G-AAZ73736101
...
F226
Washer Bleach Dispenser L-G-MBL65261901
...
F225
Softener Capt L-G-MBL65261801
...
F220
Panel Assembly,drawer L-G-AGL73856506
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F160
Washer Water Inlet Valve L-G-5221ER1003A
...
F130
Harness,multi L-G-EAD62037103
...
F120
Harness,multi L-G-EAD62037002
...
A276
Washer Fill Hose L-G-5215FD3715V
...
A275
Washer Fill Hose L-G-5215FD3715U
