product name

LG WM2011HW.ABWEEUS

Model: WM2011HW.ABWEEUS

Save Part Not Listed?
product name

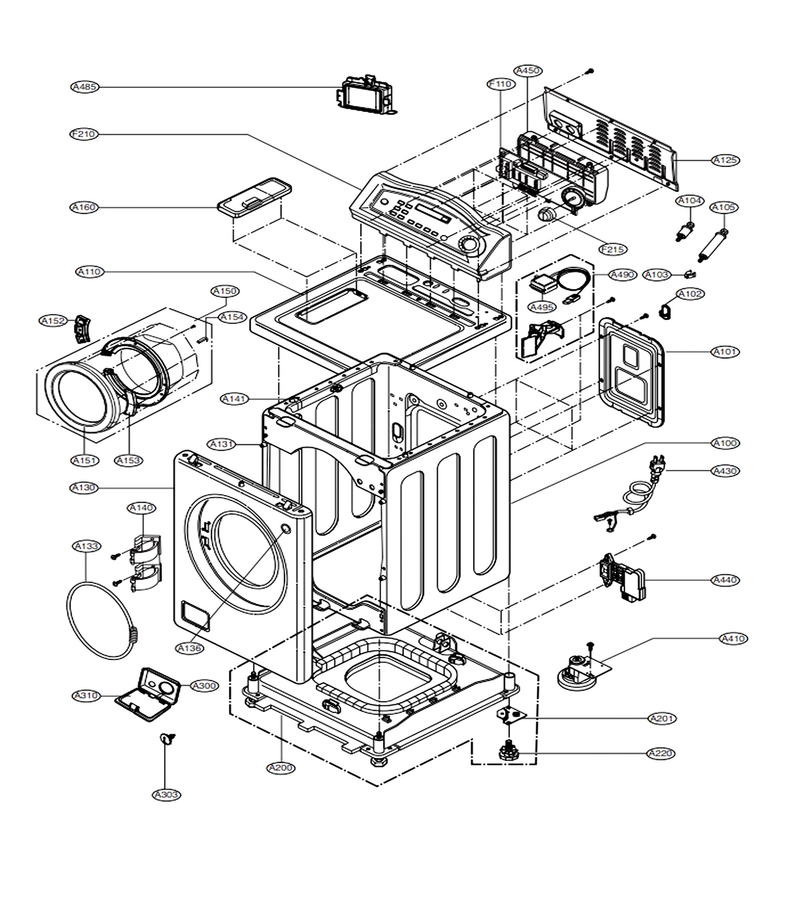

Cabinet & Control Panel Assembly

...
...
A100
Cabinet L-G-3091ER0001C
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Washer Bushing L-G-4830ER3001A
...
A103
Holder L-G-4930FR3151A
...
A104
Washer Shipping Bolt L-G-4011FR3159E
...
A105
Washer Shipping Bolt L-G-4011FR3159D
...
A110
Plate L-G-3457ER1002A
...
A125
Frame L-G-3210ER1306A
...
A130
Cabinet Cover L-G-3551ER0022A
...
A131
Holder L-G-4930ER4005A
...
A133
Washer Door Boot Spring Clamp L-G-2W20017E
...
A136
Logo Assembly L-G-3847ER3001C
...
A140
Dryer Hinge L-G-4775ER2001A
...
A141
Holder L-G-4930ER4005A
...
A150
Door Assembly L-G-3581ER0001E
...
A151
Frame,door(outer) L-G-3212ER0001A
...
A152
Washer Door Frame L-G-3212ER1011A
...
A153
Handle L-G-3650ER2002A
...
A154
Washer Door Lock Strike L-G-4026ER4004B
...
A160
Washer Dispenser Lid L-G-3523ER1001C
...
A200
Washer Base L-G-3041ER0001C
...
A201
Washer Leveling Leg Bracket L-G-4810ER3006A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A300
Case L-G-3110ER2002C
...
A303
Washer Drain Pump Filter Drain Hose Plug L-G-5006ER3009A
...
A310
Cap Cover L-G-5006ER3006D
...
A410
Washer Water-Level Pressure Switch L-G-6600FA1704X
...
A430
Ac Cord L-G-6411ER1004S
...
A440
Washer Door Lock Switch L-G-6601ER1004C
...
A450
Part L-G-6871ER1023Q
...
A485
Filter Assembly L-G-6201EC1004L
...
A490
Washer Vibration Sensor L-G-4811ER3001A
...
A495
Sensor Assembly L-G-6501FA2462E
...
F110
Pcb Assembly,display L-G-6871EC1063D
...
F210
Panel Assembly,control L-G-3721ER1055F
...
F215
Knob,rotary L-G-4940ER3011A

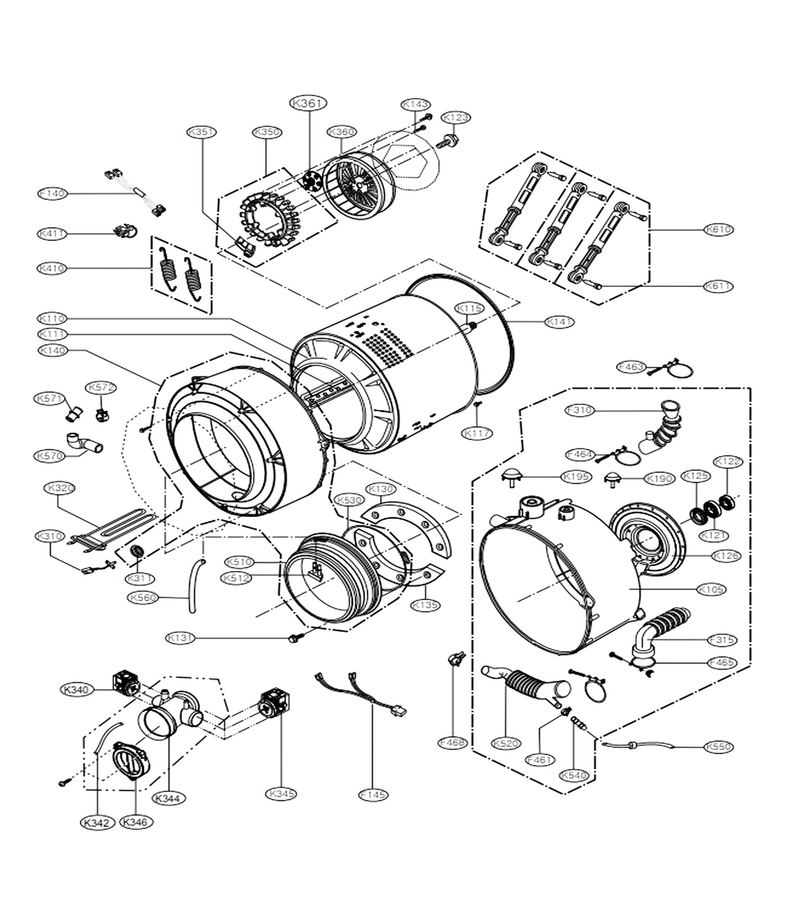

Drum & Tub Assembly

...
...
F140
Washer Wire Harness L-G-6877ER1016B
...
F145
Washer Wire Harness L-G-6877ER3003B
...
F310
Bellows L-G-4738ER2001A
...
F315
Washer Vent Bellows L-G-4738ER2002A
...
F461
Washer Hose Clamp L-G-4861FR3068E
...
F463
Washer Hose Clamp L-G-4860FR3092D
...
F464
Clamp L-G-4860FR3092K
...
F465
Clamp L-G-4860FR3092H
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K105
Washer Outer Rear Tub Assembly L-G-3045ER0008A
...
K110
Washer Spin Basket L-G-3045ER1006E
...
K111
Washer Baffle L-G-4433ER1003A
...
K115
Washer Spinner Support L-G-4434ER0002A
...
K117
Washer Bolt L-G-4011FA4353E
...
K121
Washer Tub Bearing, Rear L-G-4280FR4048N
...
K122
Washer Tub Bearing, Rear L-G-4280FR4048J
...
K123
Washer Bolt L-G-4040FR4051C
...
K125
Washer Rear Tub Gasket L-G-4036ER2004A
...
K126
Bracket,tub L-G-4810ER1005A
...
K130
Washer Counterweight L-G-4866ER0004A
...
K131
Washer Screw L-G-1SZZER4002A
...
K135
Washer Counterweight L-G-4866ER0004A
...
K140
Cover,tub L-G-3550ER0004A
...
K141
Washer Outer Tub Gasket L-G-4036ER4001B
...
K143
Washer Bolt L-G-4011FA4353B
...
K190
Washer Water Inlet Valve L-G-4769ER4001A
...
K195
Washer Vent Bellows Float L-G-4769ER4002A
...
K310
Dryer Thermistor L-G-6322FR2046C
...
K311
Washer Thermistor Gasket L-G-4036FR4050A
...
K320
Washer Heating Element L-G-5301FR1158J
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006G
...
K344
Washer Pump L-G-3108ER1001A
...
K345
Washer Wash Pump Motor L-G-EAU61383503
...
K346
Washer Drain Pump Filter L-G-383EER2001A
...
K350
Washer Drive Motor L-G-4417FA1994G
...
K351
Washer Motor Rotor Position Sensor L-G-6501KW2002A
...
K360
Washer Motor Rotor L-G-4413EA1002B
...
K361
Bushing Rotor L-G-MBF62845101
...
K410
Hinge Spring L-G-4970FR2084N
...
K411
Holder L-G-4930FR3040A
...
K510
Washer Door Boot L-G-4986ER0001C
...
K512
Connect Hose L-G-4932ER4002A
...
K520
Washer Tub-To-Pump Hose L-G-4738ER1002A
...
K530
Washer Door Boot Spring Clamp L-G-4861ER2001D
...
K540
Washer Pressure Switch Air Chamber L-G-3504ER3002A
...
K550
Washer Water-Level Pressure Switch Hose L-G-5214FR4125N
...
K560
Connect Hose L-G-5214FR4006M
...
K570
Washer Tub-To-Pump Hose L-G-5214FR4058Y
...
K571
Washer Drain Pump Hose Connector L-G-4932ER4007B
...
K572
Washer Hose Clamp L-G-4861FR3068A
...
K610
Washer Damper L-G-383EER3001E

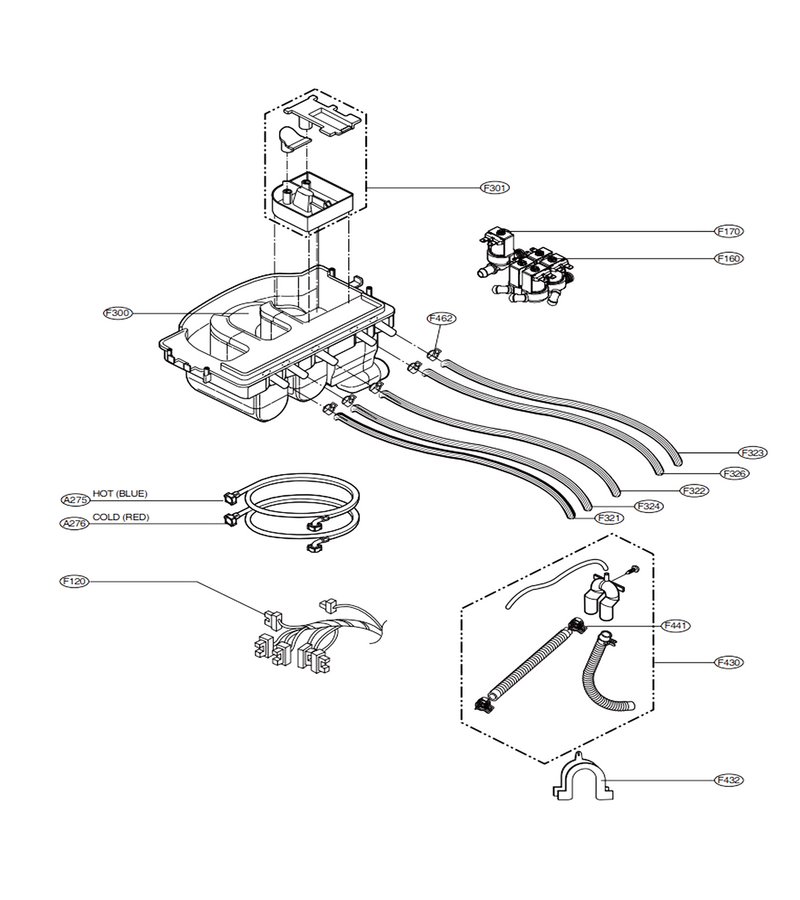

Dispenser Assembly

...
...
A275
Washer Fill Hose L-G-5215FD3715J
...
A276
Washer Fill Hose L-G-5215FD3715K
...
F120
Washer Harness L-G-6877ER1015B
...
F160
Washer Water Inlet Valve L-G-5220FR2008C
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F300
Washer Dispenser Assembly L-G-4924ER1006B
...
F301
Box Assembly L-G-3891ER2002A
...
F321
Washer Inlet Hose L-G-5214FR4125T
...
F322
Washer Inlet Hose L-G-5214FR4125Q
...
F323
Nlet Hose L-G-5214FR4125D
...
F324
Washer Inlet Hose L-G-5214FR4125P
...
F326
Washer Inlet Hose L-G-5214FR4125R
...
F430
Washer Drain Hose L-G-5215ER2002F
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F441
Clamp L-G-4861FR3068C
...
F462
Clamp L-G-4861FR3068M
