LG WM1385HW.ABWEEUS

Model: WM1385HW.ABWEEUS

Save Part Not Listed?
product name

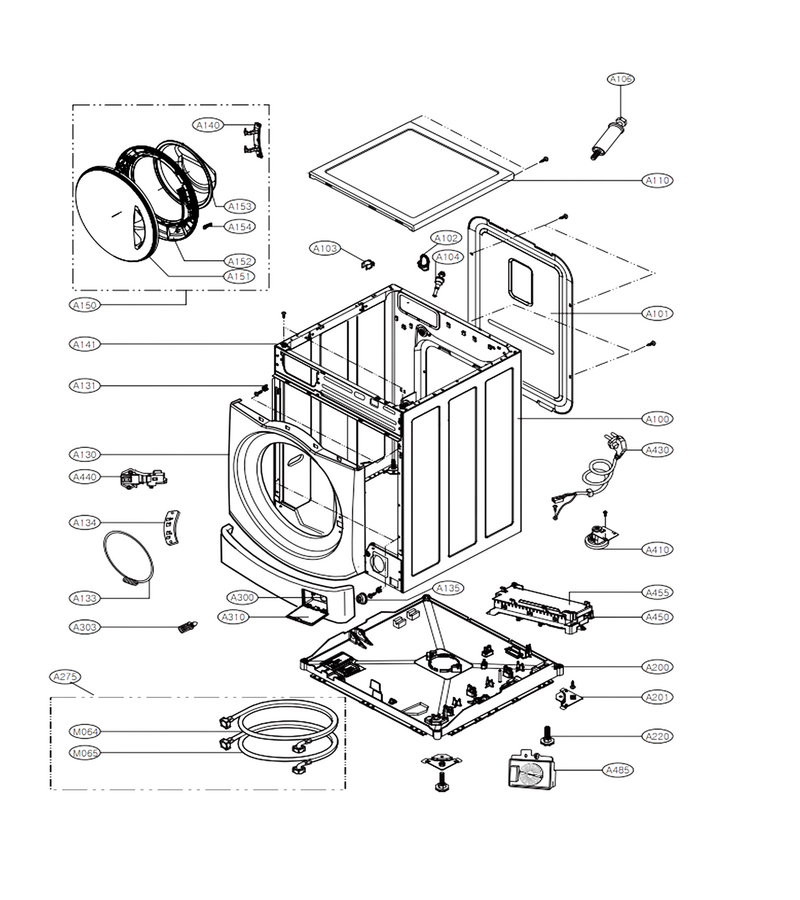

The Part List Of Cabinet Assembly

...
...
A310
Cap Cover L-G-MBL38266706
...
A153
Door,glass L-G-MCV38082403
...
A154
Washer Door Lock Strike L-G-MFG62579001
...
A200
Cabinet Base L-G-3041ER0003C
...
A201
Washer Leveling Leg Bracket L-G-4810ER3016A
...
A220
Washer Leveling Leg L-G-AFC72755401
...
A275
Accessory Assembly L-G-AAA76517702
...
A300
Lower Cover L-G-MCK38266401
...
A303
Washer Drain Pump Filter Drain Hose Plug L-G-5006ER3009A
...
A100
Cabinet L-G-ABJ33846804
...
A410
Washer Water-Level Pressure Switch L-G-6601ER1006F
...
A430
Washer Power Cord L-G-6411ER1006E
...
A440
Washer Door Lock Assembly L-G-EBF49827801
...
A450
Washer Main Pcb Assembly L-G-EBR72927509
...
A455
Main Pcb Assembly L-G-EBR79909506
...
A485
Filter Assembly L-G-EAM60991309
...
M064
Washer Fill Hose L-G-5215FD3715V
...
A151
Door Outer Frame L-G-MDQ61976901
...
A101
Washer Cabinet Back Panel L-G-3550ER1028A
...
A102
Bushing L-G-4830FR3107A
...
A103
Washer Retainer Clip L-G-4930ER3014A
...
A104
Washer Shipping Bolt L-G-FAA31690701
...
A106
Bolt Assembly L-G-FAA31690702
...
A110
Plate Assembly,top L-G-3457ER1008J
...
A130
Cabinet Cover L-G-MCK38266304
...
A131
Holder L-G-4930ER4004A
...
A133
Clamp L-G-ACA72969501
...
A134
Hinge Bracket L-G-4810ER3017B
...
A135
Holder Assembly L-G-AEJ72909601
...
A140
Hinge L-G-MEF38257802
...
A141
Holder Assembly L-G-AEJ34755201
...
A150
Door Assembly L-G-ADC33666420
...
A152
Frame L-G-MDQ61281001

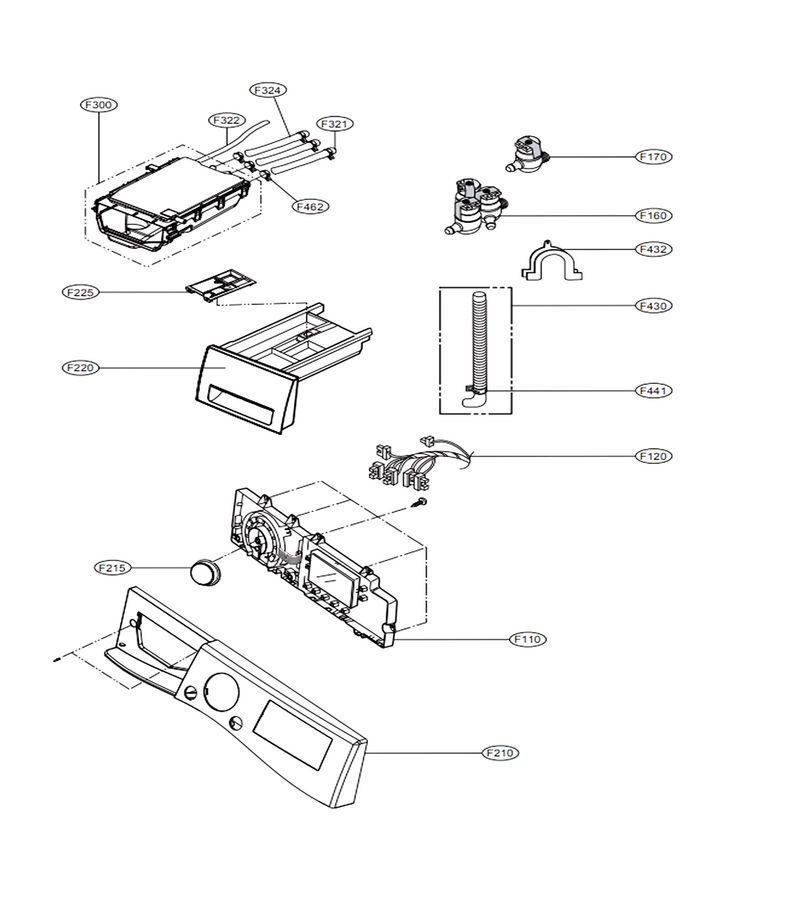

Control Panel & Dispenser Assembly

...
...
F462
Washer Hose Clamp L-G-4861FR3068A
...
F441
Clamp L-G-4861FR3068C
...
F432
Washer Drain Hose U-Bend Bracket L-G-3W50712A
...
F430
Pump Hose L-G-5214FR3188X
...
F324
Nlet Hose L-G-5214FR4125D
...
F322
Inlet Hose L-G-5214FR4125L
...
F321
Inlet Hose L-G-5214FR4125L
...
F300
Washer Dispenser Drawer L-G-ACZ34745502
...
F220
Panel Assembly,drawer L-G-AGL74275483
...
F215
Knob,rotary L-G-4940ER3015A
...
F210
Panel Assembly,control L-G-AGL73960853
...
F170
Washer Water Inlet Valve L-G-5220FR2006H
...
F160
Washer Water Inlet Valve L-G-5220FR2075L
...
F120
Multi Harness L-G-EAD62666616
...
F110
Display Pcb Assembly L-G-EBR78770640
...
F225
Softener Cap L-G-MBL39653601

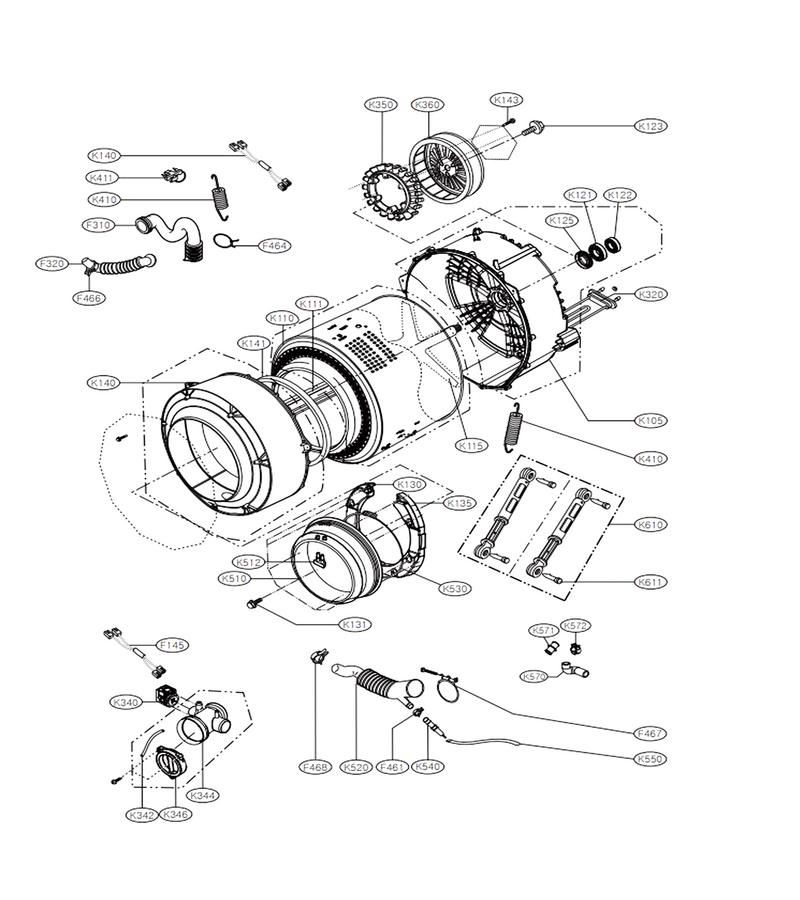

Drum & Tub Assembly

...
...
K410
Washer Suspension Spring L-G-4970FR2084T
...
K141
Seal L-G-4036ER4001A
...
K360
Rotor Assembly L-G-AHL73855301
...
K350
Stator Assembly L-G-AJB73816001
...
K346
Washer Drain Pump Filter L-G-383EER2001A
...
K344
Washer Pump L-G-3108ER1001B
...
K342
Washer Drain Pump Filter Drain Hose L-G-5214FR4006G
...
K340
Washer Drain Pump L-G-4681EA2001T
...
K320
Dryer Heater L-G-AEG33121504
...
K143
Bolt L-G-4011FA4353C
...
K611
Washer Shock Absorber Mounting Pin L-G-4774FR3118B
...
K411
Holder L-G-MEG64919201
...
K510
Washer Door Boot L-G-MDS38265303
...
K512
Nozzle Assembly L-G-AGB73992401
...
K520
Bellows L-G-4738ER1007A
...
K530
Clamp Assembly L-G-4861ER2001B
...
K540
Chamber L-G-3504FR3134A
...
K550
Hose,connec L-G-5214FR4058W
...
K571
Connector L-G-4932ER4007C
...
K572
Clamp L-G-4861FR3068R
...
K610
Damper Assembly L-G-383EER3001K
...
K110
Drum Tub Assembly, Inner L-G-AJQ33694820
...
F145
Washer Wire Harness L-G-6877ER3003C
...
F310
Bellows L-G-MAR61842101
...
F320
Inlet Hose L-G-5214FR3046B
...
F461
Clamp L-G-4861FR3068C
...
F464
Snap Ring L-G-3W50012O
...
F466
Clamp L-G-4861FR3068B
...
F467
Washer Hose Clamp L-G-4860FR3092C
...
F468
Washer Hose Clamp L-G-4861FR3068E
...
K105
Tub Assembly L-G-3045ER0030J
...
K140
Tub Cover L-G-MCK38263706
...
K111
Lifter L-G-MFE38265101
...
K115
Spider L-G-4434ER1008D
...
K121
Washer Tub Bearing, Rear L-G-MAP61913708
...
K122
Washer Bolt L-G-4040FR4051C
...
K123
Washer Rear Tub Gasket L-G-4036ER2004A
...
K125
Weight,bal L-G-4866ER1017B
...
K130
Weight,bal L-G-4866ER1017B
...
K131
Bolt L-G-4011FR3173E
...
K135
Weight,bal L-G-4866ER1018B
