LG WG8005R.AWYAWMT

Model: WG8005R.AWYAWMT

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20005B
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
35211A
(35211a) Tube Assembly,suction L-G-AJR31679501
...
130410
(130410) Base Assembly,single L-G-3041A30011D
...
130910
Room Air Conditioner Cabinet L-G-3091A30005R
...
135303
(135303) Grille, Inlet L-G-3530A10186A
...
135312
(135312) Grille Assembly, Front L-G-3531A24023B
...
135500
Cover L-G-3550A30036B
...
147581
(147581) Louver,horizontal L-G-4758A20054A
...
147582
Vane L-G-4758A30008A
...
148000
Brace L-G-4800A30001A
...
149980
Shroud L-G-4998A10019A
...
159830
Room Air Conditioner Air Filter L-G-5231A20004A
...
237200
Panel L-G-3720A20053A
...
238310
(249950) Case Assembly L-G-MDD36626102
...
249950
Panel L-G-4995A20296D
...
263230
Room Air Conditioner Thermistor L-G-6323A20003S
...
264110
Room Air Conditioner Power Cord L-G-6411A20056A
...
267110
(268711-1) Pcb Assembly, Display L-G-6711A20066A
...
268711-1
(268711-1) Pcb Assembly,display L-G-6871A20443B
...
268711-2
Main Pcb Assembly L-G-6871A10123F
...
346811
Motor L-G-4681A20073Z
...
349001
Damper L-G-4901A30001A
...
349480
Orifice L-G-4948A30007B
...
349600
Motor Mount L-G-4960A20014A
...
352113
(352113) Tube Assembly,discharge L-G-5211A20708D
...
352115
Evaporator Tub L-G-5211A20131H
...
352390
(352390) Guide Assembly,air L-G-5239A30002S
...
354210
(354210) Evaporator Assembly,first L-G-5421A20061M
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A20015A
...
359012
Fan L-G-5900A10008A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552111
Tube Assembly L-G-5211A30260B
...
552113
(552113) Tube Assembly,condenser(out) L-G-5211A10067G
...
554030
Condenser Assembly L-G-5403A20092H
...
554160
Compressor L-G-2520UCBA002
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L048A

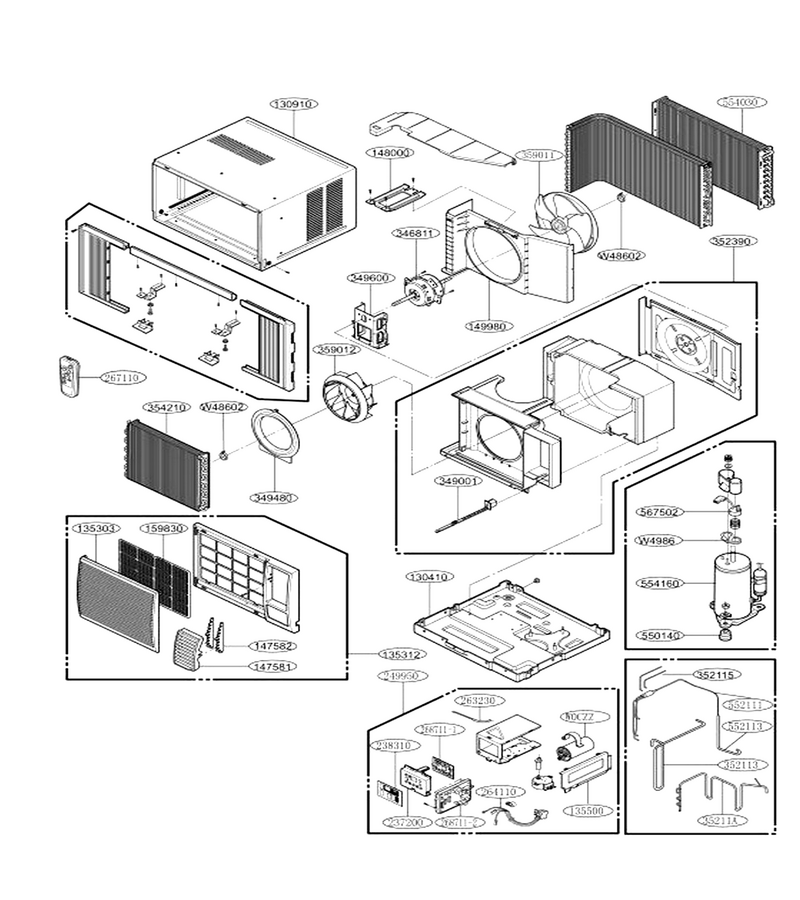

Schematic Image Zoomed
