LG WG5200R.AWYAWMT

Model: WG5200R.AWYAWMT

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20005B
...
35211A
Discharge Tube L-G-5210A30001D
...
130410
Base Assembly,weld L-G-3041A20036H
...
130910
Cabinet L-G-3091AR6055M
...
132111-1
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239A
...
132111-2
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239B
...
135312
Grille Assembly L-G-3531AR1644H
...
135313
Grille,inlet L-G-3530A10039A
...
147581
Holder L-G-4520AR3191A
...
147582-1
Vane L-G-5990AR3190C
...
147582-2
Vane L-G-5990AR3190D
...
149980
Shroud L-G-4998AR1608A
...
152302
Room Air Conditioner Air Filter L-G-5231AR2148A
...
237200
Control Panel L-G-3720A20017A
...
238310
Escutcheon L-G-3831A10001F
...
249950
Case Assembly,control L-G-4995A20127R
...
263230
Room Air Conditioner Thermistor L-G-6323A20003S
...
264110
Power Cord L-G-2H00677P
...
267110
(268711-1) Pcb Assembly, Display L-G-6711A20066A
...
268711-1
Display Board L-G-6871A20432B
...
268711-2
Pcb Assembly,main L-G-6871A10123L
...
346811
Motor Assembly,ac,outdoor L-G-4681A10016C
...
349480
Orifice L-G-4948A10016B
...
352111
Tube,bending L-G-5210A30018J
...
352113
Tube Assembly,suction L-G-5211A10062F
...
352115
Tube L-G-5211A10063A
...
352390-2
Duct L-G-5238A20013B
...
352390-1
Duct Assembly L-G-5239A30003D
...
354210
Evaporator L-G-5421A10008B
...
359012
Turbo Fan L-G-5900A10005B
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
554030
Condenser Assembly,first L-G-5403AR6200D
...
554160
Compressor Set,china L-G-2520UCAA003
...
559011
Axial Fan L-G-5901A20011B
...
567502
Protector L-G-6750U-L050A
...
749740
Guide L-G-5210AR3196C

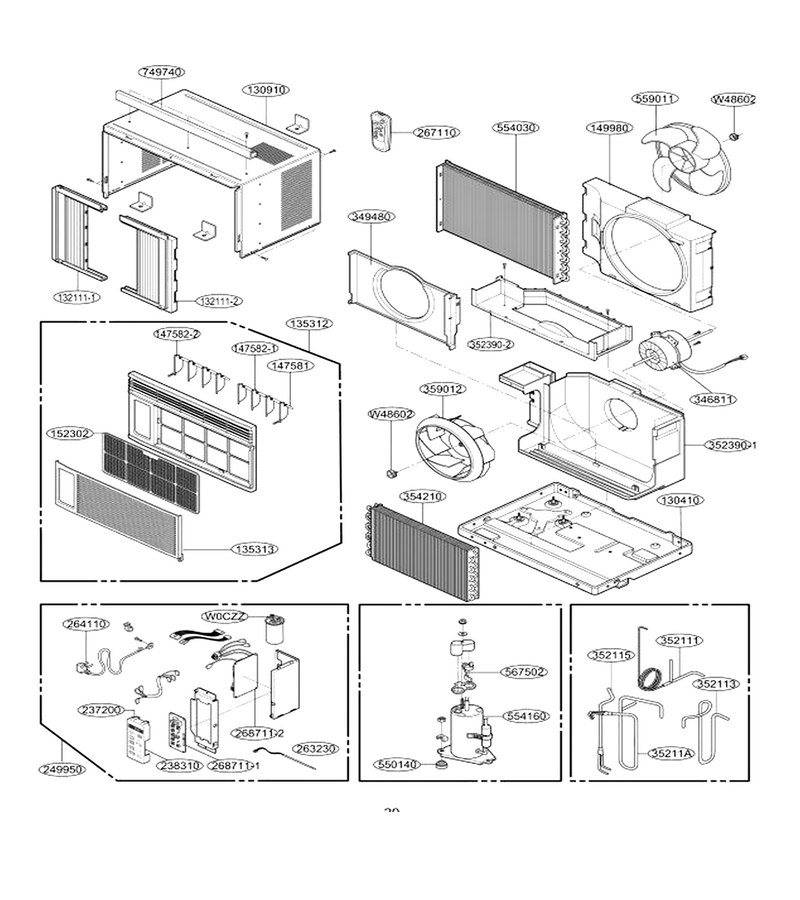

Schematic Image Zoomed
