LG WG1805RY6.AWYAWMT

Model: WG1805RY6.AWYAWMT

Save Part Not Listed?
product name

Main

...
...
W52106-1
Tube,evaporator L-G-5210A21083B
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932C
...
35211A
Suction Tube Assembly L-G-5211A10247P
...
130410
Base Assembly, Single L-G-3041A30001H
...
130910
Cabinet Assembly, Single L-G-3091AR6056P
...
135312
Front Grille Assembly L-G-3531A11002B
...
135314
Inlet Grille L-G-3530A10189A
...
135510
Cover L-G-3551A30015A
...
146812
Motor L-G-2H01102J
...
147581-1
Vane, Horizontal L-G-5990A20032A
...
147581-2
Louver,horizontal L-G-5990A20033A
...
147582
Louver,verti L-G-4758AR6157A
...
148000
Supporter L-G-4800AR7271A
...
149980
Shroud L-G-4998AR1597B
...
159830
Room Air Conditioner Air Filter L-G-5231AR6159A
...
237200
Control Panel L-G-3720AR6163A
...
238310
Escutcheon L-G-MDD36626101
...
249950
Case Assembly,control L-G-4995A20613P
...
263230
Room Air Conditioner Thermistor L-G-6323A20003S
...
264110
Room Air Conditioner Power Cord L-G-6411A20056P
...
267110
Room Air Conditioner Remote Control L-G-6711A20034S
...
268711-2
Pcb Assembly,main L-G-EBR39215609
...
268711-1
Display Pcb L-G-6871A20611A
...
346811
Room Air Conditioner Fan Motor L-G-4681A20081T
...
349001
Damper L-G-4900AR7265A
...
349480
Orifice L-G-4948A20016A
...
349600
Mount L-G-4960AR1596A
...
352111
Tube L-G-5211AR7059A
...
352113
Tube Assembly, Discharge Single L-G-5211A25040B
...
352380
Guide Assembly,air L-G-5239A20001W
...
354210
Evaporator Assembly, First L-G-5421A20248G
...
359012
Turbo Fan L-G-5900A20027A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
552111
Tube,capillary L-G-5210A33036P
...
554031
Condenser L-G-5403A20062F
...
554160
Room Air Conditioner Compressor L-G-2520UCBJ002
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1508B
...
731273
Room Air Conditioner Installation Kit L-G-3127AR3403U
...
749740
Guide L-G-2H00858D

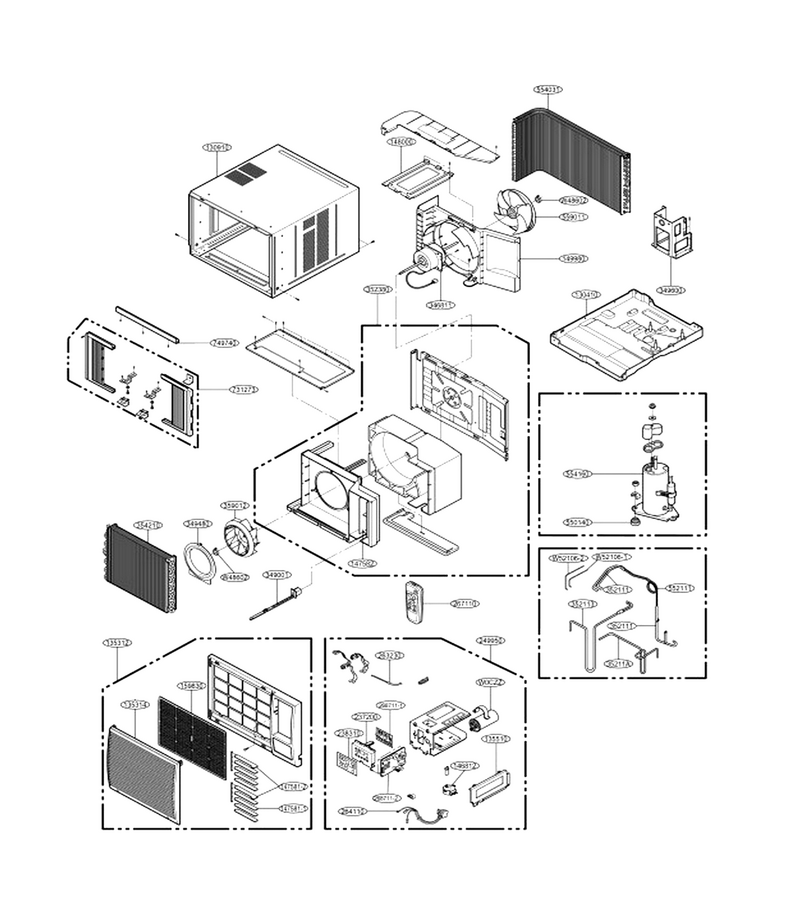

Schematic Image Zoomed
