LG WG1000R.AWYAWMT

Model: WG1000R.AWYAWMT

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
35211A
Tube Assembly,suction L-G-5211A20130R
...
130410
Base Assembly L-G-3041A30005P
...
130910
Room Air Conditioner Cabinet L-G-3091A30005R
...
135312
Grille Assembly L-G-3531A20034A
...
147581
Louver L-G-4758A20002A
...
147582
Vane L-G-4758A30008A
...
249950
Control Box Assembly,single L-G-4995A20296B
...
264110
Ac Power Cord Assembly L-G-2H00677R
...
346811
Room Air Conditioner Fan Motor L-G-4681A20027J
...
349001
Damper L-G-4901A30001A
...
349480
Orifice L-G-4948A30007B
...
349600
Motor Mount L-G-4960A20014A
...
352113
Tube Assembly, Discharge Single L-G-5211AR2930Z
...
352390
Air Guide L-G-5239A30002D
...
354210
Evaporator Assembly,first L-G-5421A20061H
...
359012
Fan L-G-5900A10008A
...
550140
Bushing L-G-4830AR4335A
...
552102
Capillary Tube Assembly L-G-5211A20598B
...
554031
Condenser Assembly,first L-G-5403A20043U
...
554160
Compressor L-G-2520UCDK004
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5900A20015A
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L031A

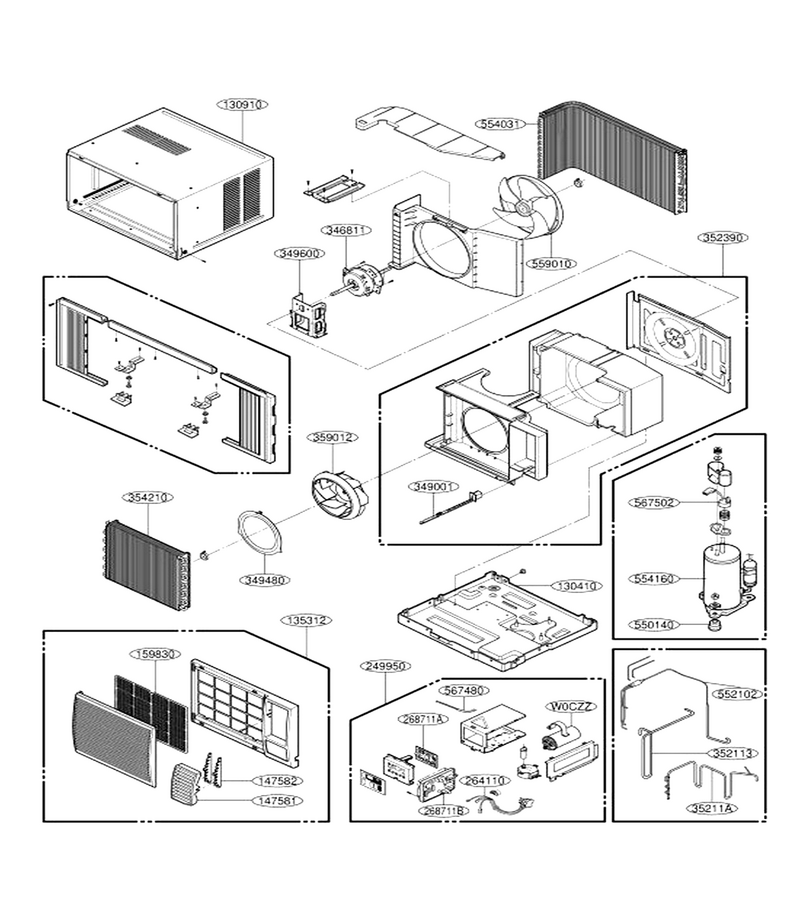

Schematic Image Zoomed
