LG WG1000R.AWYAWM1

Model: WG1000R.AWYAWM1

Save Part Not Listed?
product name

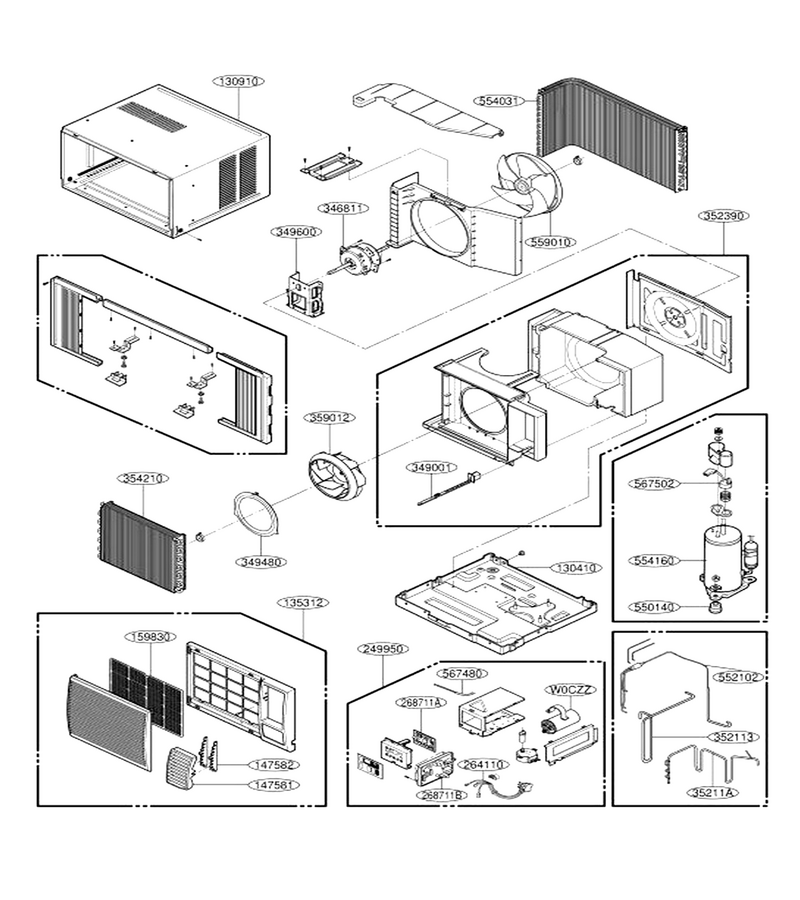

Main

...
...
35211A
Tube Assembly,suction L-G-5211A20130R
...
130410
Base Assembly L-G-3041A30005P
...
130910
Cabinet L-G-3091A30005D
...
135312
Grille Assembly L-G-3531A20034A
...
147581
Louver L-G-4758A20002A
...
147582
Vane L-G-4758A30008A
...
159830
Room Air Conditioner Air Filter L-G-5231A20004A
...
249950
Control Board L-G-4995A20106X
...
264110
Ac Power Cord Assembly L-G-2H00677R
...
268711A
Room Ac Pcb L-G-6871A20189B
...
268711B
Room Ac Pcb L-G-6871A20188F
...
346811
Room Air Conditioner Fan Motor L-G-4681A20027J
...
349001
Damper L-G-4901A30001A
...
349480
Orifice L-G-4948A30007A
...
349600
Motor Mount L-G-4960A20014A
...
352113
Tube Assembly, Discharge Single L-G-5211AR2930Z
...
352390
Air Guide L-G-5239A30002D
...
354210
Evaporator Assembly,first L-G-5421A90030C
...
359012
Turbo Fan L-G-5900A20016A
...
550140
Bushing L-G-4830AR4335A
...
552102
Capillary Tube Assembly L-G-5211A20598B
...
554031
Condenser L-G-5403A20043B
...
554160
Compressor Set,korea L-G-2520UKLC2CA
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5900A20015A
...
567480
Thermistor L-G-6323A20003D
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L031A
