LG VS84003SB.AKBELGA

Model: VS84003SB.AKBELGA

Save Part Not Listed?
product name

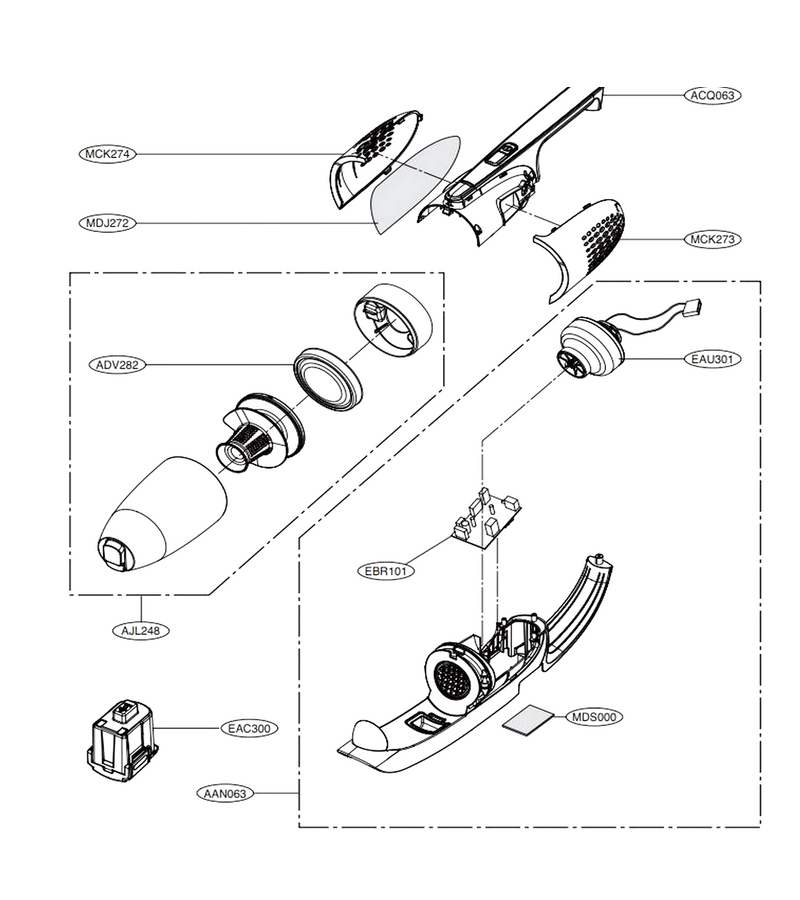

Handle Assembly Base

...
...
MCK274
Cover,exhaust Filter L-G-MCK67718201
...
MDS000
Gasket L-G-MDS64412901
...
MDJ272
Filter,exhaust L-G-MDJ63705601
...
MCK273
Cover,exhaust Filter L-G-MCK67718102
...
EBR101
Pcb Assembly,main L-G-EBR77767006
...
EAU301
Motor Assembly,dc,fan L-G-EAU63043201
...
EAC300
Battery,assembly L-G-EAC62258402
...
AJL248
Tank Assembly,dust L-G-AJL73692902
...
ADV282
Frame Assembly,filter L-G-ADV75185502
...
ACQ063
Cover Assembly,body L-G-ACQ86851823

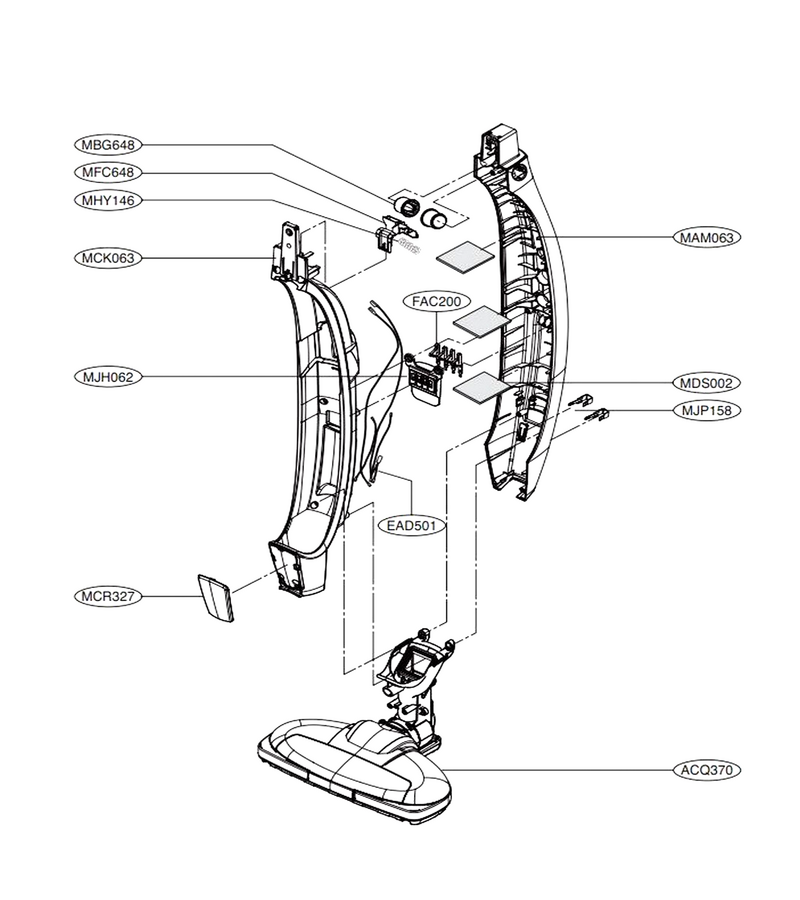

Base Assembly Set

...
...
MBG648
Button,release L-G-MBG64808301
...
MJH062
Supporter,board L-G-MJH63174901
...
MHY146
Spring,coil L-G-MHY63363703
...
MFC648
Lever,release L-G-MFC62790301
...
MDS002
Gasket L-G-MDS64412908
...
MCR327
Decor,front L-G-MCR65270014
...
MCK063
Cover,body L-G-MCK67717502
...
MAM063
Base,body L-G-MAM63067001
...
FAC200
Pin,customized L-G-FAC31047301
...
EAD501
Harness,single L-G-EAD62607407
...
ACQ370
Cover Assembly,head L-G-ACQ88703805

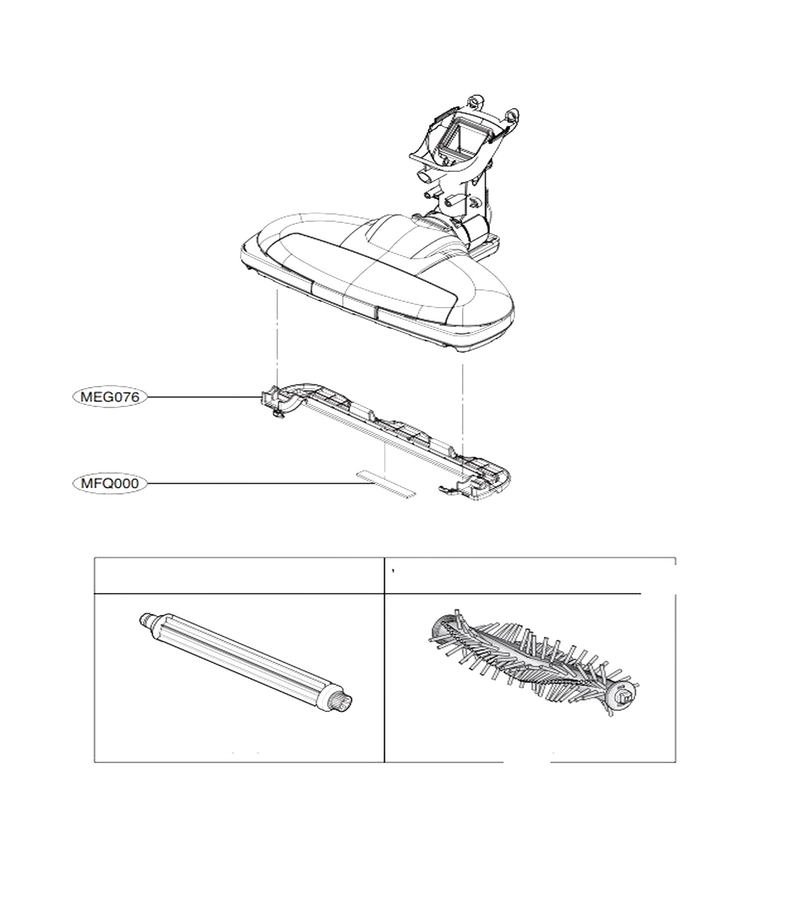

Cover Assembly Head

...
...
MEG076
Holder,brush L-G-MEG64799501
...
MFQ000
Mop L-G-4766FI4699B

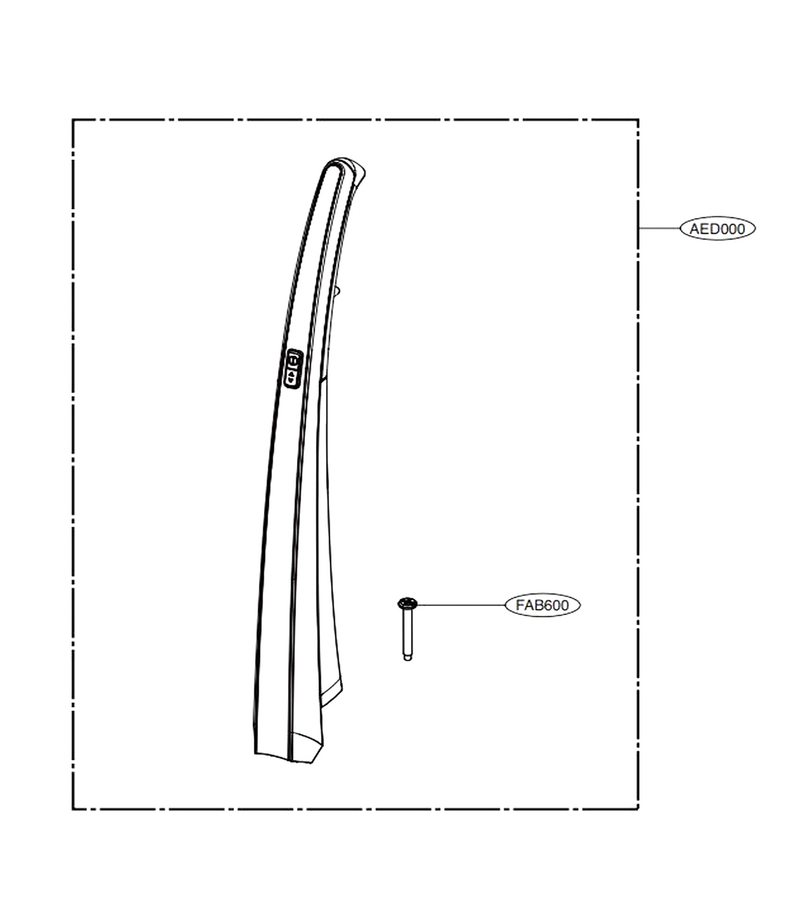

Handle Assembly

...
...
AED000
Handle Assembly L-G-AED73872823

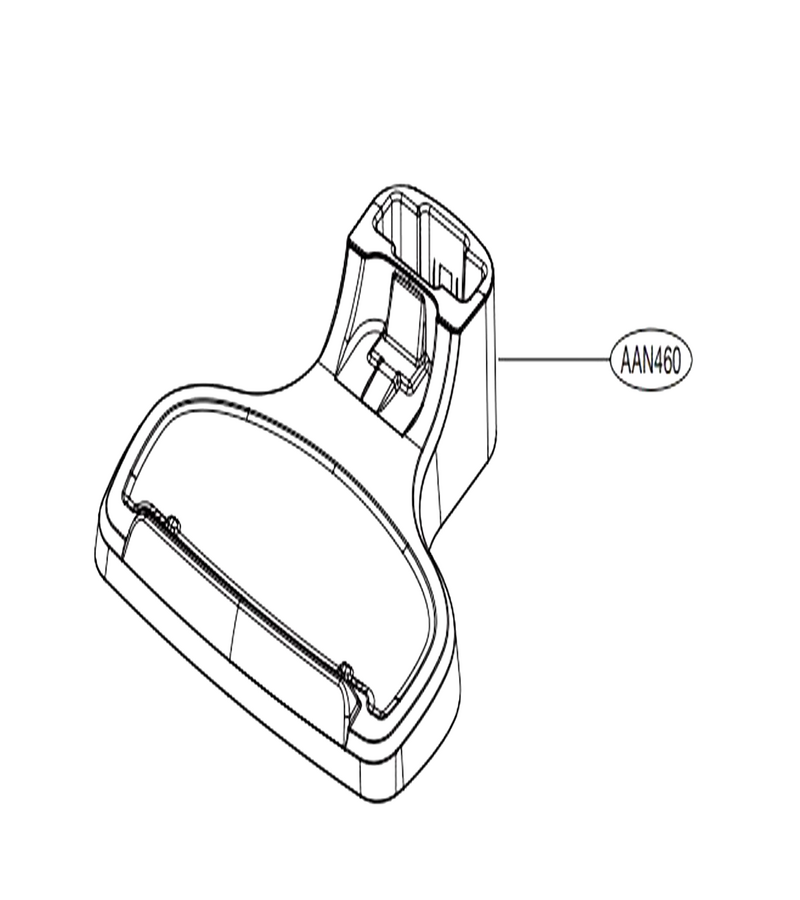

Base Assembly Lower

...
...
AAN460
Base Assembly,lower L-G-AAN74909801

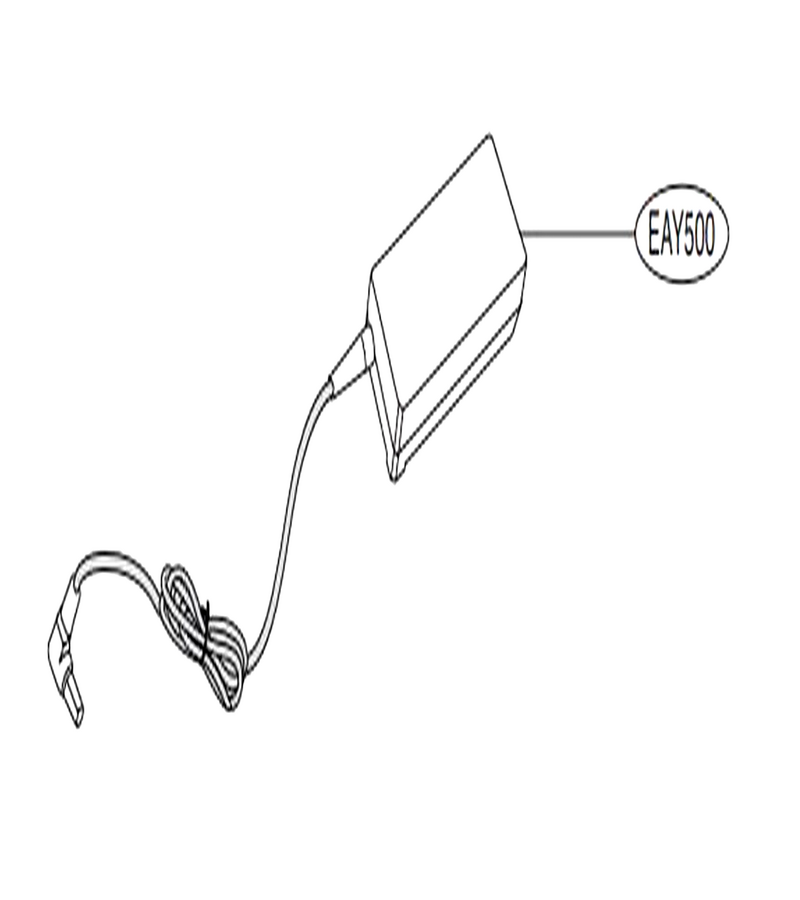

Charge Battery

...
...
EAY500
Charger,battery L-G-EAY63129708
