LG VR6270LVMB.ARDQGPA

Model: VR6270LVMB.ARDQGPA

Save Part Not Listed?

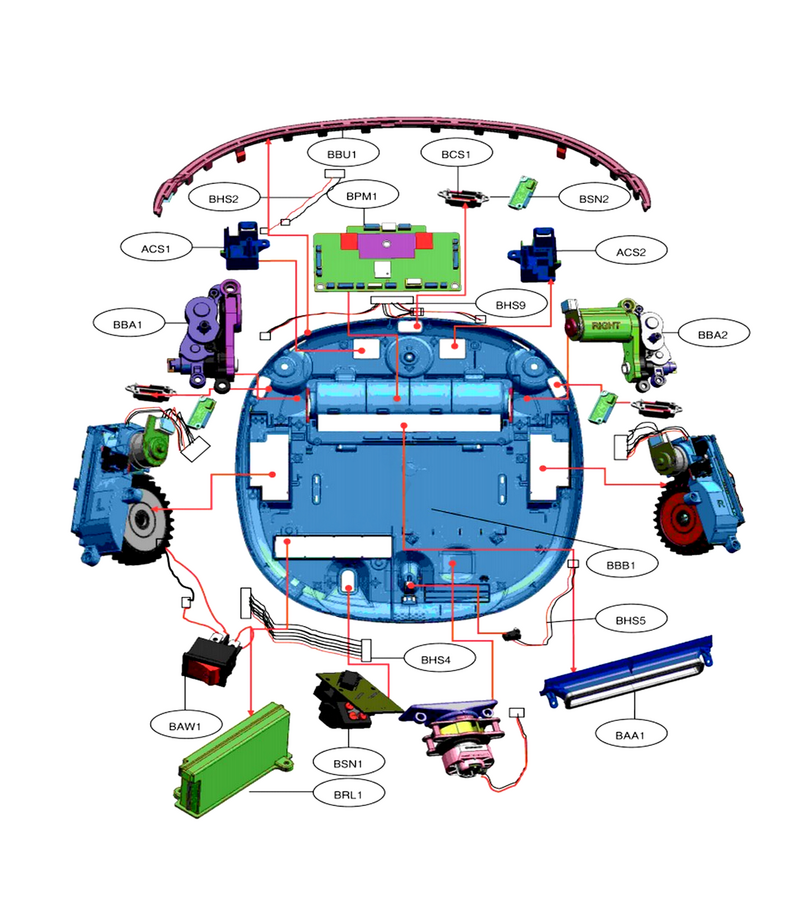

Base Assembly, Body 1

ACS1

Connector Assembly L-G-ACJ73310201

ACS2

Connector Assembly L-G-ACJ73310101

BAA1

Guide Assembly,air L-G-AEC73617801

BAW1

Switch Assembly L-G-EBF61755102

BBA1

Bracket Assembly L-G-ABA74252601

BBA2

Bracket Assembly L-G-ABA74250201

BBB1

Base,body L-G-MAM62783901

BBU1

Bumper,body L-G-MBD62183801

BCS1

Cover,sensor L-G-MCK67065301

BHS2

Harness,single L-G-EAD60809903

BHS4

Harness,single L-G-EAD60811502

BHS5

Harness,single L-G-EAD60842106

BHS9

Harness,single L-G-EAD62085901

BPM1

Pcb Assembly,main L-G-EBR74308201

BRL1

Rechargeable Battery,lithium L-G-EAC60766109

BSN1

Sensor Assembly L-G-EBD60662501

BSN2

Sensor Assembly L-G-EBD60661401

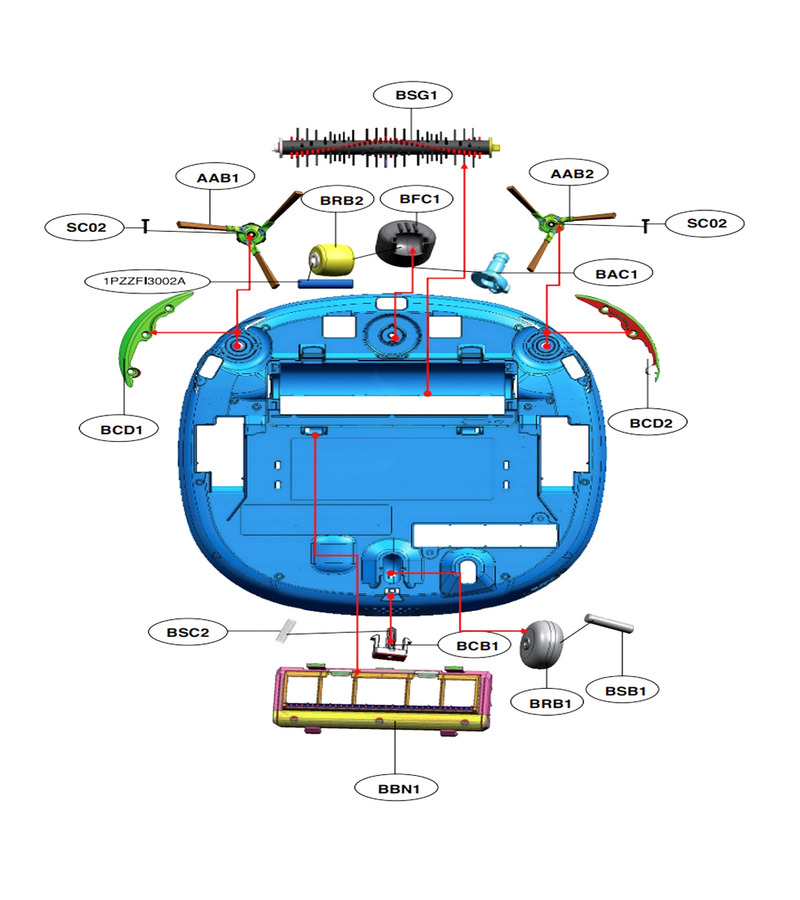

Base Assembly, Body 2

AAB1

Brush Assembly L-G-ABC73130001

AAB2

Brush Assembly L-G-ABC73129901

BAC1

Connector,pi L-G-MCD61842801

BBN1

Base Assembly,nozzle L-G-AAN74050401

BCB1

Cover,button L-G-MCK67050601

BCD1

Cover,decor L-G-MCK67144601

BCD2

Cover,decor L-G-MCK67046701

BFC1

Cover,sensor L-G-MCK67065301

BRB1

Roller Assembly L-G-AHJ72909401

BRB2

Roller Assembly L-G-AHJ73249901

BSB1

Shaft L-G-MHJ61848501

BSC2

Spring,coil L-G-4970FI3224T

BSG1

Shaft Assembly,agitator L-G-AHR73109802

SC02

Screw,machine L-G-FAB31798901

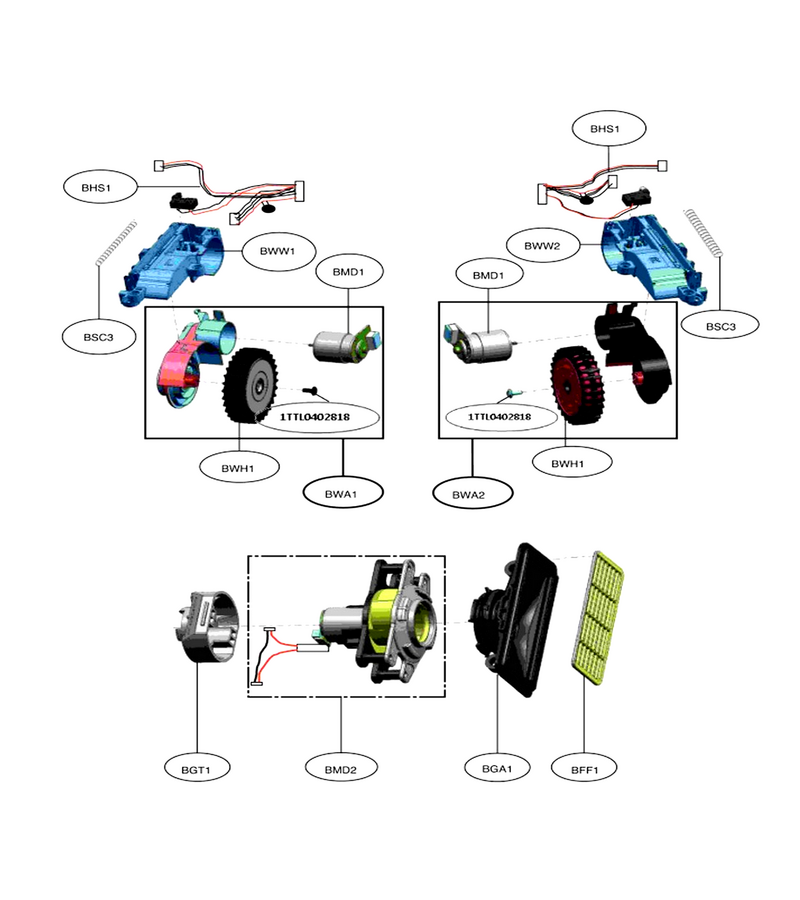

Base Assembly, Body 3

BFF1

Frame,filter L-G-MDQ63236701

BGA1

Guide,air L-G-MEA62910001

BGT1

Gasket L-G-MDS61952901

BHS1

Harness,single L-G-EAD60810506

BMD1

Motor Assembly,dc L-G-EAU61804301

BMD2

Motor Assembly,dc,fan L-G-EAU61804602

BSC3

Spring,coil L-G-4970FI3224U

BWA1

Wheel Assembly L-G-AJW73110501

BWA2

Wheel Assembly L-G-AJW73110401

BWH1

Wheel L-G-MKB62122701

BWW1

Cover,wheel L-G-MCK67066101

BWW2

Cover,wheel L-G-MCK67047001

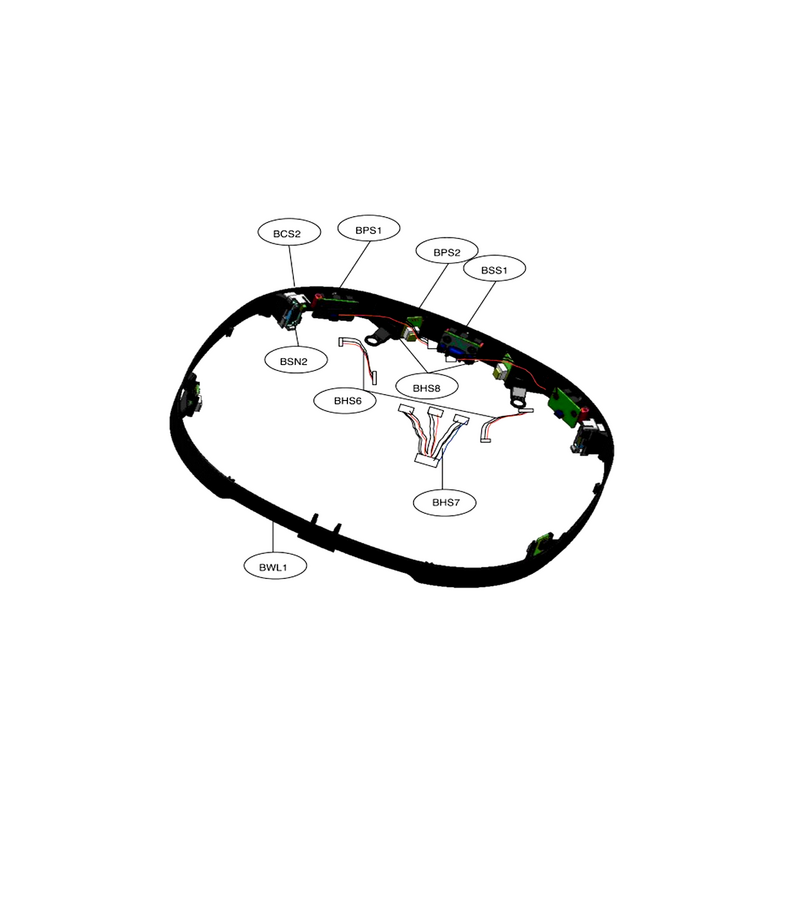

Base Assembly, Body 4

BCS2

Cover,sensor L-G-MCK67104901

BHS6

Harness,single L-G-EAD60810402

BHS7

Harness,single L-G-EAD62085801

BHS8

Harness,single L-G-EAD60810202

BPS1

Pcb Assembly,sub L-G-EBR74309101

BPS2

Pcb Assembly,sub L-G-EBR74309801

BSN2

Sensor Assembly L-G-EBD60661401

BSS1

Pcb Assembly,sub L-G-EBR74308901

BWL1

Window,led L-G-MKC64259602

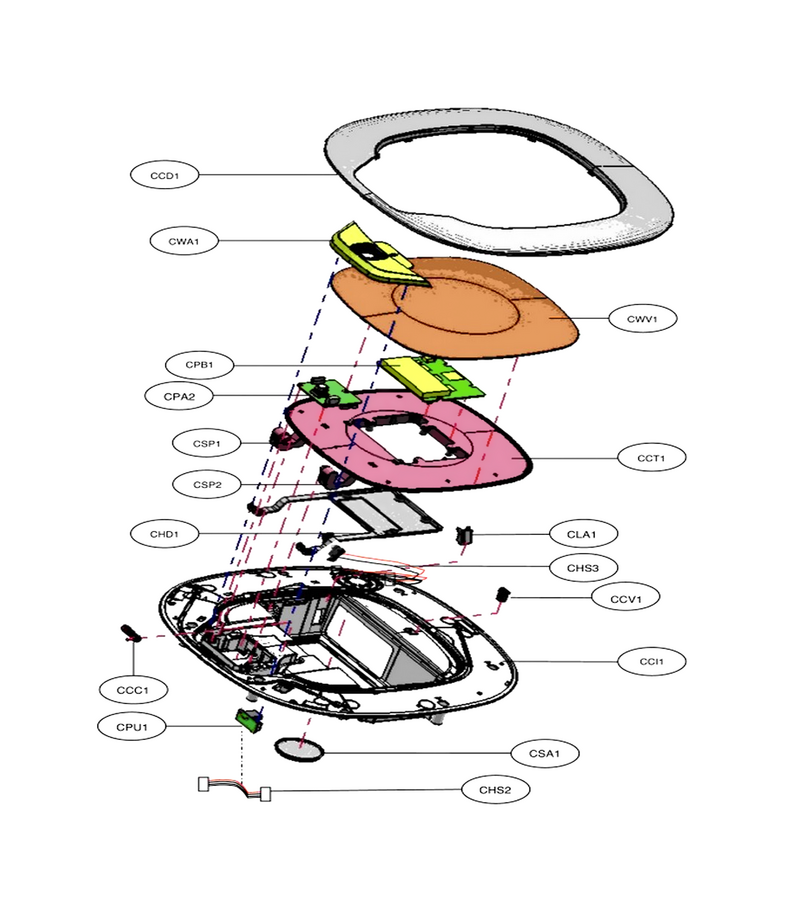

Cover Assembly

CCC1

Cover,connector L-G-MCK67046201

CCD1

Cover,decor L-G-MCK67125601

CCI1

Cover,inner L-G-MCK67065101

CCV1

Cover,switch L-G-MCK66271101

CHD1

Resin,pc L-G-RAA32720001

CHS2

Harness,single L-G-EAD61925503

CHS3

Harness,single L-G-EAD62086001

CLA1

Locker Assembly L-G-AFK73049601

CPA2

Pcb Assembly,sensor L-G-EBR74755205

CPB1

Pcb Assembly,display L-G-EBR74308701

CPU1

Pcb Assembly,usb L-G-EBR77693901

CSA1

Speaker Assembly L-G-EAB62588301

CSP1

Spring L-G-MHY61869605

CSP2

Spring L-G-MHY61869606

CWA1

Window Assembly L-G-AJX73564901

CWV1

Window,viewing L-G-MKC64259405

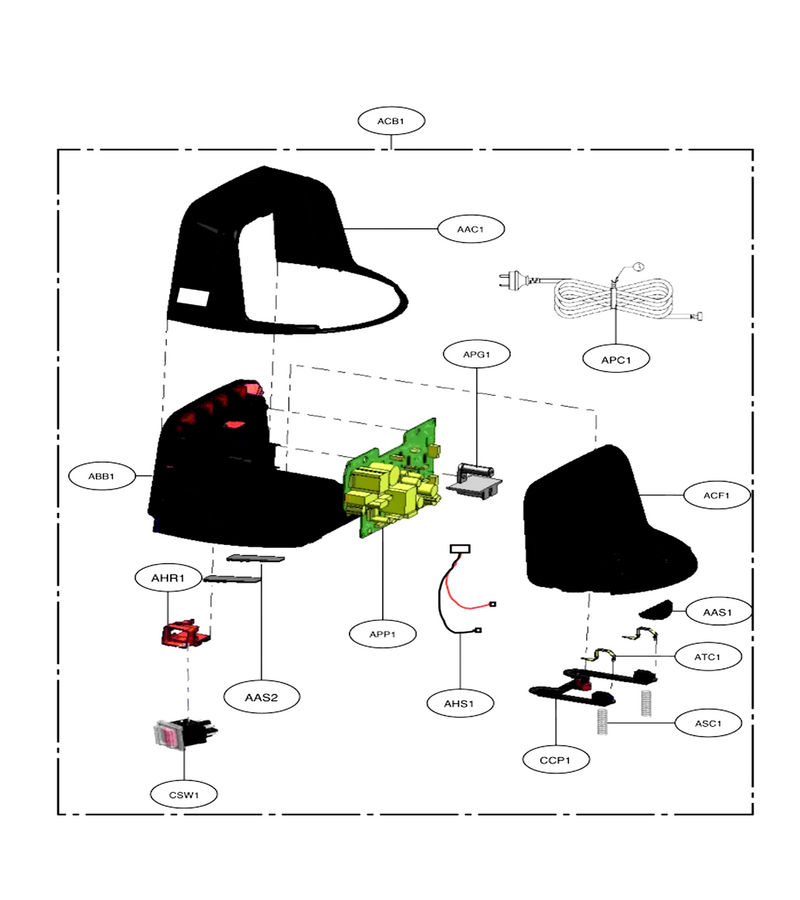

Charger, Battery

AAC1

Cover,body L-G-MCK67105002

AAS1

Stopper L-G-MJB62949701

AAS2

Stopper L-G-MJB62949801

ABB1

Base,body L-G-MAM62784101

ACB1

Charger,battery L-G-EAY62789204

ACF1

Cover,front L-G-MCK67124801

AHR1

Holder,cord L-G-MEG63058901

AHS1

Harness,single L-G-EAD60813302

APC1

Power Cord Assembly L-G-EAD62086101

APG1

Plate,guide L-G-MGJ63301201

APP1

Pcb Assembly,power L-G-EBR74309201

ASC1

Spring,coil L-G-MHY62904801

ATC1

Terminal,contact L-G-MJP62031202

CCP1

Cover,spring L-G-MCK67105101

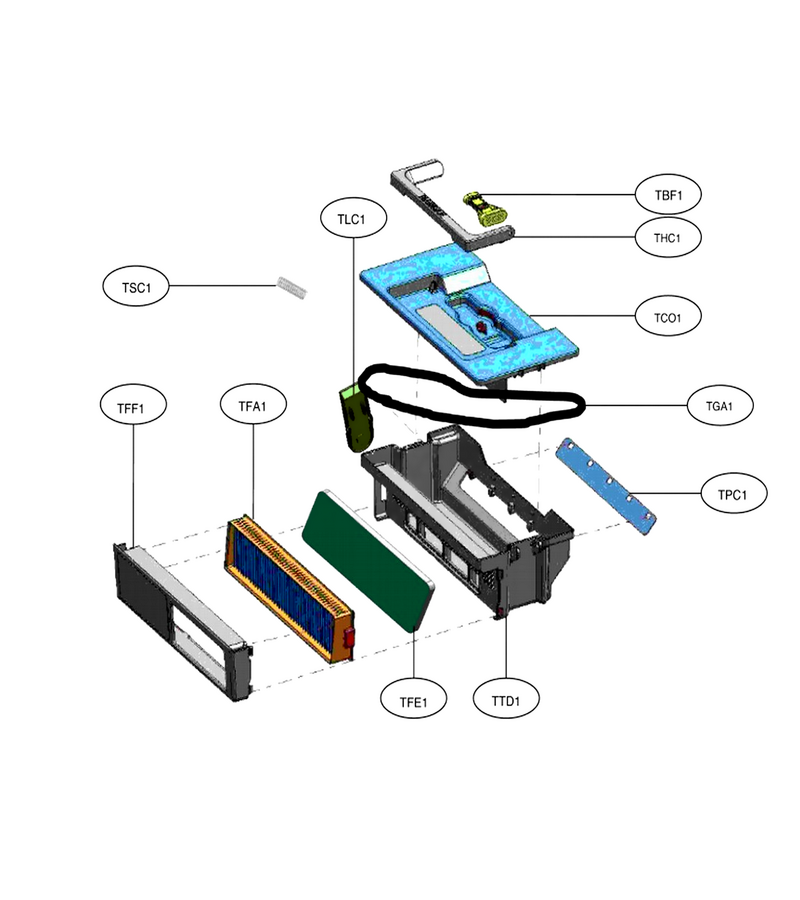

Tank Assembly, Dust

TBF1

Brush Assembly,filter L-G-ABC73090101

TC01

Cover,dust L-G-MCK67065401

TFA1

Frame Assembly,filter L-G-ADV74225701

TFE1

Filter,exhaust L-G-MDJ62305402

TFF1

Frame,filter L-G-MDQ63216601

TGA1

Gasket L-G-MDS61976904

THC1

Handle,carrier L-G-MEB62614101

TLC1

Locker L-G-4026FI3706E

TPC1

Plate,cover L-G-MGJ63261601

TSC1

Spring,coil L-G-4970FI3224F

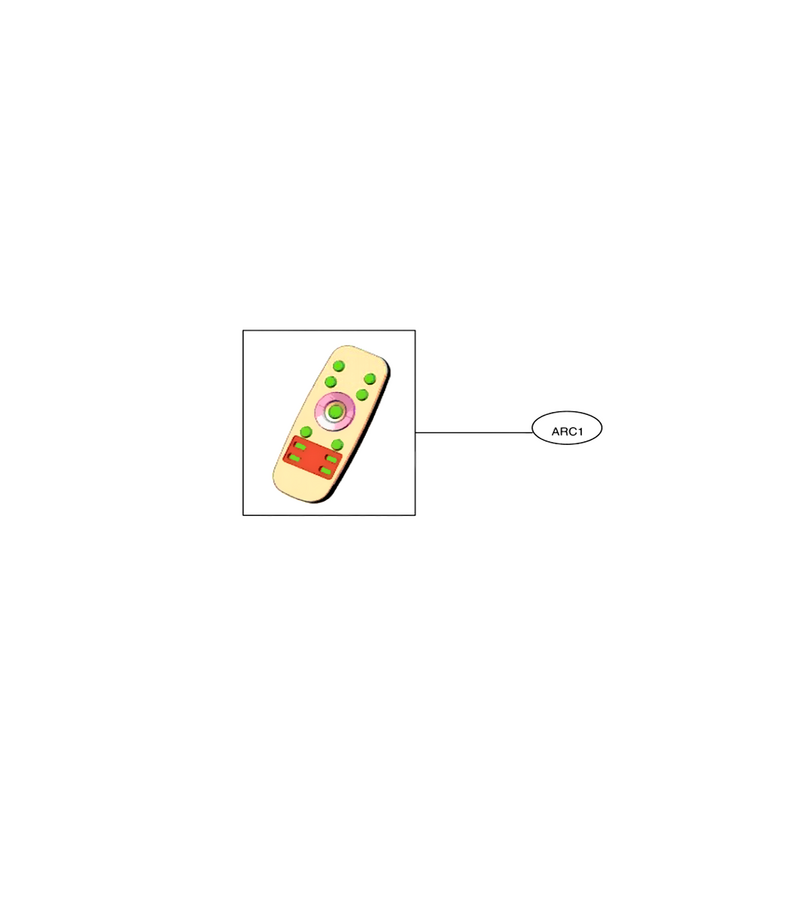

Remote Controller Assembly

ARC1

Remote Controller Assembly L-G-AKB73616002

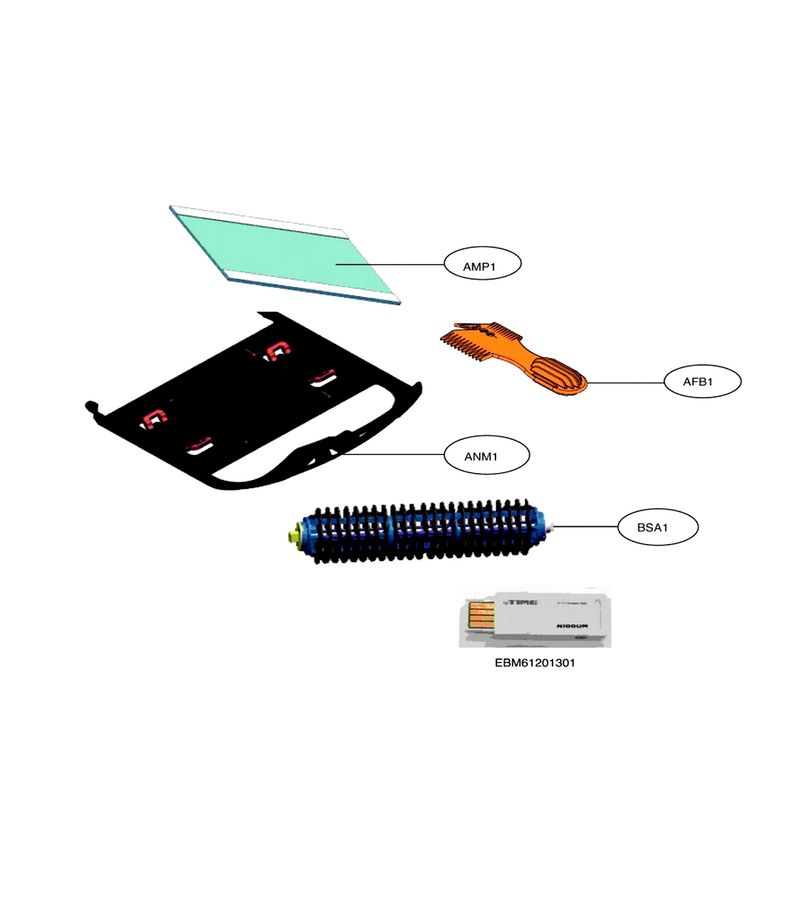

Accessory Assembly

AFB1

Frame,brush L-G-MDQ62897101

AMP1

Mop L-G-MFQ62022101

ANM1

Nozzle Assembly,mop L-G-AGB73332601

BSA1

Shaft Assembly,agitator L-G-AHR73109804
