product name

LG V-3510.ADGPHAG

Model: V-3510.ADGPHAG

Save Part Not Listed?

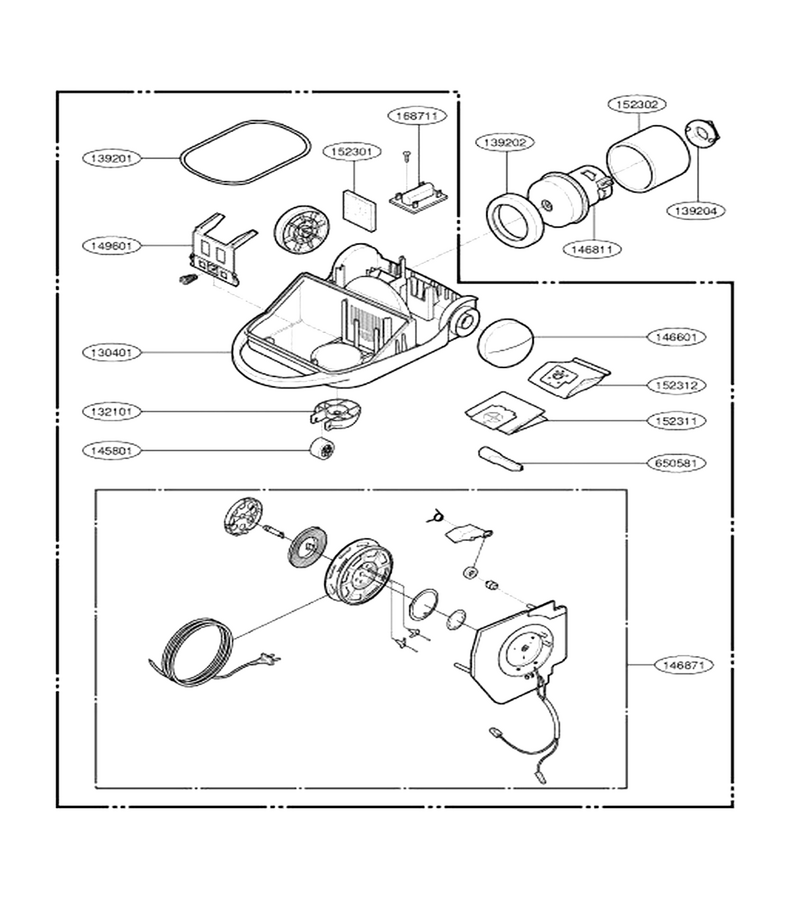

product name

Base Ass'y,body

...
...
132101
Frame,caster L-G-3I20036E
...
139201
Gasket L-G-3920FI4718A
...
139202
Damper,motor Mount L-G-3920FI3675A
...
139204
Gasket L-G-3920FI4653A
...
145801
Roller L-G-4I20014E
...
146601
Wheel L-G-4660FI3506B
...
146811
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2373B
...
146871
Cord Reel Assembly L-G-4687FI1367M
...
149601
Holder,bag L-G-4960FI2273C
...
152301
Filter,motor Safety L-G-4I70098F
...
152302
Damper,absorbing L-G-4I23008B
...
152312
Filter Assembly,cloth L-G-5231FI2443A
...
168711
Cable,assembly L-G-6121FI4311D
...
650581
Nozzle,crevice L-G-3I21007N

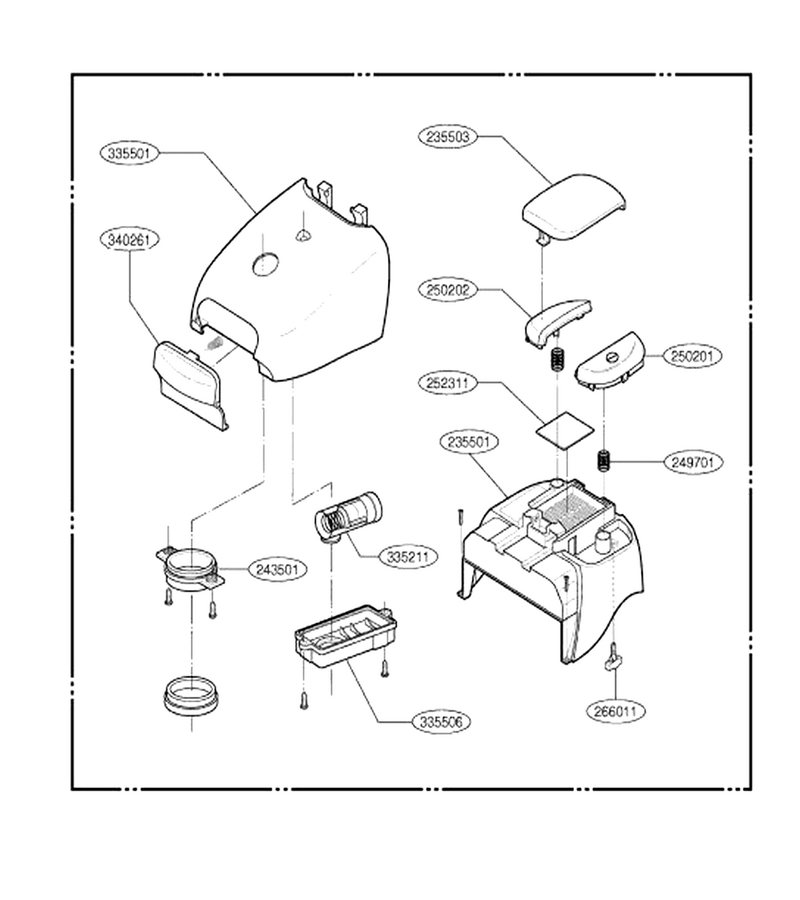

Cover Ass'y,body

...
...
243501
Ring,connector L-G-4350FI3525G
...
249701
Spring,coil L-G-4I70024B
...
250202
Button,cord Reel L-G-5020FI1317B
...
252311
Filter,exhaust L-G-3I82002B
...
266011
Switch,push Button L-G-6601FI3149B
...
335211
Indicator Assembly L-G-3I23019J
...
335506
Cover,indicator L-G-3550FI3390C
...
340261
Locker L-G-4026FI2335B

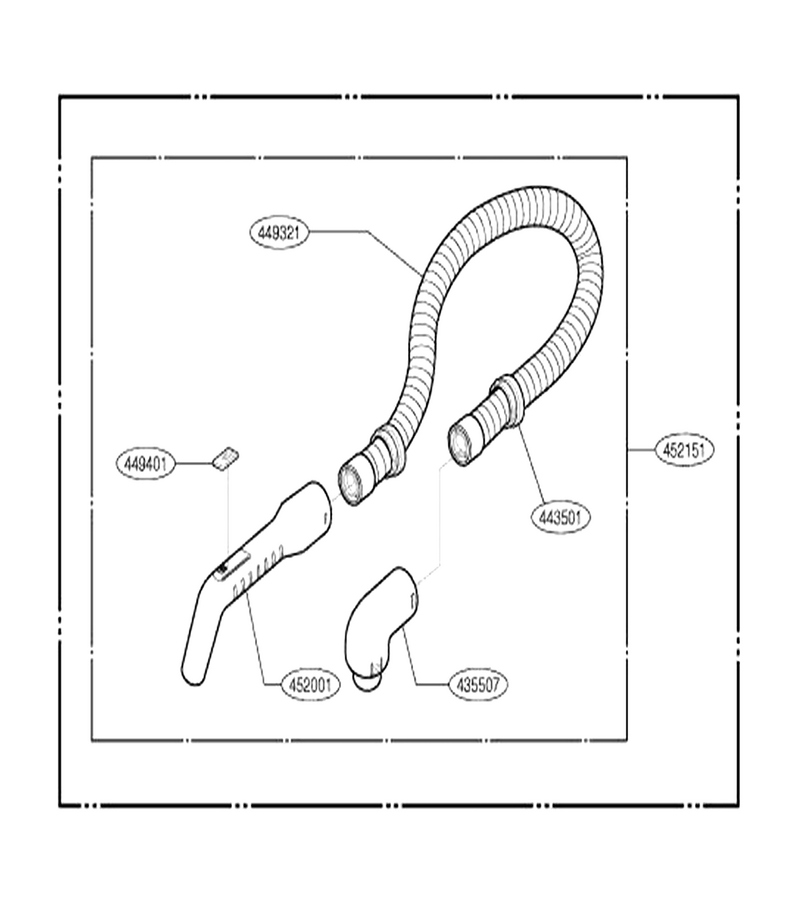

Hose Ass'y,flexible

...
...
435507
Pipe,fitting L-G-5200FI2269A
...
443501
Ring,closing L-G-4350FI3497A
...
449321
Hose Assembly,connector L-G-4932FI2268A
...
449401
Knob,control L-G-4940FI4292B
...
452001
Handle,grip L-G-3650FI2275A
...
452151
Hose Assembly,flexible L-G-5215FI1248A

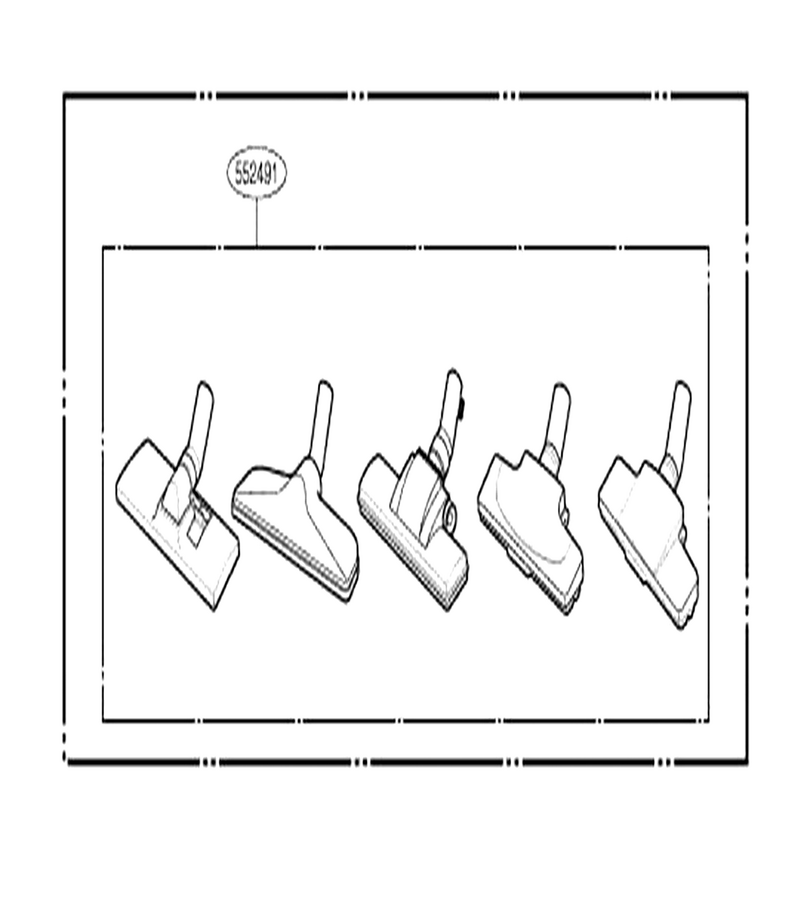

Nozzle Ass'y,floor

...
...
552491
Nozzle Assembly,floor L-G-5249FI2182A

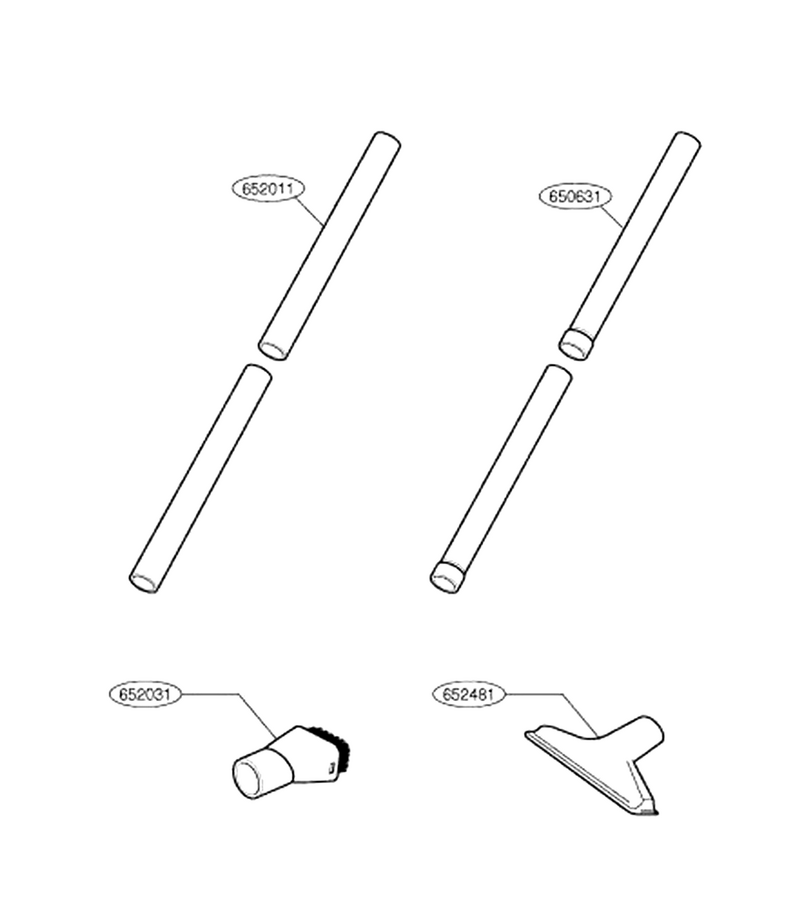

Accessory Ass'y

...
...
652011
Pipe Assembly,metal L-G-5201FI2324A
