product name

LG UU36WC.EWGBEEU

Model: UU36WC.EWGBEEU

Save Part Not Listed?
product name

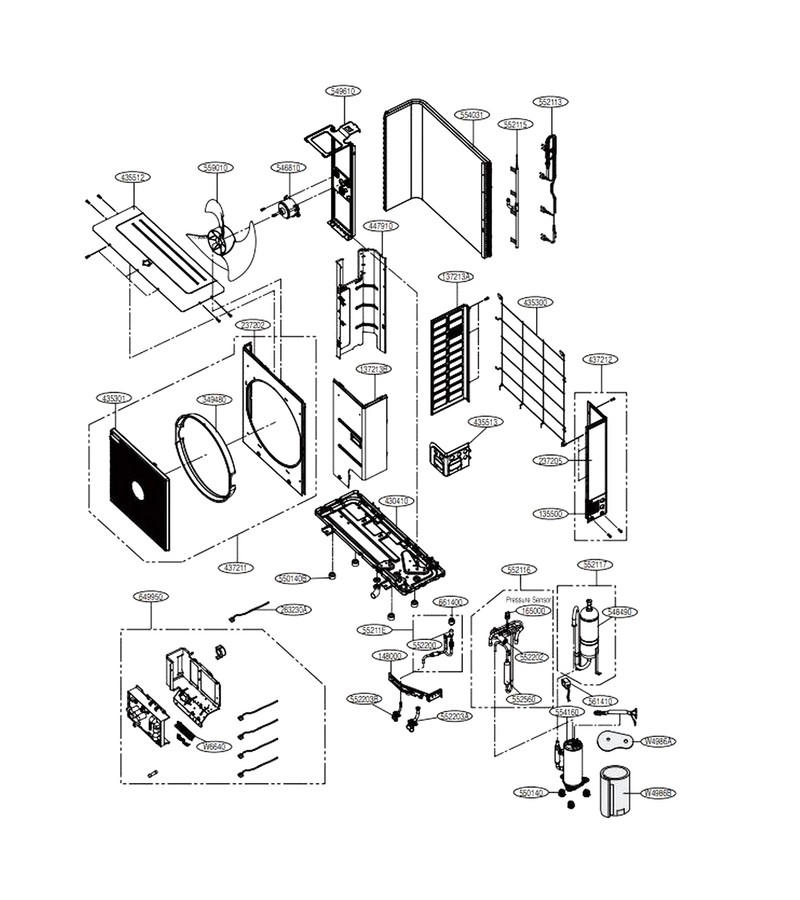

Main

...
...
W4986A
Sound Proof L-G-MMC00280304
...
W4986B
Sound Proof L-G-MMC00280404
...
55211E
Tube Assembly,check Valve L-G-AJR34870204
...
135500
Cover L-G-MCK39626201
...
137213B
Panel Assembly,side L-G-AGL72909424
...
137213A
Panel Assembly,side L-G-AGL72909301
...
148000
Supporter L-G-MJH39544901
...
165000
Sensor,pressure L-G-EBD62165602
...
237202
Panel,front L-G-MGC53382901
...
237205
Panel,rear L-G-MGC56978301
...
263230A
Thermistor Assembly,ntc L-G-EBG61405904
...
349480
Orifice L-G-4948A20011G
...
430410
Base Assembly,outdoor L-G-AAN74512209
...
435300
Grille,rear L-G-MDX61843709
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131824
...
435513
Cover Assembly,tubing L-G-ACQ34583401
...
437211
Panel Assembly,front(outdoor) L-G-AGL72770329
...
437212
Panel Assembly,rear(outdoor) L-G-AGL72910419
...
447910
Barrier Assembly,outdoor L-G-AAM72909135
...
546810
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
548490
Accumulator L-G-4848A20007P
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA74032401
...
550140
Isolator L-G-5014A20003A
...
550140B
Isolator L-G-4H00637A
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73326604
...
552116
Tube Assembly,reverse L-G-AJR65521309
...
552117
Tube Assembly,suction(outdoor) L-G-AJR65507713
...
552202
Valve,reverse L-G-5220AR3228W
...
552203A
Valve,service L-G-MJX42581602
...
552203B
Valve,service L-G-MJX42581402
...
552560
Muffler L-G-3A90084A
...
554031
Condenser Assembly,bending L-G-ACG73885401
...
554160
Compressor Set,korea L-G-TBZ37955001
...
559010
Fan,propeller L-G-MDG62002901
...
561410
Coil Assembly,reverse L-G-EAP64467708
...
649950
Case Assembly,control Box L-G-ABQ77201621
...
661400
Coil,expansion L-G-EAP30616908
