LG US12D30C.AWYAFRD

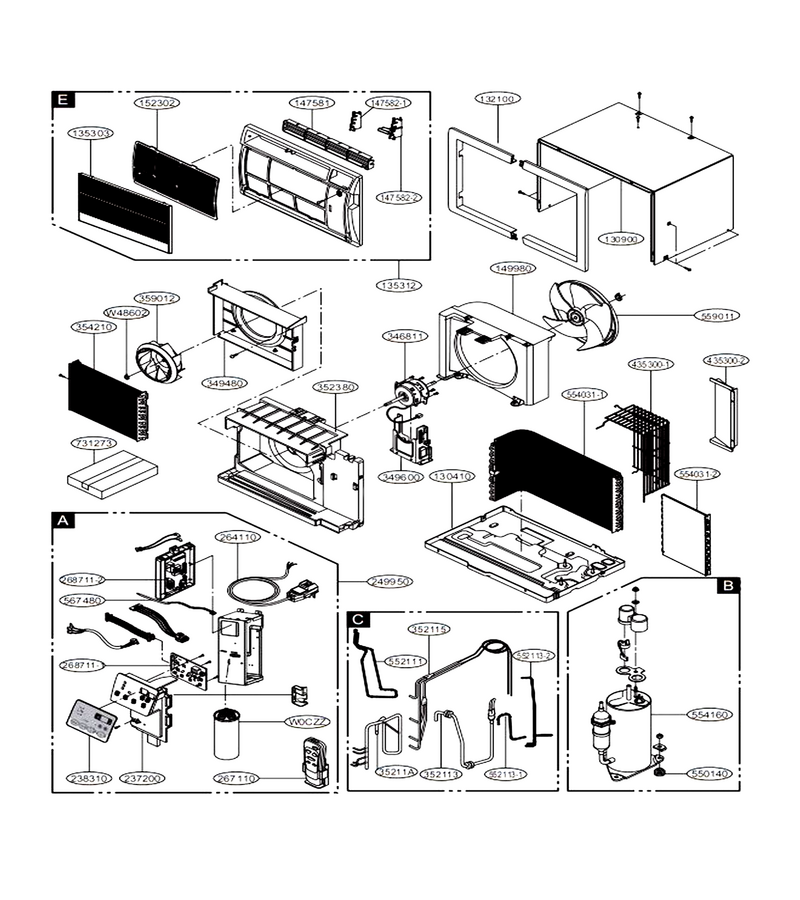

Model: US12D30C.AWYAFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-2H01451M
...
35211A
Tube Assembly,suction L-G-AJR75743902
...
130410
Base Assembly,single L-G-AAN73212112
...
130900
Cabinet L-G-3090A20017R
...
132100
Frame L-G-MDQ63677201
...
135303
Grille,inlet L-G-MDX62673101
...
135312
Grille Assembly,front(indoor) L-G-AEB73746002
...
147581
Louver,horizontal L-G-MFH62403601
...
147582-1
Louver,vertical L-G-MFH62403701
...
147582-2
Louver,vertical L-G-MFH62403703
...
149980
Shroud L-G-4998A20003A
...
152302
Filter,air L-G-5230A20041D
...
237200
Room Air Conditioner Electronic Control Board L-G-MGC35987201
...
238310
Escutcheon L-G-MDD62483301
...
249950
Case Assembly,control L-G-ABQ74404905
...
264110
Power Cord Assembly L-G-EAD63469506
...
267110
Remote Controller Assembly L-G-AKB73016005
...
268711-2
Pcb Assembly,main L-G-EBR76261803
...
346811
Motor,ac L-G-4681A20041R
...
349480
Orifice L-G-MFX62201901
...
349600
Motor Mount L-G-4960A20008A
...
352113
Tube Assembly,discharge L-G-AJR75022308
...
352115
Tube,connector L-G-MJU64971701
...
352380
Guide Assembly,air L-G-AEC73577503
...
354210
Evaporator Assembly,first L-G-ADL73741702
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20009A
...
435300-1
Grille L-G-3530A20101A
...
435300-2
Grille L-G-MDX33964101
...
550140
Damper,compressor L-G-4830A30005B
...
552111
Tube,connector L-G-MJU64959202
...
552113-1
Tube,connector L-G-MJU64959201
...
552113-2
Tube Assembly,condenser(out) L-G-AJR75704501
...
554031-2
Condenser Assembly,first L-G-ACG73144502
...
554160
Compressor Set,china L-G-TBZ37375701
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567480
Thermistor,ntc L-G-6323A20012F
...
731273
Installation Part L-G-3127A20017E
