LG US12D30.AWYAFRD

Model: US12D30.AWYAFRD

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194K
...
35211A
Tube Assembly,suction(outdoor) L-G-AJR73025801
...
130410
Base Assembly,single L-G-3041A10046T
...
130900
Cabinet L-G-3090A20017R
...
132100
Frame L-G-3210A20075B
...
135303
Grille,inlet L-G-MDX62673101
...
135312
Grille Assembly,front(indoor) L-G-AEB73746001
...
147581
Louver,horizontal L-G-MFH62403601
...
147582-1
Louver,vertical L-G-MFH62403701
...
147582-2
Louver,vertical L-G-MFH62403702
...
149980
Shroud L-G-4998A20003A
...
152302
Filter,air L-G-5230A20041D
...
237200
Room Air Conditioner Electronic Control Board L-G-MGC35987201
...
238310
Escutcheon L-G-MDD62162501
...
249950
Case Assembly,control L-G-ABQ73187322
...
264110
Room Air Conditioner Power Cord L-G-6411A20056T
...
267110
Remote Controller Assembly L-G-AKB73016005
...
268711-1
Room Air Conditioner Display Board L-G-EBR30852301
...
268711-2
Pcb Assembly,main L-G-EBR74780301
...
346811
Room Air Conditioner Fan Motor L-G-4681A20175B
...
349480
Orifice L-G-4948A20045A
...
352113
Tube Assembly,discharge L-G-5211A21421N
...
352115
Tube Assembly,evaporator(in) L-G-AJR73026001
...
354210
Evaporator L-G-5421A20071K
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20009A
...
435300
Grille L-G-3530A20101A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
554031
Condenser Assembly,bending L-G-ACG73126502
...
554160
Compressor Set,china L-G-TBZ34839301
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567480
Thermistor L-G-6323A20004S
...
567502
Overload Protector L-G-EAF34140251
...
731273
Installation Part L-G-3127A20017E

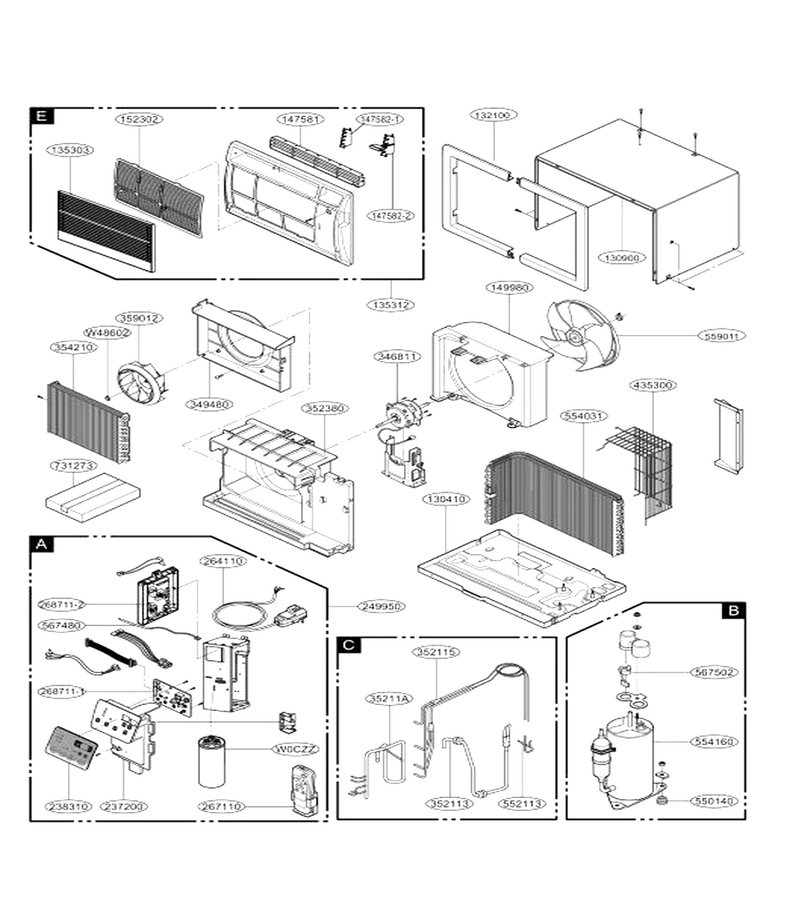

Schematic Image Zoomed
