LG US10A10A.AWYBFRD

Model: US10A10A.AWYBFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Capacitor L-G-6120AR2194P
...
35211A
Tube Assembly,suction L-G-5211A20498A
...
130410
Base Assembly L-G-3041A10014X
...
131400
Cabinet L-G-3090A20003A
...
135303
Grille,inlet L-G-3530A20053A
...
135312
Grille Assembly,front L-G-3531A20121A
...
137215
Panel Assembly,control L-G-3721A20049E
...
147581
Louver,hor L-G-4758A20008B
...
147582A
Vane L-G-4758A20009A
...
147582B
Vane L-G-4758A20009B
...
147900
Barrier L-G-4790A20024B
...
148000
Brace L-G-4800A30002A
...
149410
Room Air Conditioner Control Knob L-G-4941A30005B
...
149980
Room Air Conditioner Condenser Fan Shroud L-G-4998A10007B
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
249950
Case Assembly,control L-G-4995A20131U
...
264110
Ac Power Cord Assembly L-G-2H00677R
...
266003
Rotary Switch L-G-2H00598E
...
269300
Room Air Conditioner Thermostat L-G-2H01109M
...
330720
Scroll L-G-3072A20003B
...
346811
Motor Assembly,ac,single L-G-4681A20044G
...
349001
Ven Damper L-G-4900A20001A
...
349480
Orifice L-G-4948A10006A
...
349600
Mount L-G-4960A20005A
...
352113
Tube Assembly,discharge L-G-5211A30588C
...
352115
Evaporator Tube L-G-5211A20289C
...
352390
Air Guide L-G-5239A10002E
...
354210
Evaporator L-G-5421A20071E
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20009A
...
435300
Rear Grille L-G-3530A30002A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Tube Assembly,capillary L-G-5211A20214N
...
554031
Condenser Assembly,first L-G-5403A20040N
...
554160
Compressor Set,korea L-G-2520UAFC2AC
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567502
Protector L-G-6750U-L005A
...
749180
Room Air Conditioner Front Trim Kit L-G-4918A20001A

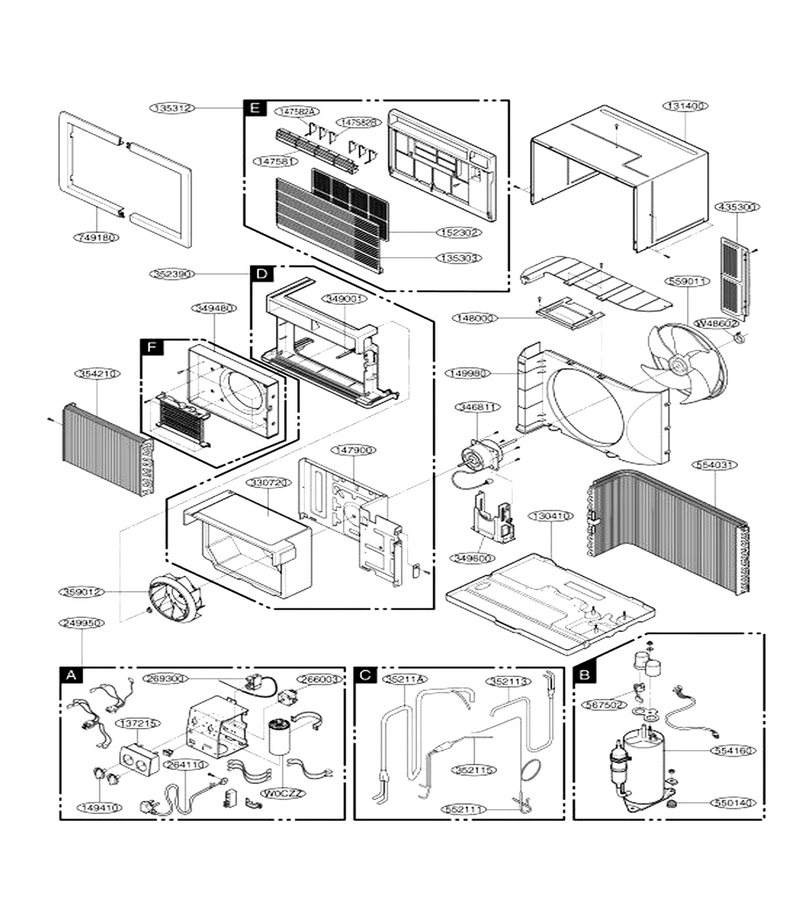

Schematic Image Zoomed
