LG URNU963B8A2.ANWALUS

Model: URNU963B8A2.ANWALUS

Save Part Not Listed?
product name

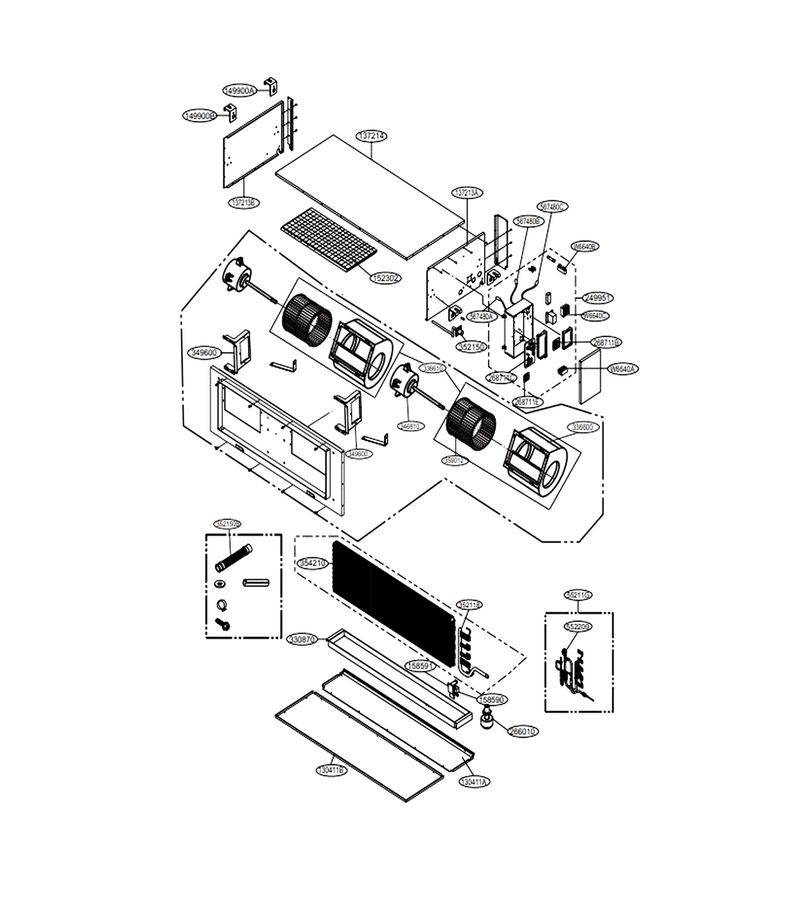

Main

...
...
W6640A
Connector,terminal Block L-G-6640000017H
...
W6640B
Terminal Block L-G-3H00390A
...
55211G
Tube Assembly,expansion L-G-AJR33316106
...
130411A
Base Assembly,indoor L-G-AAN35764302
...
130411B
Base Assembly,indoor L-G-AAN35764202
...
137213A
Panel Assembly,side L-G-AGL35764403
...
137213B
Panel Assembly,side L-G-AGL35764702
...
137214
Panel Assembly,upper L-G-AGL35765202
...
149900A
Hanger L-G-4990AP7280E
...
149900B
Hanger L-G-4990AP7280F
...
152302
Filter,air L-G-5230A30017D
...
158590
Pump,water L-G-5858A10001L
...
158591
Pump Assembly,water L-G-5859A10005C
...
249951
Case Assembly,control(indoor) L-G-ABQ59261305
...
266010
Switch Assembly L-G-6601A20001L
...
268711C
Pcb Assembly,main L-G-EBR39319516
...
268711E
Pcb Assembly,sub L-G-6871A20912C
...
268711B
Pcb Assembly,sub L-G-EBR73754112
...
330870
Pan Assembly,drain L-G-AGK34943701
...
336600
Housing,wrapper L-G-3660A20019B
...
336610
Housing Assembly L-G-3661A20025H
...
346810
Motor Assembly,dc,indoor L-G-EAU39857401
...
349600
Bracket,motor L-G-MAZ39910701
...
352118
Tube Assembly,manifold(indoor) L-G-AJR33316203
...
352150
Nipple,drain L-G-5212A20003A
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20217G
...
359012
Fan,blower L-G-5900A20052D
...
552209
Valve Assembly L-G-AJU36719713
...
567480A
Thermistor Assembly,ntc L-G-EBG61106537
...
567480B
Thermistor Assembly,ntc L-G-EBG61287706
...
567480C
Thermistor Assembly L-G-6323A10002D
