LG URNTC2306N.AGRCNA0

Model: URNTC2306N.AGRCNA0

Save Part Not Listed?
product name

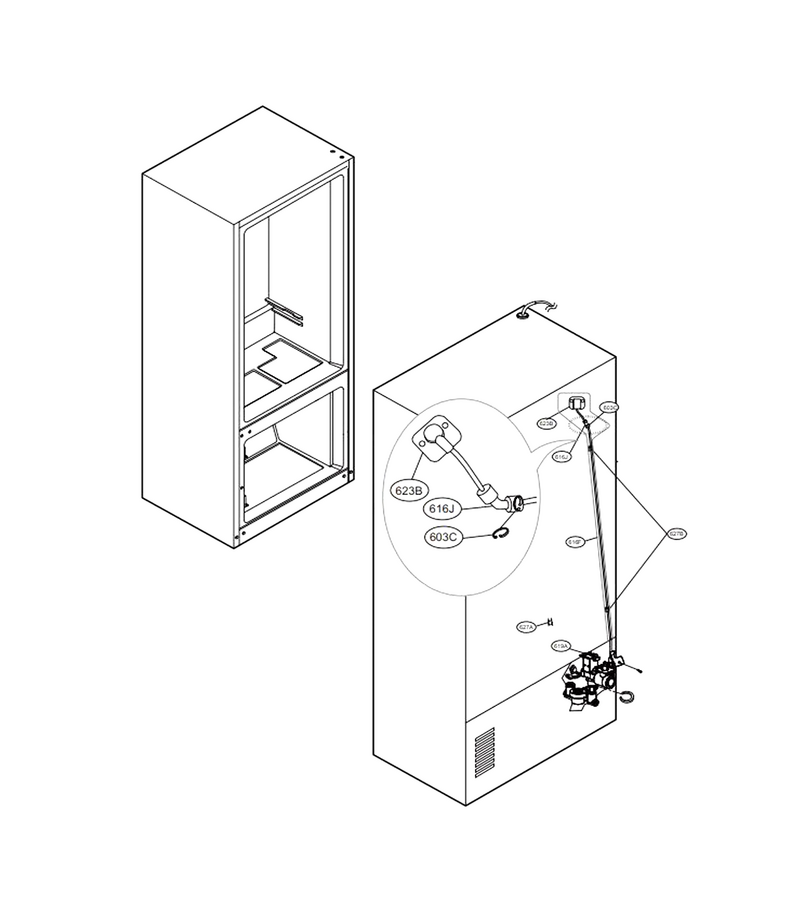

Valve & Water Tube Parts

...
...
603C
Refrigerator Water Filter Housing Clip, Left L-G-4004JA3003A
...
616F
Plastic Tube L-G-MJU62070615
...
616J
Refrigerator Water Tube Fitting L-G-4932JA3002C
...
619A
Refrigerator Water Inlet Valve L-G-AJU72992603
...
623B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
627A
Refrigerator Clamp L-G-4930JA3054A
...
627B
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

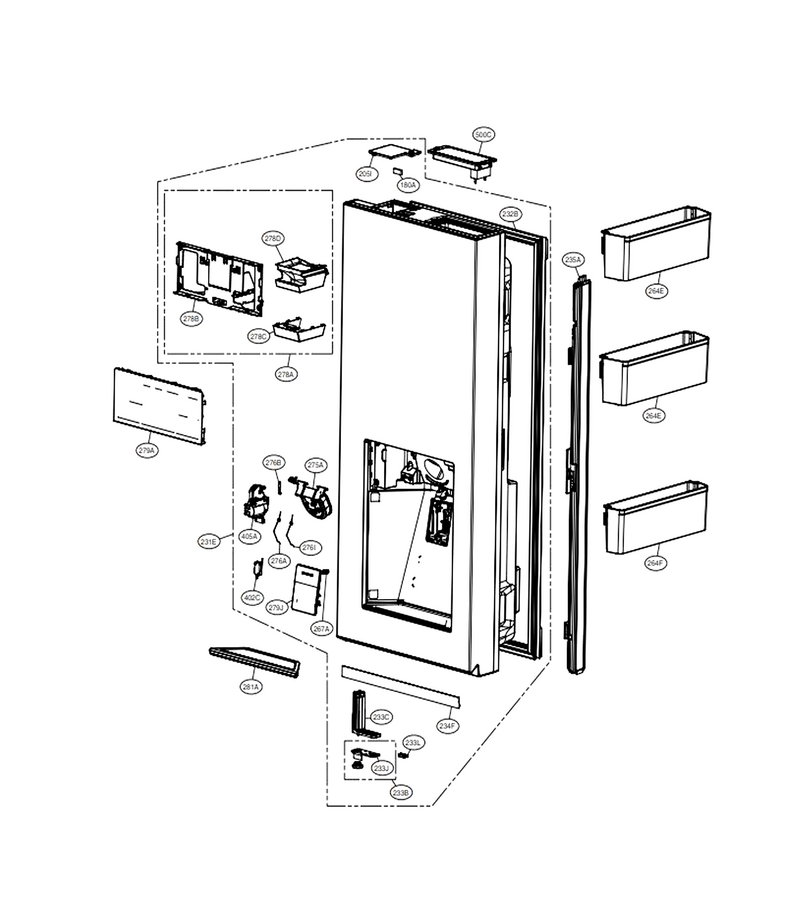

R-Room Door Part I

...
...
180A
Rt Side Uppr L-G-RAB32775604
...
231E
Door Foam Assembly,refrigerator L-G-ADD75195803
...
233B
Gasket Assembly,door L-G-ADX72930442
...
233C
Hinge Assembly L-G-AEH34570004
...
233J
Stopper,door L-G-MJB64010101
...
233L
Stopper,door L-G-MJB63990401
...
234F
Handle,decor L-G-MEB64034201
...
235A
Plate Assembly,front L-G-AGU74268156
...
264E
Basket Assembly,door L-G-AAP74651301
...
264F
Basket Assembly,door L-G-AAP74651401
...
267A
Spring L-G-MHY62644404
...
275A
Cap Assembly,duct L-G-ABN72938909
...
276A
Spring,lever L-G-MHY62603707
...
276B
Holder Lever L-G-MEG63262301
...
276I
Spring,lever L-G-MHY62603708
...
278A
Funnel Assembly L-G-ADW73349903
...
278B
Frame,funnel L-G-MDQ64916601
...
278C
Decor,cover L-G-MCR66490801
...
278D
Funnel L-G-MDR62602201
...
279A
Cover Assembly,display L-G-ACQ88074319
...
279J
Button Assembly L-G-ABH75459802
...
281A
Decor,drain L-G-MCR66127002
...
402C
Switch,micro L-G-6600JB3001H
...
405A
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
500C
Case Assembly,pcb L-G-ABQ72940037

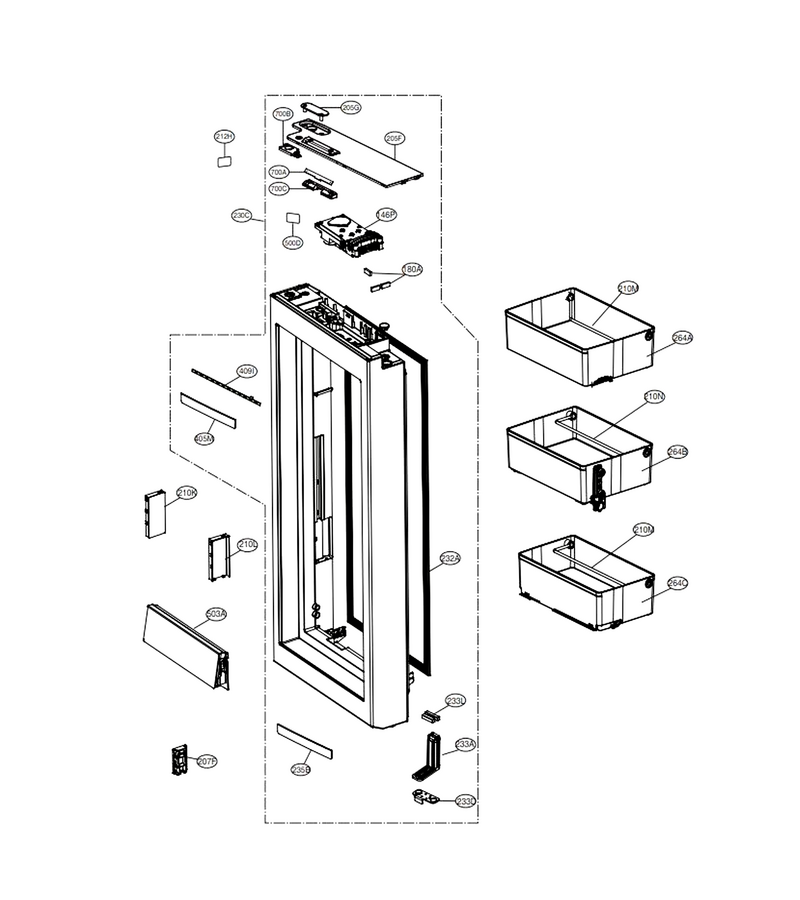

R-Room Door Part Ii

...
...
146P
Cover Assembly,motor L-G-ACQ88716601
...
180A
Rt Side Uppr L-G-RAB32775604
...
205F
Cap,cover L-G-MBL66936903
...
205G
Cover L-G-MCK70588401
...
207F
Cover,frame L-G-MCK69077001
...
210K
Cover,frame L-G-MCK69078402
...
210L
Cover,frame L-G-MCK69078401
...
210M
Bar L-G-MAK63747802
...
210N
Bar L-G-MAK63747803
...
212H
Name Plate L-G-MFT63786202
...
230C
Door Assembly,refrigerator(right) L-G-ADC75506322
...
232A
Gasket Assembly,door L-G-ADX72930441
...
233A
Hinge Assembly L-G-AEH34570003
...
233D
Stopper Assembly,door L-G-AJC68689647
...
233L
Stopper,door L-G-MJB63990401
...
264A
Basket Assembly,door L-G-AAP74611501
...
264B
Basket Assembly,door L-G-AAP74611601
...
264C
Basket Assembly,door L-G-AAP74611701
...
405M
Cover,lamp L-G-MCK69132901
...
503A
Case Assembly,display L-G-ABQ75682124
...
700A
Pcb Assembly,sub L-G-EBR84422504
...
700B
Speaker Assembly L-G-EAB64928403

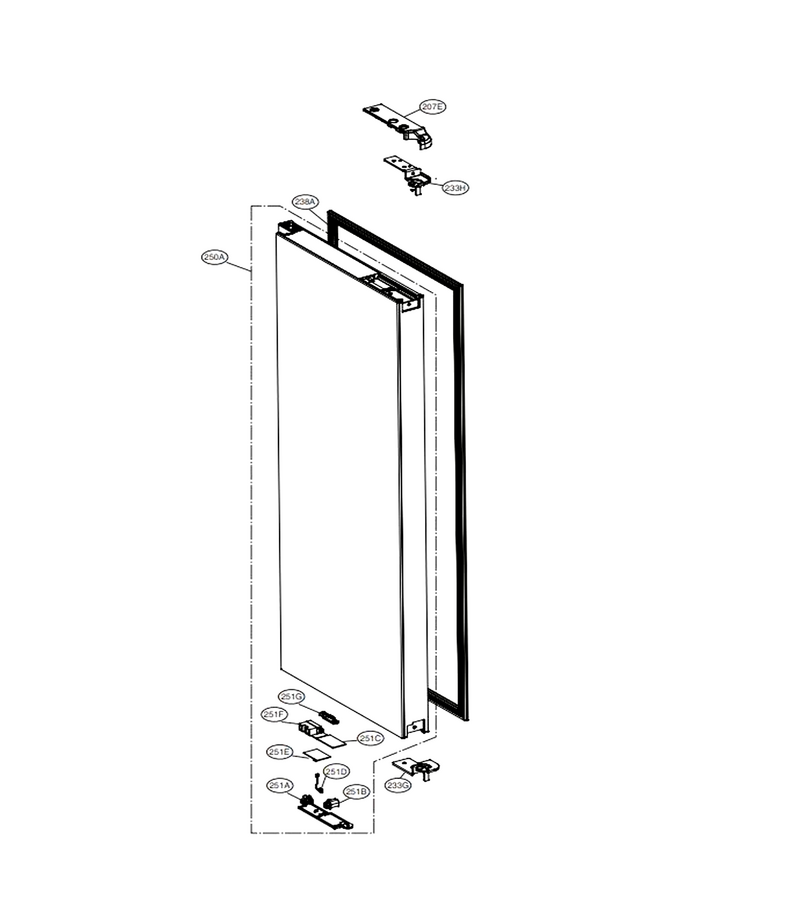

R-Room Home Part

...
...
207E
Cover,hinge L-G-MCK69133001
...
233G
Hinge Assembly,lower L-G-AEH75116901
...
233H
Hinge Assembly,upper L-G-AEH75136401
...
238A
Gasket Assembly,door L-G-ADX74730901
...
250A
Door Assembly,home Bar L-G-ADC75506203
...
251A
Cover,pcb L-G-MCK69076901
...
251C
Pcb Assembly,sensor L-G-EBR81312301
...
251D
Harness Assembly L-G-EAD63850101
...
251E
Pcb Assembly,sub L-G-EBR82273501
...
251F
Sensor Assembly L-G-EBD60661402
...
251G
Cover,pcb L-G-MCK69076904

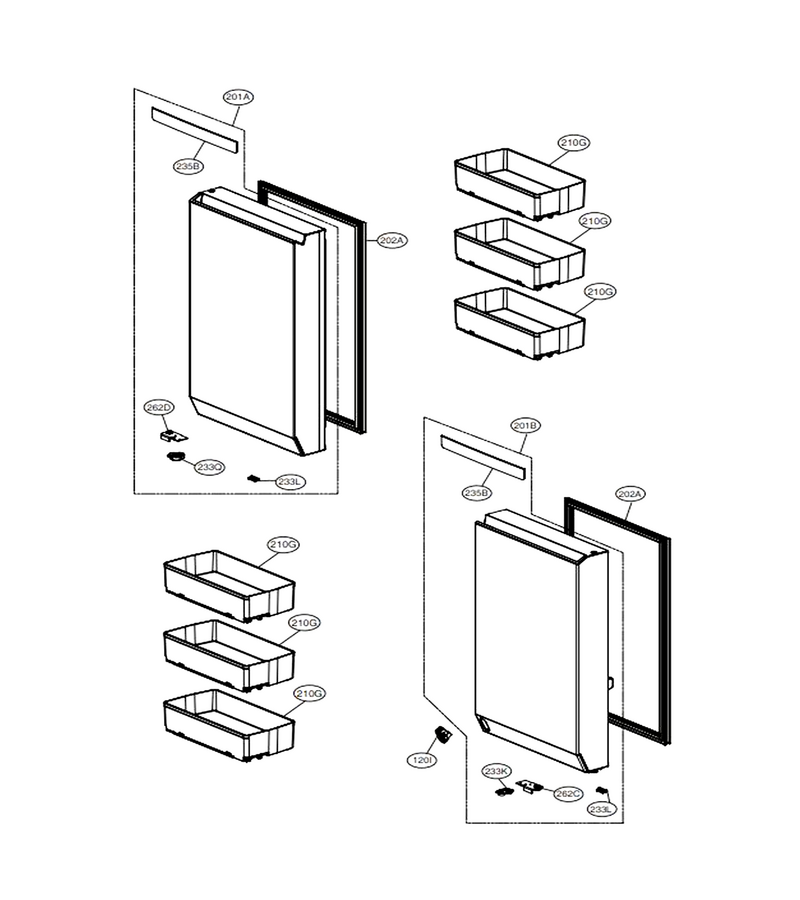

F-Room Door Part

...
...
120I
Sensor Assembly L-G-EBD62726101
...
201A
Door Foam Assembly,freezer L-G-ADD75135907
...
201B
Door Foam Assembly,freezer L-G-ADD75135902
...
202A
Gasket Assembly,door L-G-ADX72930464
...
210G
Basket Assembly,door L-G-AAP74611401
...
233K
Stopper,door L-G-MJB64069702
...
233L
Stopper,door L-G-MJB63990401
...
233Q
Stopper,door L-G-MJB64069701
...
235B
Handle,decor L-G-MEB64034201
...
262C
Stopper Assembly,door L-G-AJC68689649
...
262D
Stopper Assembly,door L-G-AJC68689648

Case Parts

...
...
101A
Refrigerator Rear Handle L-G-3650JA2061W
...
101B
Refrigerator Rear Handle L-G-3650JA2061X
...
105A
Refrigerator Cabinet Drain Tube Assembly L-G-AJR74166101
...
105B
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
105D
Skirt,lower L-G-5070JA3002Y
...
105G
Skirt,lower L-G-5070JA3002A
...
106A
Hinge Assembly,lower L-G-AEH73998409
...
106B
Hinge Assembly,lower L-G-AEH73998410
...
120B
Duct Assembly,connector L-G-ADJ73632224
...
120G
Deodorizer Assembly L-G-ACX72949206
...
120J
Cover Assembly,pcb L-G-ACQ89013001
...
120M
Cover Assembly,display L-G-ACQ88683203
...
133E
Holder Assembly,bracket L-G-AEJ74899401
...
143A
Cover Assembly L-G-ACQ88728303
...
145A
Holder,shelf L-G-MEG63160009
...
145B
Holder,shelf L-G-MEG63160010
...
145C
Holder,shelf L-G-MEG63160011
...
145D
Tray,drain L-G-MJS63852301
...
145F
Holder,rail L-G-MEG64781402
...
145H
Guide Assembly,rail L-G-AEC74637916
...
145I
Guide Assembly,rail L-G-AEC74637913
...
145J
Guide Assembly,rail L-G-AEC74637914
...
145K
Holder,rail L-G-MEG64899701
...
146A
Holder Assembly,bracket L-G-AEJ74839704
...
146B
Plate Assembly,center L-G-AGU73972113
...
146M
Duct,connector L-G-MCZ63192701
...
146R
Holder,rail L-G-MEG64899502
...
158A
Cover,lamp L-G-MCK69116702
...
162A
Guide,rail L-G-MEA64710201
...
162B
Guide,rail L-G-MEA64710202
...
162C
Guide Assembly,rail L-G-AEC74637803
...
162D
Guide Assembly,rail L-G-AEC74637804
...
181A
Cover Assembly,filter L-G-ACQ91110902
...
182A
Filter Assembly,air Cleaner L-G-ADQ73853822
...
207A
Cover,hinge L-G-MCK69153402
...
249E
Rail,slide L-G-MGT62524705
...
249F
Rail,slide L-G-MGT62524706
...
249G
Rail,slide L-G-MGT62544705
...
249H
Rail,slide L-G-MGT62544706
...
249K
Rack L-G-MGR62542002
...
249L
Rack L-G-MGR62542001
...
249M
Rack L-G-MGR62542101
...
249P
Rail,slide L-G-MGT62604702
...
262H
Hinge Assembly,center L-G-AEH75156707
...
270A
Cover Assembly,hinge L-G-ACQ88710102
...
270C
Cover Assembly,hinge L-G-ACQ88774001
...
270D
Cover Assembly,hinge L-G-ACQ88774002
...
271D
Hinge Assembly,upper L-G-AEH75156501
...
271E
Hinge Assembly,upper L-G-AEH75156502
...
282I
Cap,cover L-G-MBL62537303
...
300A
Compressor,set Assembly L-G-TCA36491306
...
302B
Evaporator Assembly L-G-ADL75241104
...
302C
Evaporator Assembly L-G-ADL75241003
...
303A
Thermistor Assembly,ptc L-G-EBG63205835
...
303C
Overload Protect L-G-6750C-0002C
...
304A
Cover,ptc L-G-MCK70052506
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
308A
Refrigerator Drain Pan L-G-MJS62233503
...
308B
Guide,fan L-G-MEA42772905
...
310B
Refrigerator Compressor Process Tube L-G-4J00977P
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
317A
Drier Assembly L-G-ADH73590306
...
332C
Grille Assembly,fan L-G-AEB74944704
...
332E
Shroud,freezer L-G-MHN62962001
...
400A
Controller Assembly L-G-ACM73919220
...
402B
Switch,magnet L-G-EBF62234503
...
403B
Motor,dc L-G-EAU63103301
...
404C
Motor Assembly,dc L-G-EAU63503707
...
404D
Cover Assembly,sensor L-G-ACQ73244006
...
404F
Motor Assembly,dc L-G-EAU63503708
...
405E
Shroud,refrigerator L-G-MHN62922301
...
405K
Cover,lamp L-G-MCK69132601
...
406A
Power Cord Assembly L-G-EAD62329194
...
406D
Holder Assembly,bracket L-G-AEJ74779502
...
406G
Switch,magnet L-G-EBF62234503
...
408A
Heater,sheath L-G-MEE62225141
...
408B
Heater,sheath L-G-MEE62105217
...
408C
Tray Assembly,drain L-G-3391JJ2013V
...
408D
Tray Assembly,drain L-G-3391JJ2013Y
...
409D
Led Assembly L-G-EAV63332111
...
409K
Led Assembly L-G-EAV63332105
...
500A
Pcb Assembly,main L-G-EBR82394508
...
500B
Pcb Assembly,sub L-G-EBR82076004
...
500P
Refrigerator Dispenser Control Board L-G-EBR64730408
...
502A
Cover Assembly,pcb L-G-3551JA2144T
...
610F
Pcb Assembly L-G-EBR71326804
...
619D
Pcb Assembly L-G-AJU73872501

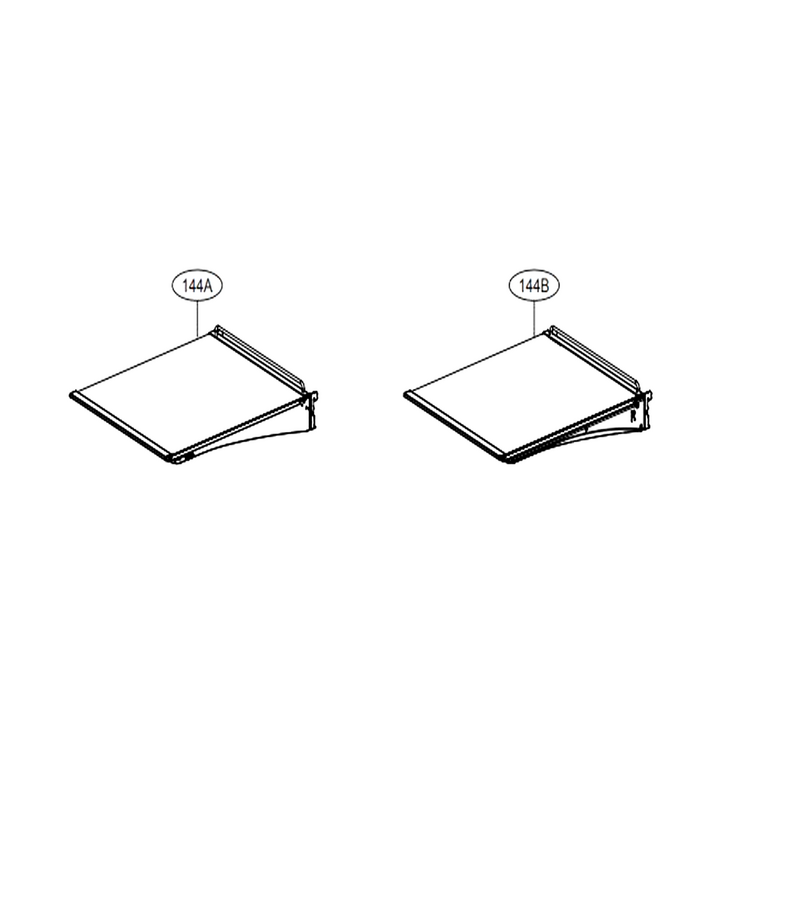

Shelf Part

...
...
144A
Shelf Assembly,refrigerator L-G-AHT74394007
...
144B
Shelf Assembly,refrigerator L-G-AHT74394008

Vegatable Room Part

...
...
145E
Cover Assembly,lower L-G-ACQ88926002
...
146E
Cover Assembly,tray L-G-ACQ88687204
...
152A
Tray,vegetable L-G-MJS64032201
...
152B
Cover Assembly,lower L-G-ACQ88925903
...
154A
Cover Assembly,tv L-G-ACQ88779403
...
161A
Guide,rail L-G-MEA64710101
...
163A
Tray,fresh Room L-G-MJS64032501
...
249I
Rail,slide L-G-MGT62544805
...
249J
Rail,slide L-G-MGT62544806
...
249M
Rack L-G-MGR62542101

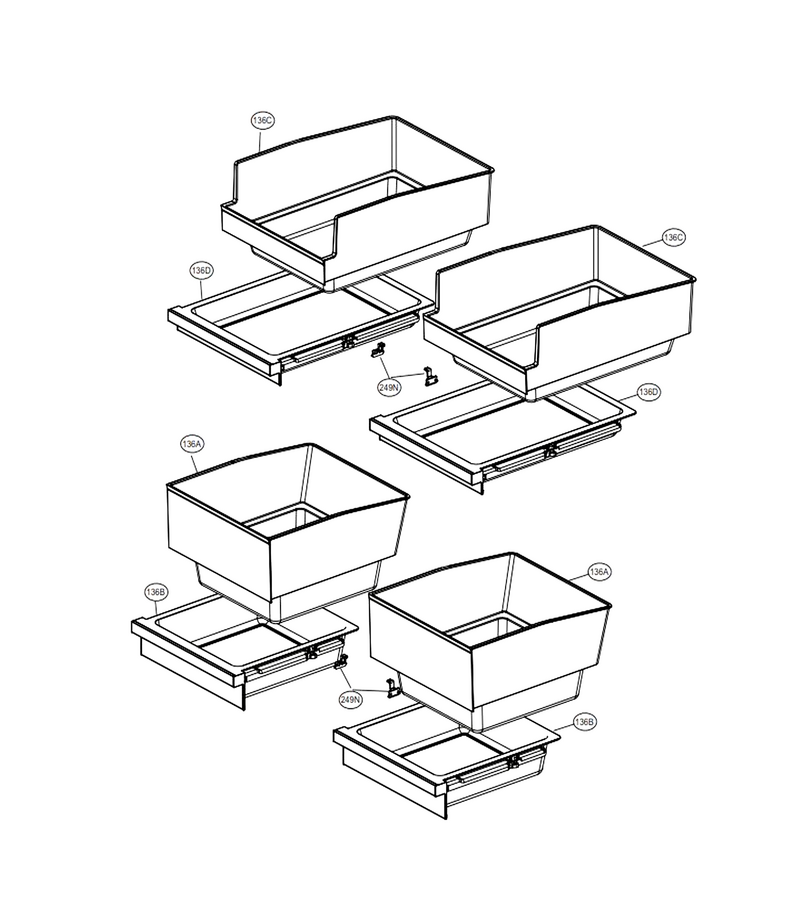

F-Room Drawer Part

...
...
136A
Tray,drawer L-G-MJS64032401
...
136B
Cover Assembly,lower L-G-ACQ88926302
...
136C
Tray,drawer L-G-MJS64032301
...
136D
Cover Assembly,lower L-G-ACQ88926102
...
249N
Cap,cover L-G-MBL66841805

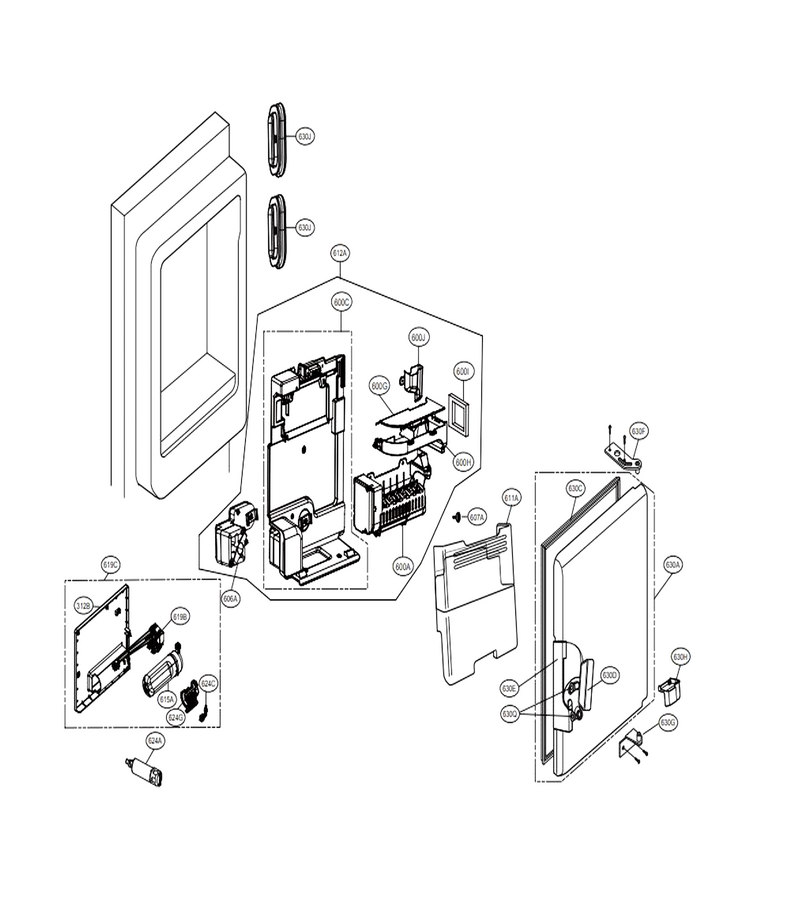

Ice Maker Part

...
...
312B
Refrigerator Cover, Front L-G-MCK67971001
...
600A
Ice Maker Assembly,kit L-G-AEQ73130004
...
600C
Cover Assembly,motor L-G-ACQ90087901
...
600G
Duct,multi L-G-MCZ63273301
...
600H
Duct,multi L-G-MCZ63273401
...
600I
Gasket,foam L-G-MDS64013907
...
600J
Guide,water L-G-MEA63570501
...
606A
Motor, Ac Indoor L-G-EAU60784231
...
607A
Refrigerator Shelf Support L-G-4931JA3005B
...
611A
Refrigerator Ice Container Assembly L-G-AKC73369908
...
612A
Motor,ac L-G-EAU62563503
...
615A
Refrigerator Water Reservoir L-G-MJM62864601
...
619B
Refrigerator Water Inlet Valve L-G-MJX62831301
...
619C
Filter Assembly,water L-G-ADQ73913306
...
624A
Parts Assembly,ice Water L-G-AGM76550401
...
624C
Refrigerator Connector Tube L-G-MCD62887401
...
624G
Refrigerator Filter Assembly L-G-ADQ73613301
...
630A
Door Assembly,freeze Room L-G-ADC72987144
...
630C
Refrigerator Ice Bank Door Gasket L-G-MDS62111103
...
630D
Refrigerator Ice Room Door Handle L-G-MEB61894003
...
630E
Lever Cover L-G-MCK63734907
...
630F
Hinge Assembly L-G-AEH72976201
...
630G
Refrigerator Hinge Assembly, Lower L-G-AEH73577903
...
630H
Cover L-G-MCK66593601
...
630J
Gasket Assembly,door L-G-ADX73250604
...
630Q
Refrigerator Ice Room Door Handle Roller L-G-4580JT3001B

Vertical Berrier Part

...
...
146D
Duct,insulation L-G-MCZ64052701
...
146I
Holder Assembly,bracket L-G-AEJ74899905
...
146J
Holder Assembly,bracket L-G-AEJ74899906
...
146K
Holder Assembly,bracket L-G-AEJ74900001
...
146N
Cover Assembly,motor L-G-ACQ88756204
...
146O
Bar L-G-MAK63828004
...
146Q
Cover Assembly,motor L-G-ACQ88756203
...
146T
Bar L-G-MAK63828003
...
147D
Spring L-G-MHY64303802
...
147E
Guide,drawer L-G-MEA64711702
...
147F
Holder Assembly L-G-AEJ74859602
...
147G
Cap,cover L-G-MBL66841803
...
147H
Guide,drawer L-G-MEA64711701
...
147I
Holder Assembly L-G-AEJ74859601
...
147J
Cap,cover L-G-MBL66841804
...
249E
Rail,slide L-G-MGT62524705
...
249F
Rail,slide L-G-MGT62524706
...
249G
Rail,slide L-G-MGT62544705
...
249H
Rail,slide L-G-MGT62544706
...
249K
Rack L-G-MGR62542002
...
249L
Rack L-G-MGR62542001
