LG UPCE3664ST.ASTLSGN

Model: UPCE3664ST.ASTLSGN

Save Part Not Listed?
product name

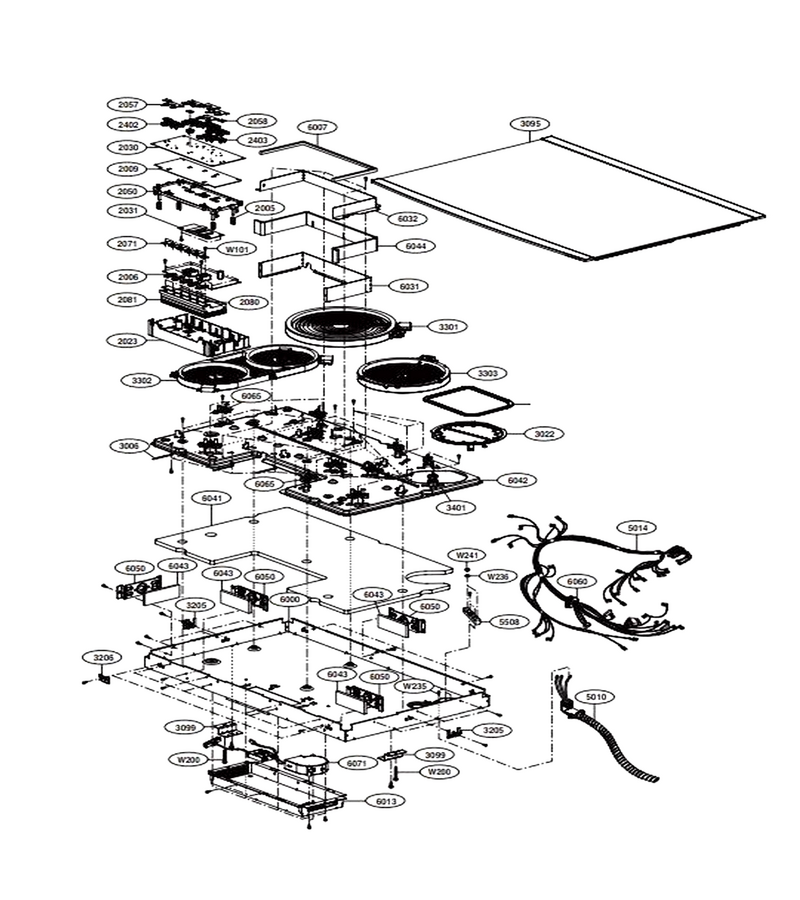

Main

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W236
Washer,common L-G-4H00056C
...
W200
Screw,machine L-G-1MPC0504916
...
W235
Screw L-G-1ATF0502610
...
2005
Spring L-G-4970W1N006A
...
2006
Pcb Assembly,main L-G-EBR74740301
...
2009
Pcb L-G-EAX55273801
...
2023
Pcb Base L-G-MAM47149701
...
2030
Power Control Board Assembly L-G-EBR51052001
...
2031
Power Control Board Assembly L-G-EBR56867401
...
2050
Pcb Support L-G-MJH47150001
...
2057
Indicator L-G-MES54174501
...
2058
Indicator L-G-MES54174401
...
2071
Bracket L-G-MAZ50040101
...
2080
Grease L-G-7242000019C
...
2081
Heat Sink L-G-MED47155001
...
2402
Holder L-G-MEG47150101
...
2403
Holder L-G-MEG51759401
...
3006
Lug (circ) L-G-4B72510F
...
3022
Range Warmer Zone Surface Element L-G-AEG33897001
...
3095
Plate Assembly,upper L-G-AGU73168302
...
3099
Idler Bracket L-G-MAZ39918701
...
3205
Bracket L-G-MAZ39601701
...
3206
Bracket L-G-4810W1N010A
...
3301
Range Radiant Surface Element L-G-MEE35326801
...
3302
Range Radiant Surface Element L-G-MEE33069801
...
3303
Cooktop Radiant Element L-G-MEE50408702
...
3401
Supporter L-G-4980W1N005A
...
5010
Power Cord L-G-EAD39575703
...
5014
Harness,single L-G-EAD62029701
...
5508
Terminal L-G-6640000045A
...
6000
Base L-G-MAM47147601
...
6007
Idler Cap L-G-5006W1N002D
...
6013
Base Cover L-G-MCK47148801
...
6031
Barrier L-G-MAL47149401
...
6032
Barrier L-G-MAL47149601
...
6041
Insulator L-G-MEV54159701
...
6042
Insulator L-G-MEV47148301
...
6043
Insulator L-G-MEV54159902
...
6044
Insulator L-G-MEV54159901
...
6050
Bracket L-G-4810W1A216A
...
6060
Bushing L-G-4830W1N005A
...
6065
Supporter L-G-4980W1N028A
...
6071
Fan Module L-G-EAL39335501
