product name

LG UMC5200AAB.ABKEMGR

Model: UMC5200AAB.ABKEMGR

Save Part Not Listed?
product name

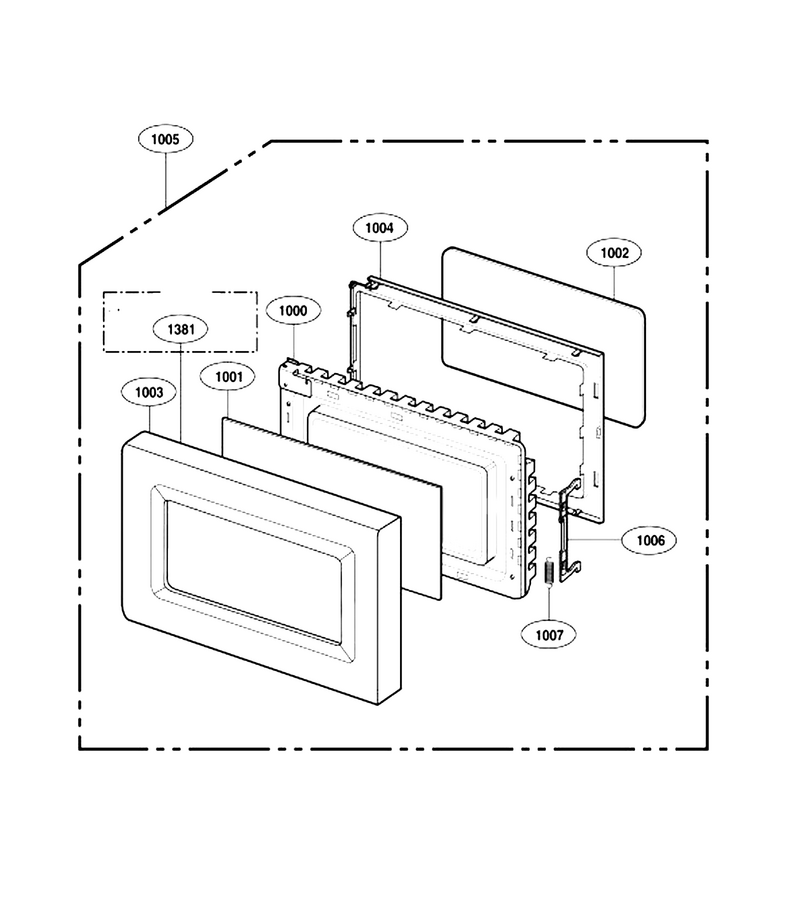

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W0A001G
...
1001
Screen L-G-3352W1A092A
...
1002
Seal Tape L-G-3536WRA001Q
...
1003
Panel,door L-G-3720W0D129A
...
1004
Microwave Choke Cover L-G-3552W1A035A
...
1005
Door Assembly L-G-3581W1A270W
...
1006
Latch L-G-4026W2A012A
...
1007
Spring L-G-4970WRA001B

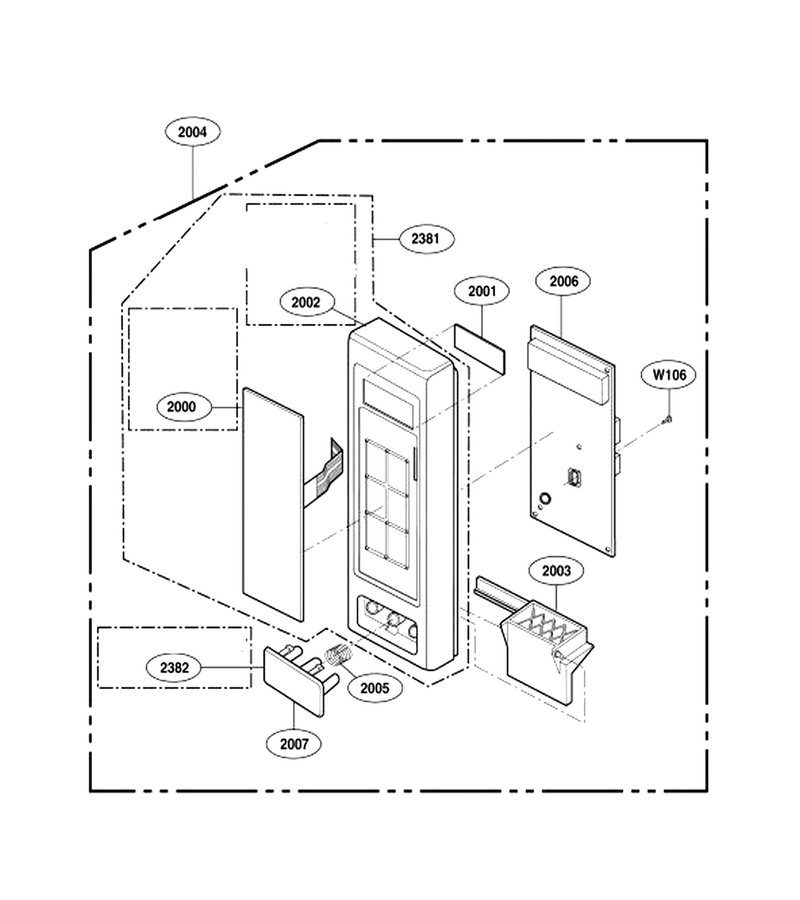

Control Panel Parts

...
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A509B
...
2001
Microwave Cover L-G-3550W4A029B
...
2002
Panel,control L-G-3572W1A154A
...
2003
Lever L-G-4510W3L002A
...
2004
Controller Assembly,keypad L-G-4781W1M299L
...
2005
Microwave Door Release Button Spring L-G-4B72023A
...
2006
Pcb Assembly,sub L-G-6871W1S011N
...
2007
Button L-G-5020W2A102A

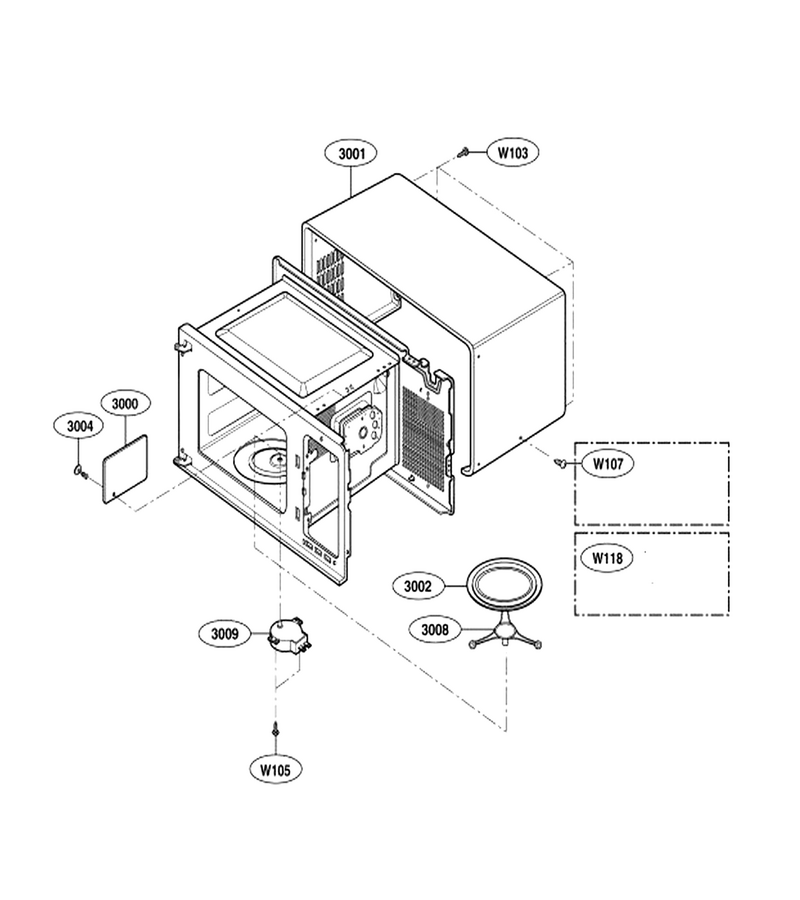

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W105
Microwave Screw L-G-1TPL0402418
...
W107
Screw L-G-1TTL0402416
...
W118
Microwave Screw L-G-1TTL0402418
...
3000
Canopy L-G-3052W3M011F
...
3001
Case,u Bending L-G-3112W0U028Y
...
3002
Microwave Glass Turntable Tray L-G-3390W1G009C
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Microwave Turntable Tray Support L-G-5889W2A011B
...
3009
Microwave Turntable Motor L-G-6549W1S011A

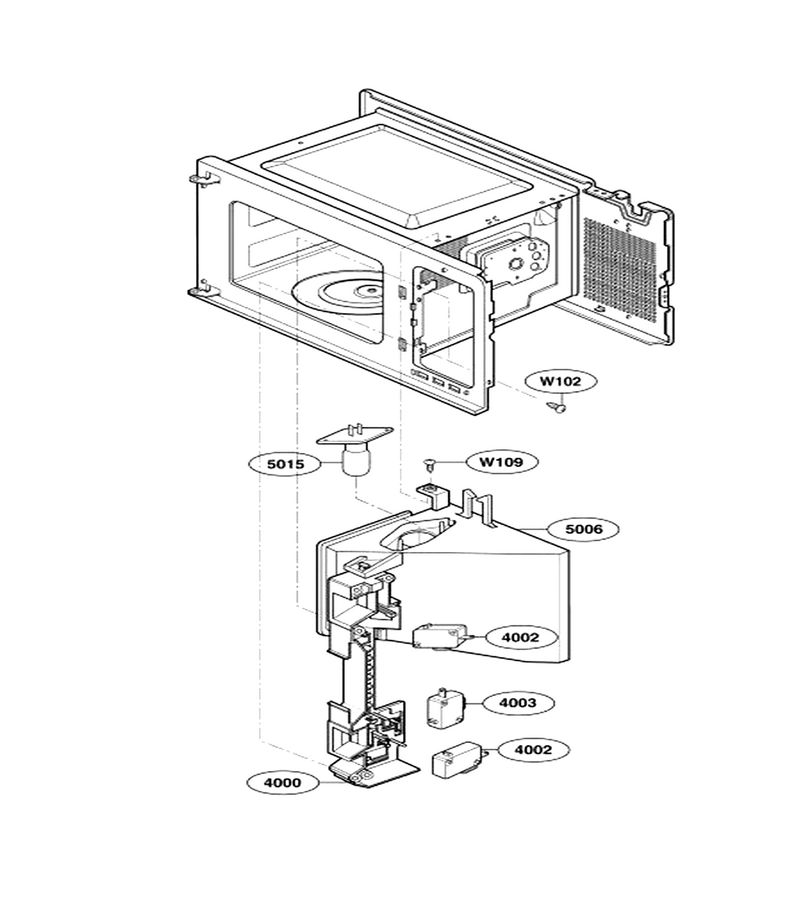

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W109
Microwave Screw L-G-1TTL0402818
...
4000
Latch Board L-G-3500W1A008A
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
5006
Duct L-G-5262W2A043C
...
5015
Microwave Light Bulb L-G-6912W3B002G

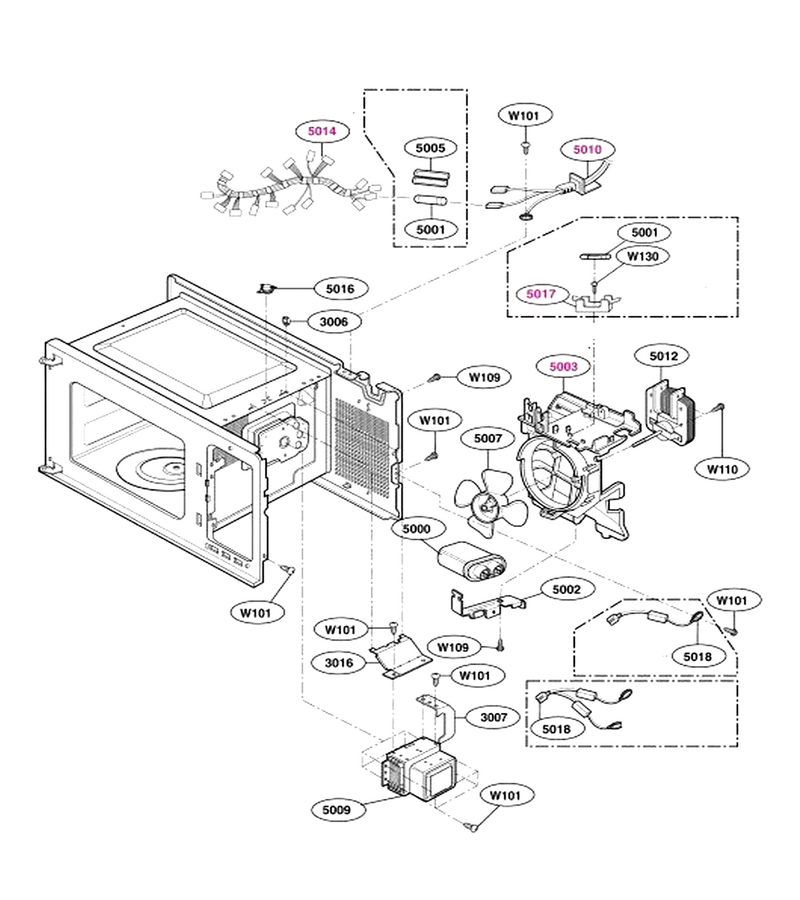

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W130
Microwave Screw L-G-1TPL0402618
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A012A
...
3016
Bracket L-G-4810W2G052A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide L-G-4974W1S010A
...
5007
Fan L-G-5900W1A003A
...
5009
Microwave Magnetron L-G-6324W1A001B
...
5010
(56411a) Part L-G-6411W1A019H
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness,single L-G-6877W1A187Z
...
5016
Thermostat L-G-6930WRT001C
...
5017
Holder L-G-4930W3B025B
...
5018
Cable,assembly L-G-6021W3B001W

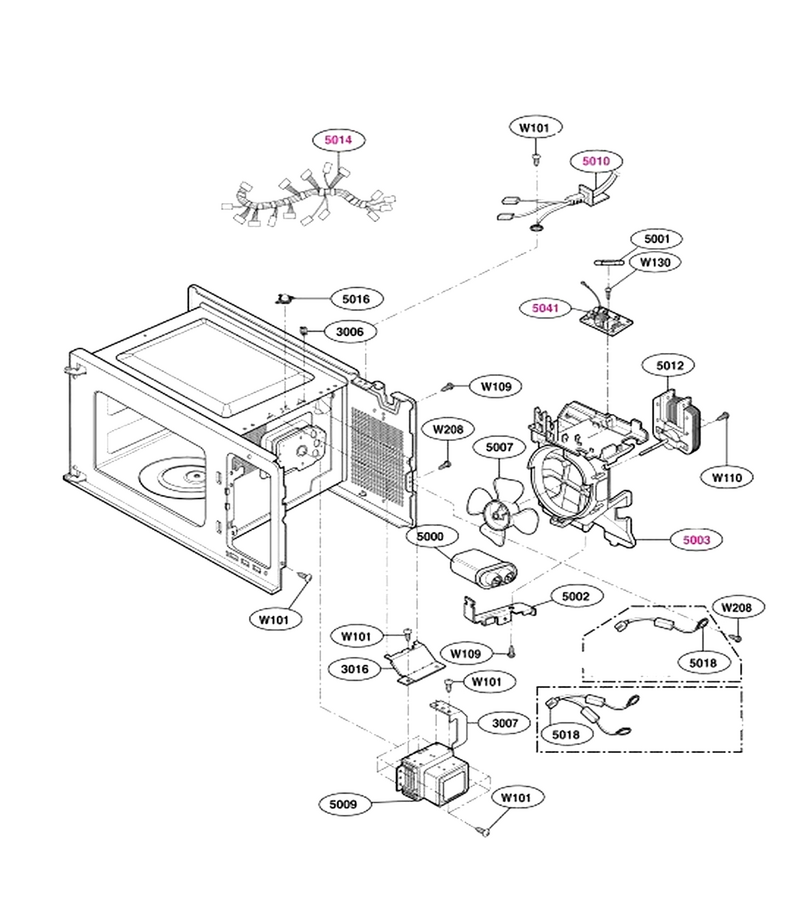

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W130
Microwave Screw L-G-1TPL0402618
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W109
Microwave Screw L-G-1TTL0402818
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A012A
...
3016
Bracket L-G-4810W2G052A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide L-G-4974W1S010A
...
5007
Fan L-G-5900W1A003A
...
5009
Microwave Magnetron L-G-6324W1A001B
...
5010
(56411a) Part L-G-6411W1A019H
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005B
...
5014
Harness,single L-G-6877W1A187Z
...
5016
Thermostat L-G-6930WRT001C
...
5018
Cable,assembly L-G-6021W3B001W

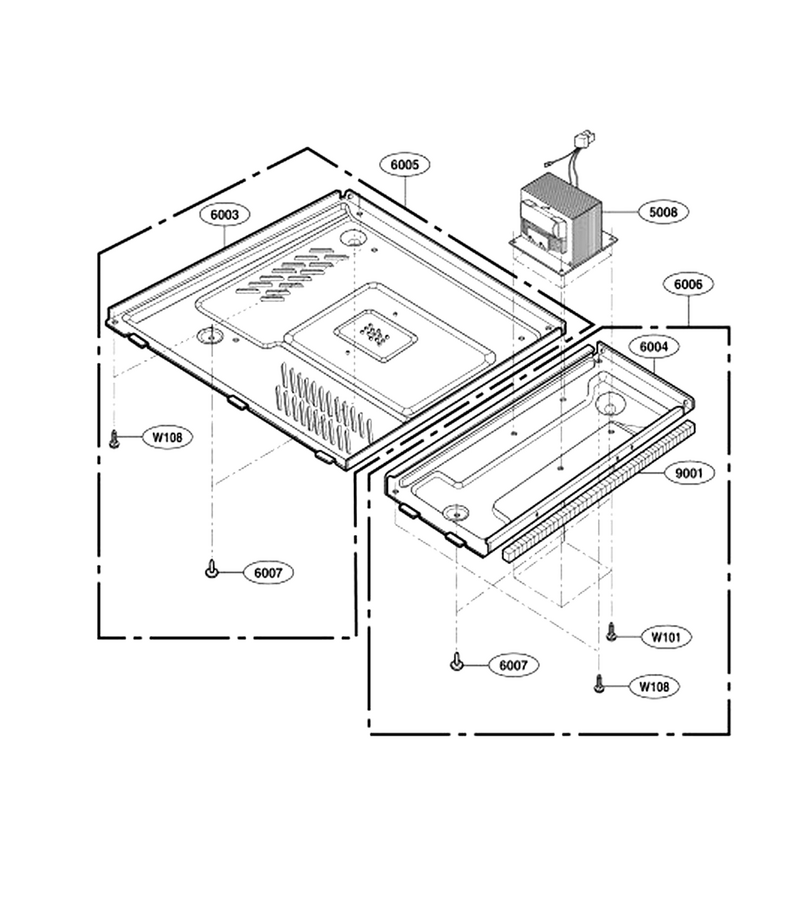

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Transformer,high Voltage L-G-6170W1D023P
...
6003
Plate L-G-3302W0A014A
...
6004
Base Plate L-G-3302W1A046B
...
6005
Plate Assembly L-G-3303W0A010A
...
6006
Base Plate L-G-3303W1A040B
...
6007
Cap L-G-5006W3A016B
...
9001
Cushion L-G-3B72245D

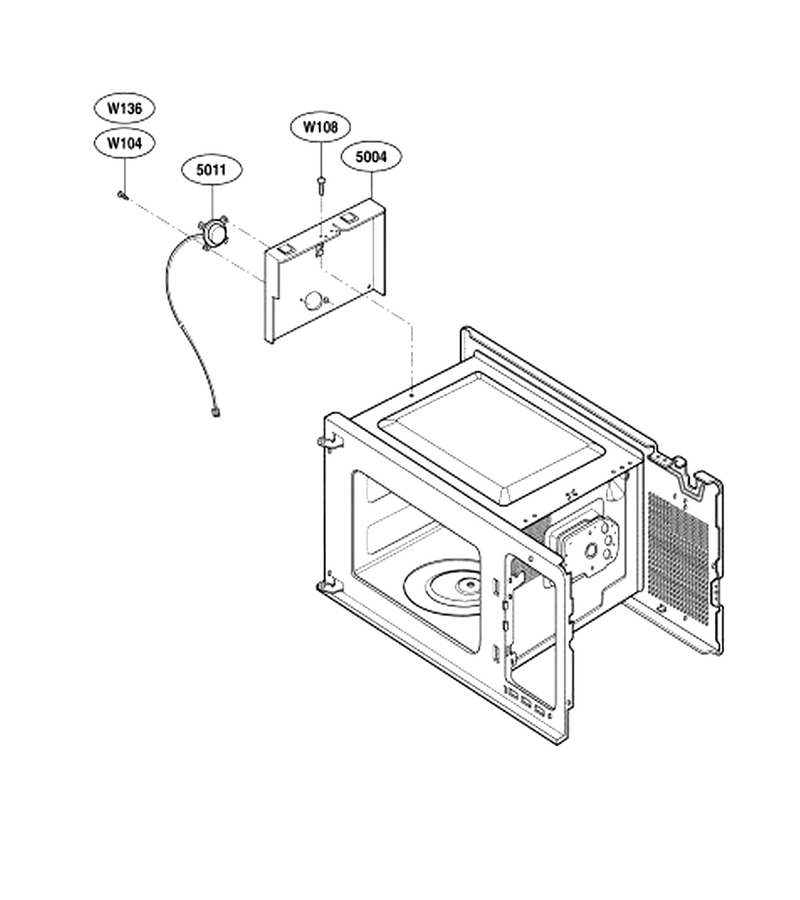

Sensor Parts

...
...
W104
Screw L-G-1TPL0302018
...
W108
Microwave Screw L-G-1TTL0402418
...
5004
Bracket,sensor L-G-5208W1A004D
...
5011
Sensor Assembly L-G-6501W1A010A
