LG UM36.N24.ENWAEEU

Model: UM36.N24.ENWAEEU

Save Part Not Listed?
product name

Main

...
...
W1JK
Screw,set L-G-4H00026A
...
W4030A
Flange L-G-MDM61941201
...
W4030B
Flange L-G-MDM61941301
...
W4810A
Bracket L-G-MAZ64043901
...
W4810B
Bracket L-G-MAZ63847901
...
W4810C
Bracket L-G-MAZ65191901
...
W6640
Connector,terminal Block L-G-EAG38884441
...
73920A
Packing,right L-G-MFZ63776901
...
135501
Holder Assembly L-G-AEJ76299603
...
137211
Panel Assembly,front(indoor) L-G-AGL74234901
...
137213A
Side Panel Assembly L-G-AGL74256805
...
137213B
Panel Assembly,side L-G-AGL74256802
...
137214
Panel Assembly,upper L-G-AGL74236404
...
147901
Barrier,indoor L-G-MAL62683901
...
159830
Filter Assembly,air Cleaner L-G-ADQ73493504
...
237200
Control Panel L-G-MGC63182301
...
237202
Panel,front L-G-MGC63182101
...
237203
Panel,upper L-G-MGC63184401
...
237204A
Side Panel L-G-MGC63184501
...
237204B
Panel,side L-G-MGC63184502
...
237205
Rear Panel L-G-MGC63182201
...
249951
Control (indoor) Case Assembly L-G-ABQ74282714
...
261704
Transformer,reactor L-G-5874FR2112G
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230C
Thermistor Assembly,ntc L-G-EBG61325804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287708
...
267110
Remote Controller Assembly L-G-AKB75075701
...
268711A
Main Pcb Assembly L-G-EBR77085801
...
268711B
Sub Pcb Assembly L-G-EBR77536713
...
330871
Drain Pan Assembly L-G-AGK73510501
...
336600A
Housing,wrapper L-G-MEK62786904
...
336600B
Wrapper Housing L-G-MEK62786902
...
346810
Motor Assembly,dc,indoor L-G-EAU37067103
...
349600A
Bracket,motor L-G-MAZ63891301
...
349600B
Bracket,motor L-G-4960A30012A
...
349610A
Bracket Assembly,motor(indoor) L-G-4961A30005A
...
349610B
Bracket Assembly,motor(indoor) L-G-ABA74670001
...
352114
Distributor Tube Assembly L-G-AJR74642308
...
352118
Manifold (indoor) Tube Assembly L-G-AJR74662301
...
354210
First Evaporator Assembly L-G-ADL74001007
...
359012A
Final Fan Assembly L-G-ADP73813504
...
359012B
Fan,blower L-G-MDG62503401
...
437213
Rear (indoor) Panel Assembly L-G-AGL74235001
...
739207
Packing,upper L-G-MFZ63776801
...
739209
Packing,left L-G-MFZ63777001

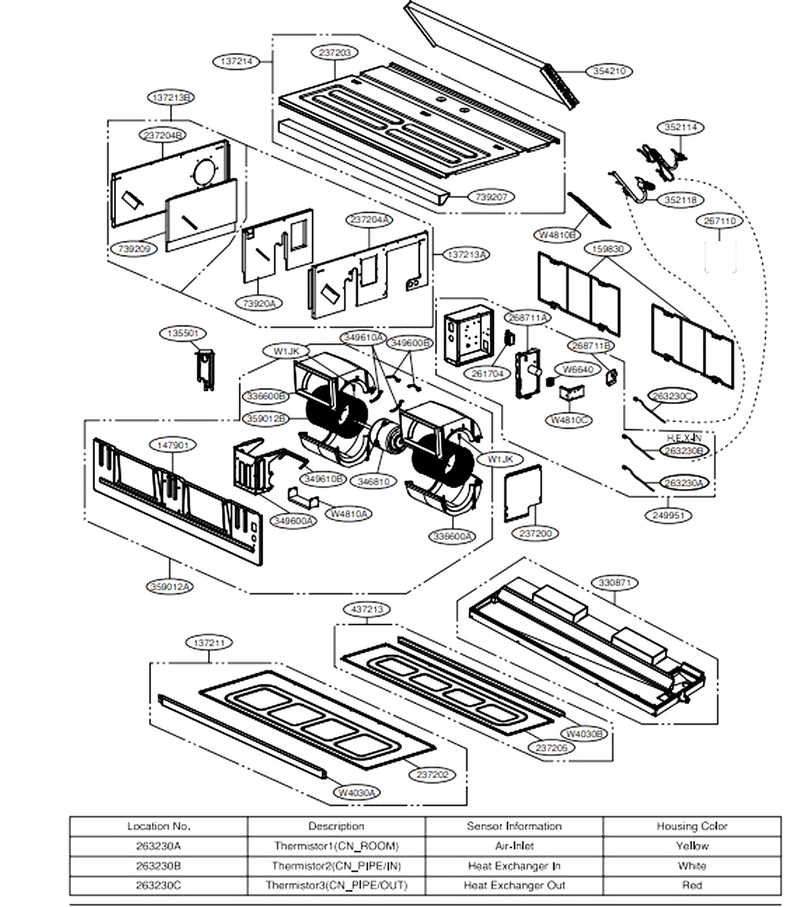

Schematic Image Zoomed
