LG UE12C33.AWYAFRD

Model: UE12C33.AWYAFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-2H01451M
...
35211A
Suction Tube L-G-5211A21428F
...
130410
Base Assembly L-G-3041A10038H
...
130900
Cabinet L-G-3090A20003E
...
132100
Room Air Conditioner Front Trim Kit L-G-4918A20001A
...
135312
Grille Assembly,front L-G-3531A20121B
...
135313
Grille,inlet L-G-3530A20053A
...
147581
Louver,hor L-G-4758A20008B
...
147582-1
Vane L-G-4758A20009A
...
147582-2
Vane L-G-4758A20009B
...
149980
Room Air Conditioner Condenser Fan Shroud L-G-4998A10007B
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
237200
Room Air Conditioner Electronic Control Board A... L-G-3720A10305A
...
238310
Escutcheon L-G-MDD61942201
...
249950
Case Assembly,control L-G-ABQ73187604
...
264110
Room Air Conditioner Power Cord L-G-6411A20056Q
...
267110
Remote Controller Assembly L-G-AKB73015901
...
268711-1
Pcb Diode Assembly L-G-EBR30852201
...
268711-2
Room Air Conditioner Electronic Control Board L-G-EBR39264504
...
346811
Room Air Conditioner Fan Motor L-G-4681A20041M
...
349480
Orifice L-G-4948A10006A
...
349600
Motor Mount L-G-4960A20008A
...
352113
Tube Assembly L-G-5211A21421X
...
352115
Tube Assembly L-G-AJR33322504
...
352380
Air Guide L-G-5239A10002G
...
354210
Evap Asy,fir L-G-ADL73081801
...
359012
Turbo Fan L-G-5900A20009B
...
435300
Grille L-G-3530A30007B
...
435301
Grille L-G-MDX33964101
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
552113-2
Tube Assembly L-G-AJR73067805
...
552113-1
Tube Assembly L-G-5211A20560R
...
552206
Valve L-G-5220A30006A
...
554031-1
Condenser Assembly,bending L-G-ACG73126506
...
554031-2
Condenser L-G-ACG73144501
...
554160
Compressor L-G-TBZ34863001
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567480
Thermistor L-G-6323A20003F
...
567502
Overload Protector L-G-EAF34140210
...
731273
Part Assembly L-G-3127A20017B
...
753000
Room Air Conditioner Heater Assembly L-G-5300A20003A

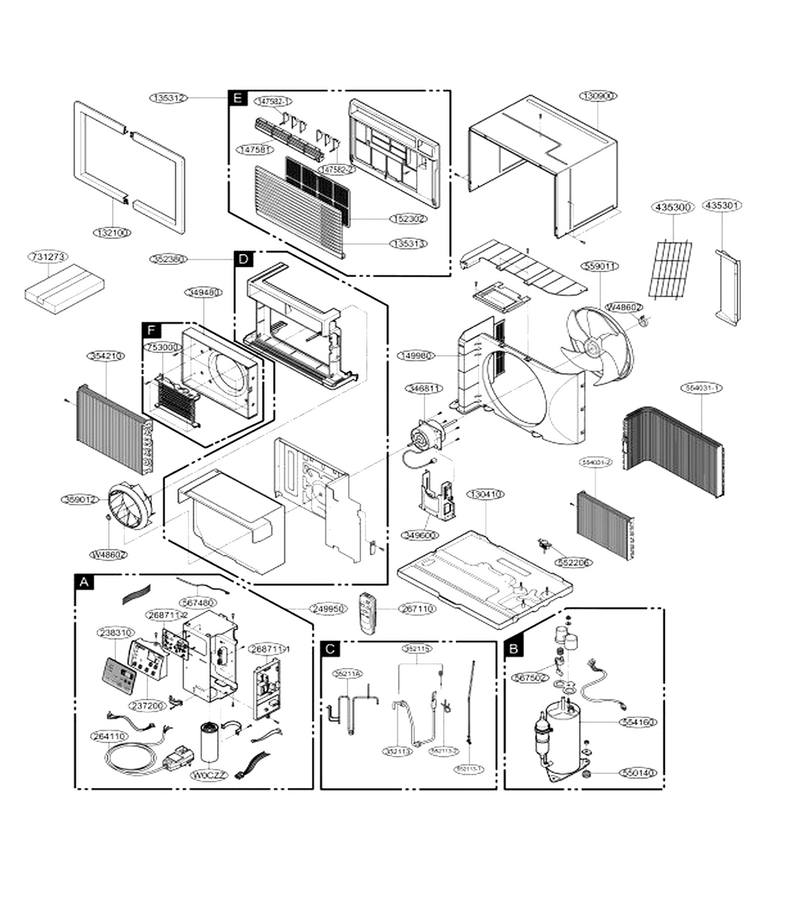

Schematic Image Zoomed
