LG UE12A33B.AWYBFRD

Model: UE12A33B.AWYBFRD

Save Part Not Listed?
product name

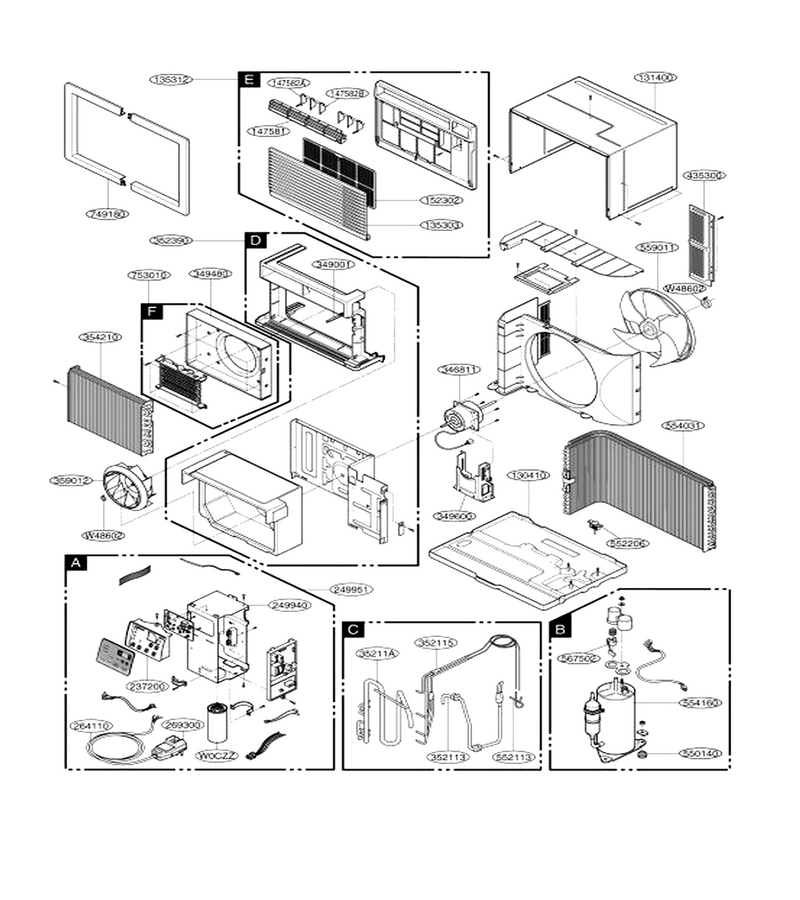

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2359E
...
35211A
Tube Assy,su L-G-5211A25028A
...
130410
Base Assembly L-G-3041A10038F
...
131400
Cabinet L-G-3090A20003B
...
135303
Grille,inlet L-G-3530A20053A
...
135312
Grille Assembly,front L-G-3531A20121B
...
147581
Louver,hor L-G-4758A20008B
...
147582A
Vane L-G-4758A20009A
...
147582B
Vane L-G-4758A20009B
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
237200
Panel,control L-G-3720A20089A
...
249940
Case,control L-G-4994A20018B
...
249951
Case Assembly,control L-G-4995A20408H
...
264110
Room Air Conditioner Power Cord L-G-6411A20048L
...
269300
Room Air Conditioner Thermostat L-G-2H01127D
...
346811
Room Air Conditioner Fan Motor L-G-4681A20041M
...
349001
Ven Damper L-G-4900A20001A
...
349480
Orifice L-G-4948A10006A
...
349600
Motor Mount L-G-4960A20008A
...
352113
Discharge Tube L-G-5211A21421C
...
352115
Evaporator Tube L-G-5211A29024E
...
352390
Air Guide L-G-5239A10002F
...
354210
Evaporator L-G-5421A20071J
...
359012
Turbo Fan L-G-5900A20009B
...
435300
Rear Grille L-G-3530A30002A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552113
Tube Assembly,condenser(out) L-G-5211A20560L
...
552206
Valve L-G-5220A30006A
...
554031
Condenser L-G-5403A20040H
...
554160
Room Air Conditioner Compressor L-G-2520UKHK2AA
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567502
O.l.p L-G-6750U-L039A
...
749180
Room Air Conditioner Front Trim Kit L-G-4918A20001A
...
753010
Heater Assembly L-G-5301A20011A
