product name

LG UE10A33B.AWYBFRD

Model: UE10A33B.AWYBFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2359E
...
35211A
Tube Assembly, Suction Single L-G-5211A20498B
...
130410
Base Assembly L-G-3041A10038D
...
130900
Cabinet L-G-3090A20003B
...
135312
Grille Assembly,front L-G-3531A20121B
...
135313
Grille,inlet L-G-3530A20053A
...
137215
Panel Assembly,control L-G-3721A20049F
...
147581
Louver,hor L-G-4758A20008B
...
147582-1
Vane L-G-4758A20009A
...
147582-2
Vane L-G-4758A20009B
...
148000
Brace L-G-4800A30002A
...
149410
Room Air Conditioner Control Knob L-G-4941A30005B
...
149980
Room Air Conditioner Condenser Fan Shroud L-G-4998A10007B
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
249950
Case Assembly,control L-G-4995A20408H
...
264110
Room Air Conditioner Power Cord L-G-6411A20048L
...
266003
Room Air Conditioner Rotary Switch L-G-2H00598F
...
269310
Room Air Conditioner Thermostat L-G-2H01127D
...
346811
Motor L-G-4681A20044E
...
349001
Ven Damper L-G-4900A20001A
...
349480
Orifice L-G-4948A10006A
...
349600
Mount L-G-4960A20005A
...
352113
Tube Assembly, Discharge Single L-G-5211A30588B
...
352115
Evaporator Tube L-G-5211A20289C
...
352390
Air Guide L-G-5239A10002F
...
354210
Evaporator L-G-5421A20071E
...
359012
Turbo Fan L-G-5900A20009B
...
435301
Rear Grille L-G-3530A30002A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Capillary Tube Assembly L-G-5211A20214L
...
554031
Condenser L-G-5403A20040P
...
554160
Compressor L-G-2520UKCK2BA
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L028A
...
749180
Room Air Conditioner Front Trim Kit L-G-4918A20001A
...
753010
Heater Assembly L-G-5301A20011A
...
753011
Room Air Conditioner Heater Assembly L-G-5300A20003A

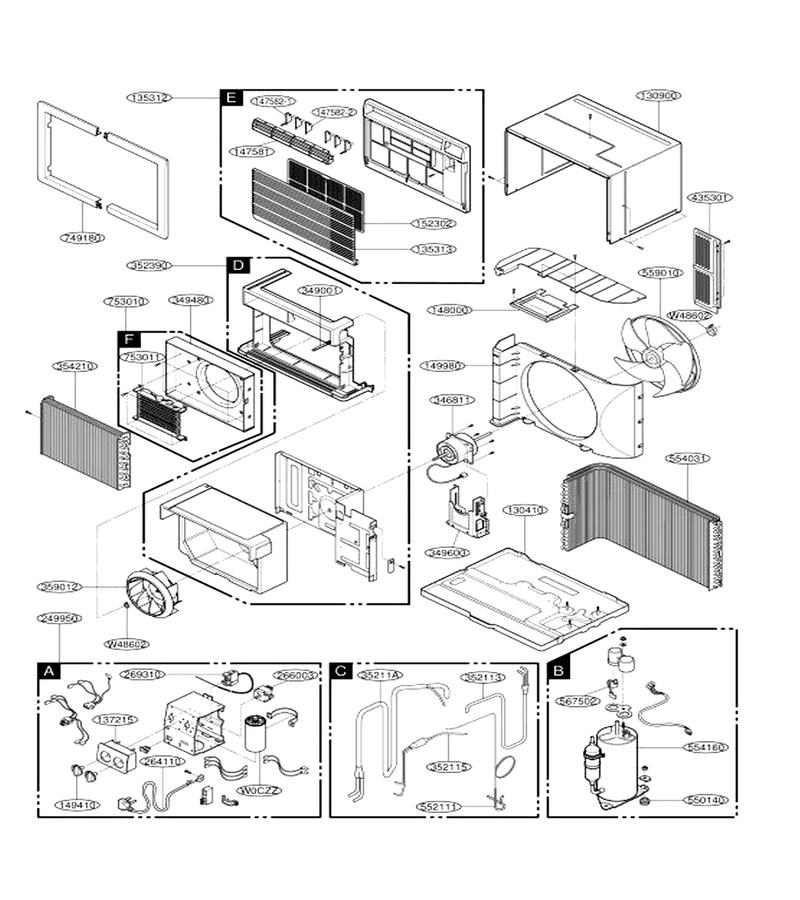

Schematic Image Zoomed
