product name

LG UE10A33.AWY6FRD

Model: UE10A33.AWY6FRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2359E
...
35211A
Tube Assembly,suction L-G-5211A20494A
...
130410
Base Assembly,single L-G-3041A10014P
...
131400
Cabinet L-G-3090A20003B
...
135303
Grille,inlet L-G-3530A20053A
...
135312
Grille Assembly,front L-G-3531A20121B
...
137215
Panel Assembly,control L-G-3721A20049F
...
147581
Louver,hor L-G-4758A20008B
...
147582A
Vane L-G-4758A20009A
...
147582B
Vane L-G-4758A20009B
...
147900
Barrier,single L-G-4790A20024A
...
148000
Brace L-G-4800A30002A
...
149410
Room Air Conditioner Control Knob L-G-4941A30005B
...
149980
Shroud L-G-4998A10007A
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
249950
Case Assembly,control L-G-4995A20131V
...
264110
Power Cord L-G-2H00677U
...
266003
Room Air Conditioner Rotary Switch L-G-2H00598F
...
269300
Room Air Conditioner Thermostat L-G-2H01127D
...
330720
Housing L-G-3072A20003A
...
346811
Motor L-G-4681A20044E
...
349001
Ven Damper L-G-4900A20001A
...
349480
Orifice L-G-4948A10006A
...
349600
Mount L-G-4960A20005A
...
352113
Tube Assembly,discharge L-G-5211A20495A
...
352115
Evaporator L-G-5211A20281A
...
352390
Duct Assembly L-G-5239A10002D
...
354210
Evaporator Assembly,first L-G-5421A20071D
...
359012
Turbo Fan L-G-5900A20009B
...
435300
Rear Grille L-G-3530A30002A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Tube Assembly,capillary L-G-5211A20214F
...
554031
Condenser L-G-5403A20040H
...
554160
Compressor Set,korea L-G-2520UKCK2AA
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567502
Protector L-G-6750U-L061A
...
749180
Room Air Conditioner Front Trim Kit L-G-4918A20001A
...
753000
Room Air Conditioner Heater Assembly L-G-5300A20003A
...
753010
Heater Assembly L-G-5301A20011A

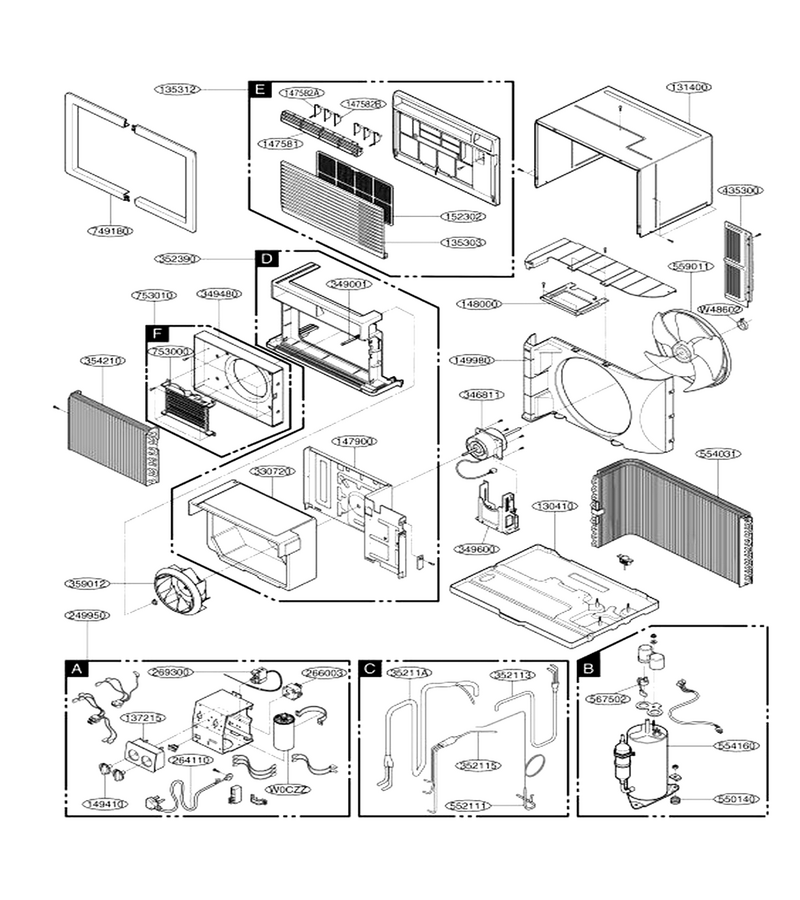

Schematic Image Zoomed
