LG UE08D11C.ASWAFRD

Model: UE08D11C.ASWAFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Capacitor L-G-0CZZA10001J
...
263VZZ
Thermistor L-G-6323A20003F
...
2687M
Pcb Assembly,main L-G-EBR76261812
...
35211S
Tube Assembly,suction L-G-5211A20498F
...
130410
Base Assembly,single L-G-3041A10038K
...
130910
Cabinet L-G-3090A20003L
...
132100
Frame L-G-MDQ63677001
...
135301
Grille,front L-G-MDX62733501
...
135303
Grille,inlet L-G-MDX62733601
...
135312
Grille Assembly,front(indoor) L-G-AEB73745904
...
146801
Fan Motor L-G-4681A20044H
...
147580
Louver,horizontal L-G-MFH62424201
...
147582
Louver,vertical L-G-MFH62403701
...
147583
Louver,vertical L-G-MFH62403703
...
148001
Brace L-G-4800A30002A
...
149980
Shroud L-G-4998A10007E
...
152402
Filter,air L-G-5230A20007D
...
237200
Room Air Conditioner Electronic Control Board A... L-G-3720A10305A
...
238310
Escutcheon L-G-MDD62483201
...
249950
Case Assembly,control L-G-ABQ74424706
...
264110
Power Cord Assembly L-G-EAD63469504
...
267110
Remote Controller Assembly L-G-AKB73016005
...
349001
Ven Damper L-G-4900A20001A
...
349491
Orifice L-G-4948A10006A
...
349600
Mount L-G-4960A20005A
...
352114
Tube Assembly,discharge L-G-AJR75022303
...
352115
Tube Assembly,evaporator(in) L-G-AJR33322517
...
354210
Evaporator Assembly,first L-G-ADL73081804
...
435300
Grille L-G-3530A30007B
...
435313
Grille L-G-MDX33964101
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
552113
Tube Control Assembly L-G-5211A20560P
...
554031
Condenser Assembly,bending L-G-ACG73126511
...
554160
Compressor Set,china L-G-TBZ36675901
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
559015
Turbo Fan L-G-5900A20009B
...
567502
Overload Protect L-G-EAF61751203
...
731273
Part Assembly L-G-3127A20017B
...
749750
Guide Assembly,air L-G-5239A10002J
...
753000
Room Air Conditioner Heater Assembly L-G-5300A20003B

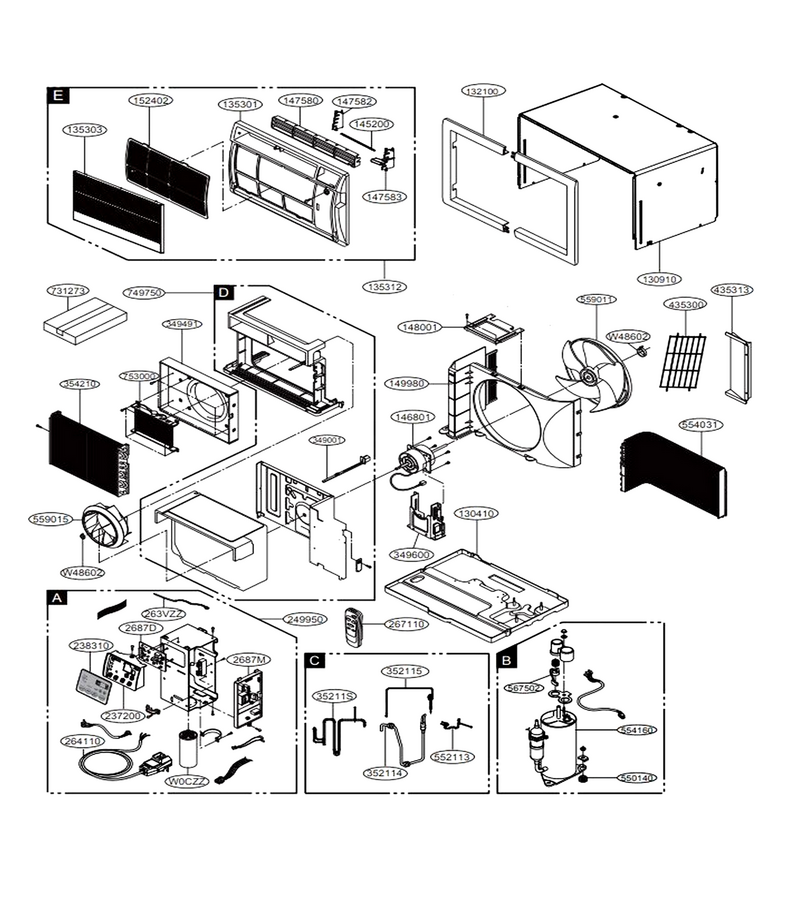

Schematic Image Zoomed
