product name

LG UD501KOJ5.ABKEUS

Model: UD501KOJ5.ABKEUS

Save Part Not Listed?
product name

Main

...
...
HE3817
Harness,multi L-G-EAD62333817
...
W3110A
Case,front L-G-MBN64562803
...
W3110B
Case,rear L-G-MBN64582602
...
W52107C
Tube Assembly,evaporator(out) L-G-AJR75707302
...
W52107D
Tube Assembly,suction(outdoor) L-G-AJR75707002
...
W6631A
Harness,single L-G-EAD63266410
...
W6631B
Harness,single L-G-6631A20079R
...
W6631F
Harness,multi L-G-EAD62333817
...
W6631G
Harness,multi L-G-EAD62145824
...
2687D
Pcb Assembly,display L-G-EBR88123502
...
2687M
Pcb Assembly,indoor Unit L-G-EBR88352801
...
2687U
Pcb Assembly,module L-G-EBR82056913
...
13550TL
Cover,tank L-G-MCK69224901
...
13550TU
Cover,tank L-G-MCK69224801
...
130401
Base,single L-G-MAM64284601
...
130402
Base,single L-G-MAM64284601
...
131104
Case,rear L-G-MBN64582602
...
131106
Case,front L-G-MBN64562803
...
135500S
Cover L-G-MCK69263101
...
135500B
Cover L-G-MCK69291501
...
135502
Cover Assembly,control L-G-ACQ88880403
...
135502A
Cover L-G-MCK69284601
...
135506
Filter,air L-G-MDJ64984201
...
135510
Cover L-G-MCK69284701
...
135522
Cover L-G-MCK69290201
...
137213
Panel,side L-G-MGC64578901
...
144410
Roller L-G-MHA62753001
...
144410B
Roller L-G-MHA62753001
...
147680
Float L-G-MDN62181001
...
148391
Tank Assembly,bucket L-G-AJL74511901
...
151142
Cover L-G-MCK69290201
...
152141B
Tube L-G-MJU66529102
...
152141A
Tube L-G-MJU66529101
...
152302A
Filter,air L-G-MDJ64984201
...
152402
Cover,filter L-G-MCK69271601
...
152502A
Connector L-G-MCD64927001
...
152502B
Connector L-G-MCD64927101
...
158580
Pump,water L-G-MGQ62301801
...
165000C
Sensor,humidity L-G-EBD61866005
...
165000
Sensor,humidity L-G-EBD61866005
...
165000A
Sensor,position L-G-EBD60320507
...
235502
Cover L-G-MCK69284501
...
235512
Pcb Assembly,display L-G-EBR88123502
...
237204
Panel,side L-G-MGC64578901
...
238310
Escutcheon L-G-MDD62882203
...
263230C
Thermistor Assembly,ntc L-G-EBG61106557
...
263230X
Thermistor Assembly,ntc L-G-EBG61106557
...
263230B
Sensor,position L-G-EBD60320507
...
264100A
Power Cord Assembly L-G-EAD63931901
...
264110
Power Cord Assembly L-G-EAD63931901
...
268711
Pcb Assembly,module L-G-EBR82056912
...
268711D
Pcb Assembly,indoor Unit L-G-EBR88352801
...
330720
Housing L-G-MEK64386501
...
330871
Pan Assembly,drain L-G-AGK73970507
...
346810
Motor Assembly,ac L-G-EAU32357520
...
346811
Motor Assembly,ac L-G-EAU32357520
...
349480A
Orifice L-G-MFX63221901
...
349490
Orifice L-G-MFX63221901
...
352113A
Tube Assembly,discharge L-G-AJR75684504
...
352115A
Tube Assembly,evaporator(in) L-G-AJR75707406
...
352116A
Tube Assembly,condenser(in) L-G-AJR75707201
...
352150
Hose Assembly,drain L-G-AEM75512901
...
352151
Hose Assembly,drain L-G-AEM75492903
...
354210
Evaporator Assembly,first L-G-ADL75321304
...
354210A
Condenser Assembly,first L-G-ACG75325405
...
359012
Fan,turbo L-G-MDG63742801
...
436500
Handle L-G-MEB64114001
...
436500C
Handle L-G-MEB64094101
...
436500B
Handle L-G-MEB64094101
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
554030
Condenser Assembly,first L-G-ACG75325405
...
554030A
Evaporator Assembly,first L-G-ADL75321304
...
554160
Compressor Set,china L-G-TBZ38936901
...
554160A
Compressor Set,china L-G-TBZ38936901
...
559015
Fan,turbo L-G-MDG63742801

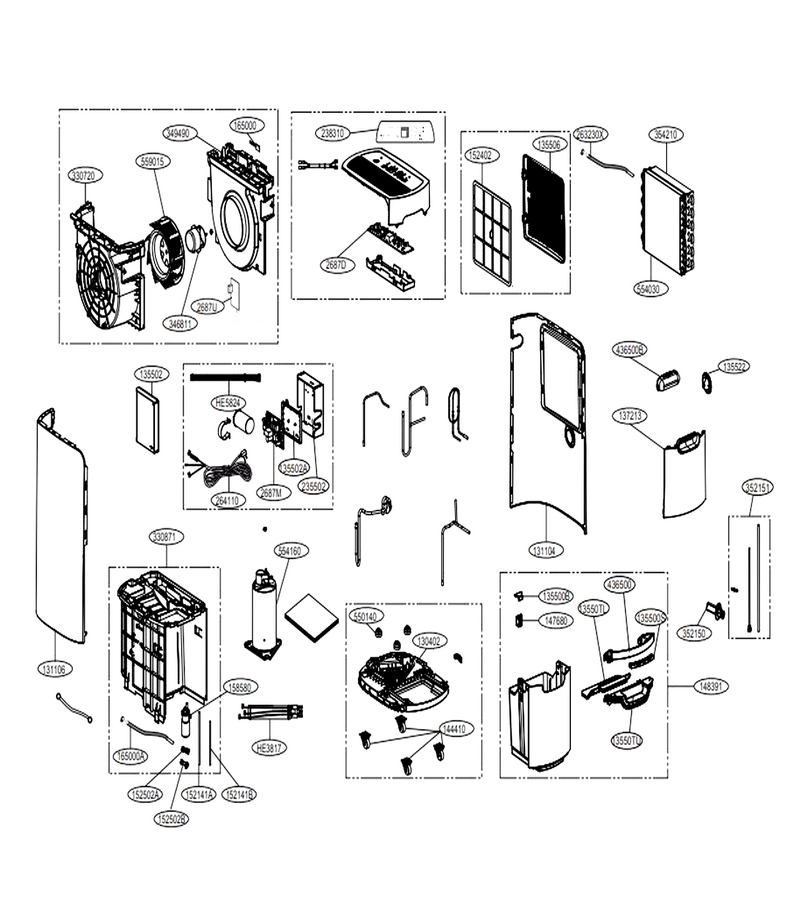

Schematic Image Zoomed
