product name

LG U5512900.CMBEHOO

Model: U5512900.CMBEHOO

Save Part Not Listed?
product name

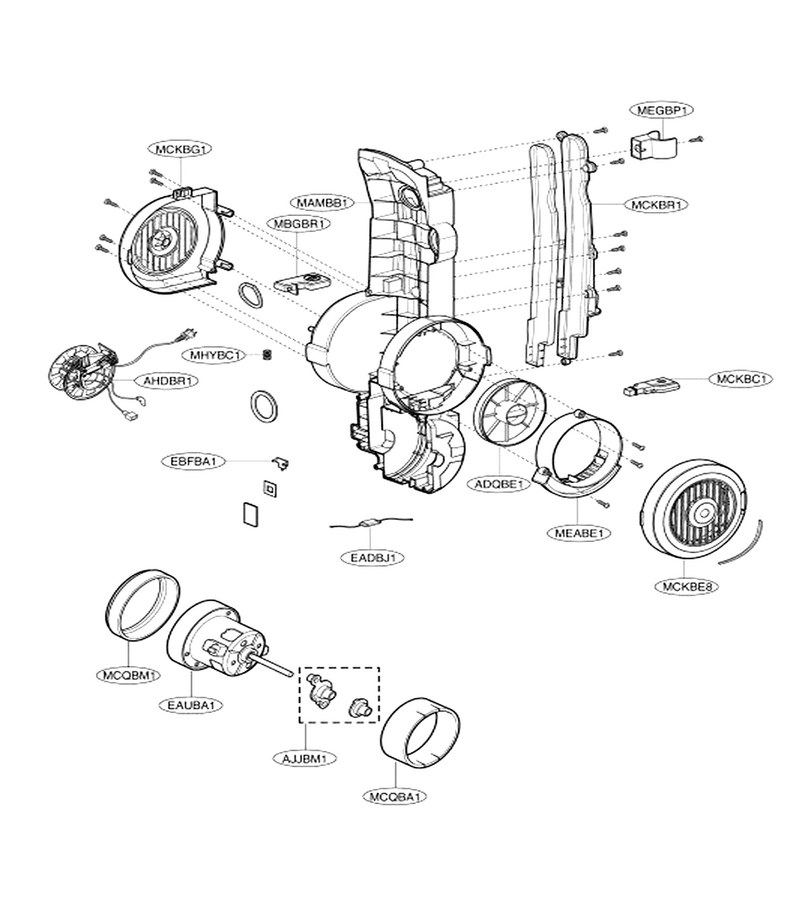

Base Assembly, Body

...
...
ADQBE1
Filter Assembly,exhaust L-G-5231FI2514C
...
MHYBC1
Spring,coil L-G-4970FI4511F
...
MEGBP1
Holder,pipe L-G-4930FI3855B
...
MEABE1
Guide,exhaust L-G-4974FI1016B
...
MCQBM1
Damper,motor Mount L-G-3920FI3953A
...
MCQBA1
Damper,absorbing L-G-4I23008B
...
MCKBR1
Cover,rear L-G-3550FI1917B
...
MCKBG1
Cover,cord Reel L-G-3550FI1920G
...
MCKBE8
Cover,exhaust Filter L-G-3550FI1919J
...
MBGBR1
Button,cord Reel L-G-5020FI3841C
...
MAMBB1
Base,body L-G-3040FI1559C
...
EBFBA1
Switch Assembly L-G-6601FI3472H
...
EAUBA1
Motor,ac L-G-4681FI2492A
...
EADBJ1
Wire,jump L-G-6631FI2003E
...
AJJBM1
Supporter Assembly,motor L-G-4981FI3005A
...
AHDBR1
Reel Assembly L-G-4687FI1496A
...
MCKBC1
Cover,power Switch L-G-3550FI3954D

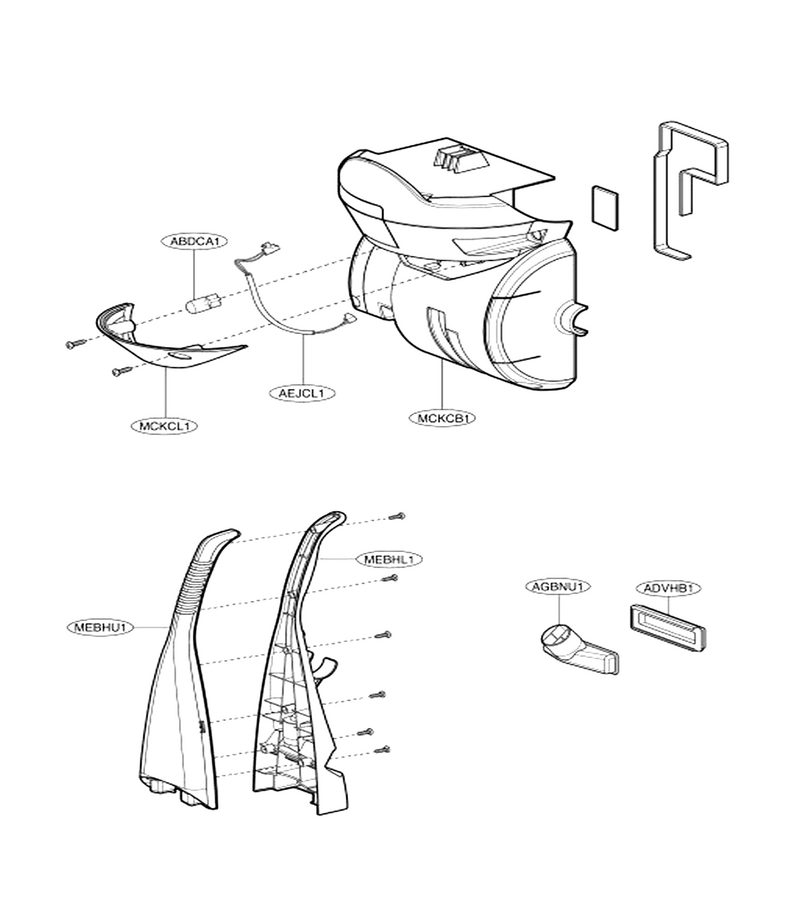

Cover Assembly, Body & Handle Assembly

...
...
AEJCL1
Holder Assembly,lamp L-G-4931FI3692C
...
MEBHU1
Handle,upper L-G-3650FI1539G
...
MEBHL1
Handle,lower L-G-3650FI1540B
...
MCKCL1
Cover,light L-G-3550FI3960A
...
MCKCB1
Cover,body L-G-3550FI1916B
...
AGBNU1
Nozzle Assembly,upholstery L-G-5248FI1002A
...
ADVHB1
Frame Assembly,brush L-G-3211FI2377A
...
ABDCA1
Bulb Assembly L-G-3525FI3001B

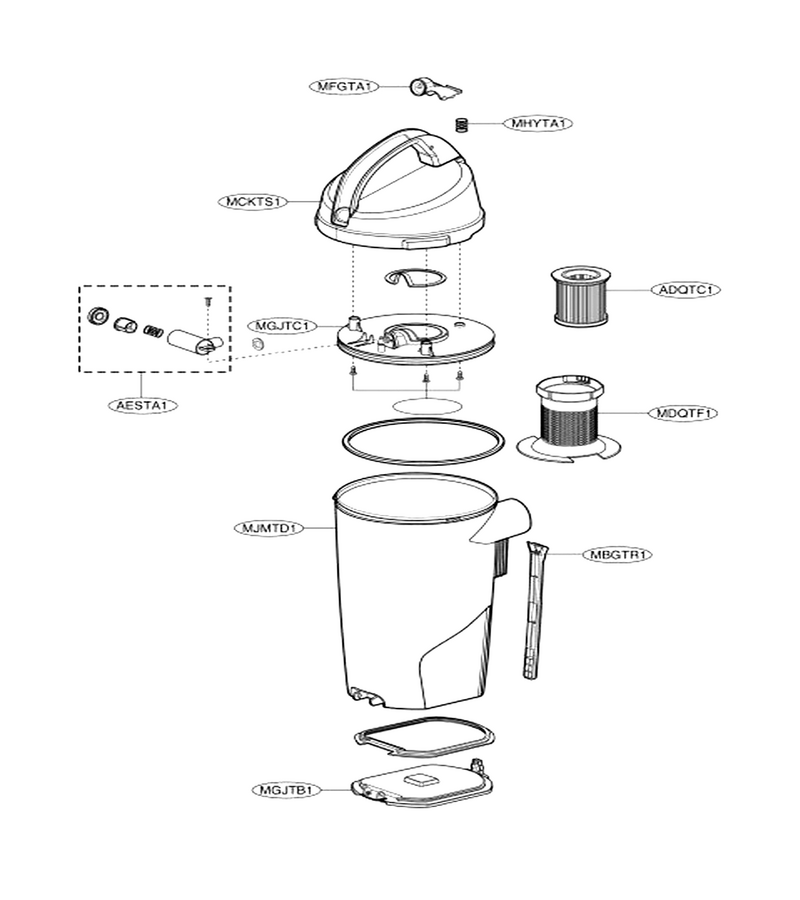

Tank Assembly, Dust

...
...
MJMTD1
Tank,dust L-G-4838FI1429A
...
MHYTA1
Spring,coil L-G-4970FI3202C
...
MGJTC1
Plate,cover L-G-3300FI1476D
...
MBGTR1
Button,release L-G-5020FI2386A
...
MGJTB1
Plate,bottom L-G-3300FI1475F
...
MFGTA1
Locker L-G-4026FI3720C
...
MCKTS1
Cover,dust L-G-3550FI1918F
...
AESTA1
Indicator Assembly L-G-3521FI3709A
...
ADQTC1
Filter Assembly,clean L-G-5231FI2515A
...
MDQTF1
Frame,filter L-G-3210FI1020C

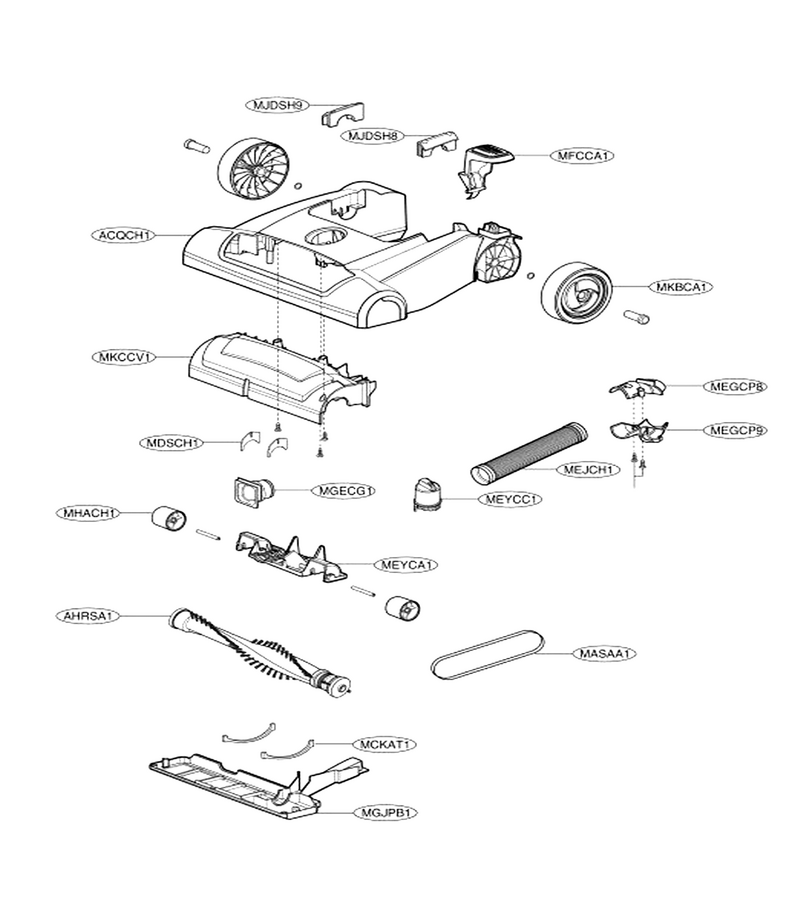

Plate Assembly, Bottom & Cover Assembly, Head

...
...
MEYCA1
Knob,regulation L-G-4940FI2017A
...
MKBCA1
Wheel L-G-4660FI2436A
...
MJDSH9
Strap,head L-G-4640FI3004F
...
MJDSH8
Strap,head L-G-4640FI3003F
...
MHACH1
Roller L-G-4580FI3010B
...
MGJPB1
Plate,bottom L-G-3300FI1477A
...
MGECG1
Pipe,guide L-G-5200FI3813A
...
MFCCA1
Lever L-G-3058FI2009D
...
MEYCC1
Knob,control L-G-4940FI2018C
...
MEJCH1
Hose,flexible L-G-5214FI1469A
...
MEGCP9
Holder,pipe L-G-4930FI2474A
...
MEGCP8
Holder,pipe L-G-4930FI2473A
...
MDSCH1
Gasket L-G-4036FI3746A
...
MCKAT1
Gasket L-G-4036FI3740A
...
MASAA1
Belt L-G-4400FI3351D
...
AHRSA1
Shaft Assembly,agitator L-G-5973FI1007F
...
ACQCH1
Cover Assembly,top L-G-3551FI1755G

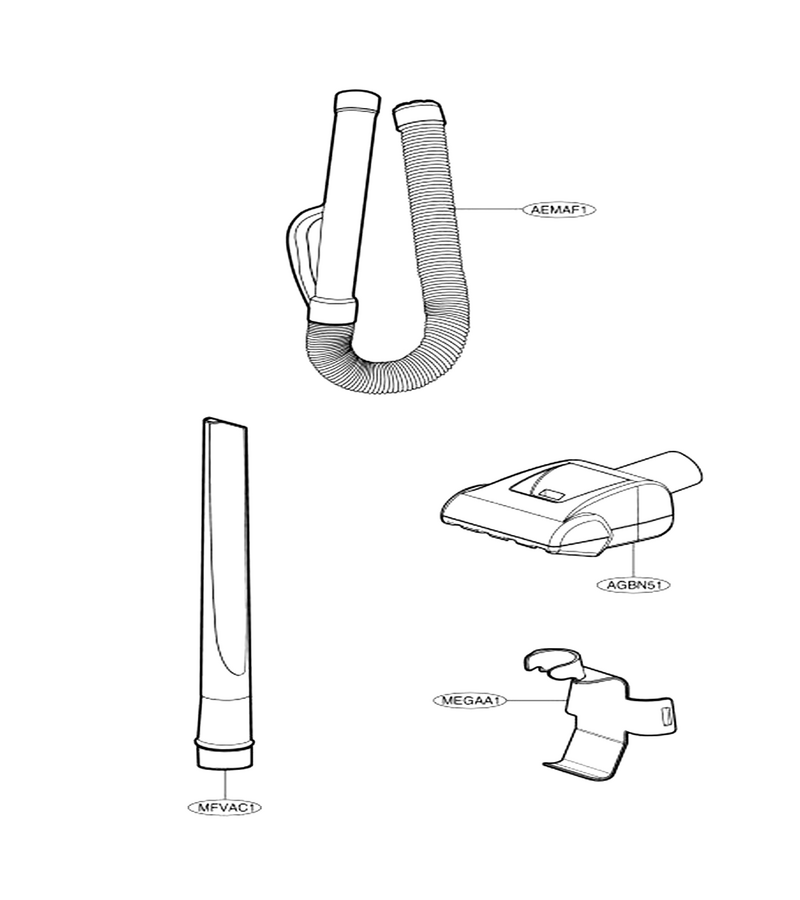

Hose Assembly & Accessories

...
...
AEMAF1
Hose Assembly,flexible L-G-5215FI1377A
...
AGBN51
Nozzle Assembly,turbine L-G-5249FI1446D
...
MEGAA1
Holder,accessory L-G-4930FI2471B
...
MFVAC1
Nozzle,crevice L-G-5058FI1002A
