LG TS-K1830HL.AMB6TFC

Model: TS-K1830HL.AMB6TFC

Save Part Not Listed?
product name

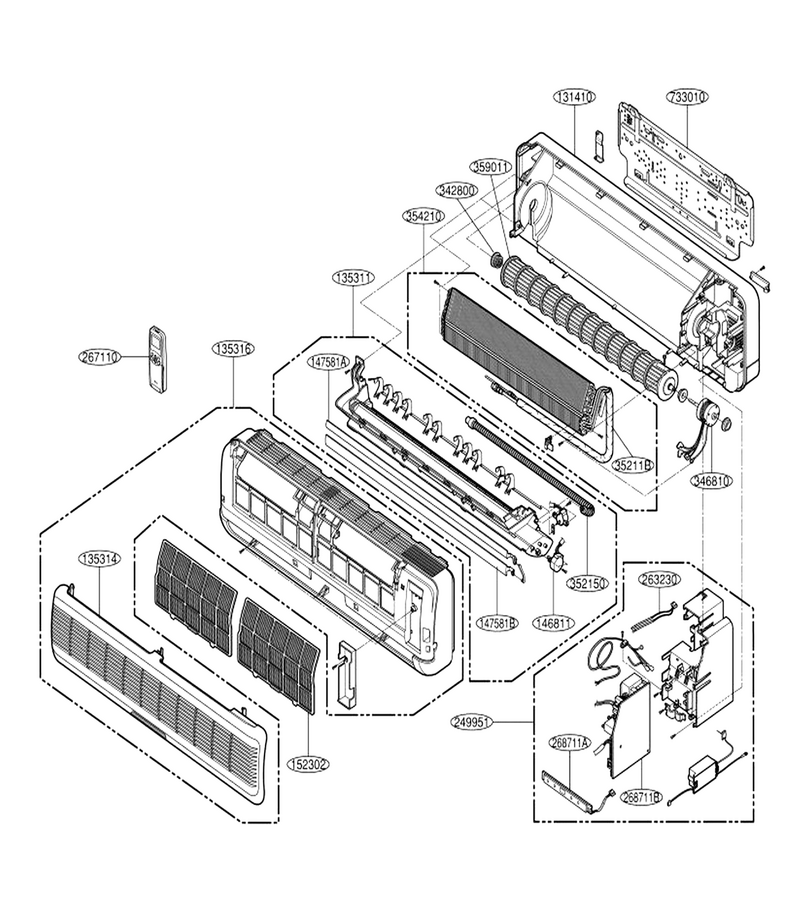

Indoor Unit

...
...
35211B
Tube Assembly,tubing L-G-5211A30038C
...
131410
Chassis Assembly L-G-3141A20002H
...
135311
Grille Assembly,discharge(indoor) L-G-3531A10008Q
...
135314
Grille Assembly,inlet(sub) L-G-3531A20203B
...
135316
Grille Assembly,front(indoor) L-G-3531A20202B
...
146811
Motor Assembly L-G-4681AR2727H
...
147581A
Louver,horizontal L-G-5990A30001B
...
147581B
Louver,horizontal L-G-5990A30002B
...
152302
Filter L-G-5230A20001D
...
249951
Case Assembly,control(indoor) L-G-4995A20123V
...
267110
Remote Controller Assembly L-G-6711A20078B
...
268711A
Control Board L-G-6871A30009D
...
268711B
Pcb Assembly,main L-G-6871A10035N
...
342800
Bearing L-G-3H02821B
...
346810
Motor Assembly L-G-4681AR2295J
...
352150
Hose Assembly L-G-5251AR2575A
...
354210
Evaporator Assembly,first L-G-5421A20020B
...
359011
Fan Assembly L-G-5901AR2441E
...
733010
Plate Assembly, Install L-G-3301A10002A

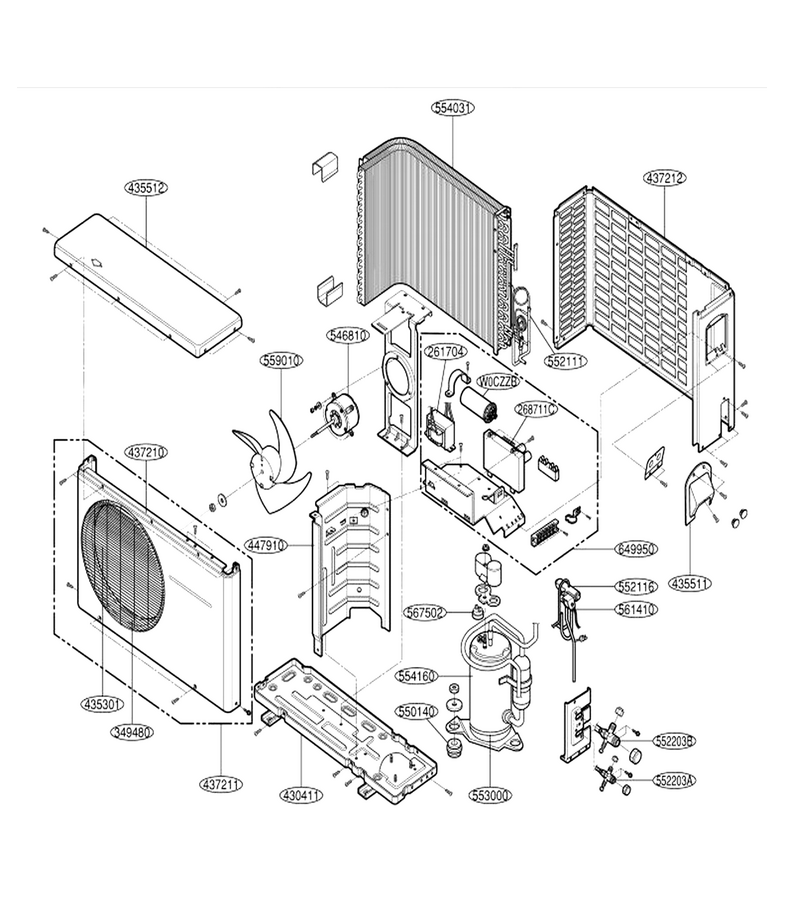

Outdoor Unit

...
...
261704
Transformer L-G-6171AQ3198A
...
268711C
Control Board L-G-6871A10036C
...
349480
Orifice L-G-4948AP2527A
...
430411
Base Assembly,weld(outdoor) L-G-3041A30003B
...
435301
Grille,dis L-G-3530A20007B
...
435511
Cover Assembly L-G-3551AR7184T
...
435512
Cover Assembly L-G-3H03266J
...
437210
Panel Assembly,front(sub) L-G-3721A20004G
...
437211
Panel Assembly L-G-3721A20005H
...
437212
Panel Assembly, Rear (outdoor) L-G-AGL36636804
...
447910
Barrier Assembly, Outdoor L-G-2H02110M
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20013M
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Tube Assembly L-G-5211A10039B
...
552116
Tube Assembly L-G-5211A30042J
...
552203A
Service Valve L-G-2A00392Y
...
552203B
Service Valve L-G-5220A20005C
...
553000
Heater L-G-5300AR2915A
...
554031
Condenser L-G-5403A20022F
...
554160
Compressor L-G-2520UMBK1LA
...
559010
Fan Assembly L-G-1A00195B
...
561410
Coil Assembly, Reversing Valve L-G-3A02028H
...
649950
Control Board L-G-4781AR1528R
